Description
High Immunity Type A Residual Current Device

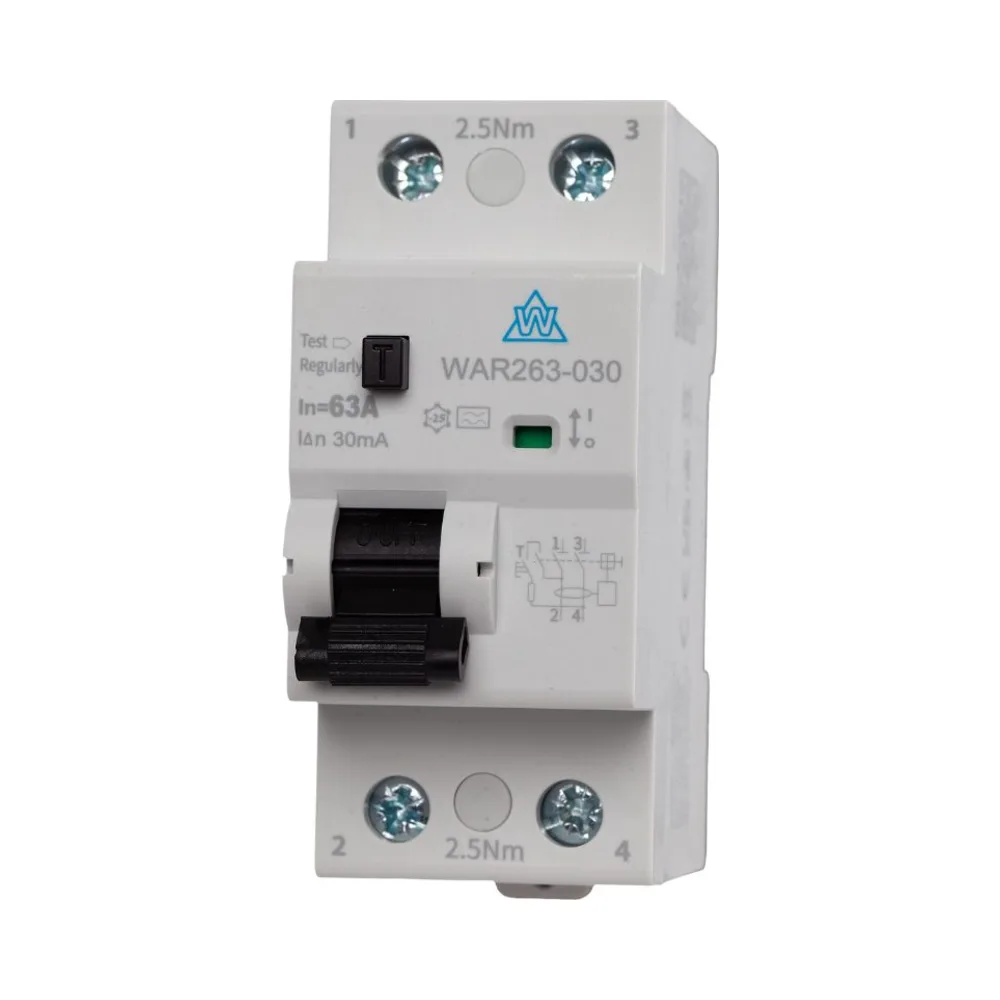

WCED 2 Pole 63A 30mA Type A RCD
Protect your circuits with the WCED High Immunity Type A RCD. It detects sinusoidal AC leakage and pulsating DC up to 6 mA, helping deliver reliable disconnection at 30 mA. Compact design and robust endurance make it a dependable choice for installers.
Rated at 63A and configured as 2 pole, this unit suits distribution boards requiring Type A protection. It offers IP20 protection, a 6 kA conditional short‑circuit rating, and operates from −25 °C to +40 °C.
✨ Key Features – WCED Type A RCD
- Type A residual current protection at 30 mA
- Electro‑magnetic mechanism with high immunity
- Rated operational voltage: 230/400 V
- Rated conditional short‑circuit current: 6 kA
- Mechanical endurance: 4000 cycles; electrical: 2000 cycles
- Compact modular design – 2‑pole, 63A
Technical Overview
- Mode: Electro‑magnetic
- Residual current characteristics: Type A
- Sensitivity: 30 mA
- IP degree of protection: IP20
- Operating temperature: −25 °C to +40 °C
- Standards: Conforms to BS EN 61008‑1 and BS EN 60529
- Approx. dimensions (W×H×D): 36x82x70 mm
Included
- 1 × WCED Type A RCD – 2 pole, 63A, 30 mA
✅ Why Choose This Product?
Choose WCED Type A RCDs for robust leakage protection and consistent performance. Installers value their compact footprint, clear markings, and proven endurance in demanding distribution board applications.
️ Guarantee & Compliance
WCED RCDs are manufactured to meet BS EN 61008‑1 and ingress protection to BS EN 60529. Refer to WCED technical literature for certification and installation guidance.
