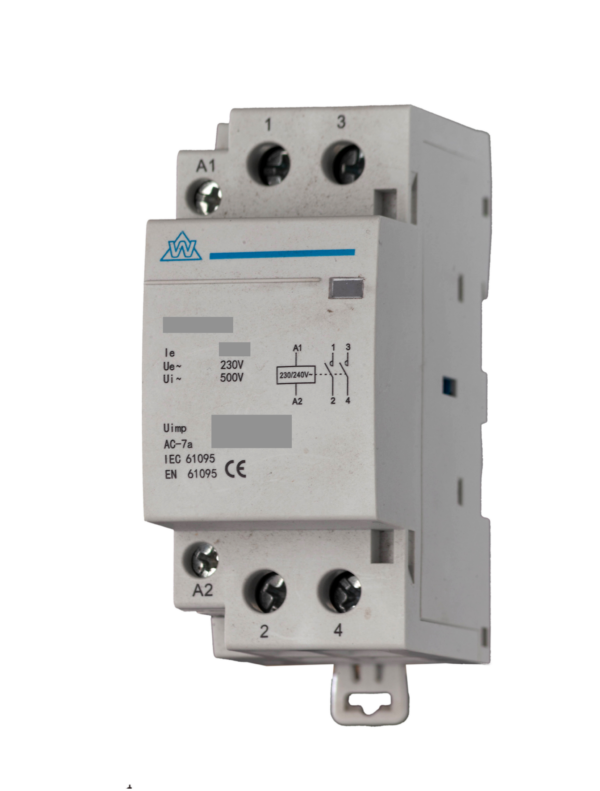

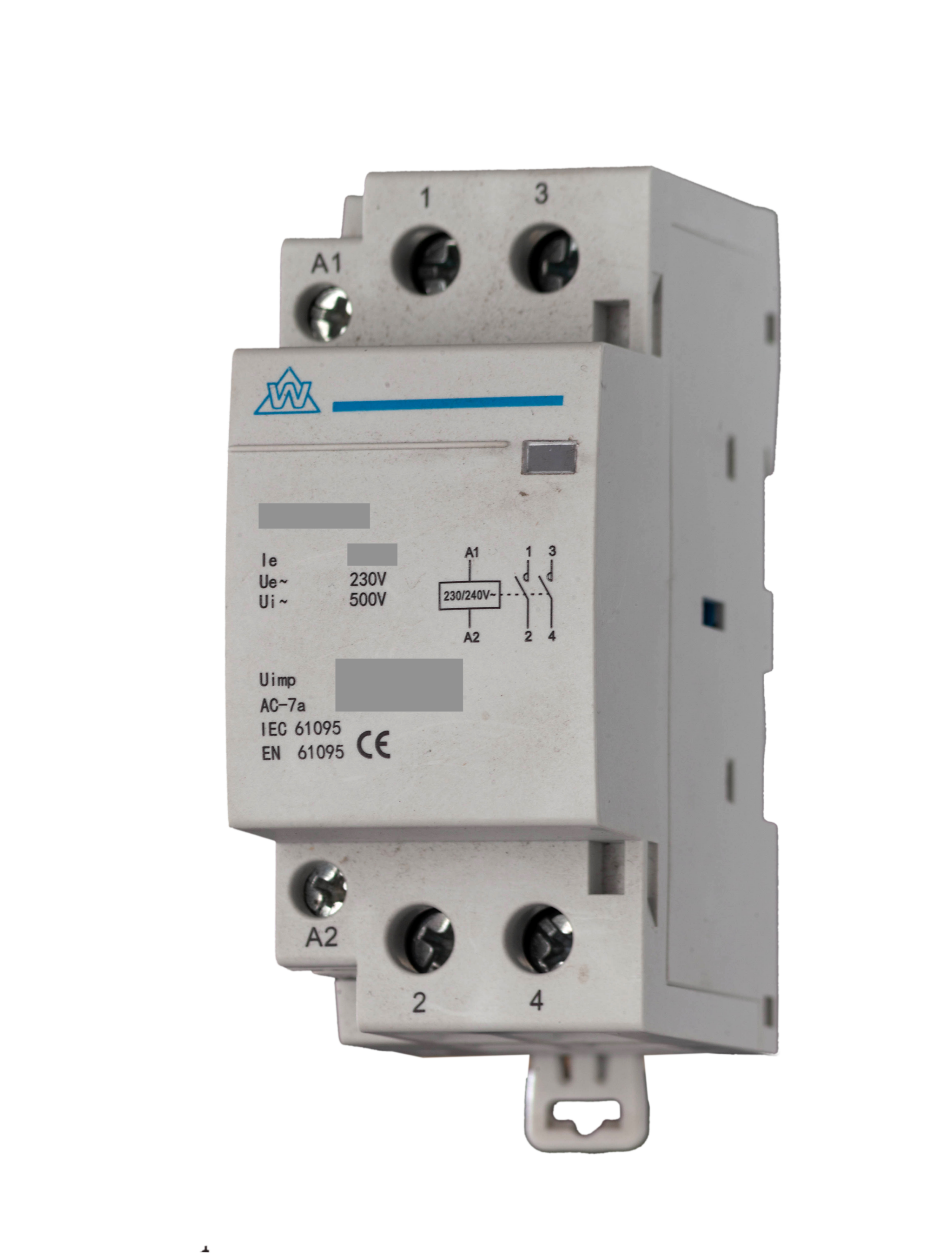

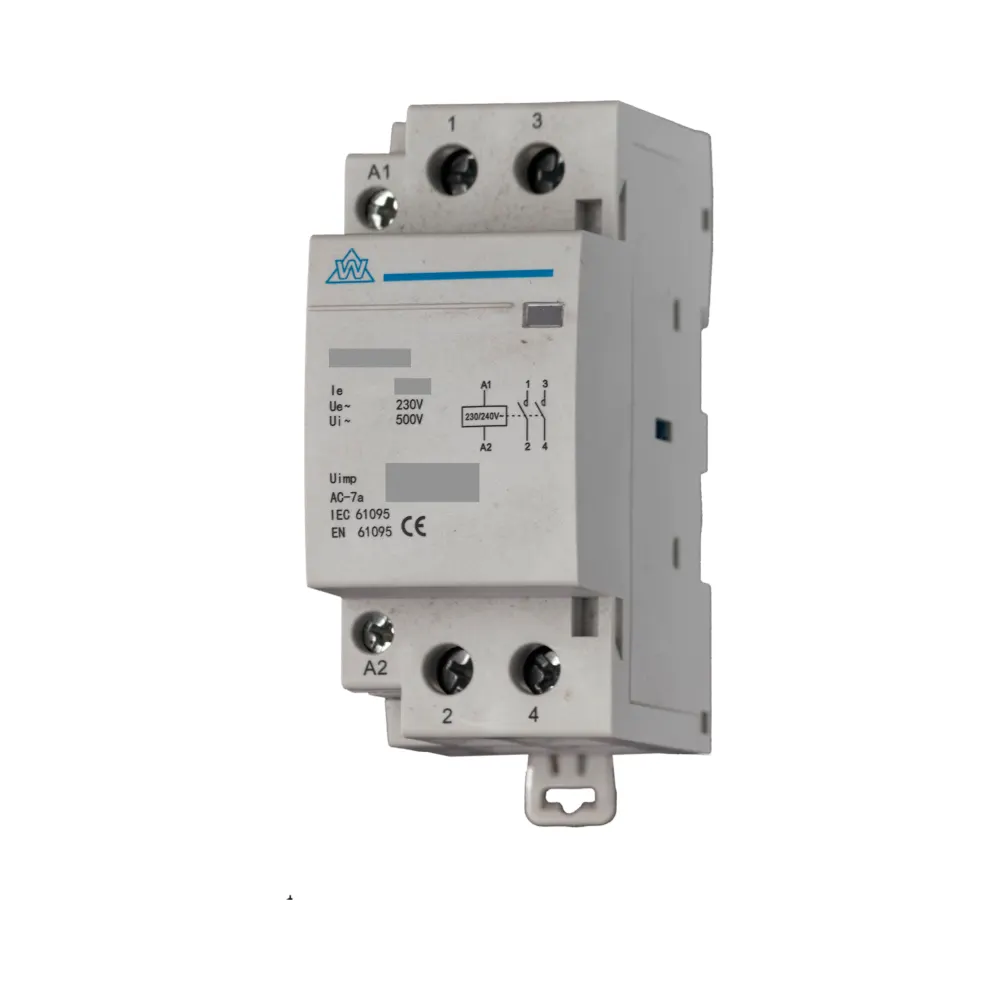

2 Pole 230V 63A Normally Open AC Modular Contactor
The WCED 2 Pole 230V 63A Normally Open AC Modular Contactor is a reliable and efficient solution for controlling medium to high-capacity electrical circuits. Its compact and durable design makes it suitable for use in residential, commercial, and light industrial applications. With silent operation and compliance with safety standards, this contactor is ideal for managing lighting systems, HVAC setups, and automation devices.
Key Features of 2 Pole 230V 63A Normally Open AC Modular Contactor
- 63A Current Rating: Supports medium to high electrical loads with consistent performance.
- 2 Pole Configuration: Controls two independent circuits simultaneously.
- Normally Open (NO): Ensures current flows only when activated, providing precise circuit control.
- Rated Voltage: Operates at 230V AC @ 50Hz, suitable for various applications.
- Compact Modular Design: Fits neatly into consumer units and enclosures, optimising space.
- Silent Operation: Noise-free functionality, ideal for noise-sensitive environments.
- Durable Construction: Built with high-quality materials for reliable, long-term use.
- Standards Compliance: Certified to BS EN 61095 and BS EN 60947-4-1 for safety and efficiency.
Technical Specifications
- Brand: WCED
- Poles: 2 Pole
- Current Rating: 63A
- Control Voltage: 230V AC
- Operation Type: Normally Open (NO)
- Degree of Protection: IP20, conforming to BS EN 60529
- Utilisation Categories: AC-7a (resistive loads) and AC-1 (slightly inductive loads)
- Ambient Temperature Range: -25 °C to +40 °C
- Mounting: 35 mm DIN rail compatible
- Recommended Torque: 2.0Nm for secure installation
- Compliance: Certified to BS EN 61095 and BS EN 60947-4-1
How It Works
The WCED 2 Pole 63A Modular Contactor operates using an electromagnetic coil to control electrical circuits:
- Default State: In its normally open (NO) configuration, the contacts remain open, preventing current flow.
- Activation: When the control voltage energises the coil, the electromagnetic force pulls the armature, closing the contacts to allow current flow.
- Deactivation: When the coil is de-energised, the contacts return to their open state, stopping the current flow.
Applications
- Residential: Suitable for controlling lighting systems and medium-capacity heating circuits.
- Commercial: Ideal for office lighting, HVAC systems, and automation devices.
- Light Industrial: Effective for managing motors, pumps, and other equipment.
Why Choose This Contactor?
The WCED 2 Pole 230V 63A NO Modular Contactor delivers precision, durability, and silent operation, making it a trusted choice for electricians and engineers. Its robust construction and compliance with international safety standards ensure dependable performance across various applications.
