Description

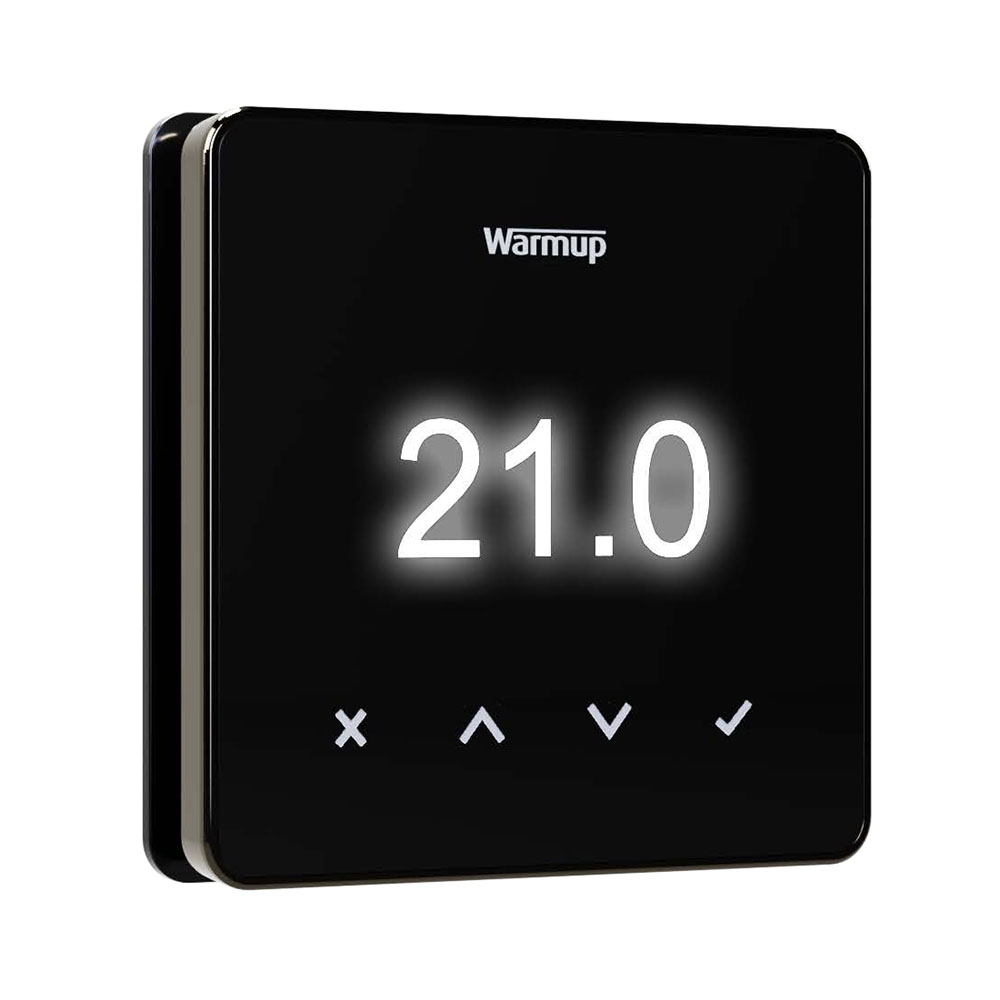

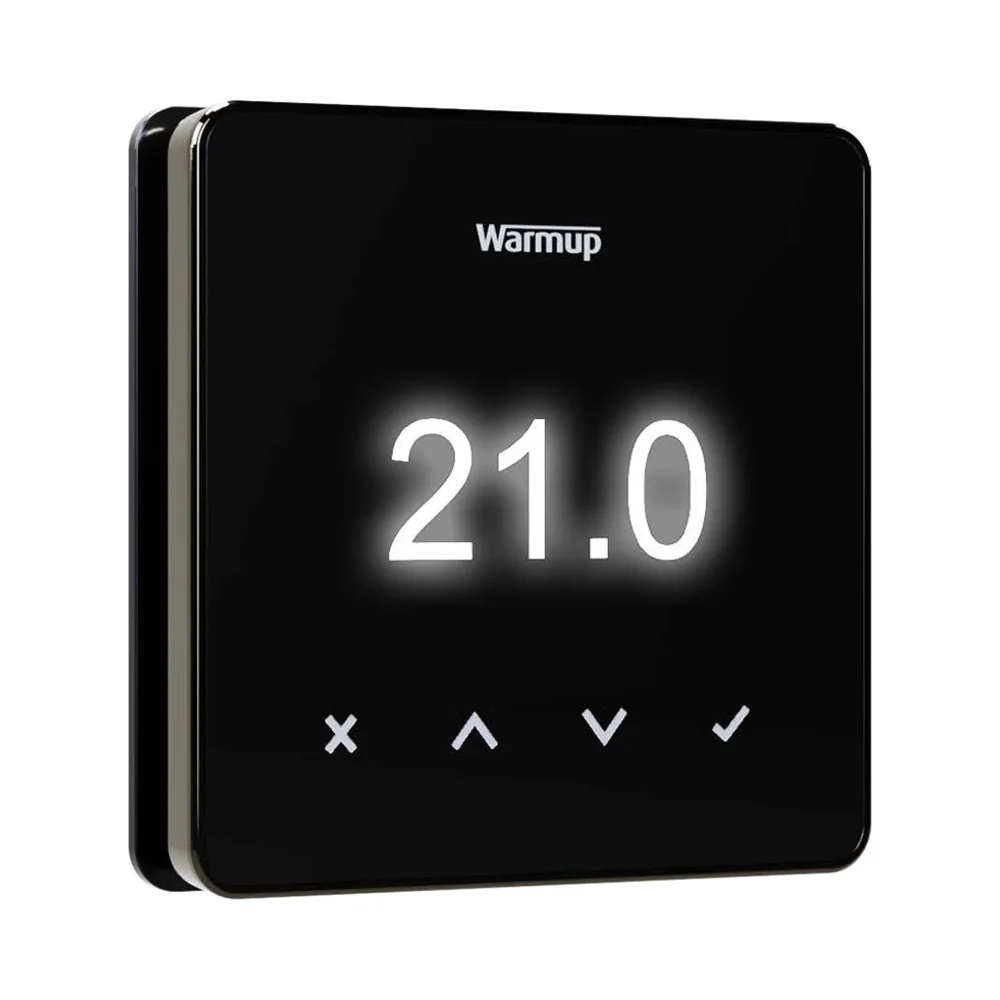

Element WiFi Thermostat – Black with Dark Chrome
Warmup ELM-01-OB-DC
Smart and Stylish Heating Control for Floor Heating Systems
The Warmup ELM-01-OB-DC Element WiFi Thermostat combines simplicity and intelligent control, providing energy-efficient heating for both electric and hydronic floor heating systems. Designed for effortless operation, it automatically adjusts the temperature using SmartGeo technology, ensuring optimal comfort while reducing energy usage and CO₂ emissions by up to 25%.
Key Benefits
- Always at the Right Temperature – SmartGeo technology lowers heating when you leave and warms up before you return.
- Weather-Based Early Start – Adjusts heating activation based on the local weather forecast, ensuring comfort in all conditions.
- User-Friendly Operation – No programming required, with a quick and simple setup process.
- Remote Control via MyHeating App – Monitor and control heating from anywhere with iOS and Android support.
- Energy Efficient & Cost-Effective – Helps reduce energy consumption and heating costs while maintaining luxurious comfort.
Why Choose the Warmup Element WiFi Thermostat?
The Element WiFi Thermostat offers seamless smart heating control, making it a perfect choice for those looking to optimise their floor heating system. With its sleek black and dark chrome design, it enhances any interior while delivering advanced energy-saving features.
Technical Specifications
- Operating Voltage: 230 V AC ±15%, 50 Hz
- Maximum Load: 16 A (~3680 W)
- Max. Ambient Temperature: 40ºC
- Dimensions: 86 x 86 x 16 mm (from the wall)
- Screen Size: 1.8 inches
- Sensors: Air and floor sensors
- Floor Sensor Type: NTC10k (3m long)
- Installation Depth: 50 mm back box recommended (35 mm minimum)
- IP Rating: IP33
- Er-P Class: IV
- Certification: BEAB and CE marked
- Warranty: 12 years with a Warmup heating system (3 years with other systems)
Compatibility
- Requires 230 V AC power at all times
- Compatible with electric and hydronic floor heating systems
- Works with Combi and System boilers with Switch Live (230 V AC) input
- For lower voltage or volt-free systems, a contactor is required
Pack Contents
- 1 x Element WiFi Thermostat (Display & Power Base) with installation manual
- 1 x 3m NTC10K Sensor
- 2 x M3.5 x 25 x 0.6P Screws
- 1 x Screwdriver
