Description

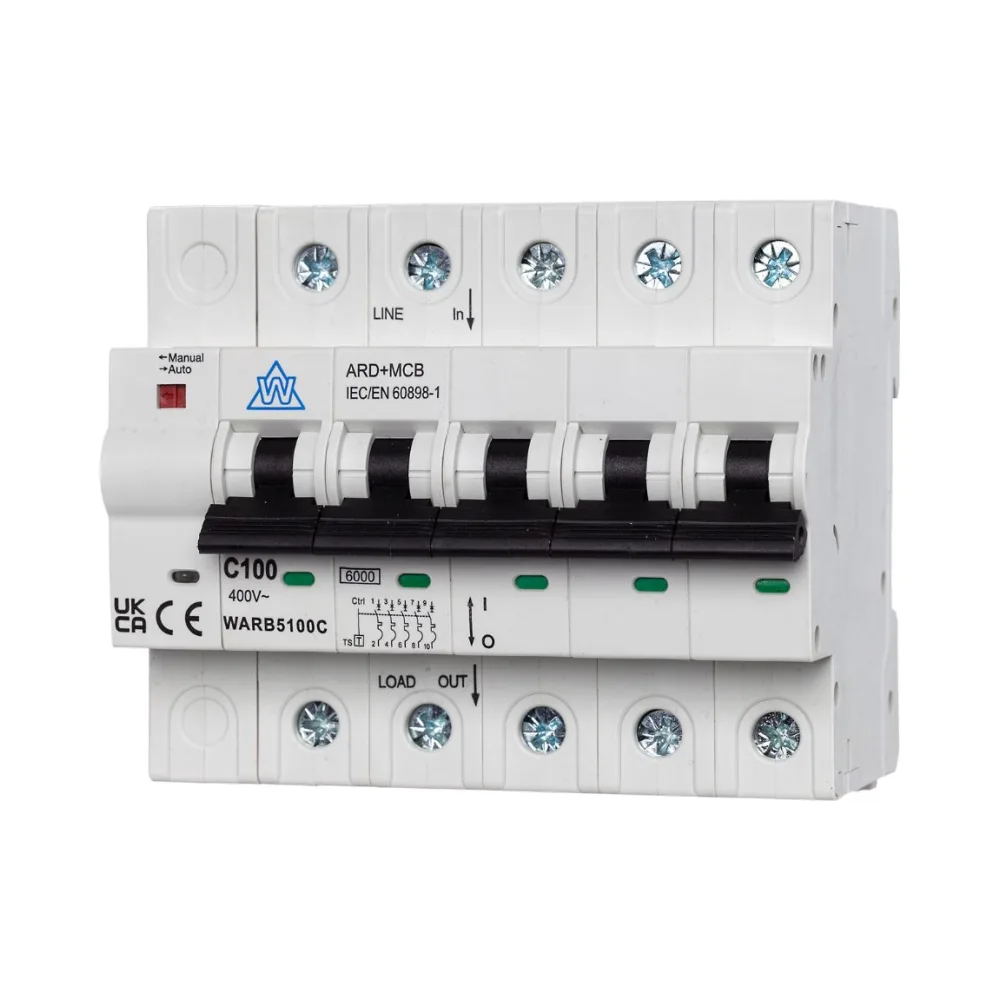

5 Pole 100A Auto Reset Device with PME Fault Protection
Whitecliffe Electrical WARB5100C
The Whitecliffe WARB5100C 5-pole 100A auto reset device provides dependable PME fault protection for three-phase systems. It continuously monitors supply voltage and disconnects live, neutral, and earth when an under-voltage or over-voltage fault is detected, ensuring safe operation at all times.
Rated at 100A, it delivers strong protection while remaining easy to operate. However, to enhance safety, it requires a manual reset after over-voltage events, while under-voltage conditions reset automatically once supply returns to normal.
In addition, the WARB5100C includes overload and short-circuit protection, reducing the need for additional devices. As a result, it simplifies system design and improves overall reliability. Installation is straightforward, since no earth electrodes are required, making it ideal for both new and retrofit projects.
✨ Key Features – 5 Pole 100A PME Fault Protection Auto Reset Device
- Continuous monitoring for 230/400V three-phase systems
- Disconnects L, N and PE within 5 seconds on under-voltage (<207V) or over-voltage (>253V)
- Automatic reset after under-voltage; manual reset after over-voltage for added safety
- No earth electrodes required – simplifying installation
- Integrated overload and short-circuit protection
- Complies with BS EN 60898-1, BS EN 60947 and BS EN 50557 standards
Technical Overview – Whitecliffe WARB5100C
- Rated Current: 100A
- Rated Voltage: 230/400V AC
- Rated Insulation Voltage: 500V
- Frequency: 50/60Hz
- Short-Circuit Capacity: 10kA
- Impulse Withstand Voltage: 6kV
- Tripping Characteristics: Curve C (5In–10In)
- Operating Window: 207–253V (disconnect within 5s)
- Ingress Protection: IP20
- Ambient Temperature: −25°C to +55°C
- Storage Temperature: −35°C to +55°C
- Pole Configuration: 5-pole (3P + N + PE)
Included
- WARB5100C – 5-Pole 100A Three-Phase Auto Reset Device
✅ Why Choose This Product?
The WARB5100C combines PME fault protection, overload safety, and short-circuit protection in one compact device. Therefore, it offers complete confidence for installers working on demanding three-phase applications. Moreover, the mix of automatic and manual reset features balances convenience with added control.
️ Guarantee & Compliance
The WARB5100C complies with BS EN 60898-1, BS EN 60947, and BS EN 50557 for proven, professional-grade safety and performance. With this in mind, Whitecliffe products remain a trusted choice across commercial and industrial projects.
