Wago 859-794 Railway Optocoupler Module – 0.1A Grey – 24V DC Input – 9-60V DC Output

Description

Railway Optocoupler Module – 0.1A Grey – 24V DC Input – 9-60V DC Output

Wago 859-794

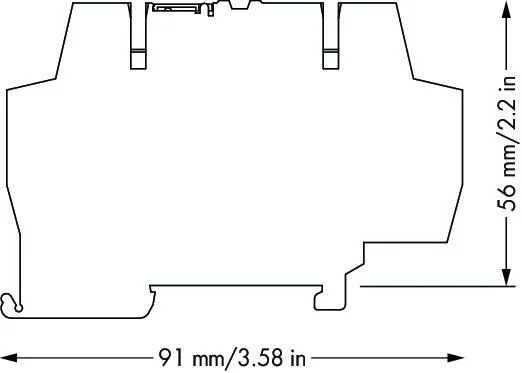

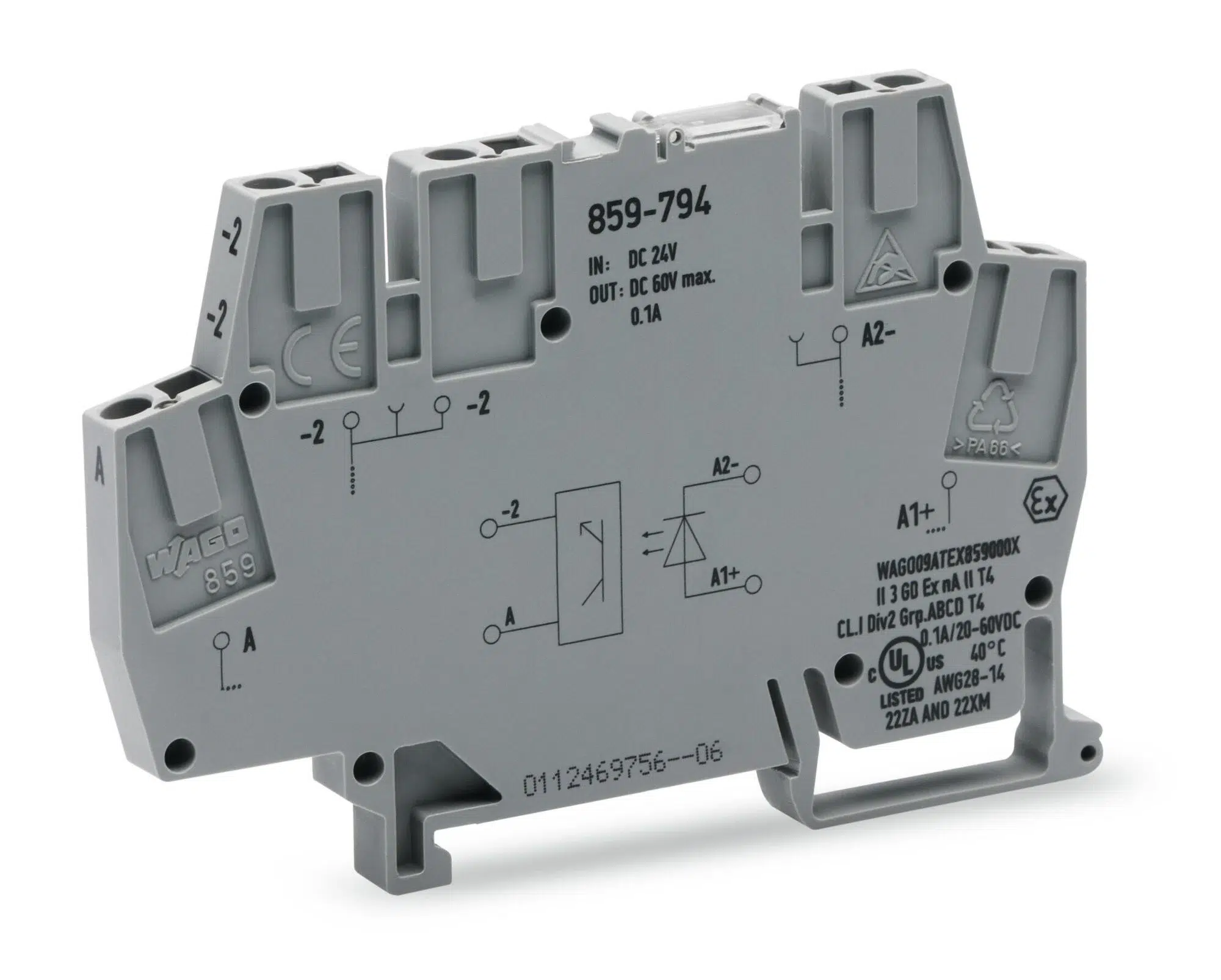

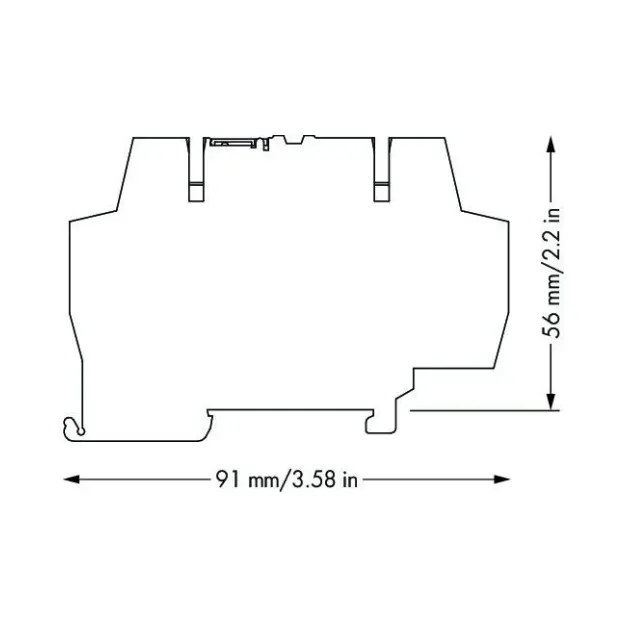

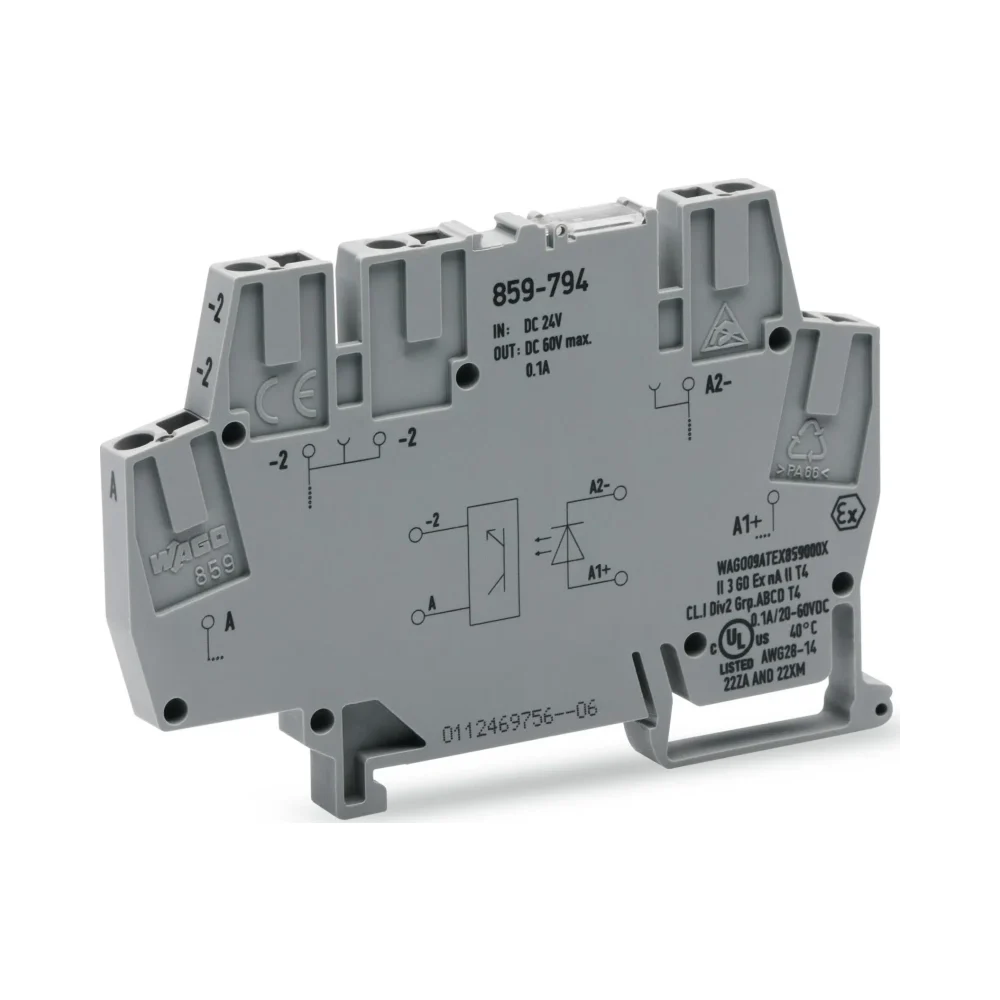

The Wago 859-794 Railway Optocoupler Module (SKU: 859-794) delivers reliable and precise switching in railway applications. With a nominal input voltage of 24V DC and an output range of 9-60V DC, this optocoupler module ensures efficient performance with up to 0.1A continuous current.

Wago’s CAGE CLAMP® technology simplifies installation by allowing tool-free, secure wire connections. Its slim 6 mm module width makes it a perfect fit for space-constrained control panels. Designed specifically for railway environments, it provides essential electrical isolation, protecting sensitive circuits.

Key Features of the Wago 859-794 Railway Optocoupler Module:

• Nominal Input Voltage: Operates at 24V DC with an input current of 5 mA, ensuring stable performance in railway control systems.
• Output Voltage Range: Offers a flexible output range from 9 to 60V DC, making it suitable for various applications.
• Two-Wire Connection: Simplifies integration with a two-wire connection system.
• Compact Design: At only 6 mm in width, the module is ideal for installations where space is limited.

Electrical Specifications:

• Limiting Continuous Current: Supports up to 0.1A continuous current, providing reliable switching.
• Voltage Drop: Ensures efficient operation with a maximum voltage drop of ≤ 2V DC at the output.
• Fast Switching: Features a turn-on time of ≤ 20 µs and a turn-off time of ≤ 120 µs, allowing quick and precise switching with a maximum switching frequency of 1.5 kHz.

Connection Data:

• Wago CAGE CLAMP® Technology: Allows fast and tool-free connections for both solid and fine-stranded conductors.
• Wire Compatibility: Supports solid and fine-stranded conductors from 0.08 to 2.5 mm² (28 to 14 AWG) and insulated ferrules for fine-stranded conductors from 0.08 to 1.5 mm² (28 to 16 AWG).
• Strip Length: Requires a strip length of 5 to 6 mm for secure wire connections.

Applications for Wago 859-794 Railway Optocoupler Module:

• Railway Control Systems: Ideal for railway applications that require electrical isolation and reliable switching.
• Automation Systems: Suitable for automation systems that demand quick and efficient relay performance.
• Building Automation: Applicable for building automation projects that require space-saving solutions and real-time switching.

The Wago 859-794 Railway Optocoupler Module (SKU: 859-794) provides a compact and efficient solution for electrical isolation and switching in railway environments. Wago’s CAGE CLAMP® technology ensures easy installation and long-lasting performance in space-constrained industrial settings.
