Optocoupler Module – 3A Grey – 24V DC Input – 3-30V DC Output
Wago 859-730

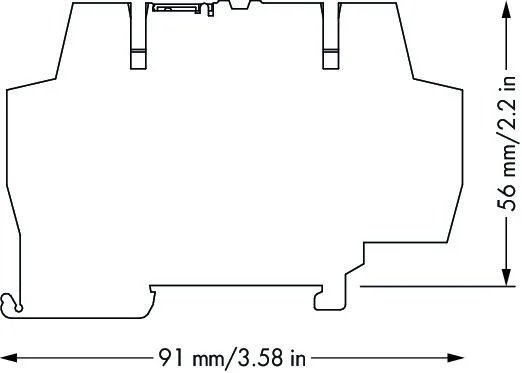

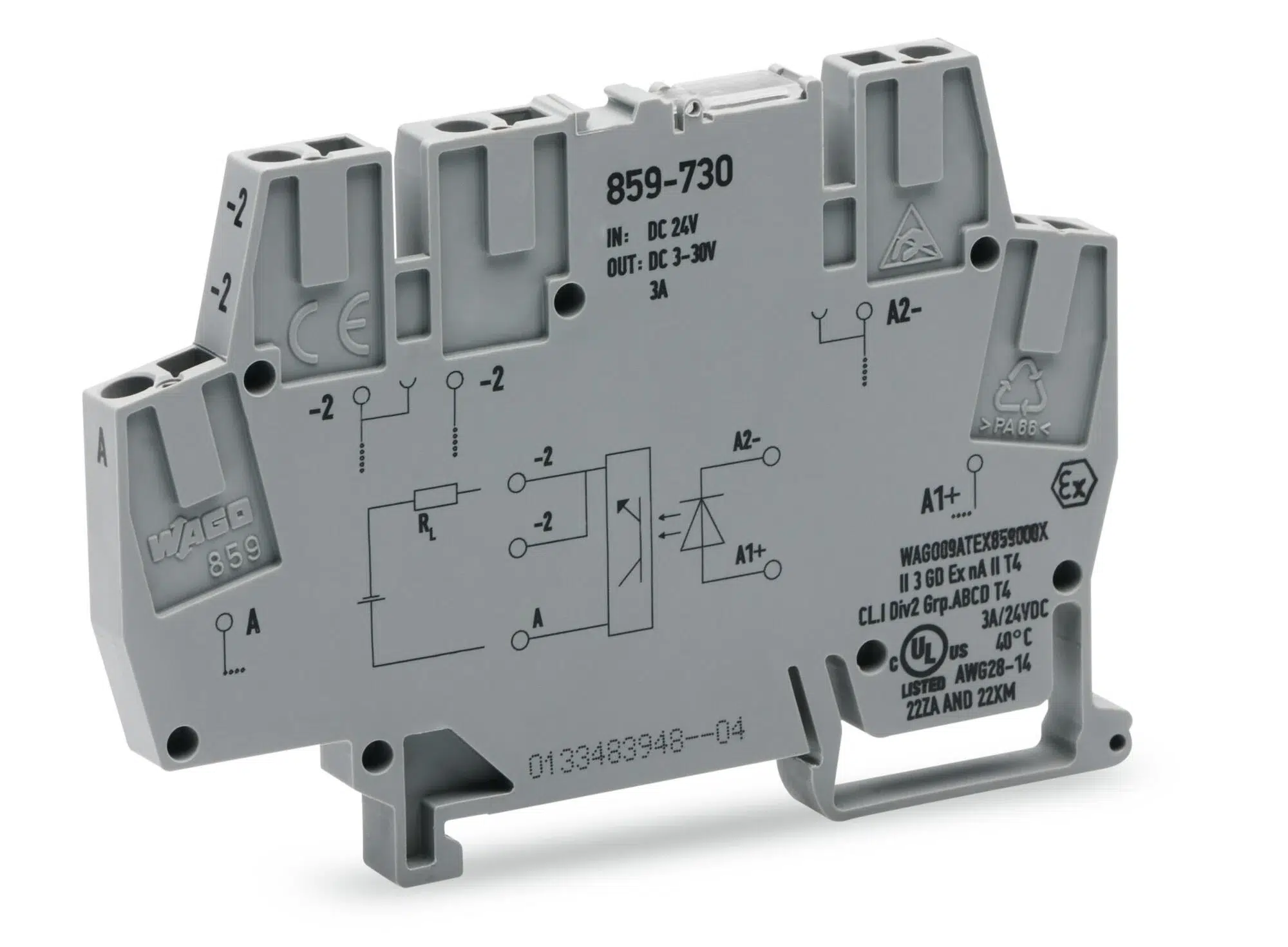

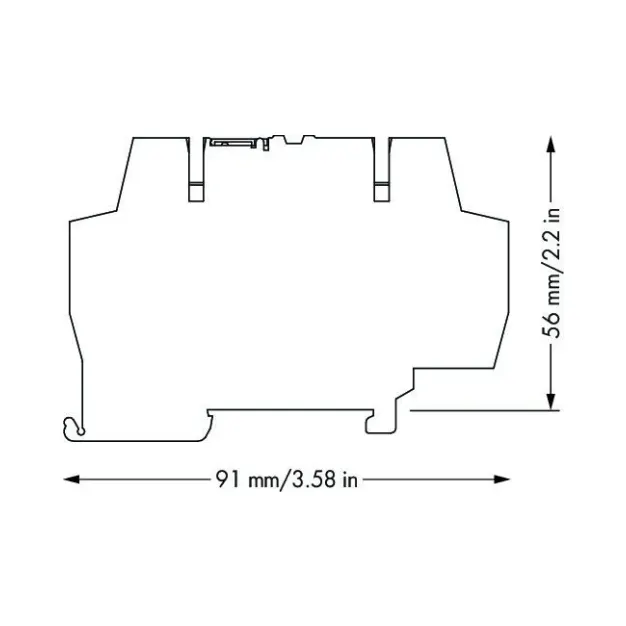

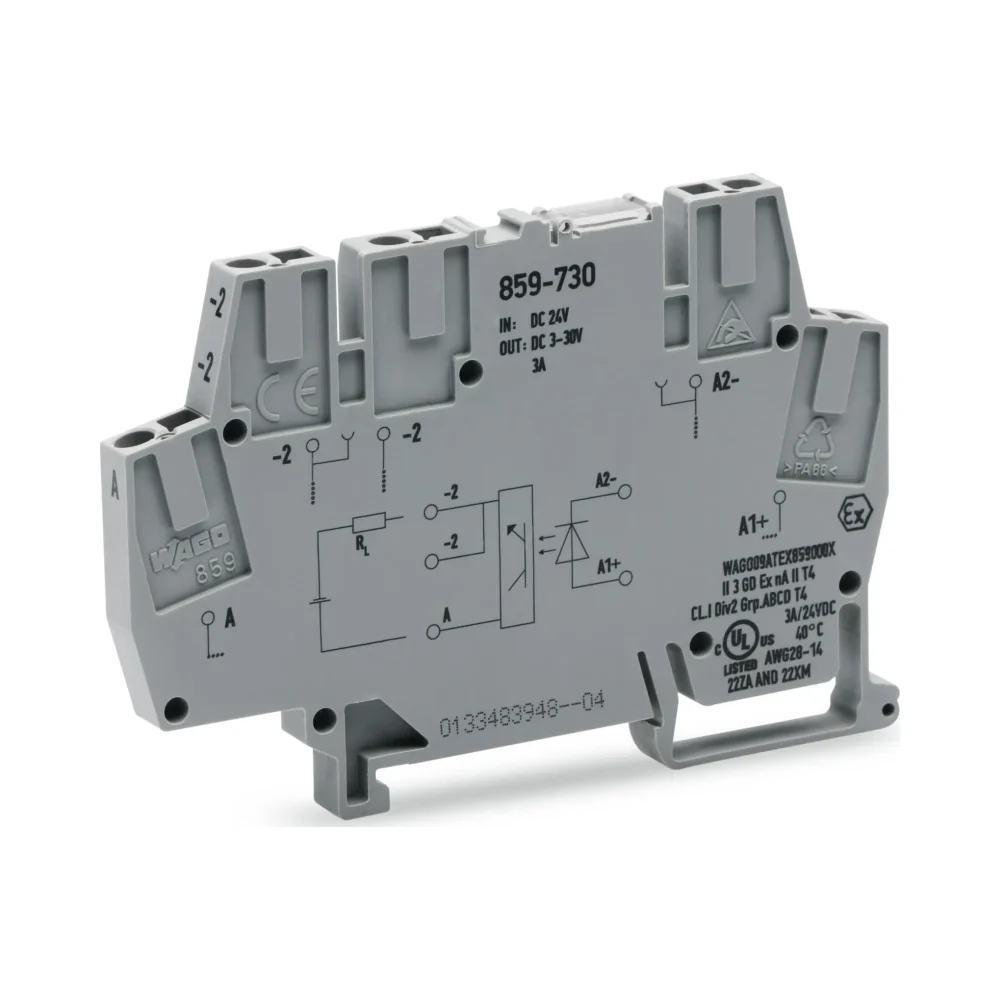

The Wago 859-730 Optocoupler Module (SKU: 859-730) provides reliable switching and electrical isolation with a 24V DC input and a wide 3-30V DC output range. Supporting up to 3A continuous current, it is ideal for control panels and industrial automation systems. Wago’s CAGE CLAMP® technology ensures fast, secure, and tool-free connections, simplifying installation.
The module’s compact 6 mm width saves space while the optocoupler design ensures electrical isolation, protecting sensitive circuits from potential damage.
Key Features of the Wago 859-730 Optocoupler Module:
- Nominal Input Voltage: Operates at 24V DC with an input current of 15 mA, ensuring stable performance in control systems.
- Output Voltage Range: The output voltage spans from 3 to 30V DC, offering flexibility in various applications.
- Two-Wire Connection: Simplifies installation with a two-wire connection system, making it easy to integrate.
- Compact Design: With a module width of 6 mm, it’s ideal for installations where space is limited.
Electrical Specifications:
- Limiting Continuous Current: Supports up to 3A continuous current for reliable switching in demanding environments.
- Peak Output Current: Handles peak output currents up to 25A, providing robustness during high-demand conditions.
- Voltage Drop: Ensures efficient performance with a maximum voltage drop of ≤ 0.4 VDC at the output.
- Fast Switching: Features a turn-on time of ≤ 20 µs and a turn-off time of ≤ 1 ms, allowing quick and precise switching.
Connection Data:
- Wago CAGE CLAMP® Technology: Enables fast, tool-free connections, simplifying installation and ensuring secure connections.
- Wire Compatibility: Supports solid and fine-stranded conductors from 0.2 to 2.5 mm² (24 to 14 AWG), with insulated ferrules for fine-stranded conductors from 0.08 to 1.5 mm² (28 to 16 AWG).
- Strip Length: Requires a strip length of 5 to 6 mm for optimal wire connections.
Applications for Wago 859-730 Optocoupler Module:
- Control Panels: Ideal for control panels requiring reliable electrical isolation and fast switching.
- Automation Systems: Suitable for automated systems that demand precise and fast relay switching.
- Building Automation: Perfect for building automation systems that require consistent relay performance and space-saving designs.
The Wago 859-730 Optocoupler Module (SKU: 859-730) offers a dependable and efficient solution for electrical isolation and switching tasks in control systems, automation, and building installations. Its compact design, along with Wago’s CAGE CLAMP® technology, ensures quick installation and long-lasting performance in industrial and commercial settings.
