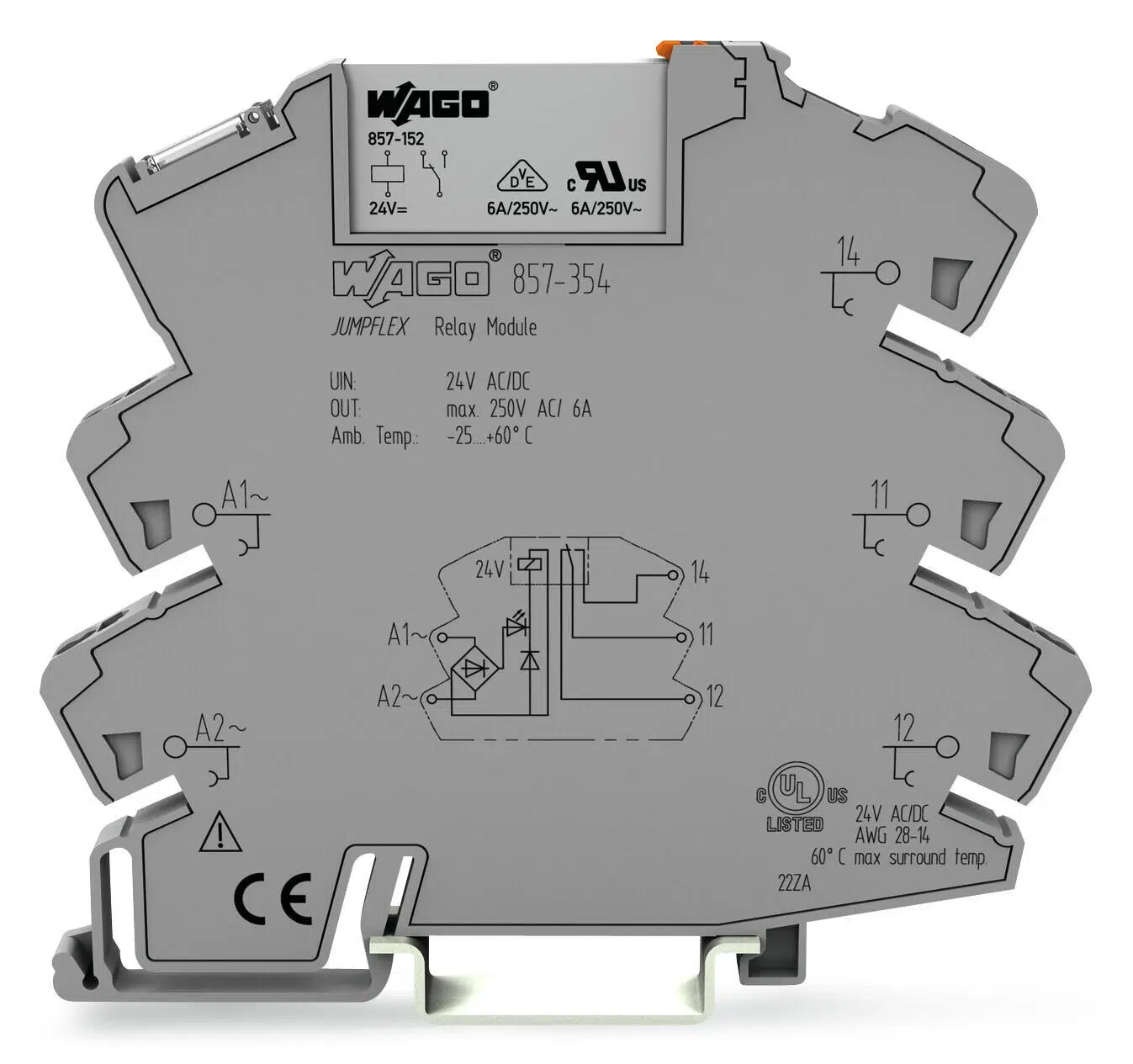

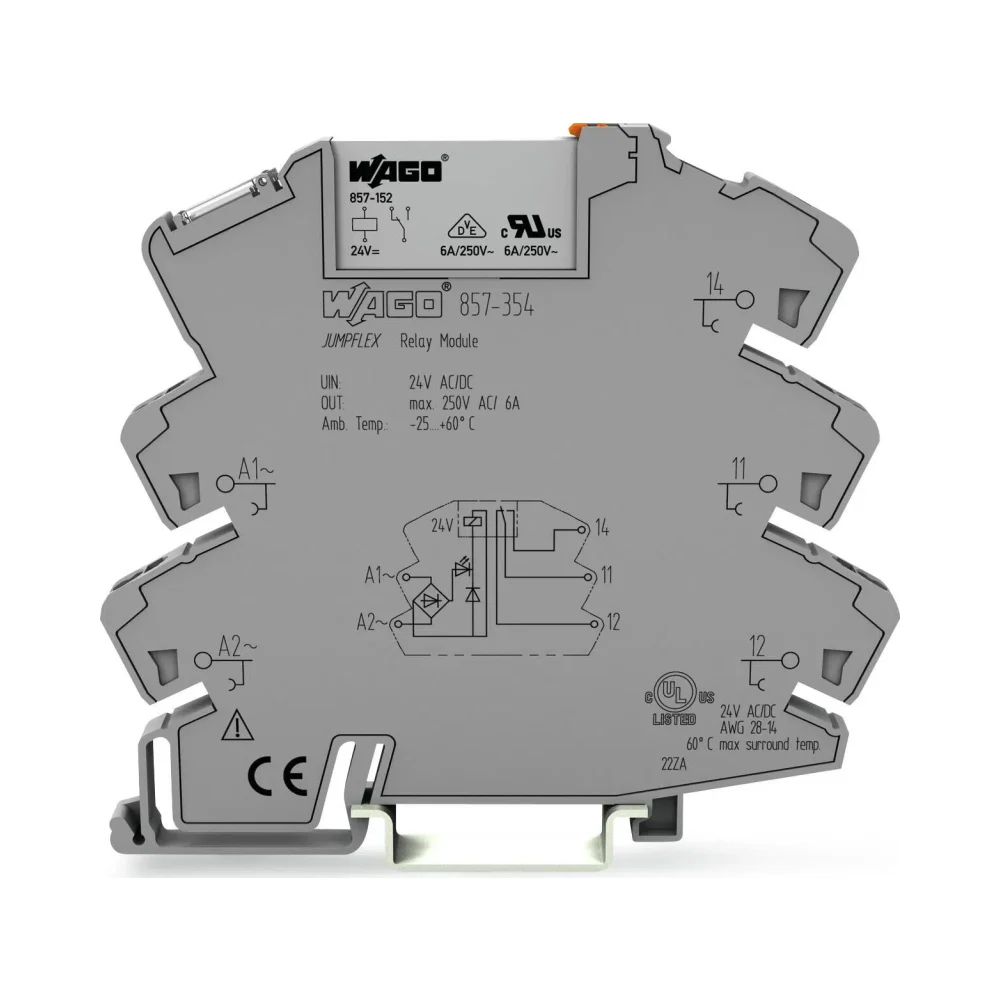

Relay Module with 1 Changeover Contact – 24V AC/DC 6A 2.5mm² Grey
Wago 857-354
The Wago 857-354 Relay Module (SKU: 857-354) offers reliable and efficient switching with its one changeover contact and a nominal input voltage of 24V AC/DC. Supporting up to 6A of continuous current, this relay is perfect for use in control panels, automation systems, and building installations. Wago’s Push-in CAGE CLAMP® technology allows for quick and tool-free wire connections, ensuring a secure installation.
The integrated yellow status indicator provides clear system feedback, making monitoring straightforward.
Key Features of the Wago 857-354 Relay Module:
- Nominal Input Voltage: Operates at 24V AC/DC with a nominal current of 9 mA, ensuring stable performance in control systems.
- One Changeover Contact: Supports up to 6A of continuous current, providing flexible switching for various applications.
- Yellow Status Indicator: The integrated yellow LED offers real-time visual feedback, simplifying system monitoring.

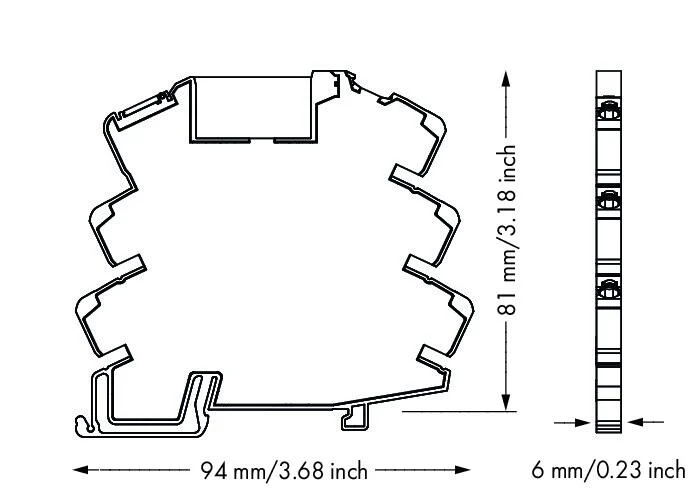

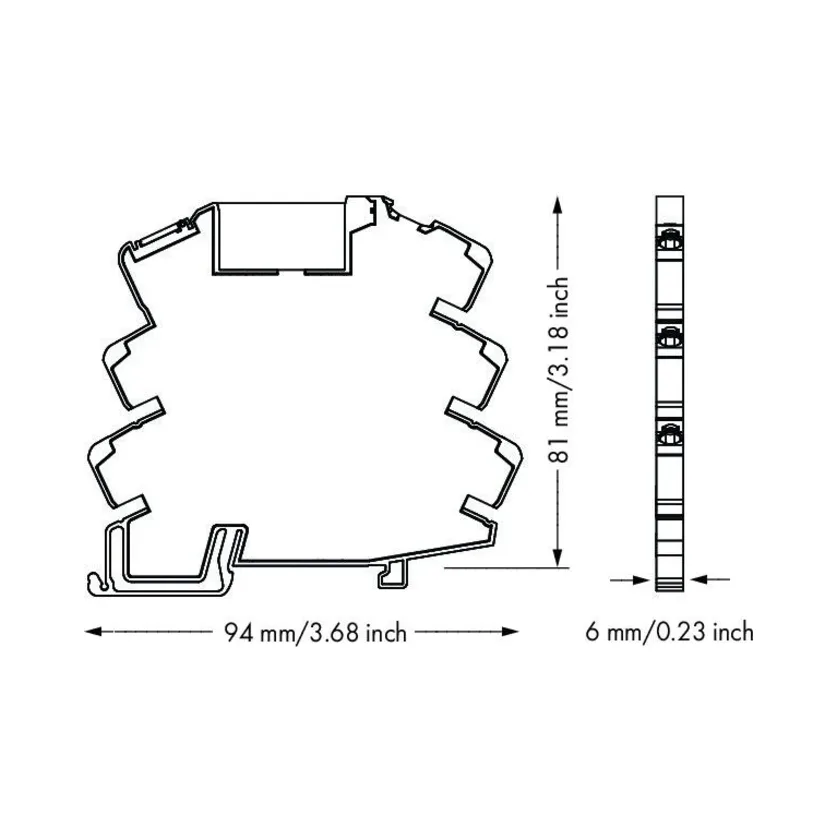

- Compact Design: With a module width of just 6 mm, it is ideal for space-constrained installations.
Electrical Specifications:
- Switching Voltage: Handles up to 250V AC, making it suitable for high-voltage applications.
- Switching Power: Rated for 1500 VA (resistive load), delivering strong performance in demanding environments.
- Inrush Current: Can manage inrush currents of up to 20A for 0.02 seconds, ensuring stability during startup.
- Fast Switching: Features a pull-in time of 15 ms and a drop-out time of 25 ms for efficient relay operation.
Connection Data:
- Wago Push-in CAGE CLAMP®: Ensures quick, tool-free wire connections, reducing installation time.
- Wire Compatibility: Supports solid and fine-stranded conductors ranging from 0.34 to 2.5 mm² (22 to 14 AWG), with insulated ferrules for fine-stranded conductors from 0.34 to 1.5 mm².
- Strip Length: Requires a strip length of 9 to 10 mm for optimal wire connections.
Applications for Wago 857-354 Relay Module:
- Control Panels: Perfect for control panels requiring efficient and reliable switching.
- Automation Systems: Ideal for automated systems that need fast and precise relay switching.
- Building Automation: Suitable for modern building automation systems that require consistent relay performance and easy monitoring.
The Wago 857-354 Relay Module (SKU: 857-354) is a versatile and reliable solution for switching tasks in control systems, automation, and building installations. Its compact design and Wago’s Push-in CAGE CLAMP® technology ensure quick installation and long-lasting performance in both industrial and commercial environments.
