Description

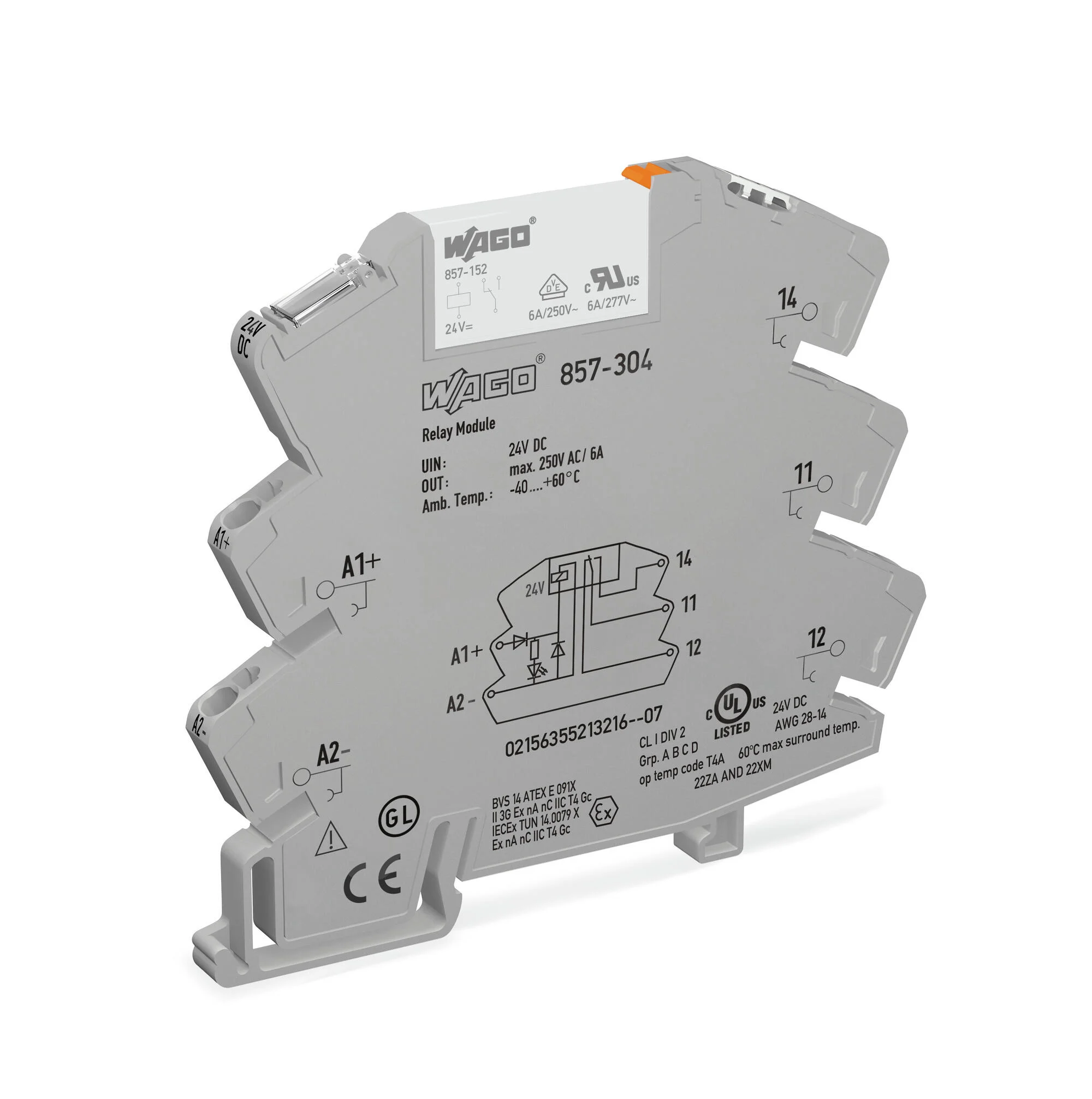

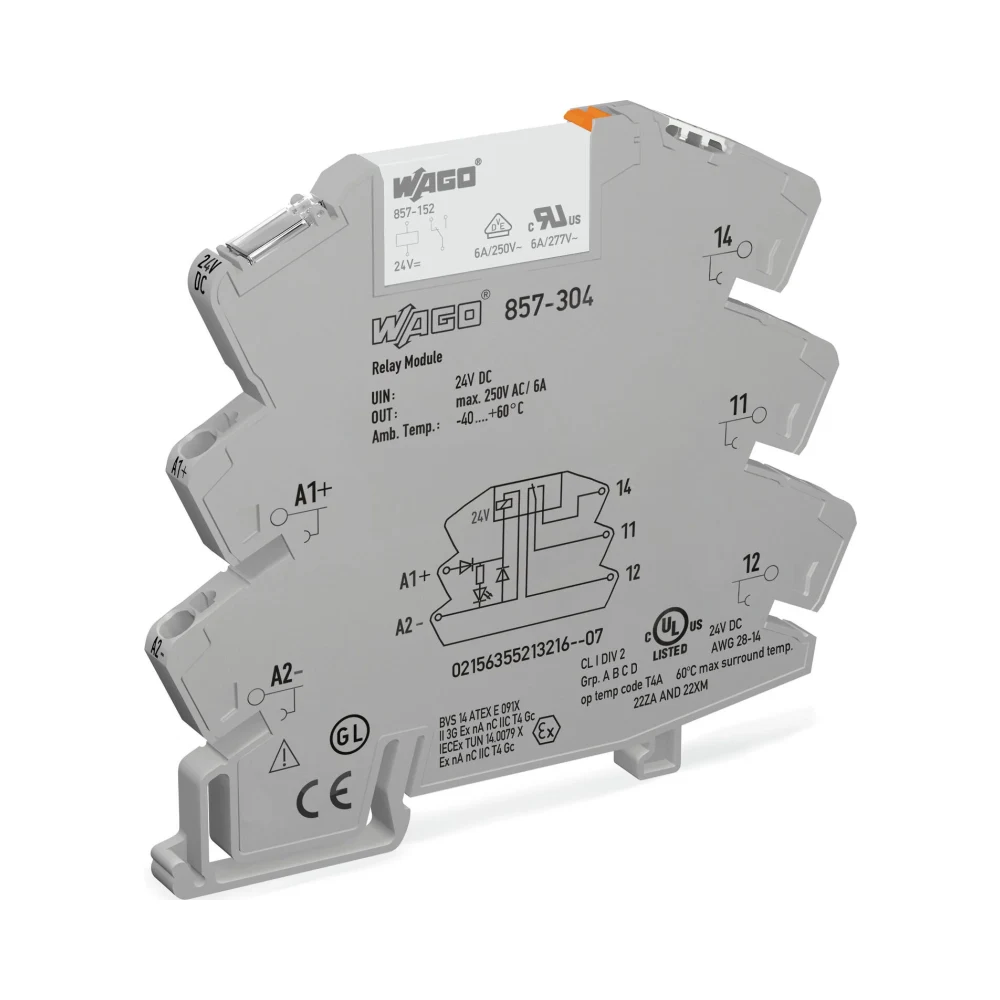

Relay Module with 1 Changeover Contact – 24V DC 6A 2.5mm² Grey
Wago 857-304
The Wago 857-304 Relay Module (SKU: 857-304) provides efficient switching for various electrical systems. With a nominal input voltage of 24V DC, this relay supports up to 6A continuous current, making it ideal for control panels, automation systems, and building installations. The relay’s yellow status indicator offers real-time system feedback, ensuring easy monitoring.
Wago’s Push-in CAGE CLAMP® technology simplifies installation by enabling fast, secure, and tool-free connections, reducing setup time.
Key Features of the Wago 857-304 Relay Module:
- Nominal Input Voltage: Operates at 24V DC with a nominal current of 10 mA, ensuring stable performance in control systems.
- One Changeover Contact: Provides flexible switching with support for up to 6A continuous current.
- Yellow Status Indicator: The integrated yellow LED offers clear, real-time system feedback, making monitoring easier.

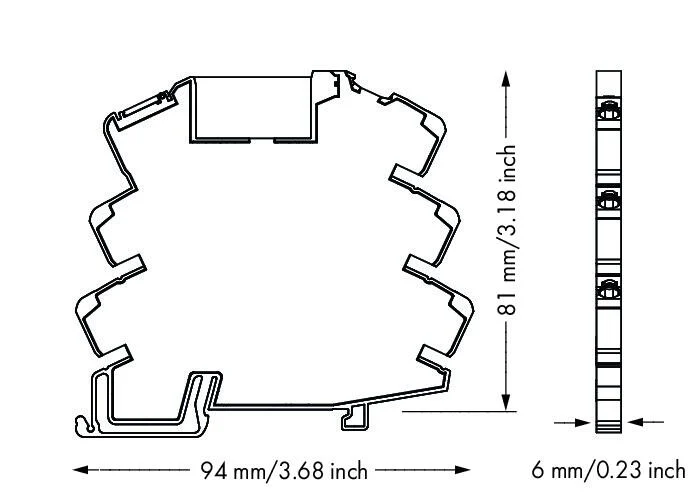

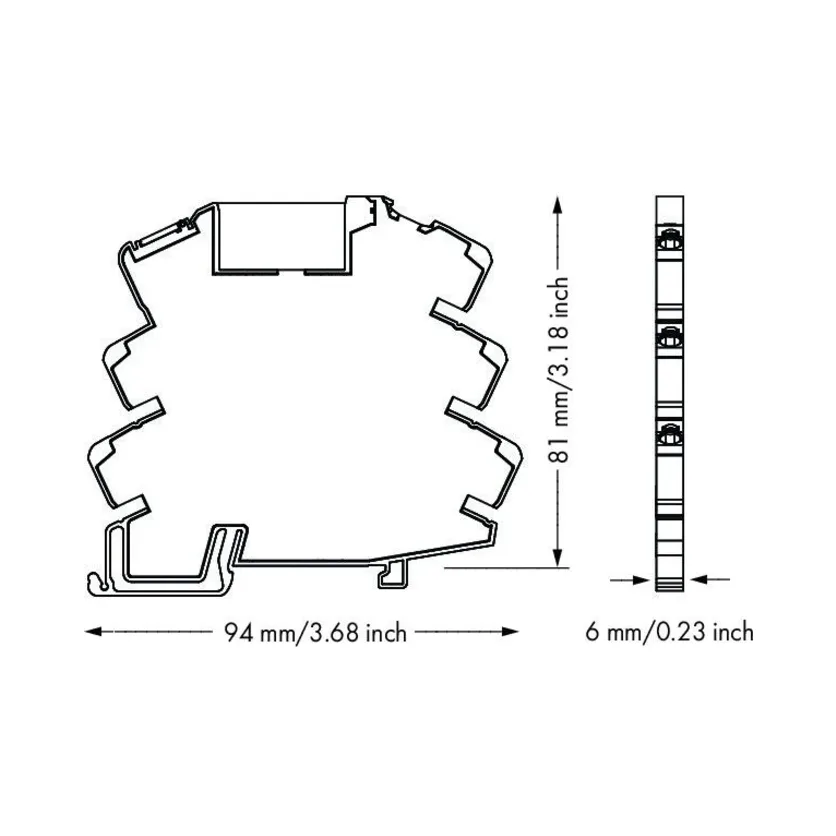

- Compact Design: With a slim module width of just 6 mm, it is suitable for installations where space is limited.
Electrical Specifications:
- Switching Voltage: Handles up to 250V AC, making it suitable for high-voltage applications.
- Switching Power: Rated for 1500 VA (resistive load), delivering strong performance in demanding environments.
- Inrush Current: Capable of managing inrush currents up to 20A for 0.02 seconds, ensuring stability during start-up.
- Fast Response: Features a pull-in and drop-out time of 6 ms, providing quick and efficient switching.
Connection Data:
- Wago Push-in CAGE CLAMP®: Enables fast, tool-free connections, ensuring secure installations.
- Wire Compatibility: Supports solid and fine-stranded conductors from 0.34 to 2.5 mm² (22 to 14 AWG), with insulated ferrules for fine-stranded conductors from 0.34 to 1.5 mm² (22 to 16 AWG).
- Strip Length: Requires a strip length of 9 to 10 mm for optimal wire connections.
Applications for Wago 857-304 Relay Module:
- Control Panels: Perfect for control panels requiring reliable and efficient switching.
- Automation Systems: Ideal for automated systems that need precise and fast relay switching.
- Building Automation: Suitable for building automation systems where consistent relay performance and easy monitoring are required.
The Wago 857-304 Relay Module (SKU: 857-304) offers a dependable and efficient solution for switching tasks in control systems, automation, and building installations. Its compact design, along with Wago’s Push-in CAGE CLAMP® technology, ensures fast installation and long-lasting performance in both industrial and commercial settings.
