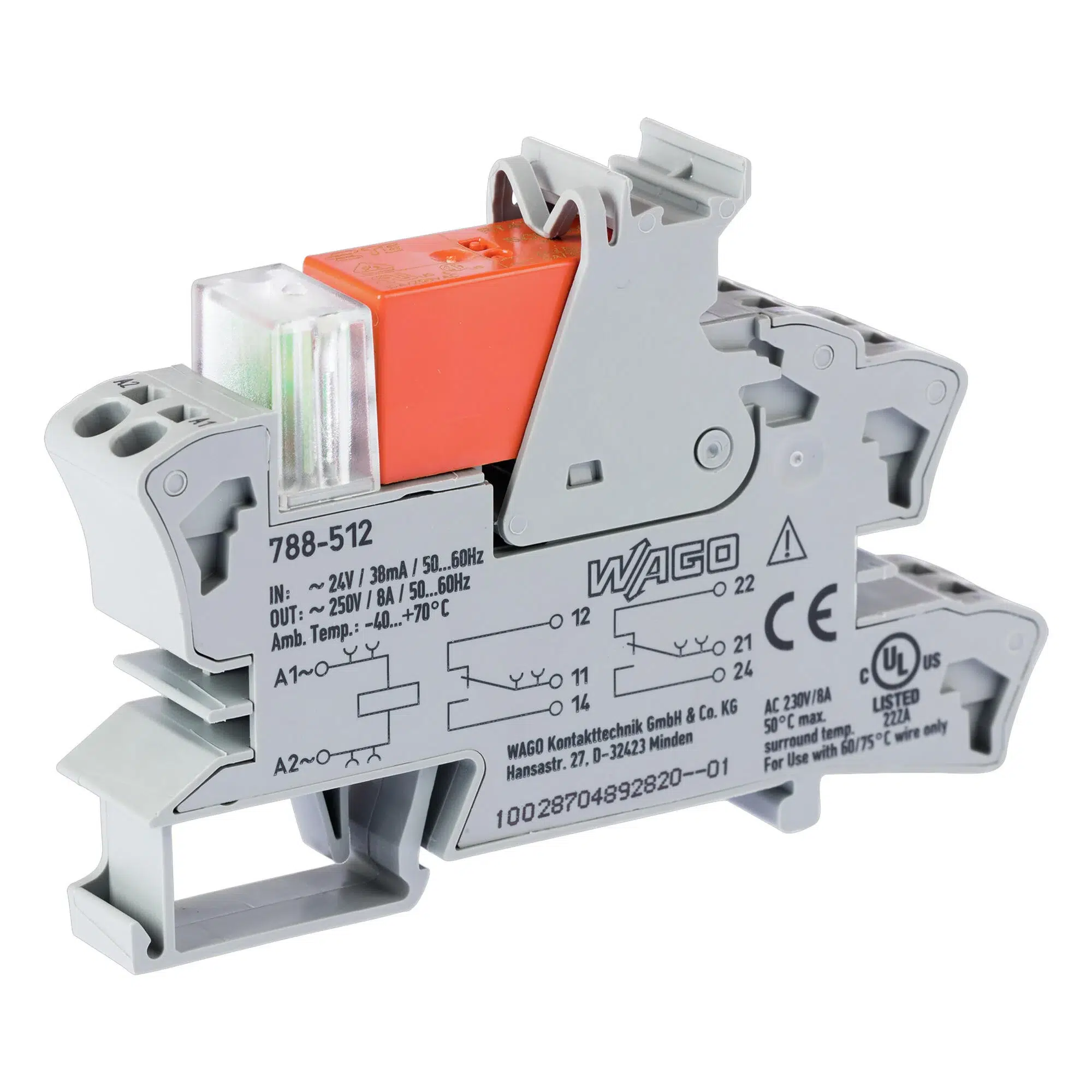

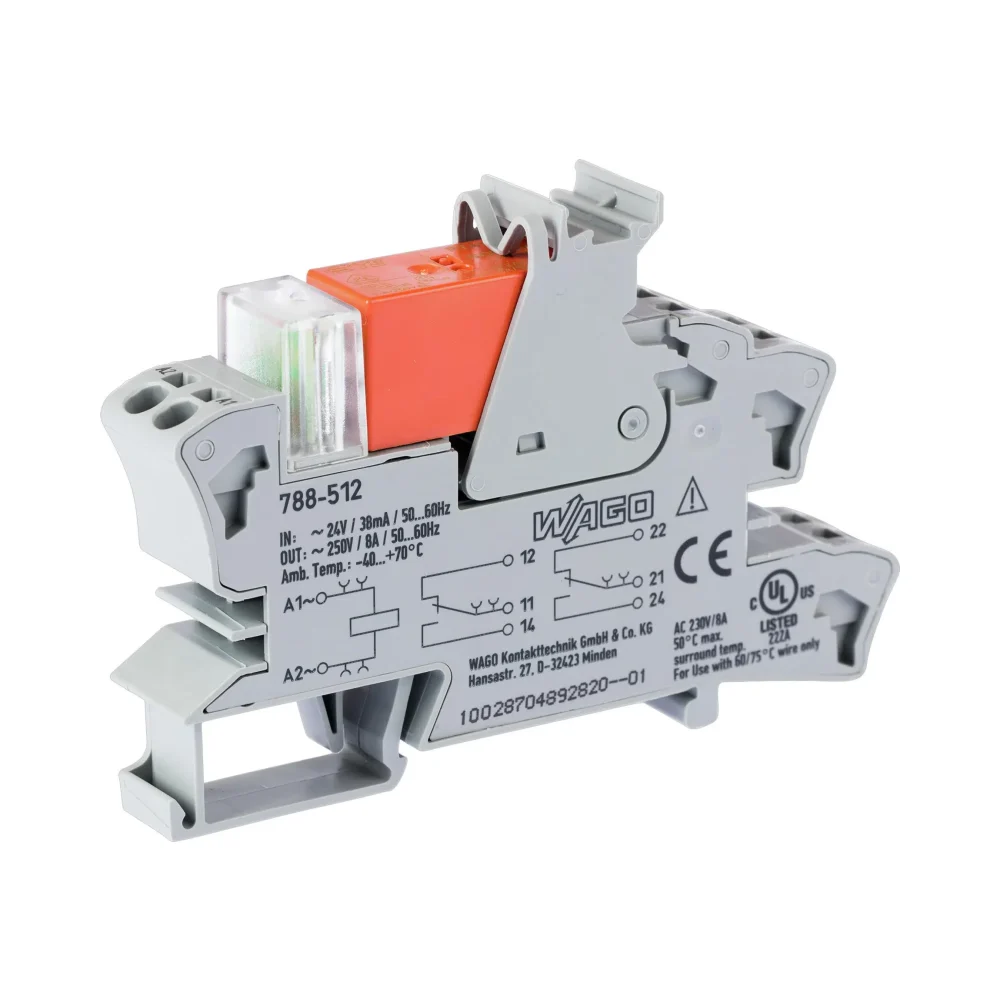

Relay Module with 2 Changeover Contacts – 24V AC 8A 2.5mm² Grey
Wago 788-512
The Wago 788-512 Relay Module (SKU: 788-512) ensures efficient switching with its two changeover contacts. Operating at 24V AC, it supports a continuous current of 8A, making it perfect for control panels, automation systems, and building installations. With Wago’s Push-in CAGE CLAMP® technology, you can achieve fast, secure connections without tools. The integrated red status indicator allows for easy system monitoring, ensuring smooth operation and troubleshooting.
Key Features of the Wago 788-512 Relay Module:
- Nominal Input Voltage: Operates at 24V AC with a nominal current of 34 mA, providing stable performance in control systems.
- Two Changeover Contacts: Supports up to 8A continuous current, providing flexible switching options.
- Red Status Indicator: The built-in LED gives immediate feedback, making it easy to monitor the system.
- Durable Contact Material: Constructed with AgNi 90/10 for long-lasting performance and excellent conductivity.
Electrical Specifications:
- Switching Voltage: Handles up to 250V AC, making it ideal for high-voltage applications.
- Switching Power: Rated for 2000 VA (resistive load), delivering robust performance in demanding environments.
- Inrush Current: Can manage inrush currents of up to 15A for 4 seconds, ensuring stable operation during startup.
- Fast Switching: With a pull-in time of 10 ms and a drop-out time of 35 ms, it offers quick and efficient relay operation.
Connection Data:
- Wago Push-in CAGE CLAMP®: Allows for quick and secure wire connections without tools, saving installation time.
- Wire Compatibility: Supports solid and fine-stranded conductors ranging from 0.34 to 2.5 mm² (22 to 14 AWG).
- Strip Length: Requires a strip length of 9 to 10 mm for optimal wire connections.
Applications for Wago 788-512 Relay Module:
- Control Panels: Ideal for control panels that require efficient and reliable switching operations.
- Automation Systems: Perfect for automated systems where quick and precise relay switching is necessary.
- Building Automation: Suitable for building automation systems that demand consistent relay performance and easy monitoring.
The Wago 788-512 Relay Module (SKU: 788-512) provides an efficient and dependable solution for switching tasks in control systems, automation, and building installations. Its compact design and Wago’s Push-in CAGE CLAMP® technology make it easy to install while ensuring long-lasting performance.
