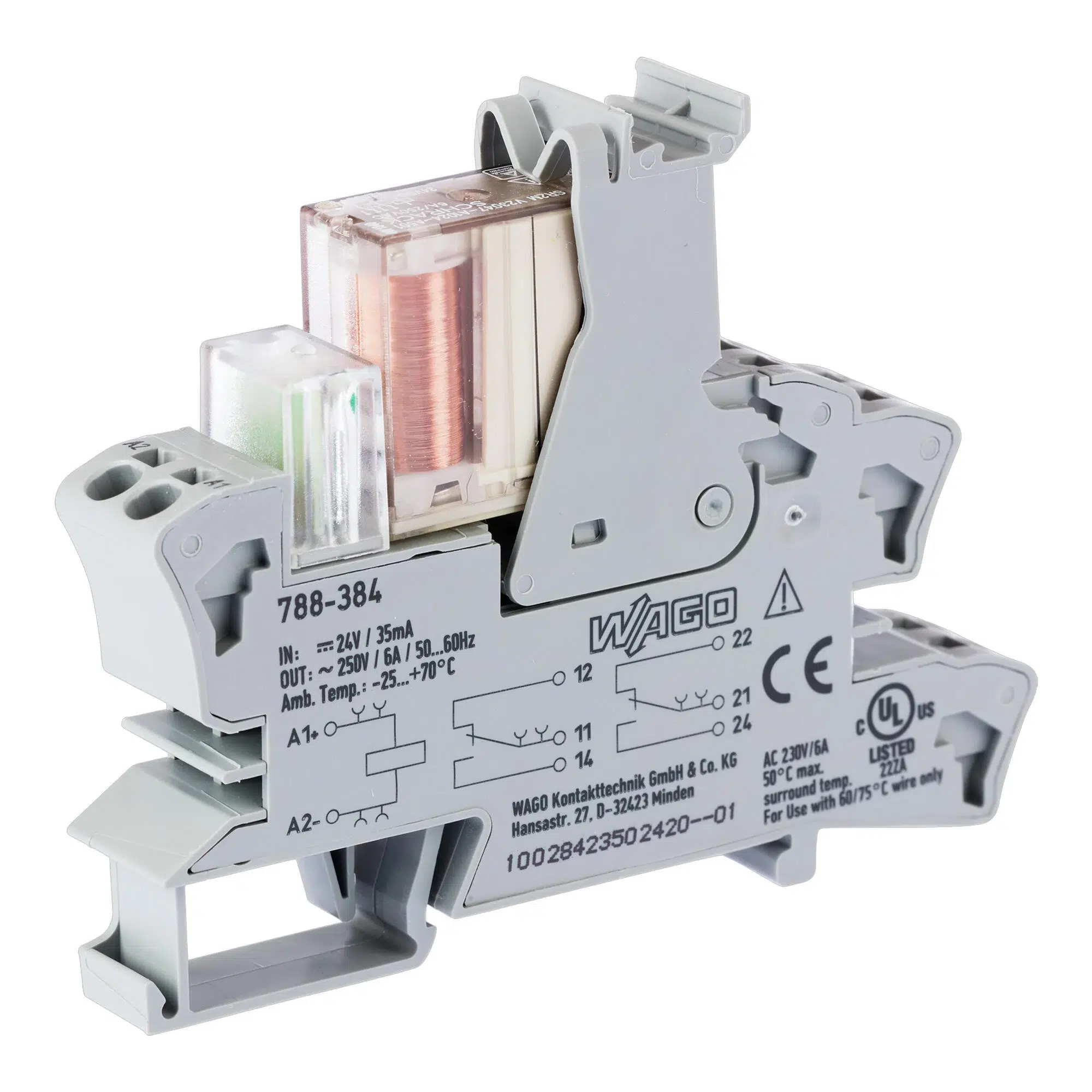

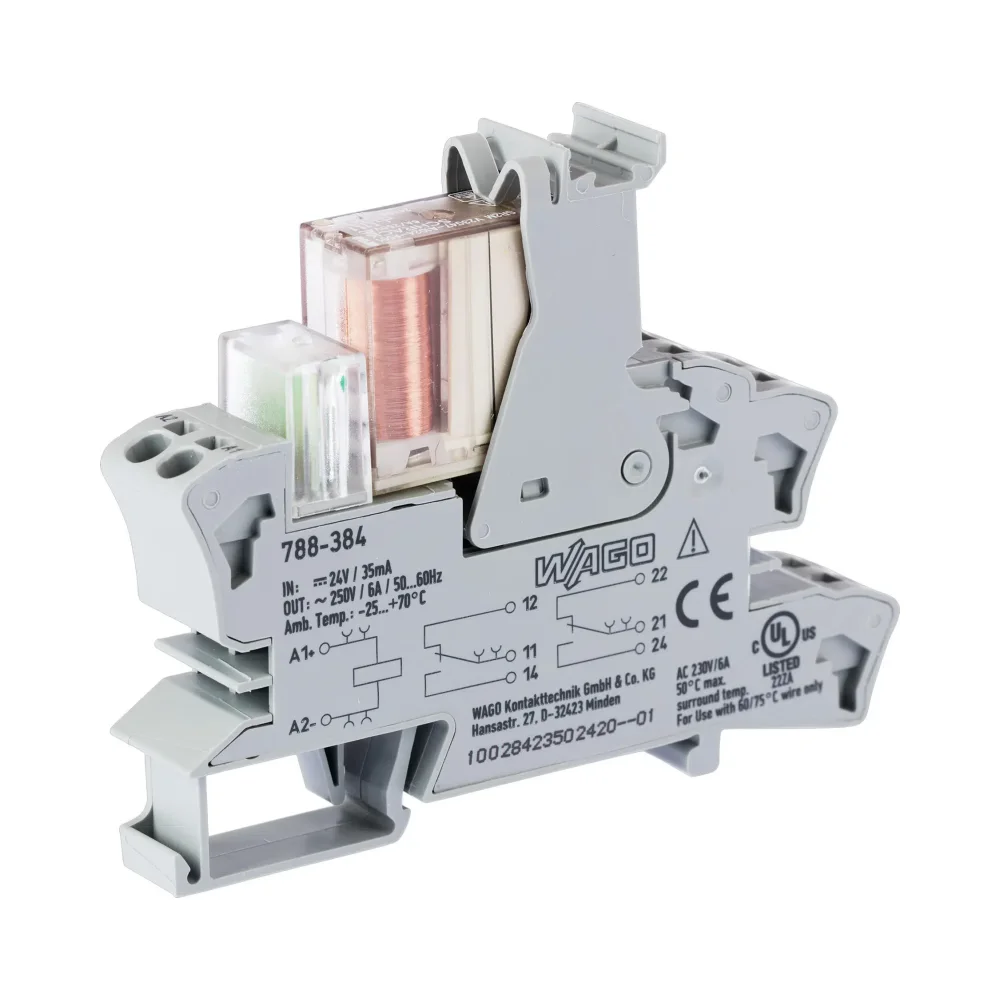

Relay Module with 2 Driven Changeover Contacts – 24V DC 6A 2.5mm² Grey
Wago 788-384
The Wago 788-384 Relay Module (SKU: 788-384) provides reliable switching with its two driven changeover contacts. With a nominal voltage of 24V DC and a continuous current rating of 6A, this relay suits various applications, including control panels and industrial automation. Additionally, Wago’s Push-in CAGE CLAMP® technology ensures easy, tool-free connections, making installation fast and secure. The built-in red status indicator offers clear feedback for monitoring and troubleshooting.
Key Features of the Wago 788-384 Relay Module:
- Nominal Input Voltage: The Wago 788-384 operates at 24V DC, with an input current of 31 mA. This ensures stable performance for control systems.
- Two Changeover Contacts: The relay includes two driven changeover contacts, each rated for a continuous current of up to 6A, offering flexibility in switching.
- Red Status Indicator: The integrated LED provides instant status updates, simplifying system monitoring.
- Durable Contact Material: Built with AgNi, this Wago relay ensures longevity and reliable conductivity.
Electrical Specifications:
- Switching Voltage: Handles up to 250V AC, making it suitable for high-voltage switching tasks.
- Switching Power: Rated for 1500 VA (resistive load), ensuring strong performance under demanding conditions.
- Inrush Current: The relay can handle inrush currents of up to 14A for 4 seconds, ensuring reliability during power surges.
Connection Data:
- Wago Push-in CAGE CLAMP®: This technology allows quick and secure wire connections, saving time during installation.
- Wire Compatibility: Supports solid and fine-stranded conductors from 0.34 to 2.5 mm² (22 to 14 AWG).
- Strip Length: Requires a strip length of 9 to 10 mm for optimal wire connections.
Applications for Wago 788-384 Relay Module:
- Control Panels: Ideal for switching operations in control panels, providing secure and consistent performance.
- Automation Systems: Perfect for automated systems that demand fast and efficient relay switching.
- Building Installations: Suitable for modern building installations where precise relay performance is required.
The Wago 788-384 Relay Module (SKU: 788-384) offers a dependable and versatile solution for switching operations in control panels and automation systems. Its compact design, combined with Wago’s Push-in CAGE CLAMP® technology, ensures fast, secure installation in both industrial and commercial settings.
