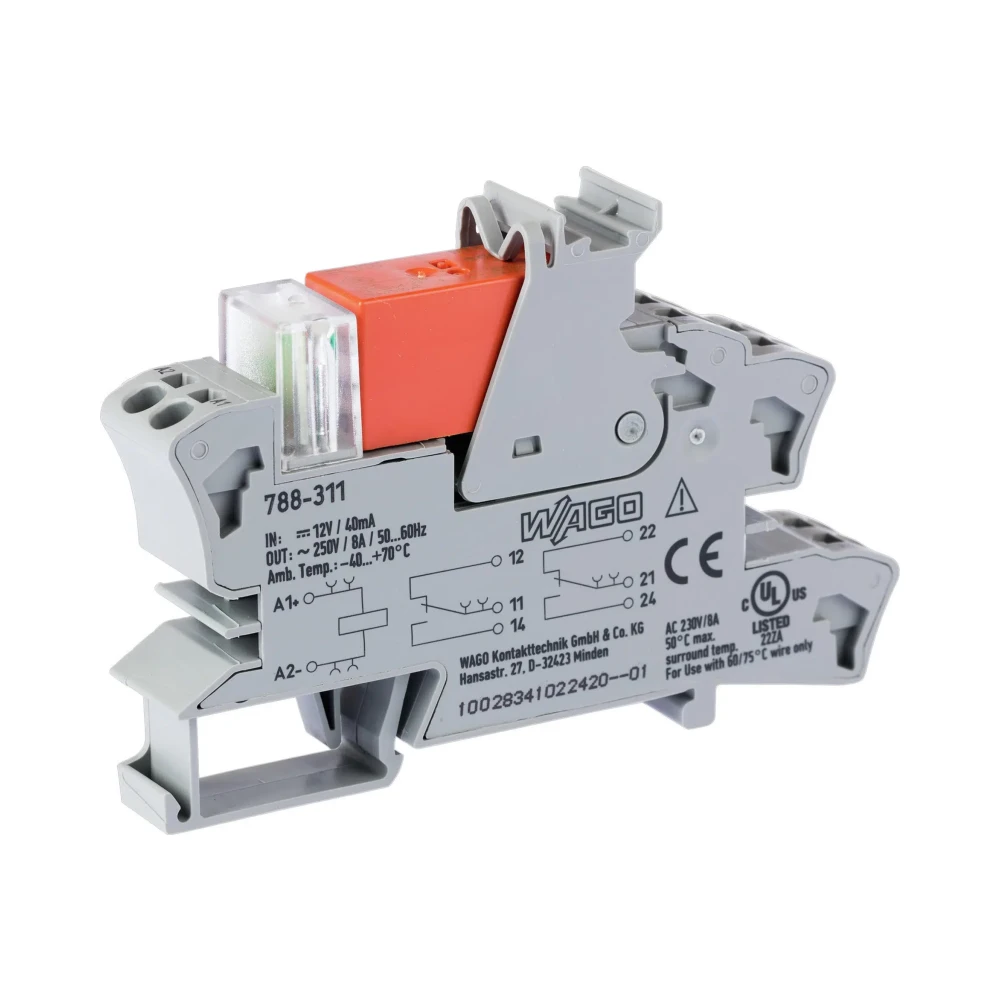

Relay Module with 2 Changeover Contacts – 12V DC 8A 2.5mm² Grey
Wago 788-311
The Wago 788-311 Relay Module (SKU: 788-311) is built to provide reliable and efficient switching in a variety of applications. With a nominal input voltage of 12V DC and two changeover contacts, this relay can handle a continuous current of 8A, making it well-suited for control panels and industrial automation.
Wago’s Push-in CAGE CLAMP® technology simplifies wire connections, ensuring fast, secure installations. The integrated red status indicator provides immediate feedback for easy system monitoring and troubleshooting.
Key Features of the Wago 788-311 Relay Module:
- Nominal Input Voltage: Operates at 12V DC with an input current of 36 mA, ensuring compatibility with control systems.
- Two Changeover Contacts: Provides flexibility in switching with a continuous current capacity of 8A.
- Red Status Indicator: The built-in LED provides a clear status indication, simplifying monitoring tasks.
- Durable Contact Material: Constructed with AgNi 90/10 for enhanced durability and conductivity.
Electrical Specifications:
- Switching Voltage: Handles up to 250V AC, making it suitable for high-voltage switching applications.
- Switching Power: Rated for 2000 VA (resistive load), ensuring reliable performance in demanding environments.
- Inrush Current: Capable of handling inrush currents up to 15A for 4 seconds, ensuring stable operation during startup.
Connection Data:
- Wago Push-in CAGE CLAMP®: Enables quick and tool-free wire connections, reducing installation time.
- Wire Compatibility: Supports solid and fine-stranded conductors ranging from 0.34 to 2.5 mm² (22 to 14 AWG).
- Strip Length: Requires a strip length of 9 to 10 mm for optimal wire connection.
Applications for Wago 788-311 Relay Module:
- Control Panels: Ideal for use in industrial control panels where efficient switching is essential.
- Automation Systems: Suitable for automated systems that demand fast, reliable relay operations.
- Building Automation: Perfect for building systems that require precise and consistent relay switching.
The Wago 788-311 Relay Module (SKU: 788-311) provides a dependable solution for switching tasks in control panels, automation systems, and building installations. Its compact design and Wago’s Push-in CAGE CLAMP® technology ensure quick, secure installation, making it a reliable choice for industrial and commercial environments.
