Wago 788-303 Relay Module with 1 Changeover Contact – 12V DC 16A 2.5mm² Grey

Description

Relay Module with 1 Changeover Contact – 12V DC 16A 2.5mm² Grey

Wago 788-303

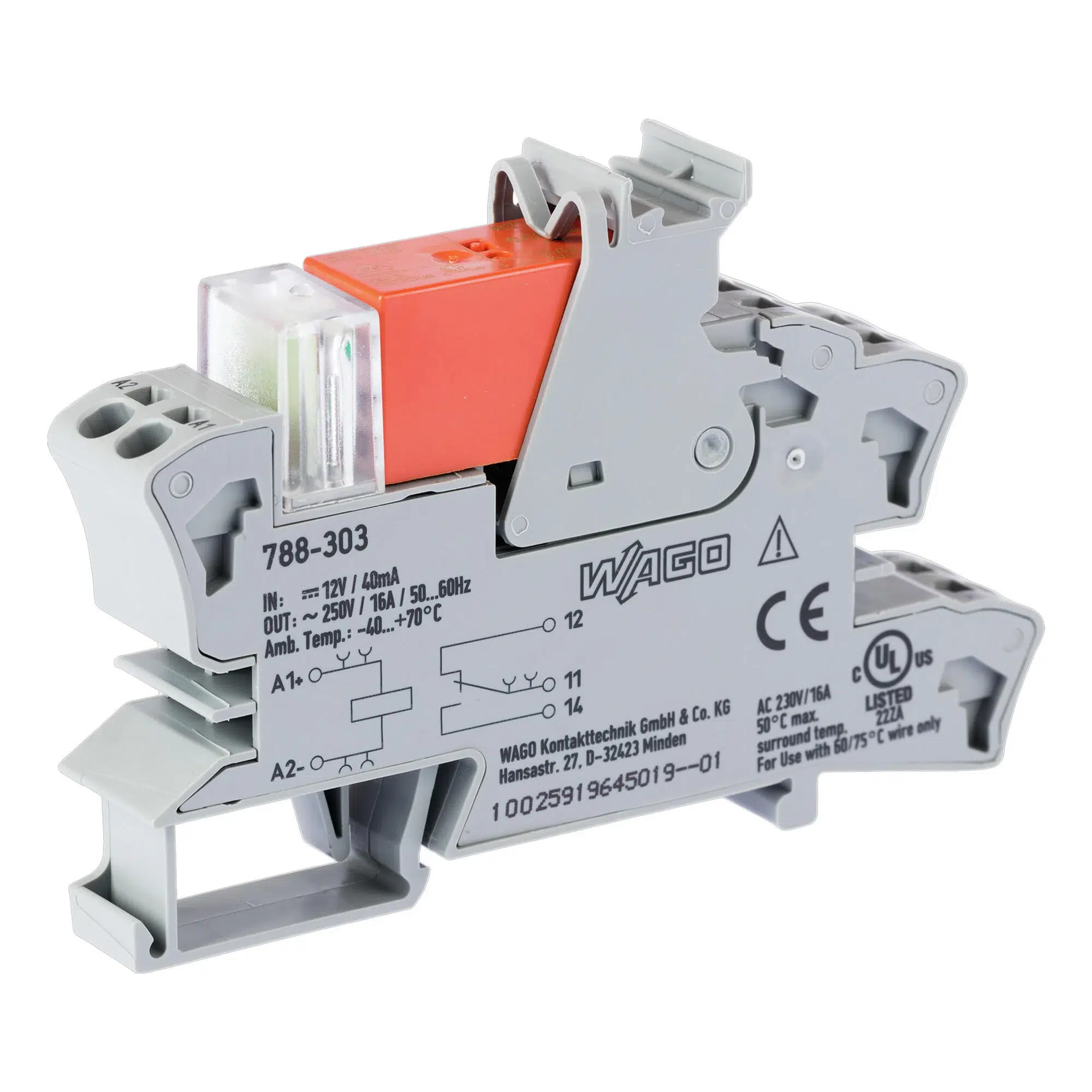

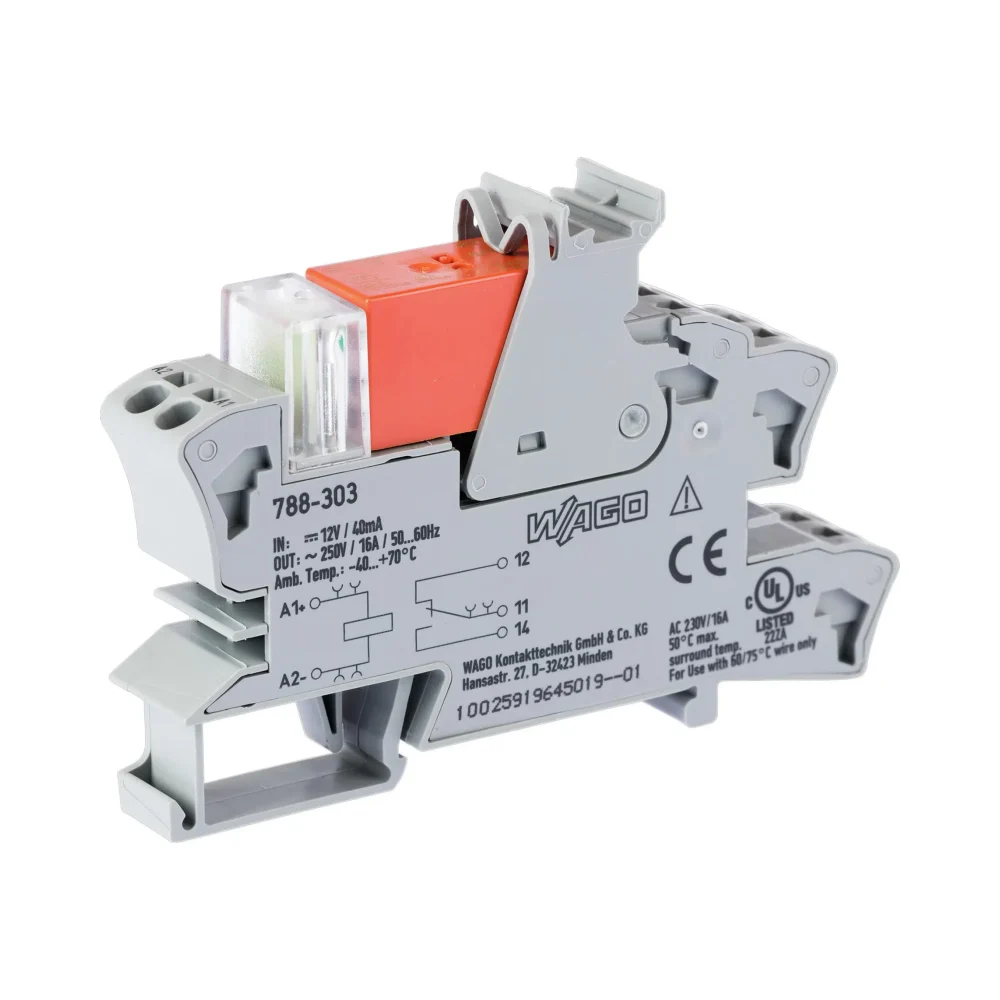

The Wago 788-303 Relay Module (SKU: 788-303) is a versatile and robust solution for reliable switching in various electrical systems. Equipped with one changeover contact, this relay can handle up to 16A of continuous current, making it ideal for both industrial and commercial applications. Additionally, the module features Wago’s Push-in CAGE CLAMP® technology, allowing for fast and tool-free connections, which ensures easy and secure installations.

Key Features of the Wago 788-303 Relay Module:

• Nominal Input Voltage: The Wago 788-303 operates at 12V DC, making it compatible with a wide range of control systems.
• 1 Changeover Contact: This relay from Wago offers flexible switching between circuits, supporting a continuous current of 16A for reliable performance.
• High-Quality Materials: Constructed with AgNi 90/10 contact material, it delivers durability and excellent conductivity over time.
• Red Status Indicator: The built-in red LED indicator on the Wago 788-303 provides clear, visual status feedback.

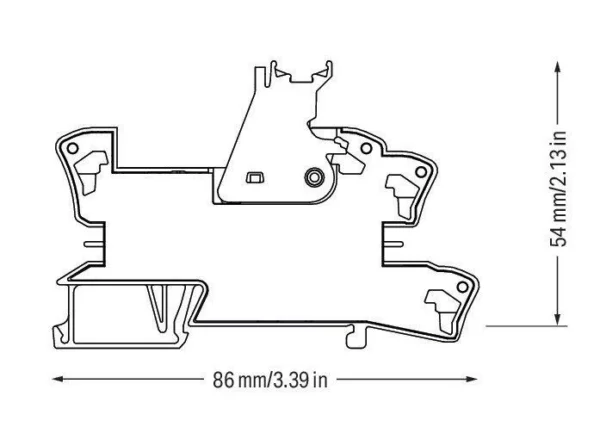

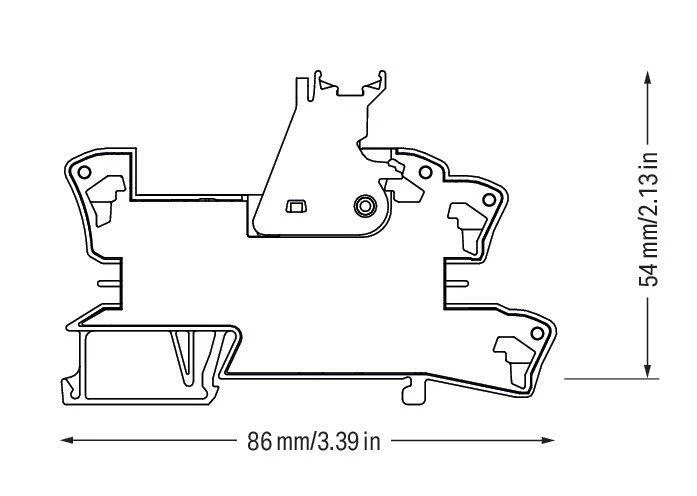

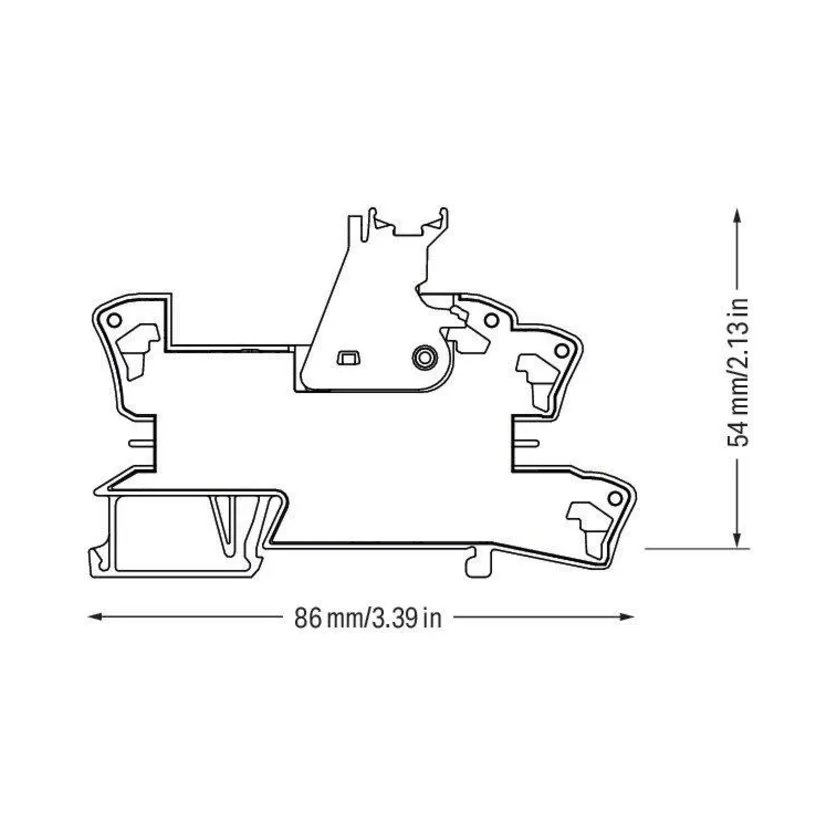

• Compact Design: With a slim 15mm width, this Wago module efficiently saves space in control panels or installations.

Electrical Specifications for Wago 788-303:

• Input Current: At 12V DC, the Wago 788-303 draws 36 mA for optimal operation.
• Maximum Switching Voltage: Designed to handle up to 250V AC, it is well-suited for high-voltage switching tasks.
• Switching Power: Rated for a maximum of 4000 VA (resistive load), the module ensures stable performance even in demanding setups.
• Inrush Current: This Wago relay handles up to 30A inrush for up to 4 seconds (AC), enhancing reliability during startup conditions.

Connection Data:

• Push-in CAGE CLAMP® Technology: This technology simplifies installation, allowing for tool-free wire connections, saving time and effort.
• Wire Compatibility: The Wago 788-303 supports solid and fine-stranded conductors ranging from 0.34 to 2.5 mm² (22 to 14 AWG).

Applications for Wago 788-303 Relay Module:

• Control Panels: Ideal for industrial control panels, providing secure and efficient switching in various applications.
• Building Installations: Perfect for modern building systems that demand reliable performance and compact design.
• Automation Systems: Suitable for automated systems requiring quick, safe, and reliable switching.
