Description

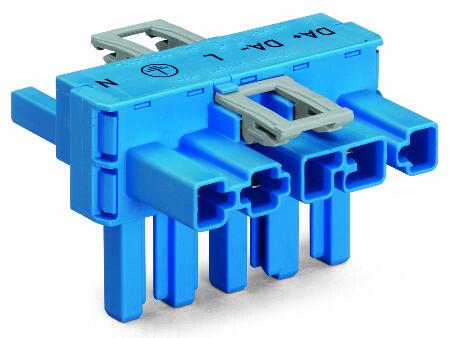

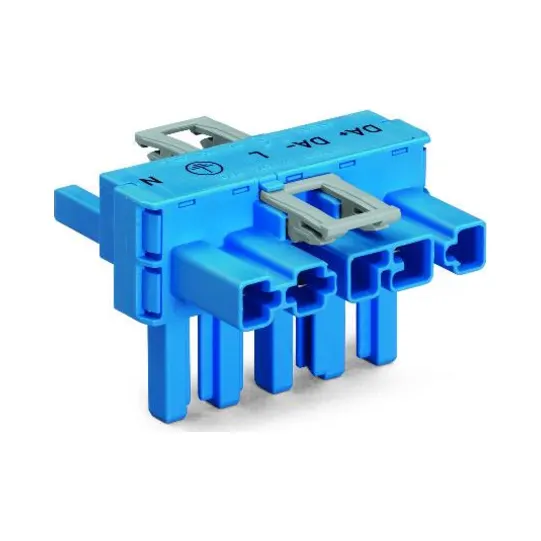

WINSTA® MIDI T-distribution Connector 5-Pole
Wago 770-620
The Wago 770-620 WINSTA® MIDI T-distribution Connector simplifies complex wiring setups by offering secure and efficient distribution for 5-core DALI cables. With WINSTA® protection, it prevents mismating in various configurations, ensuring safe and reliable connections every time.
This connector is ideal for use in building installations, as well as industrial, marine, and railway systems, providing maintenance-free, pluggable electrical connections that meet the highest standards.

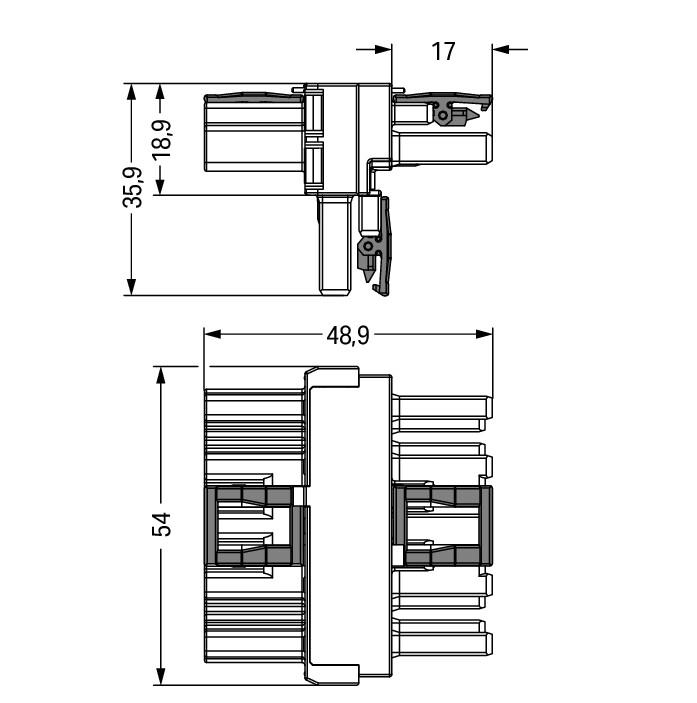

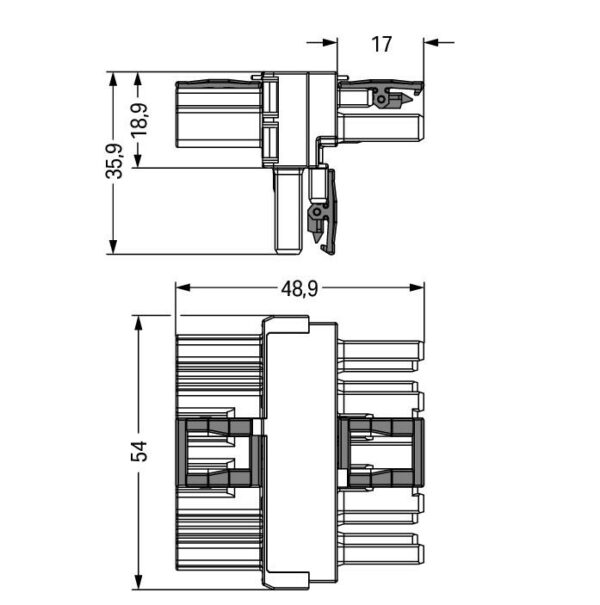

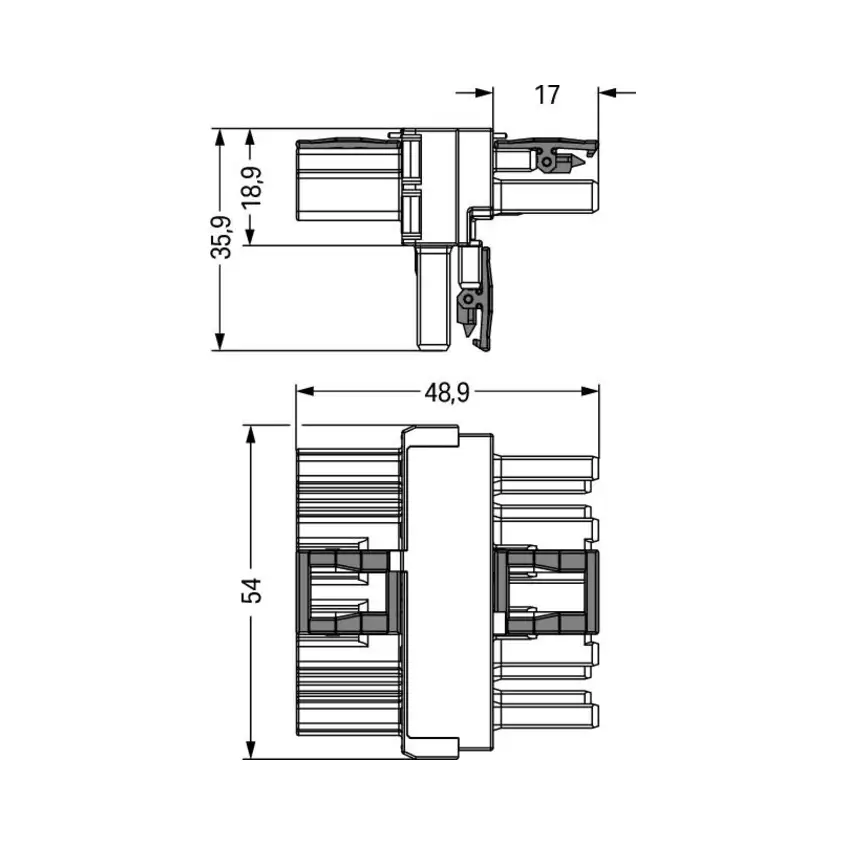

Dimensions:
- Width: 54 mm / 2.126 inches
- Height: 35.9 mm / 1.413 inches
- Depth: 48.9 mm / 1.925 inches
Key Features:
- Mismating Protection: The WINSTA® system ensures 100% protection against mismating, preventing:
- Plugging with different pole numbers
- Plugging when rotated 180°
- Lateral staggering during plugging
- Incorrect single-pole connections
- Designed for 5-core DALI Cables: This T-distribution connector is specifically designed for handling 5-core DALI cables, making it an ideal choice for lighting control systems.
- Push-in CAGE CLAMP® Technology: Allows for quick and secure connections of solid conductors, reducing installation time and ensuring a reliable, maintenance-free setup.
- Compact Design: The connector’s small footprint allows it to be easily integrated into tight spaces without sacrificing performance or durability.
Benefits:
- Error-Free Installation: WINSTA® technology prevents mismating, ensuring safe and reliable connections in every installation.
- Fast and Maintenance-Free: With Push-in CAGE CLAMP® technology, installations are quick, secure, and require no maintenance.
- Flexible Application: Whether for building installations, industrial setups, or demanding environments like marine and railway systems, the Wago 770-620 offers dependable, flexible solutions for electrical distribution.
Applications:
- Building Installations: Ideal for distributing electrical connections in modern building systems, especially those utilizing DALI cables.
- Industrial and Marine Systems: Suitable for complex wiring needs in industrial or harsh environments like marine and railway systems.
- Lighting Control Systems: Perfect for DALI-based lighting control applications, offering secure distribution and easy integration.
The Wago 770-620 WINSTA® MIDI T-distribution Connector provides a high-quality solution for distributing electrical connections in demanding applications. With its compact design, mismating protection, and WINSTA® technology, it ensures fast, error-free, and secure installations.
