Description

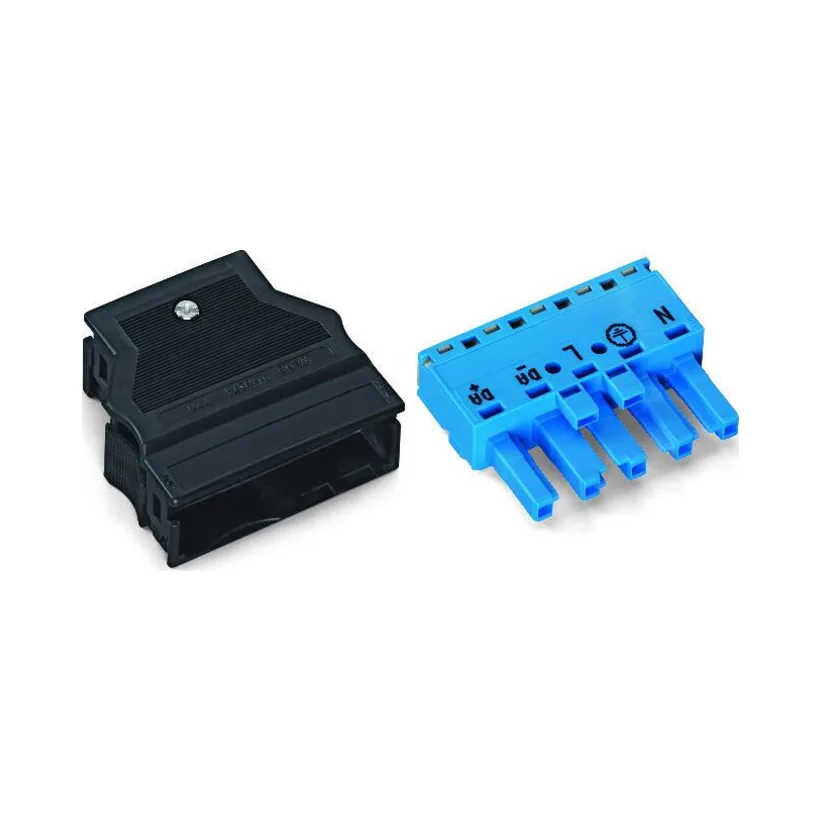

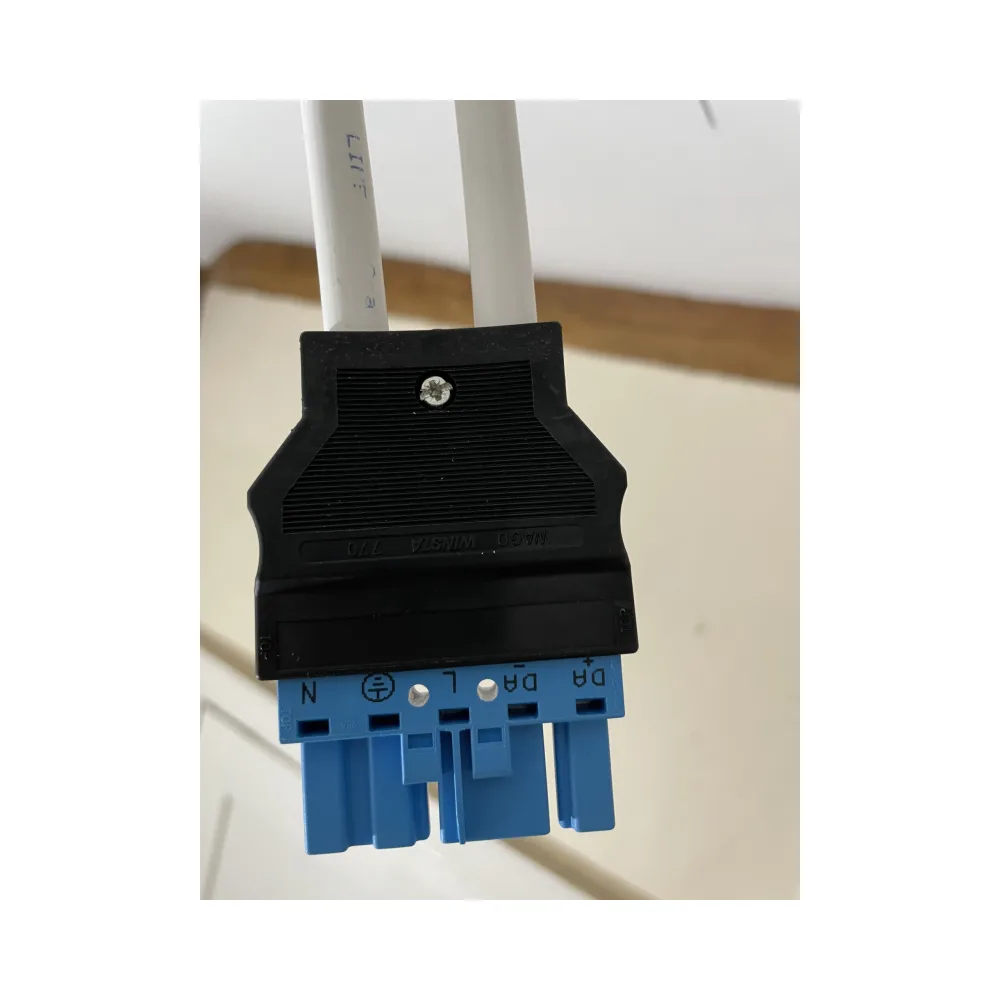

WINSTA® MIDI Socket with Strain Relief Housing 5-Pole
Wago 770-1105/022-000
The Wago 770-1105/022-000 WINSTA® MIDI Socket provides a reliable solution for 5-pole connections, making it ideal for demanding applications such as building installations, marine systems, and railway environments. This socket is part of the WINSTA® pluggable connection system, which simplifies electrical installations by providing secure, easy-to-use, and maintenance-free connections.
With strain relief housing, it protects cables from strain and ensures long-term durability. Additionally, WINSTA® technology prevents mismating, ensuring error-free installation every time.
Key Features:
- High Current Capacity: Rated for 25A, this socket is perfect for applications requiring high current capacity in a 5-pole configuration.
- Mismating Protection: The WINSTA® system offers complete protection against mismating, preventing:
- Plugging with different pole numbers
- Plugging when rotated 180°
- Plugging in a laterally staggered position
- Plugging only one pole
- Push-in CAGE CLAMP® Technology: This technology allows solid conductors to be securely pushed into the unit, speeding up installation and ensuring a reliable connection.
- Wide Application Range: The socket is suitable for various applications, including building installations, marine systems, railway applications, and industrial environments.
- Strain Relief Housing: Protects cables from strain, ensuring secure connections and increasing the longevity of the installation.
Benefits:
- Fast and Error-Free Installation: Thanks to WINSTA® technology, the socket ensures that installation is quick and completely protected against mismating, making it a safe and reliable choice.
- Compact and Customisable Design: The socket’s compact design allows it to fit into tight spaces while providing reliable performance. Components can be printed on or color-coded for custom installations.
- Maintenance-Free Connections: With Push-in CAGE CLAMP® technology, installations are secure, maintenance-free, and designed for long-term durability.
Applications:
- Building Installations: Perfect for meeting the strict demands of modern building installations, ensuring secure and maintenance-free electrical connections.
- Marine and Railway Systems: Ideal for use in harsh environments like marine or railway systems, providing reliable and error-free connections.
- Industrial Applications: Suitable for a wide range of industrial settings, offering a robust solution for high-current applications.
The Wago 770-1105/022-000 WINSTA® MIDI Socket with strain relief housing is a versatile and reliable solution for 5-pole electrical connections. Its high current rating, WINSTA® technology, and strain relief features make it ideal for a range of demanding environments.
