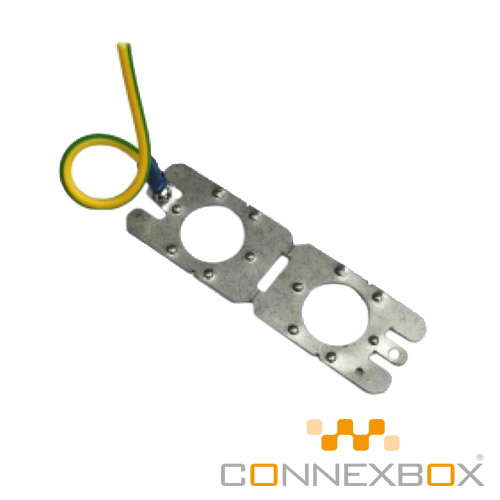

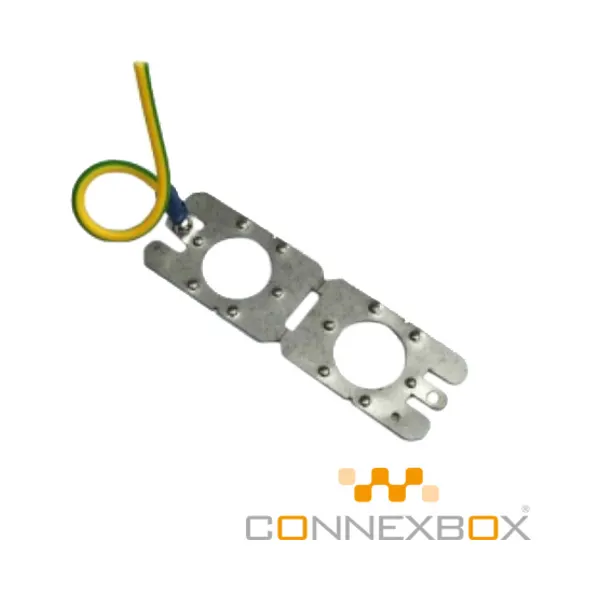

Capsule Side Plate
The Connexbox Capsule Side Plate provides a robust and reliable solution for maintaining earth continuity when terminating SWA cable glands into non-metallic enclosures. Manufactured from durable 0.8mm stainless steel, the plate is designed to securely bond two M20 SWA cable glands, ensuring a safe and compliant earth connection.
Supplied with a pre-fitted 3.7mm blue ring crimp connector and earth cable, the side plate allows fast and convenient installation. For added flexibility, the plate can be snapped into two separate single-gland plates, each incorporating a 6.3mm crimp connection tab. These tabs are compatible with either the supplied 3.7mm ring connector or a 6.3mm push-on spade connector, making the plate adaptable to different installation requirements.
Designed specifically for use with Connexbox Capsule enclosures, the side plate fits securely inside the enclosure and provides a stable foundation for SWA gland bonding in demanding environments.
Key Features
- Stainless Steel Construction
Manufactured from 0.8mm stainless steel for strength and long term durability. - Earth Continuity Solution
Ensures reliable earth continuity when using SWA glands in non-metallic enclosures. - Connexbox Capsule Compatible
Designed to fit securely inside Connexbox Capsule enclosures. - M20 SWA Gland Bonding
Bonds two M20 SWA cable glands for secure earthing. - Split Plate Design
Can be snapped into two individual gland plates for flexible installation layouts. - Pre-Fitted Earth Connection
Supplied with a 3.7mm blue ring crimp connector and earth cable for quick installation.
Applications
- Non-Metallic Enclosures
Ideal for maintaining earth continuity in plastic or composite enclosures. - SWA Cable Installations
Suitable for bonding M20 SWA cable glands in Capsule enclosures. - Flexible Installations
Split plate option allows custom configurations for different wiring setups.
