Description

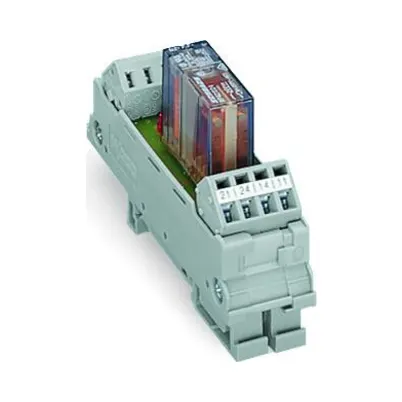

Relay Module with 2 Changeover Contacts – 24V AC/DC 6A 2.5mm² Grey
Wago 288-512
The Wago 288-512 Relay Module (SKU: 288-512) offers efficient switching with its two changeover contacts, allowing it to operate seamlessly in both AC and DC environments. With a nominal input voltage of 24V AC/DC and a continuous current capacity of 6A, this relay is suitable for a variety of applications, including control panels and building automation.
Additionally, Wago’s CAGE CLAMP® technology ensures quick and secure connections without the need for tools. The compact design, with a module width of 23 mm, makes it a great option for installations where space is limited.
Key Features of the Wago 288-512 Relay Module:
- Nominal Input Voltage: Operates at 24V AC/DC with a stable input current of 22 mA, ensuring reliability in control systems.
- Two Changeover Contacts: Each contact supports up to 6A of continuous current, providing flexible switching for a range of applications.
- Durable Contact Material: Constructed with AgNi 0.15, offering long-lasting performance and high conductivity.
Electrical Specifications:
- Switching Voltage: Handles up to 250V AC, making it suitable for high-voltage applications.
- Switching Power: Rated for 1500 VA (resistive load), ensuring robust performance in demanding environments.
- Inrush Current: Can handle up to 14A for 4 seconds, ensuring stability during high-load conditions.
- Fast Response: Pull-in time of 8 ms and drop-out time of 3 ms ensure quick, efficient switching.
Connection Data:
- Wago CAGE CLAMP® Technology: Ensures fast, tool-free wire connections, simplifying installation.
- Wire Compatibility: Supports solid and fine-stranded conductors ranging from 0.08 to 2.5 mm² (28 to 12 AWG).
- Strip Length: Requires a strip length of 5 to 6 mm for optimal wire connections.
Applications for Wago 288-512 Relay Module:
- Control Panels: Perfect for control panels where both AC and DC switching is required.
- Automation Systems: Ideal for automated systems that demand precise and reliable relay operations.
- Building Automation: Suitable for building automation systems that require versatile relay performance across AC and DC systems.
The Wago 288-512 Relay Module (SKU: 288-512) provides a reliable solution for switching tasks in control systems, automation, and building installations. With its compact design and Wago’s CAGE CLAMP® technology, it ensures quick installation and long-lasting performance in both industrial and commercial environments.
