Description
2-Conductor Through Terminal Block with Push-Button and Push-In Cage Clamp

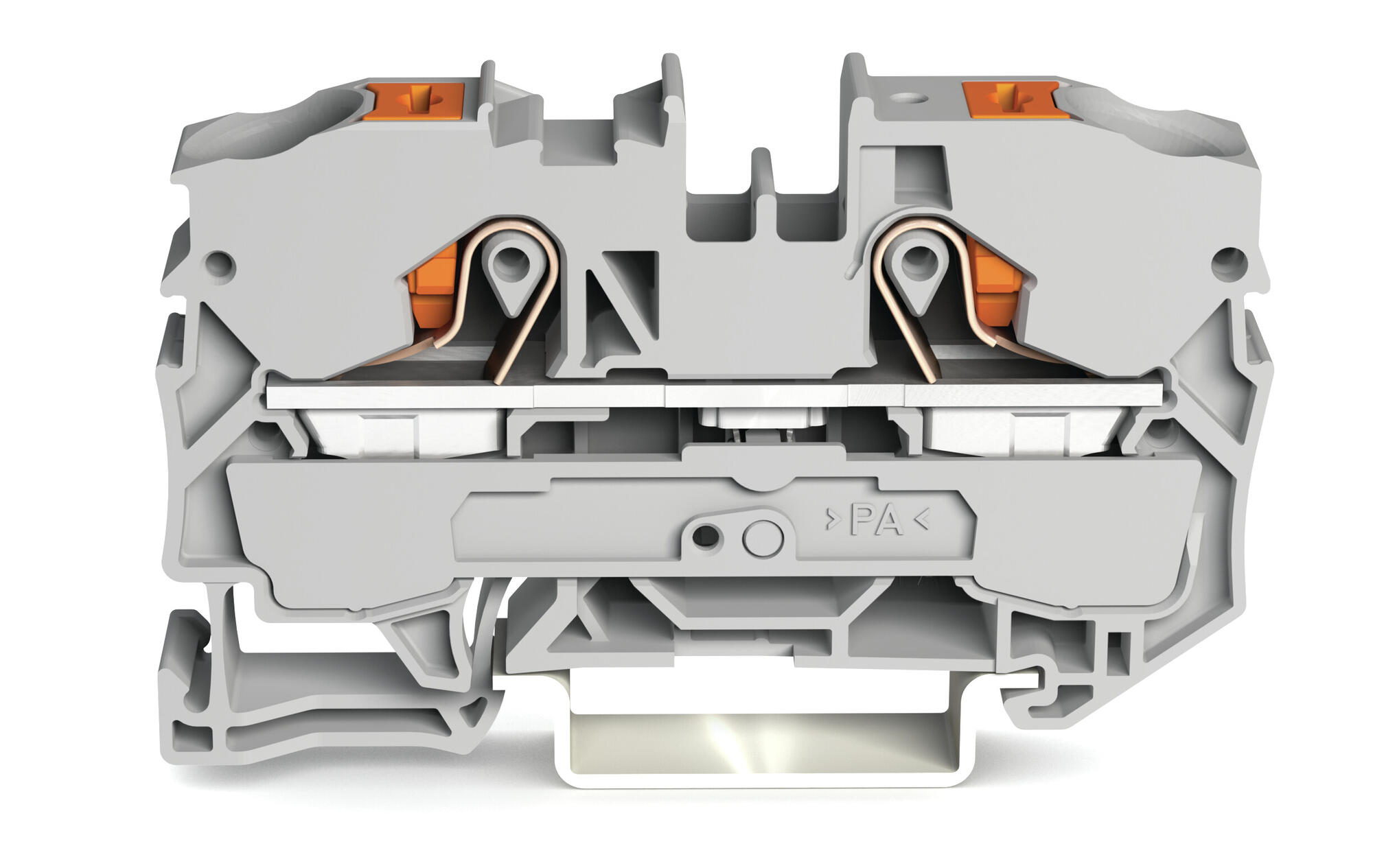

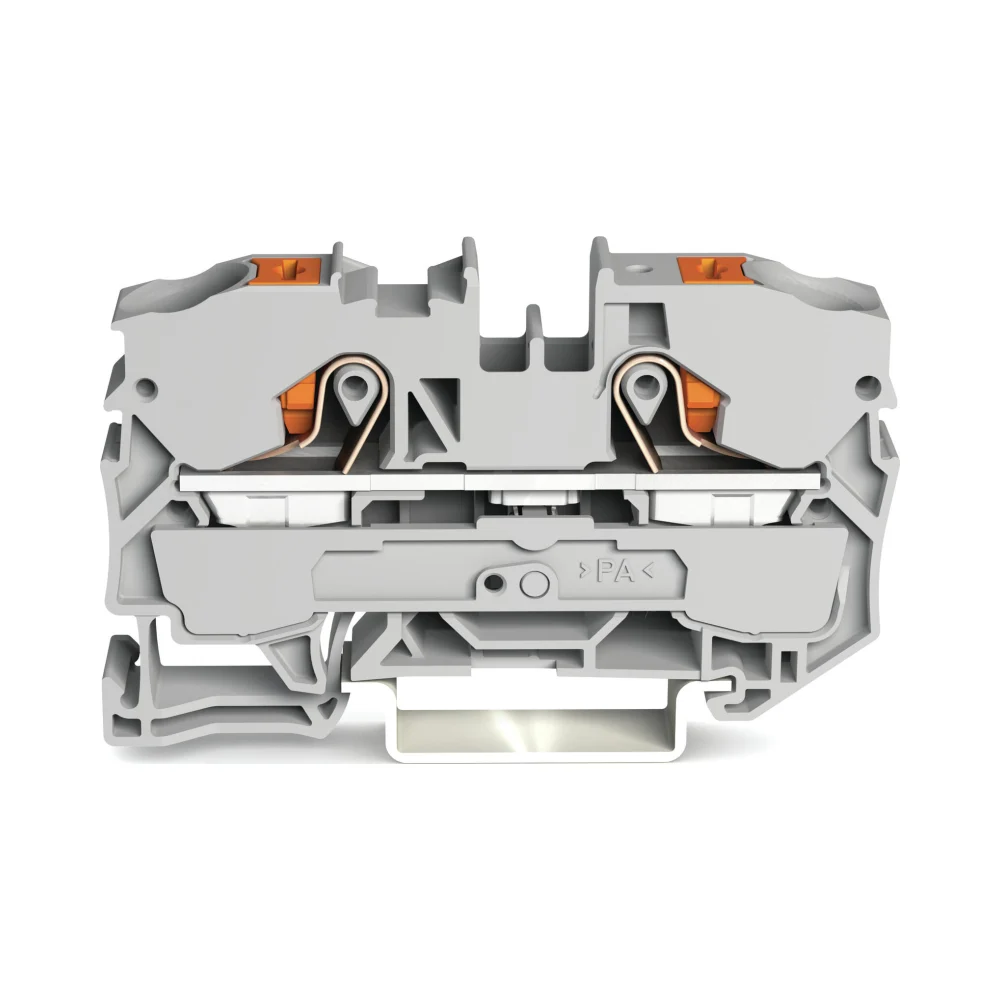

Wago 2210-1201
The WAGO 2210-1201 2-Conductor Through Terminal Block offers a high-performance solution for secure and efficient electrical connections. With Push-in CAGE CLAMP® technology and a push-button actuation, this terminal block enables tool-free wiring, ensuring fast and reliable connections for both solid and fine-stranded copper conductors.
Designed to support up to 800V and 57A, it is ideal for industrial applications, control panels, and electrical distribution systems. The compact design and DIN-35 rail compatibility make it perfect for space-constrained installations while providing robust electrical performance.
Key Features
- Push-Button Actuation: Simplifies installation and disconnection without the need for tools, making it easy to handle.
- Push-in CAGE CLAMP® Technology: Offers quick, secure, and tool-free connections for both solid and fine-stranded conductors.
- High Voltage and Current Capacity: Rated for 800V and 57A, designed for high-demand electrical systems.
- DIN-Rail Mounting: Easily attaches to DIN-35 rails, making it suitable for standard industrial control panel setups.
- Front-Entry Wiring: Improves accessibility in confined spaces, ensuring more efficient wiring.
Electrical Specifications
- Nominal Voltage: 800 V
- Rated Impulse Voltage: 8 kV
- Rated Current: 57 A
- Max Current at Conductor Cross-Section: 76 A
Connection Data
- Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Number of Jumper Slots: 2
- Nominal Cross-Section: 10 mm²
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.5 to 16 mm² (20 to 6 AWG)
- Fine-Stranded Conductor: 0.5 to 16 mm² (20 to 6 AWG)
- Strip Length: 17 to 19 mm

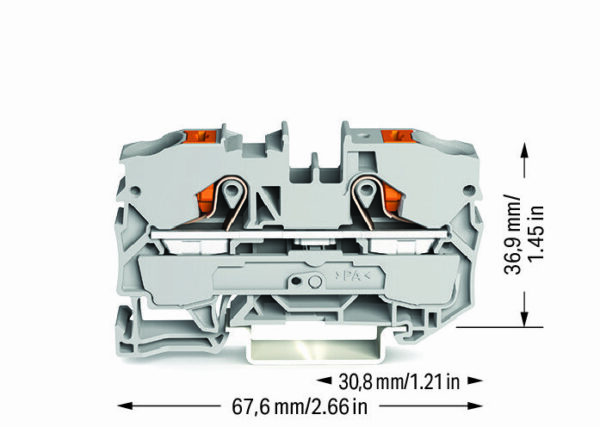

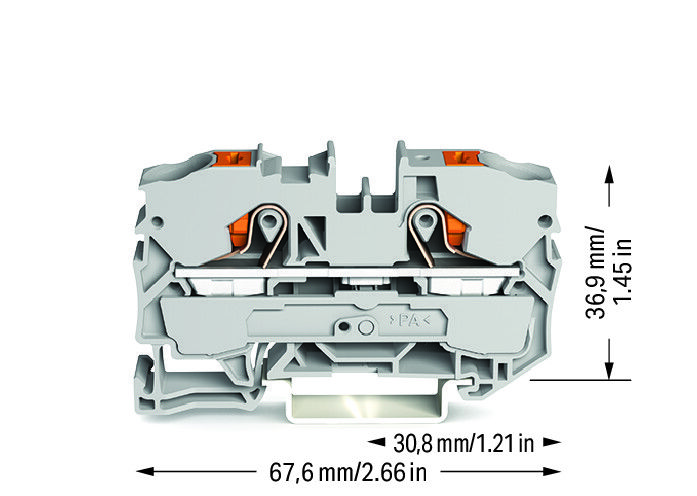

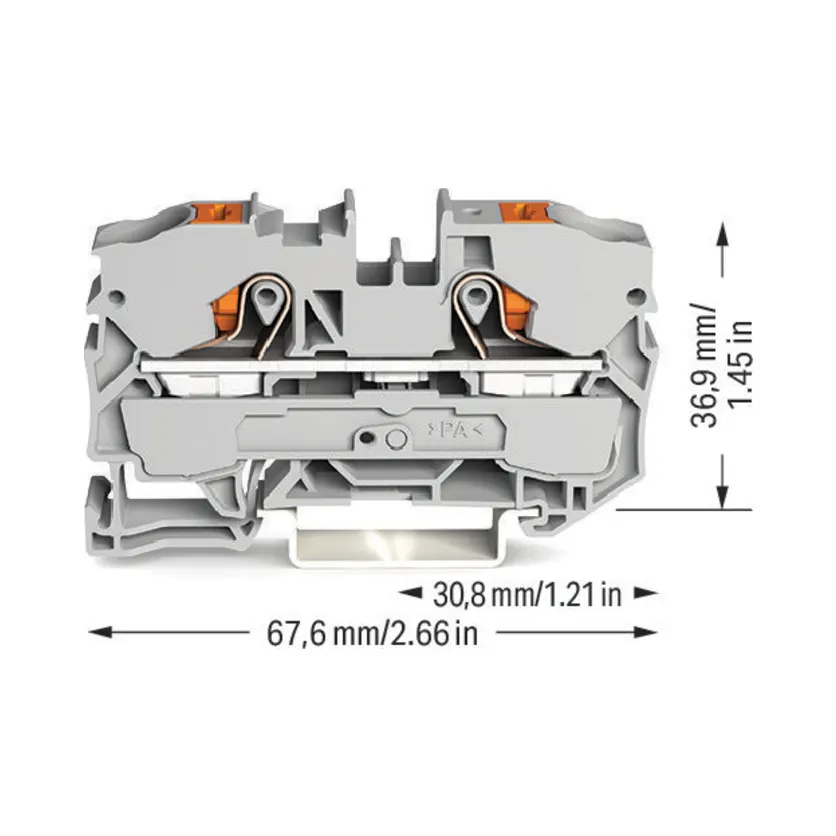

Physical Data
- Width: 10 mm
- Height: 67.6 mm
- Depth from Upper-Edge of DIN-Rail: 36.9 mm
Applications
The WAGO 2210-1201 2-Conductor Through Terminal Block is ideal for use in high-voltage industrial control panels, automation systems, and electrical distribution boards. Its push-button operation and Push-in CAGE CLAMP® technology make it an excellent choice for tool-free, secure wiring in both new installations and upgrades.
Purchase from Electrical4Less
As an authorised WAGO distributor, Electrical4Less offers the WAGO 2210-1201 Terminal Block alongside a comprehensive range of WAGO products. Contact us today to learn about bulk discounts and project-specific pricing for larger orders.
FAQs – WAGO 2210-1201 2-Conductor Through Terminal Block
1. How does the push-button actuation work?
The push-button simplifies wiring by allowing tool-free connection and disconnection, making the process quicker and more secure.
2. What is Push-in CAGE CLAMP® technology?
Push-in CAGE CLAMP® provides tool-free connections for solid and fine-stranded conductors, ensuring fast, reliable, and secure wiring.
3. Is this terminal block compatible with DIN-rails?
Yes, the WAGO 2210-1201 mounts easily on DIN-35 rails, making it compatible with most control panels and industrial setups.
4. What types of conductors does this terminal block support?
It supports both solid and fine-stranded copper conductors, with a cross-section range from 0.5 mm² to 16 mm².
5. Can I get a discount for bulk purchases?
Yes, Electrical4Less offers project discounts for bulk orders. Contact us for a tailored quote to meet your specific project needs.
About WAGO
WAGO is a global leader in electrical connection technology, known for their innovative CAGE CLAMP® solutions. Professionals worldwide rely on WAGO products for ease of use, durability, and top-tier performance in industrial and commercial applications.
