Description

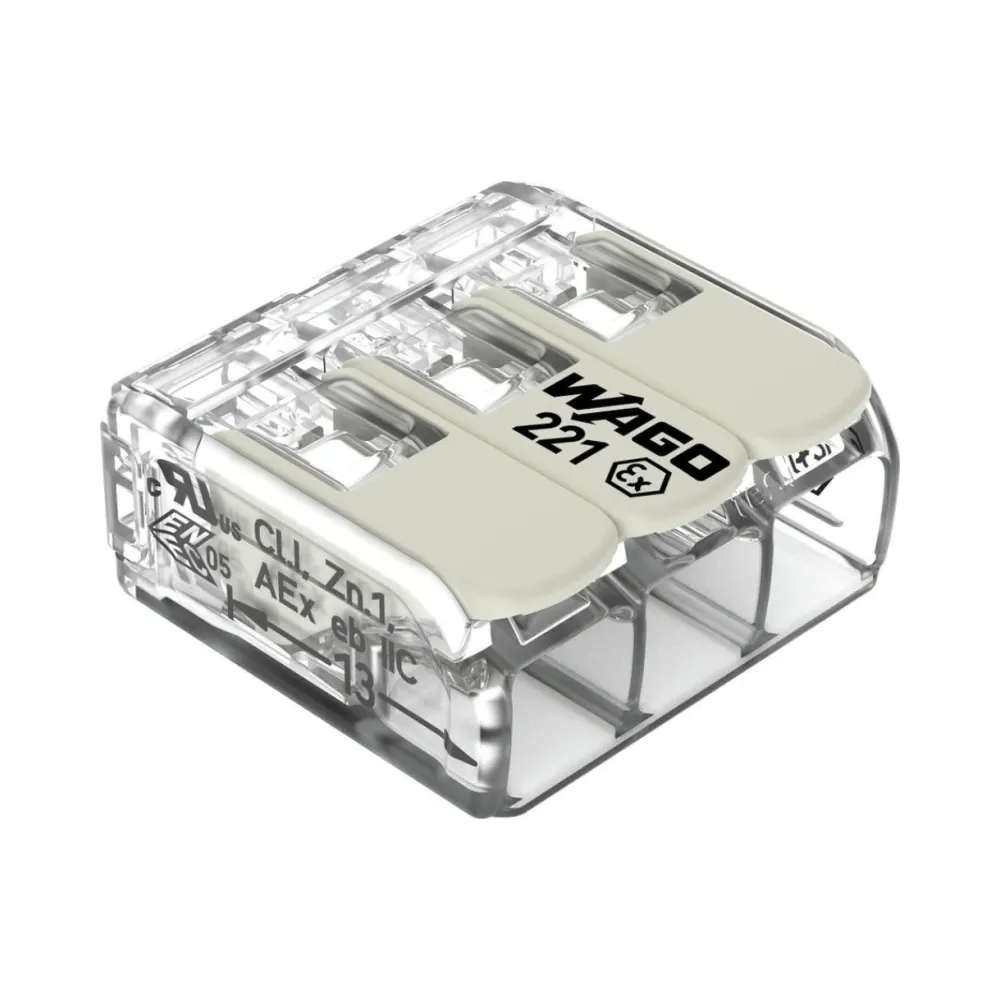

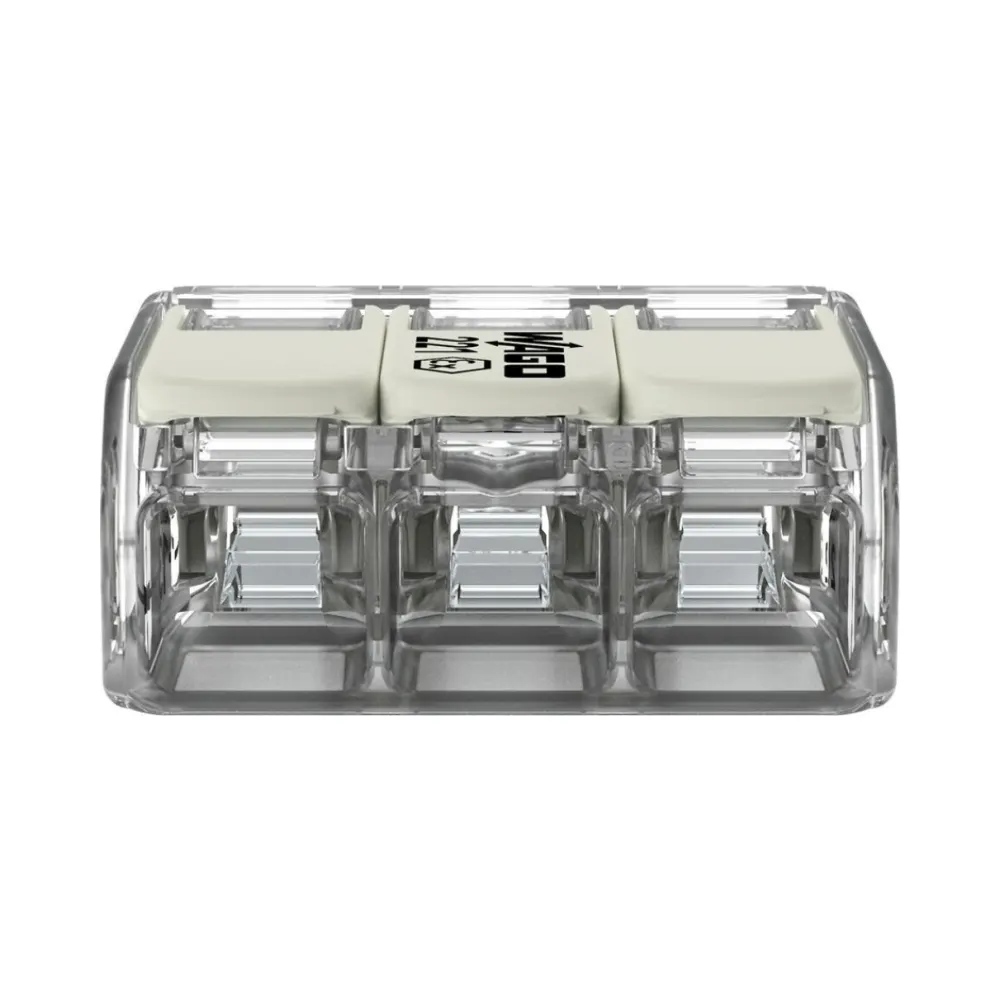

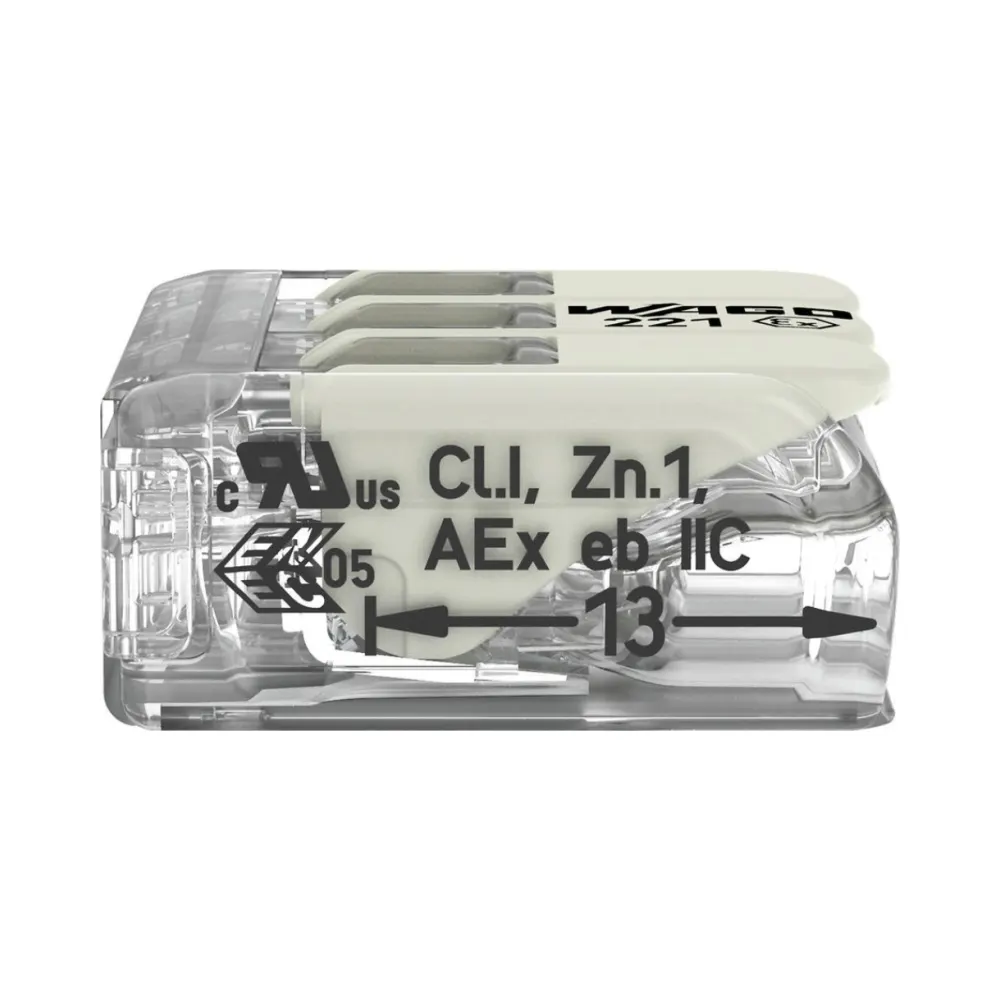

3 Way 6mm Spark Proof Lever Connectors – Pack of 30
Wago 221-683
The 3 Way 6mm Spark Proof Lever Connectors help connect three copper wires easily and safely. Each connector uses WAGO’s trusted tool-free CAGE CLAMP® system. Just open the lever, insert the wire, and close it. No tools or twisting needed.
The clear housing lets you check that wires are fully inserted. Wide, easy-to-grip levers make handling smooth—even in small spaces.
Compact and Tough for Demanding Jobs
These connectors are strong, compact, and made for safety. They support up to 6 mm² copper wires and carry up to 37 amps. The body uses flame-safe clear plastic, and the levers come in a light grey spark-proof design.
Thanks to their size and layout, the 3 Way 6mm Spark Proof Lever Connectors fit well inside junction boxes or control panels where space is tight but safety matters most.
⚠️ What Are Ex e Applications?
Ex e means “increased safety”—a standard for areas where gases, vapours, or dust could lead to explosions. In these risky zones (like Zone 1 or 2), all components must prevent sparks or extra heat.
These connectors are fully certified for ATEX and IECEx Ex e use. When placed inside approved enclosures and used with certified mounting clips, they help keep people and systems safe in oil, gas, or chemical environments.
Key Features – Wago 221-683
- Wire Types: Solid, stranded, and fine-stranded copper
- Conductor Range: 0.5–6 mm² (20–10 AWG)
- Voltage Rating: 440V (Ex e) / 600V (UL)
- Current Rating: 37A (Ex e) / 30A (UL)Strip Length: 12–14 mm
- Temperature Range: -55°C to +105°C
- Housing: Clear, flame-rated polycarbonate
- Levers: Spark-resistant light grey

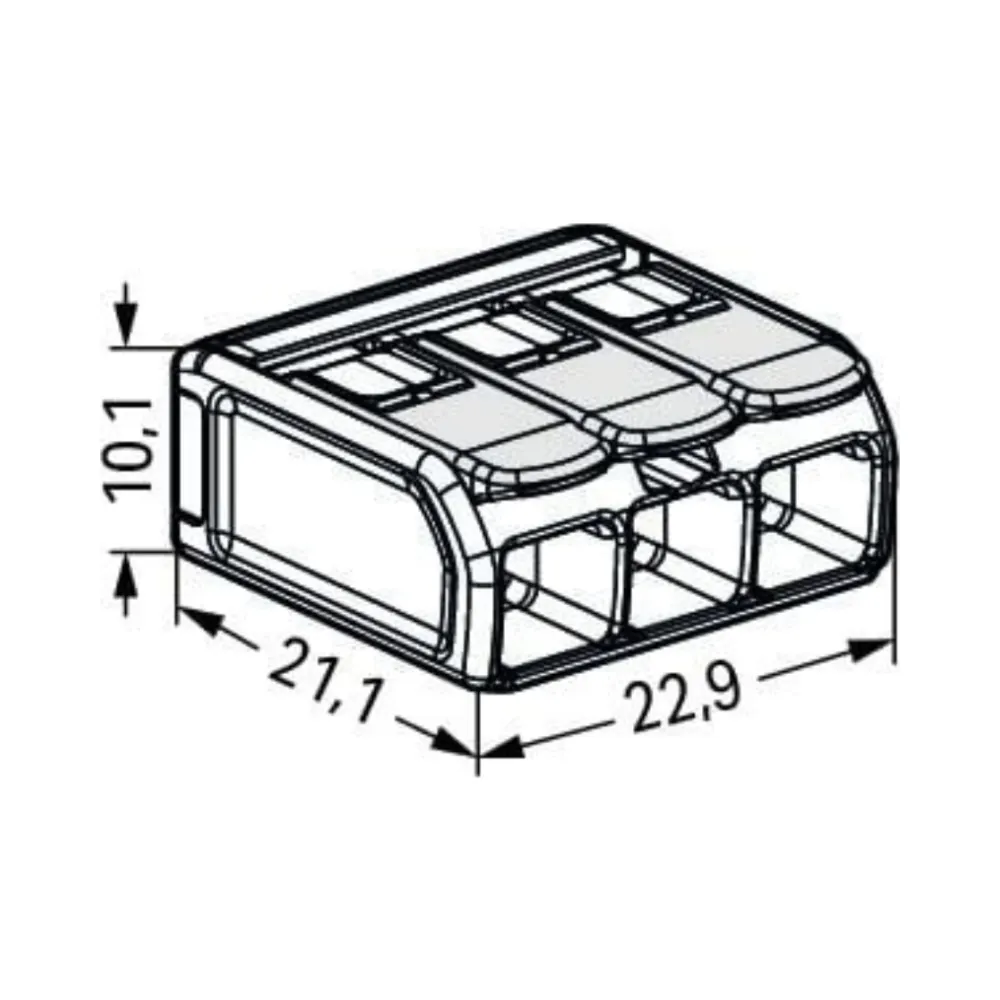

- Size (W×H×D): 22.9 × 10.1 × 21.1 mm
- Weight: 4.3g
- Made in: Germany
Ideal for Safe, Fast Installs
Use these connectors with WAGO’s 221-511 mounting carriers to meet spacing rules for Ex e use. Their tool-free design saves time, and the clear body makes checks quick and easy. Each unit is reusable and strong enough for heavy-duty jobs.
Installers trust them in zones where sparks must be avoided—and where safety can’t be compromised.
What’s in the Box
- 30 × Wago 221-683 3 Way 6mm Spark Proof Lever Connectors
The 3 Way 6mm Spark Proof Lever Connectors are best for:
- Tool-free push-fit wire connectors
- Spark-proof terminal blocks for Ex e environments
- Enclosure-based control systems in hazardous areas
- WAGO Ex e approved wiring components
- Multi-wire junction box wiring setups
✅ Pro Tip
To stay compliant, always use certified mounting accessories with these connectors. This helps meet safety rules and ensures better airflow in enclosures.
Summary – 3 Way 6mm Spark Proof Lever Connectors
Wago 221-683 3 Way Spark Proof Lever Connectors give you tool-free, safe wiring for Ex e zones. With a high current rating and spark-safe design, they’re great for control panels, industrial boxes, and critical jobs in explosive areas.
