Description

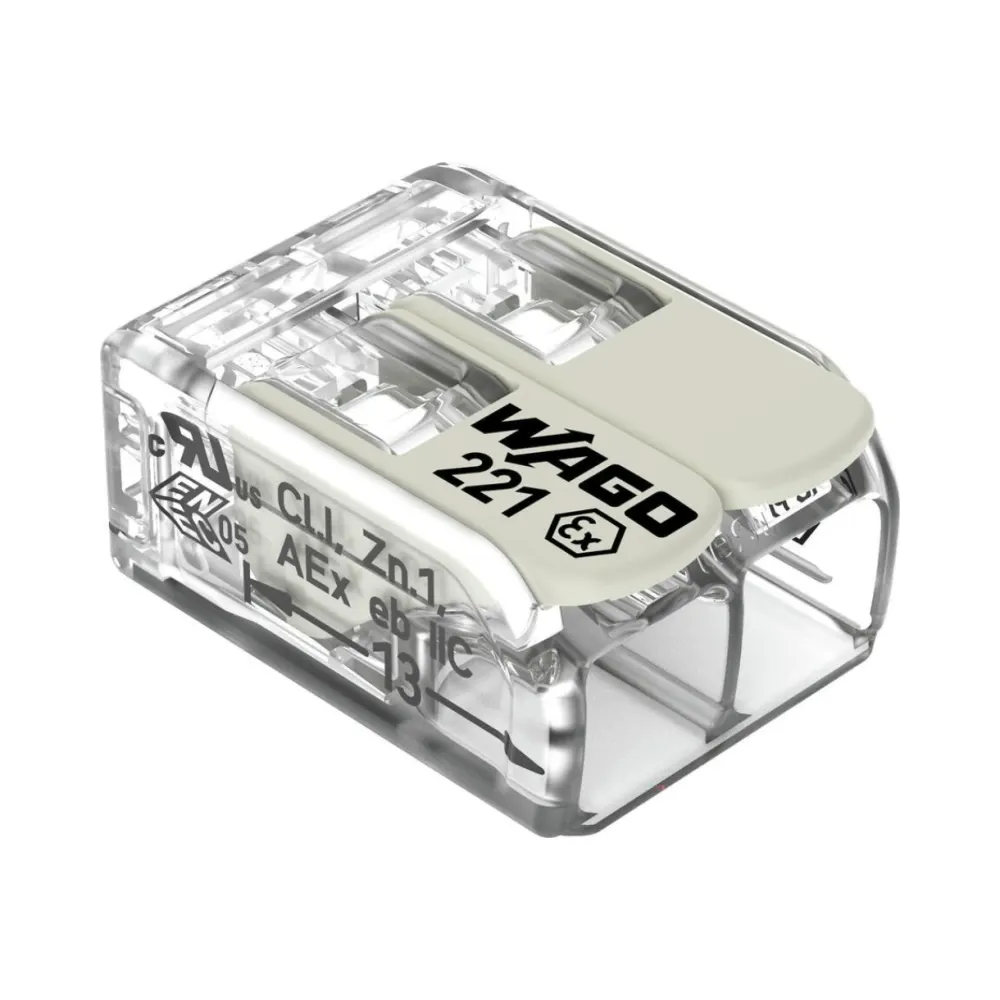

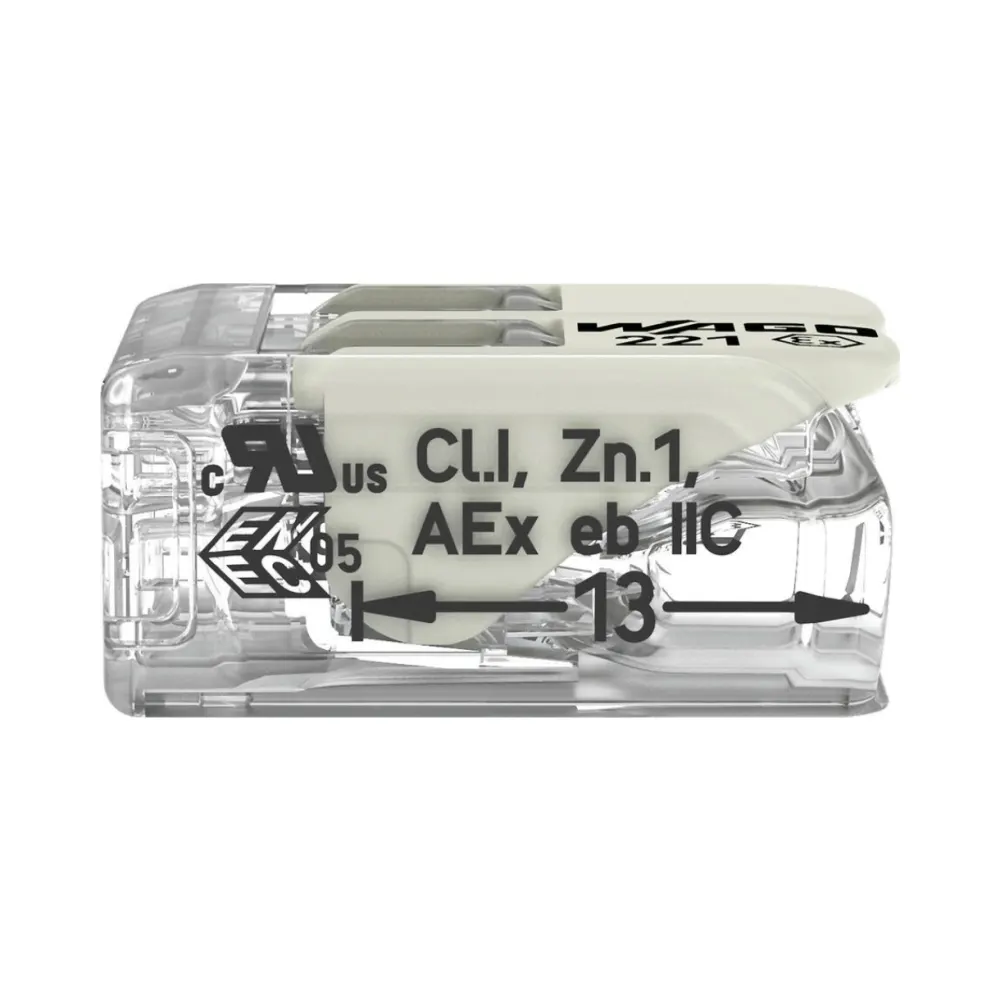

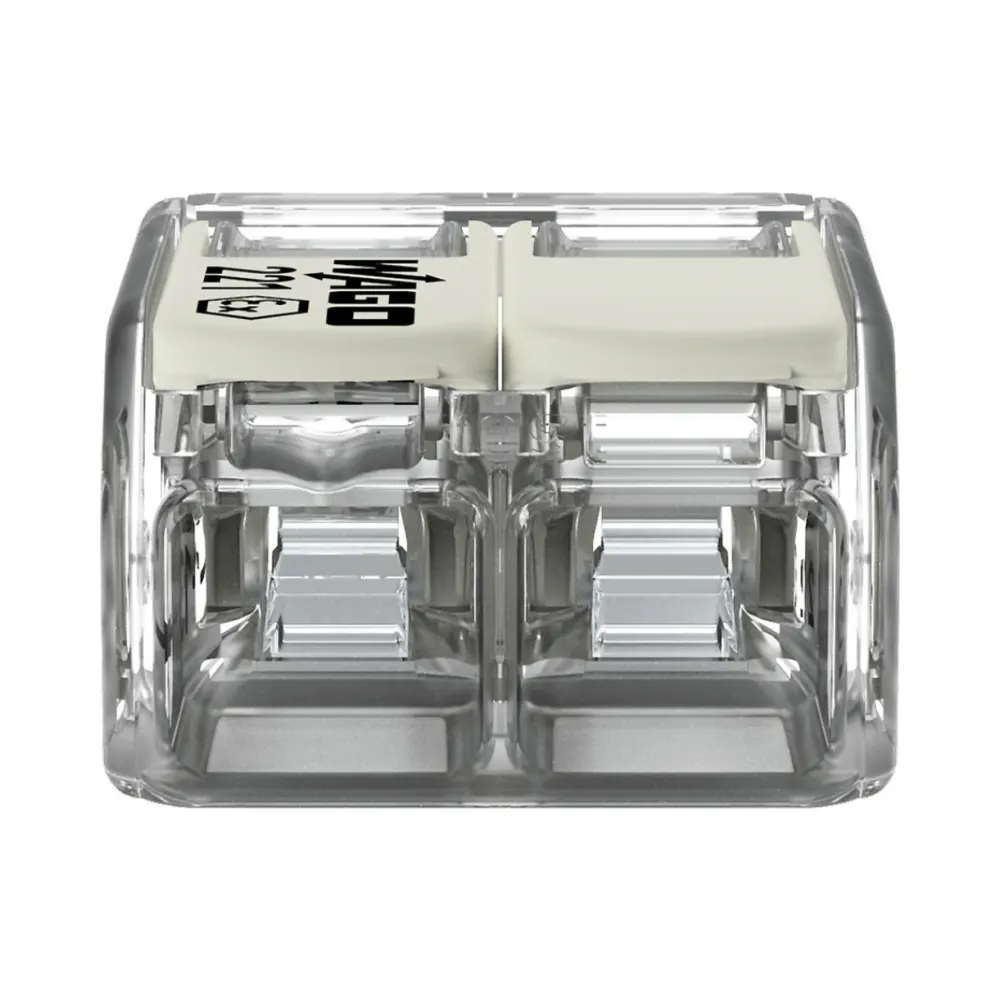

2 Way 6mm Spark Proof Lever Connectors
Wago 221-682
The 2 Way 6mm Spark Proof Lever Connectors help you connect copper wires easily and safely. Each connector uses WAGO’s tool-free CAGE CLAMP® system. Just lift the lever, push in the wire, and press it closed. No tools, no twisting, no mistakes.
The clear housing lets you see the wire position right away. And the wide levers make gripping easy—even in tight areas.
Compact, Strong, and Ready to Perform
These connectors work well in control panels, junction boxes, and tight spaces. Although not part of WAGO’s Green Range, they’re made with tough, flame-safe materials. They also handle high currents—up to 37 amps—without problems.
Because of their small size, the 2 Way Spark Proof Lever Connectors are great when space is limited, but safety is still a priority.
⚠️ What Are Ex e Applications?
Ex e means “increased safety.” These applications involve areas where gas, vapor, or dust could cause fires or explosions. Examples include oil rigs, chemical plants, and manufacturing lines.
In Ex e zones, even a small spark can be dangerous. That’s why connectors like this one are used. They don’t make sparks or heat during normal use. WAGO’s Ex-rated connectors meet ATEX and IECEx standards and are safe for Zone 1 and Zone 2 environments.
Key Features – Wago 221-682 2 Way 6mm Spark Proof Lever Connectors
- Wire Types: Solid, stranded, and fine-stranded copper
- Wire Size: 0.5–6 mm² (20–10 AWG)
- Voltage: 440V (Ex e) / 600V (UL)
- Current: 37A (Ex e) / 30A (UL)
- Strip Length: 12–14 mm
- Temperature Range: -55°C to +105°C
- Lever Color: Light grey

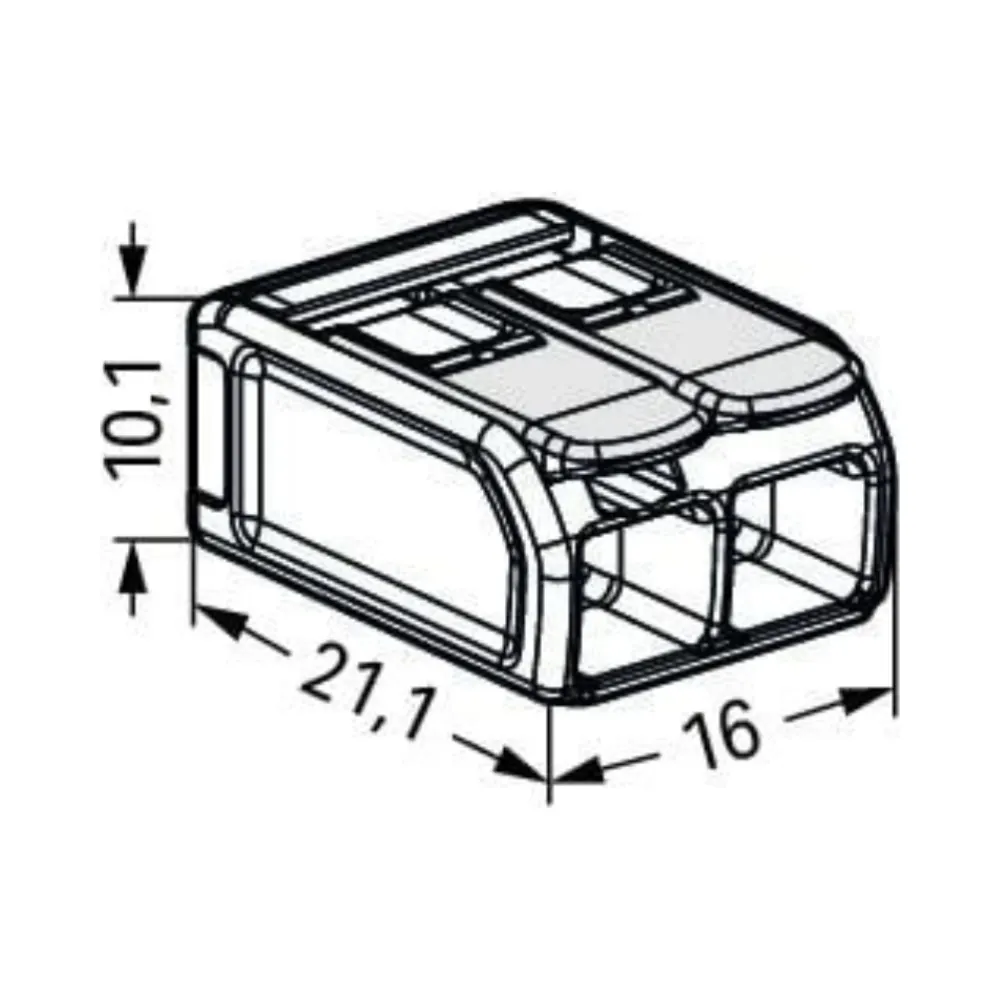

- Size: 16 × 10.1 × 21.1 mm
- Weight: 3g
- Made in: Germany
Built for High-Risk Areas
Installers use these connectors with the WAGO 221-511 mounting carrier for full Ex e compliance. This setup ensures correct spacing and safe enclosure. The tool-free design saves time, while the transparent body helps with quick checks.
Because of their strength and size, these connectors are a trusted choice for demanding jobs.
What’s in the Box
- 50 × Wago 221-682 2 Way 6mm Spark Proof Lever Connectors
The 2 Way 6mm Spark Proof Lever Connectors is best for:
- Tool-free push-fit wire connectors
- Spark-proof terminal blocks for Ex e environments
- Enclosure-based control systems in hazardous areas
- WAGO Ex e approved wiring components
- Heavy-duty junction box wiring setups
✅ Pro Tip
Use with certified WAGO mounting accessories for best safety. This supports airflow and correct installation in explosive zones.
Summary – 2 Way Spark Proof Lever Connectors
Wago 221-682 Spark Proof Lever Connectors offer safe, tool-free wiring in explosive zones. They’re compact, easy to use, and certified for Ex e setups. Ideal for high-current, high-risk installations.
