Description

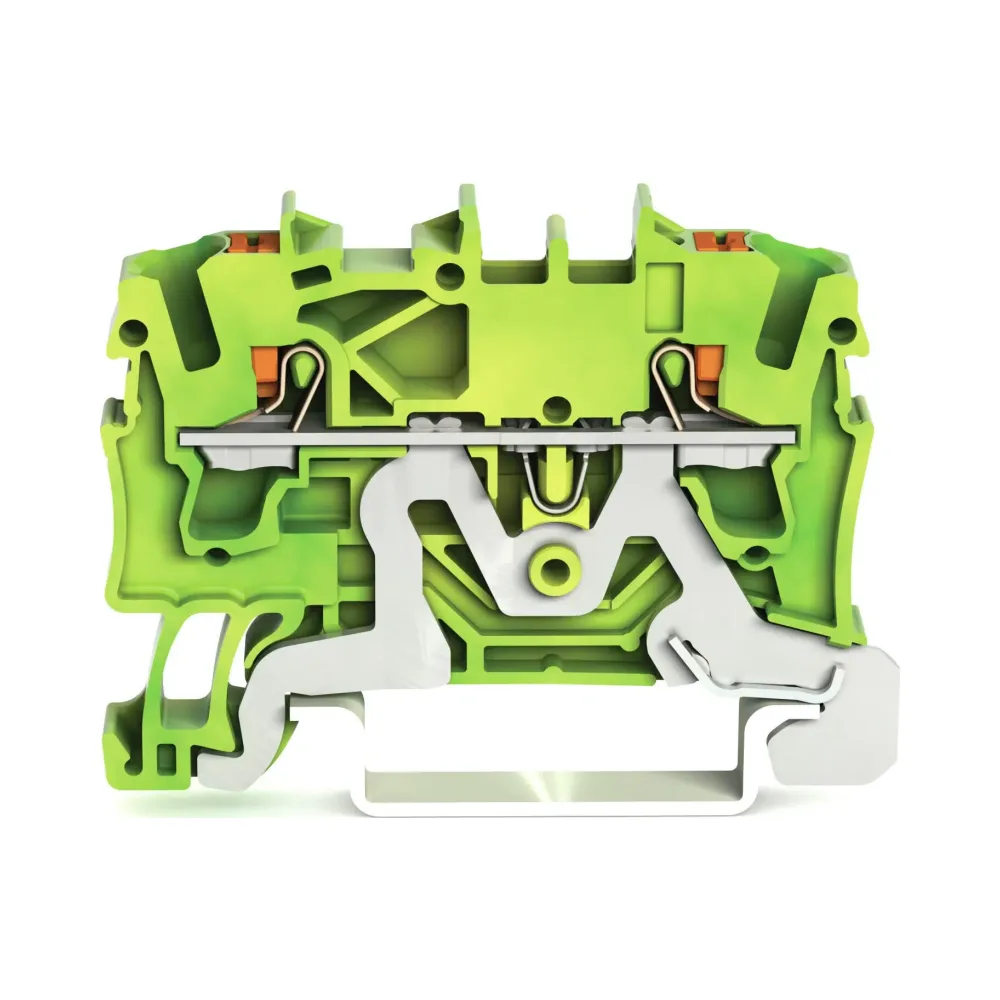

2-Conductor Ground Terminal Block with Push-Button and Push-In Cage Clamp
Wago 2202-1207
The WAGO 2202-1207 2-Conductor Ground Terminal Block combines efficient grounding with easy wiring, thanks to its Push-in CAGE CLAMP® technology and push-button actuation. Designed for use with 2.5 mm² copper conductors, this terminal block allows for tool-free, quick, and secure connections, making it ideal for control panels and electrical systems.
Its green-yellow color provides clear identification for grounding, while the DIN-35 rail mounting ensures compatibility with standard installations.
Key Features
- Push-Button Actuation: Simplifies wiring and disconnection, allowing easy operation without the need for tools.
- Push-in CAGE CLAMP® Technology: Ensures fast, secure connections for both solid and fine-stranded copper conductors.
- Compact Design: With a width of just 5.2 mm, it saves space in control panels, while maintaining high functionality.
- DIN-Rail Mounting: Compatible with DIN-35 rails, making it easy to integrate into standard electrical setups.
- Front-Entry Wiring: Allows for easier access in tight spaces, improving installation efficiency.
Connection Data
- Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Number of Jumper Slots: 2
- Nominal Cross-Section: 2.5 mm²
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.25 to 4 mm² (22 to 12 AWG)
- Fine-Stranded Conductor: 0.25 to 4 mm² (22 to 12 AWG)
- Strip Length: 10 to 12 mm
Physical Data
- Width: 5.2 mm
- Height: 48.5 mm
- Depth from Upper-Edge of DIN-Rail: 32.9 mm
Applications
The WAGO 2202-1207 2-Conductor Ground Terminal Block is ideal for control panels, automation systems, and electrical distribution boards. Its push-button operation and Push-in CAGE CLAMP® technology make it an excellent choice for secure, tool-free wiring and quick maintenance in both residential and industrial applications.
Purchase from Electrical4Less
As an authorised WAGO distributor, Electrical4Less offers the WAGO 2202-1207 Ground Terminal Block and other WAGO products. Contact us for project discounts and bulk order options.
FAQs – WAGO 2202-1207 2-Conductor Ground Terminal Block
1. How does the push-button actuation work?
The push-button simplifies wiring by allowing easy conductor insertion and disconnection without tools, making maintenance faster.
2. What is Push-in CAGE CLAMP® technology?
Push-in CAGE CLAMP® provides tool-free wiring for both solid and fine-stranded conductors, ensuring fast and reliable connections.
3. Is this terminal block compatible with DIN-rails?
Yes, the WAGO 2202-1207 is designed for DIN-35 rails, which are standard in most control panels and electrical systems.
4. What types of conductors can this terminal block support?
It supports solid and fine-stranded copper conductors with cross-sections ranging from 0.25 mm² to 4 mm².
5. Can I get a bulk discount for large orders?
Yes, Electrical4Less offers project discounts for larger orders. Contact us to receive a customised quote based on your project requirements.
