Description

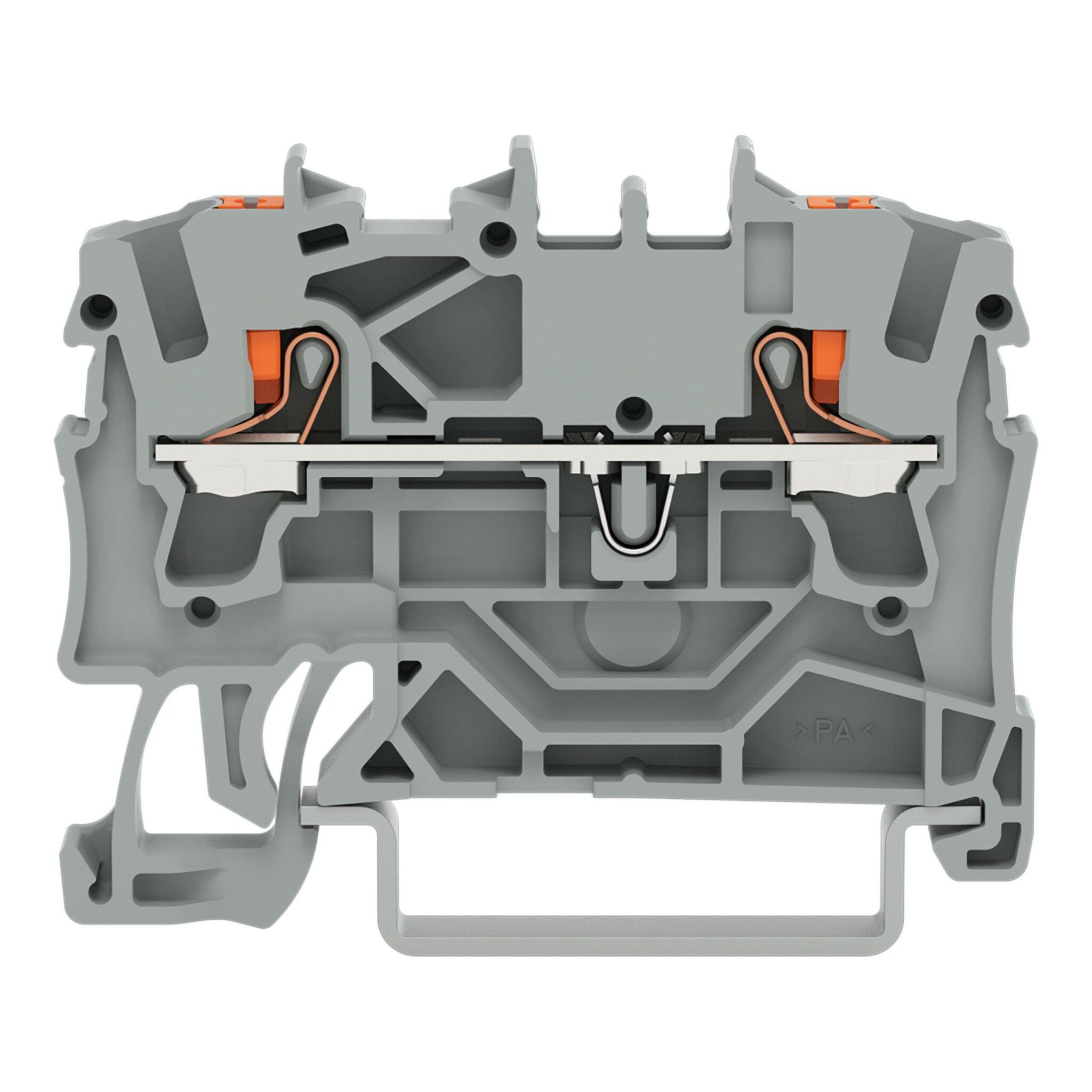

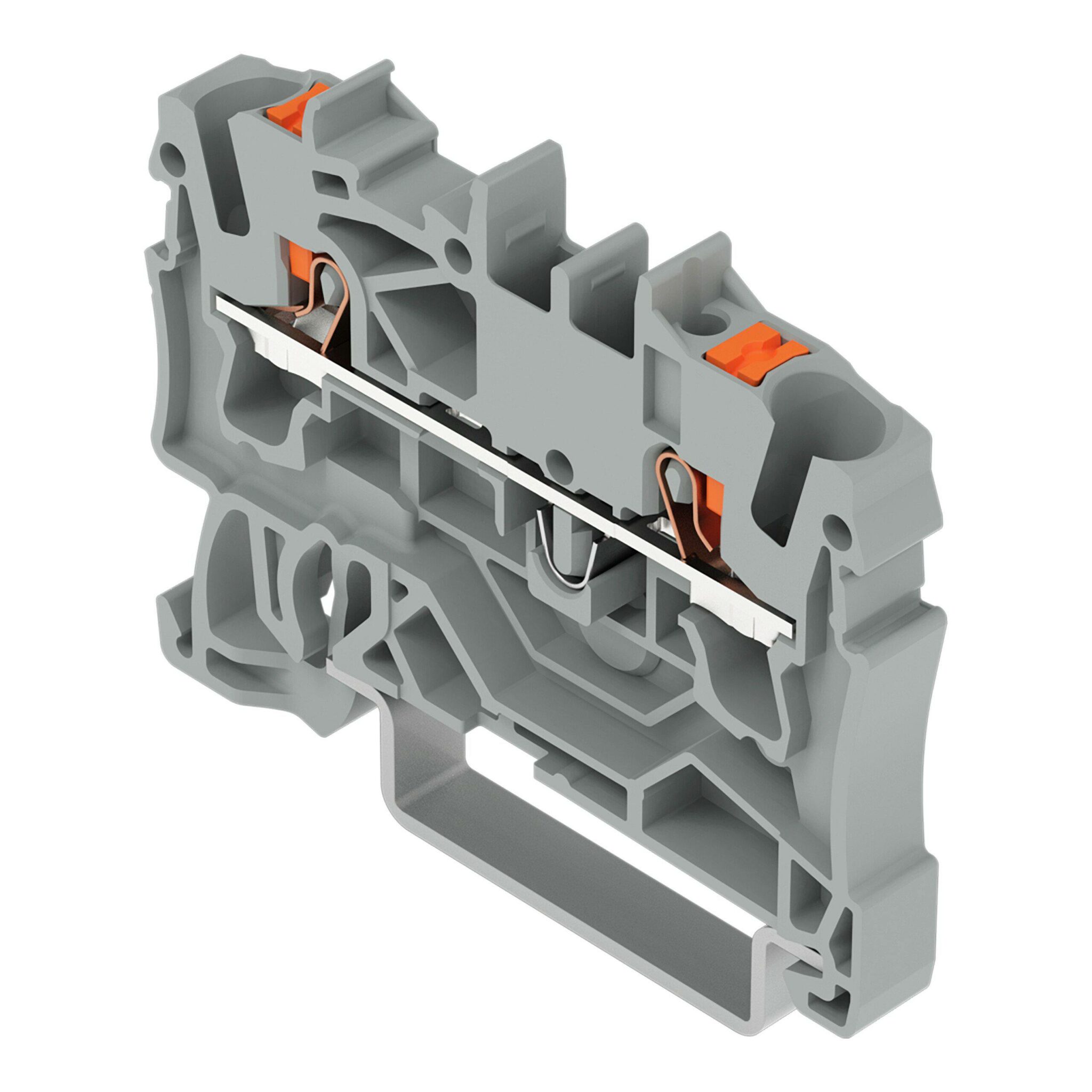

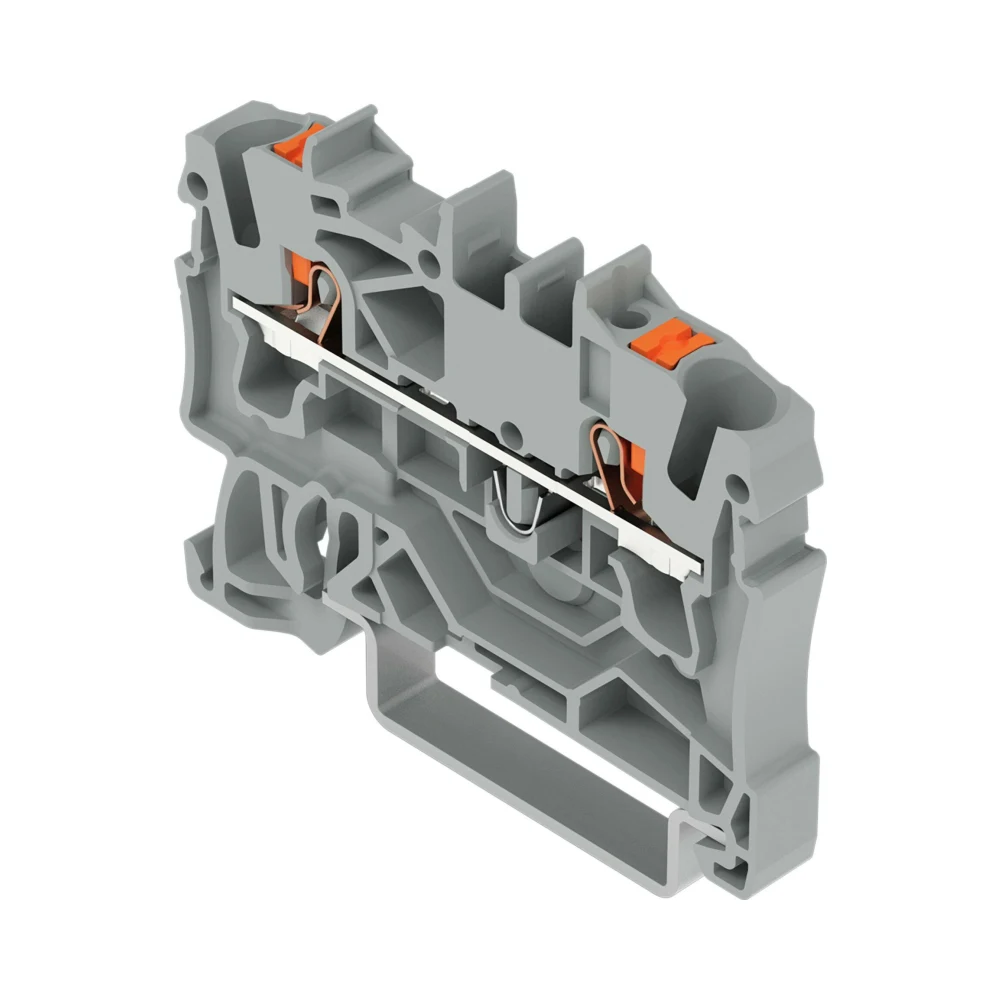

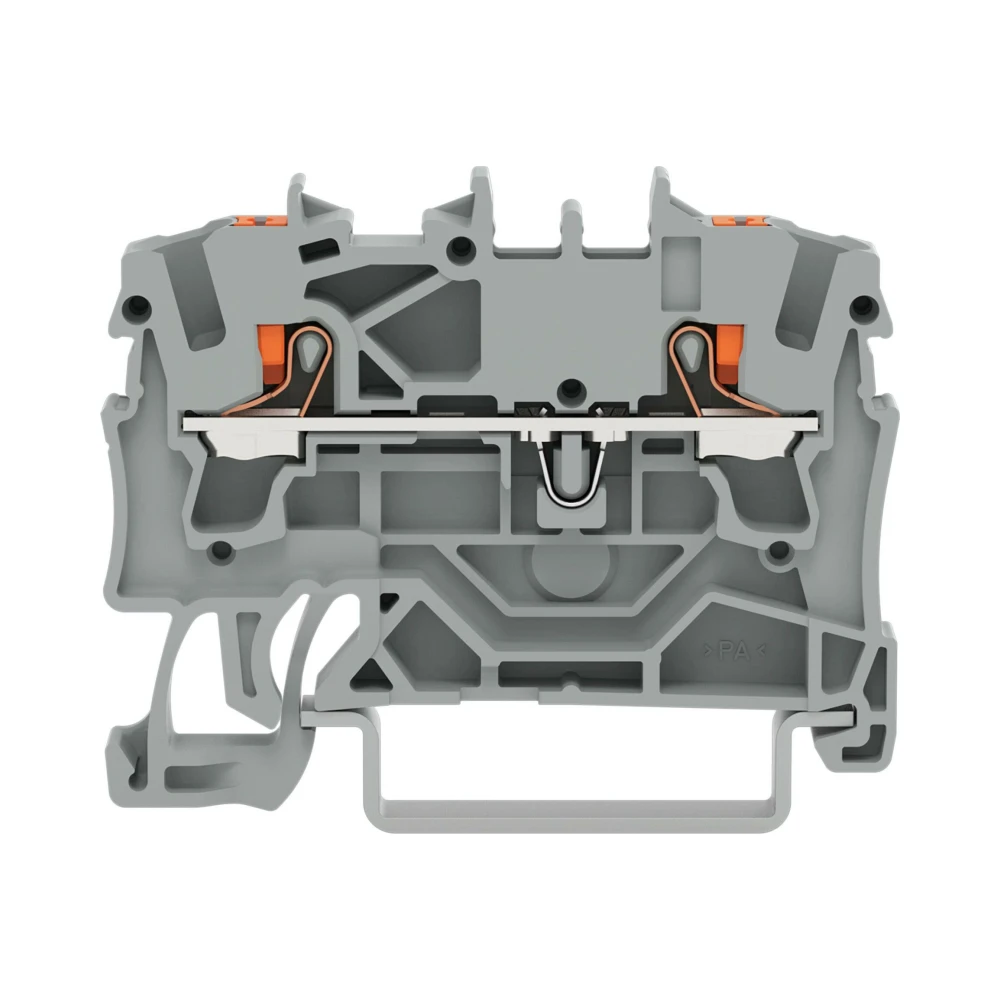

Through Terminal Block with Push-In Cage Clamp – 800V 24A 2.5mm² Grey
Wago 2202-1201
The WAGO 2202-1201 Through Terminal Block is engineered for efficient and secure electrical connections, making it a versatile solution for industrial, commercial, and residential applications. Featuring Push-in CAGE CLAMP® technology, this terminal block allows for tool-free, quick, and secure wiring.
With a nominal voltage of 800V and current rating of 24A, it supports a wide range of electrical installations, ensuring reliable performance in control panels, automation systems, and electrical distribution boards. Its compact design optimises space within electrical enclosures, making it a perfect choice for installations where space is at a premium.
Key Features
- Push-In CAGE CLAMP® Technology: Enables fast, tool-free, and secure wire connections, simplifying installation and ensuring a reliable connection.
- DIN-Rail Mounting: Easily snaps onto standard DIN-35 rails, providing a clean and organized solution for managing multiple electrical connections.
- Compact Design: Space-saving design ensures efficient use of space in control panels and switchboards, ideal for tight installations.
- Versatile Application: Accommodates a variety of conductor types, including solid, stranded, and fine-stranded wires, making it suitable for diverse electrical systems.
- High-Quality Construction: Built to withstand demanding environments, offering durability and long-lasting performance.
- Clear Marking: Features clear marking options for easy identification, simplifying maintenance and troubleshooting tasks.
- Safe and Secure Connections: The Push-in CAGE CLAMP® provides not only quick but also secure connections, reducing the risk of failures.
Electrical Specifications
- Nominal Voltage: 800 V
- Rated Impulse Voltage: 8 kV
- Rated Current: 24 A
- Max Current at Conductor Cross-Section: 32 A
Connection Data
- Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Number of Jumper Slots: 2
- Nominal Cross-Section: 2.5 mm²
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.25 to 4 mm² (22 to 12 AWG)
- Fine-Stranded Conductor: 0.25 to 4 mm² (22 to 12 AWG)
- Strip Length: 10 to 12 mm

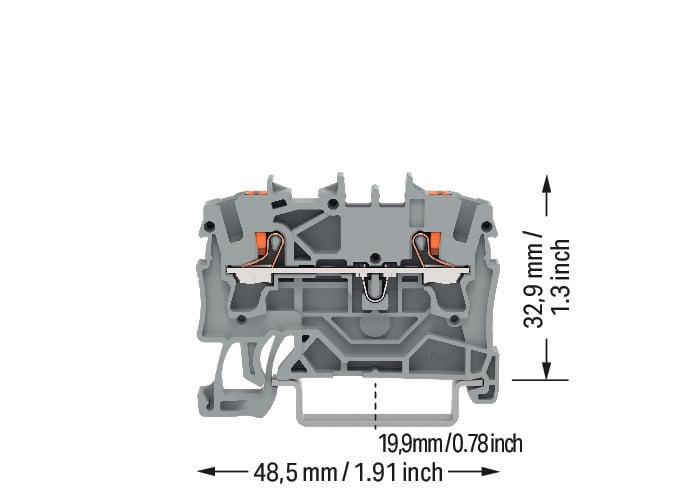

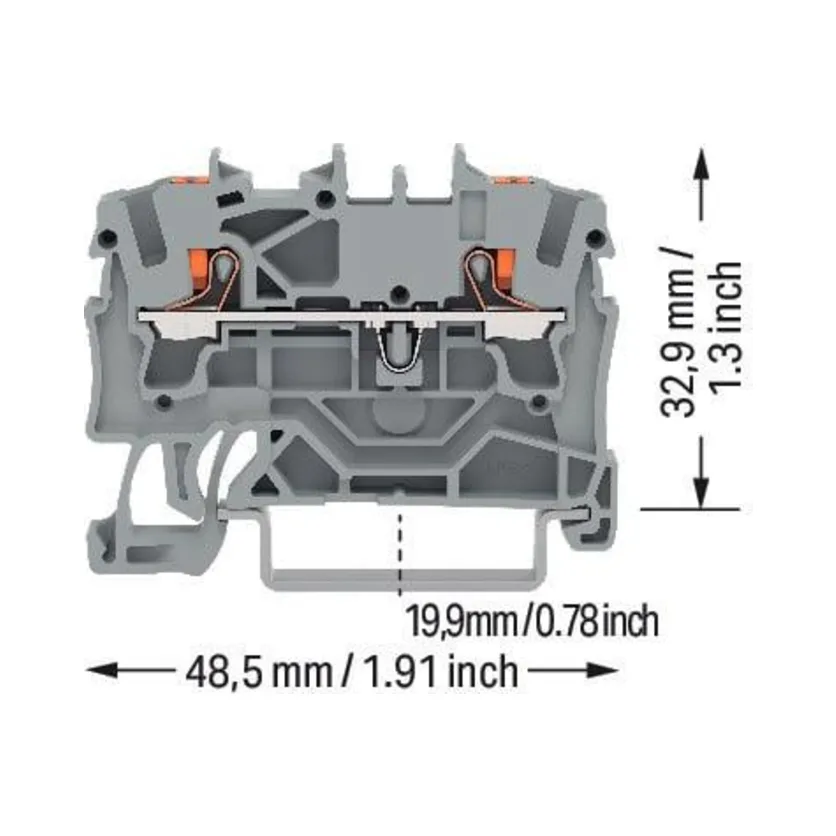

Physical Data
- Width: 5.2 mm
- Height: 48.5 mm
- Depth from Upper-Edge of DIN-Rail: 32.9 mm
Applications
- Industrial Control Panels: Ideal for managing multiple connections in industrial automation and manufacturing environments.
- Commercial Electrical Installations: Ensures space-efficient and reliable connections for commercial electrical setups.
- Residential Wiring Systems: Provides secure and organized connections for complex residential electrical systems.
- Renewable Energy Systems: Suitable for use in solar and wind energy setups, managing electrical connections safely and efficiently.
Purchase from Electrical4Less
At Electrical4Less, we offer the WAGO 2202-1201 Terminal Block and a full range of WAGO products. Contact us to inquire about bulk discounts and project-specific pricing.
FAQs – WAGO 2202-1201 Through Terminal Block
1. How does Push-in CAGE CLAMP® technology work?
It allows for tool-free wiring by simply inserting the conductor, where the clamp automatically secures it, ensuring a reliable connection.
2. Is this terminal block compatible with DIN-rails?
Yes, the WAGO 2202-1201 is designed to easily snap onto standard DIN-35 rails for quick and secure installation.
3. What types of conductors are supported?
The terminal block supports solid and fine-stranded copper conductors with cross-sections ranging from 0.25 mm² to 4 mm².
4. Can I use this terminal block for renewable energy installations?
Yes, it is suitable for renewable energy systems such as solar and wind energy installations, providing safe and efficient electrical connections.
5. Do you offer bulk discounts for large orders?
Yes, Electrical4Less offers project discounts for bulk purchases. Contact us for a customised quote based on your project needs.
About WAGO
WAGO is a global leader in electrical connection technology, known for their reliable CAGE CLAMP® system. Professionals rely on WAGO products for durability, ease of use, and innovation in electrical systems.
