Description
2-Conductor Through Terminal Block with Lever and Push-In Cage Clamp – 800V 57A 10mm² Grey

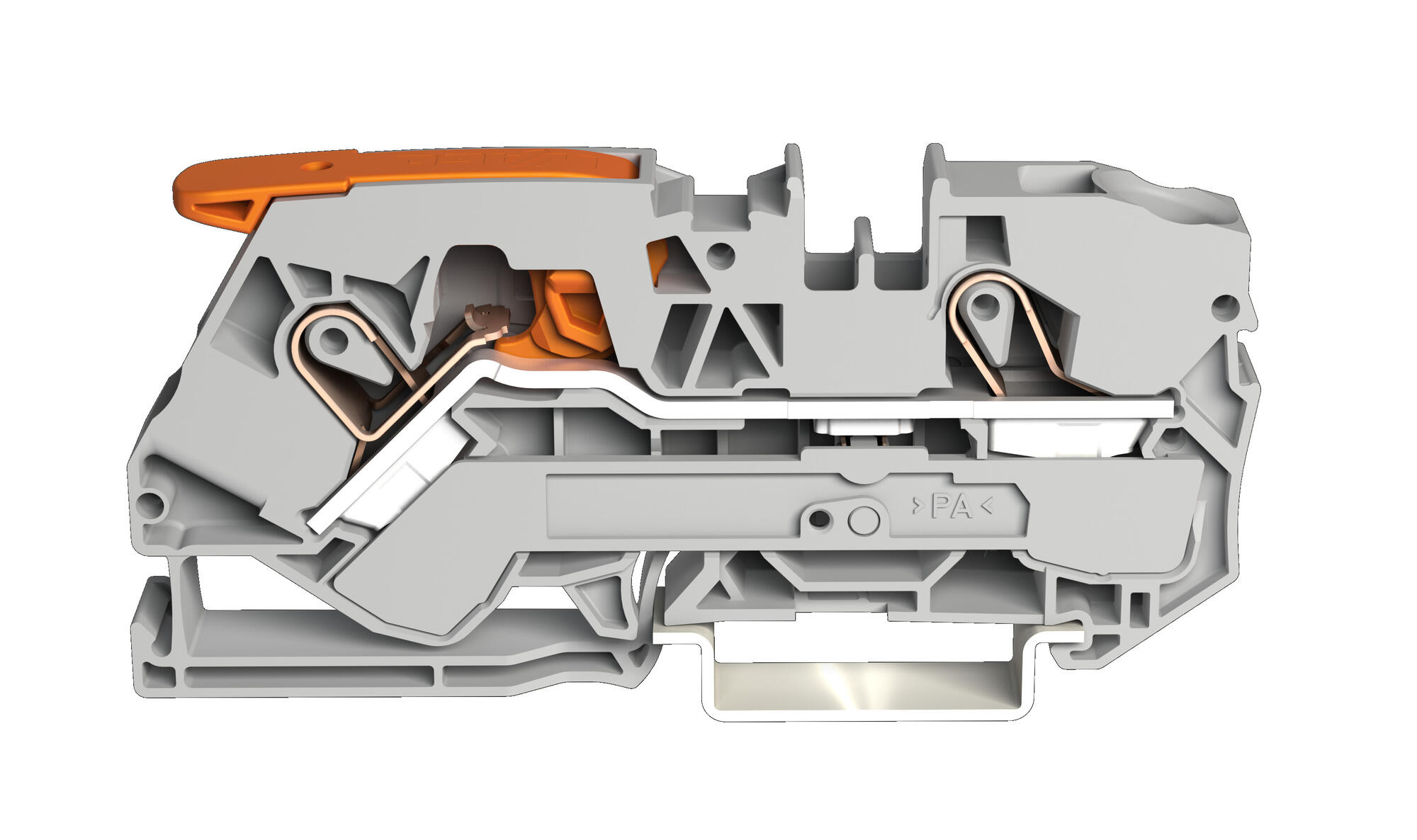

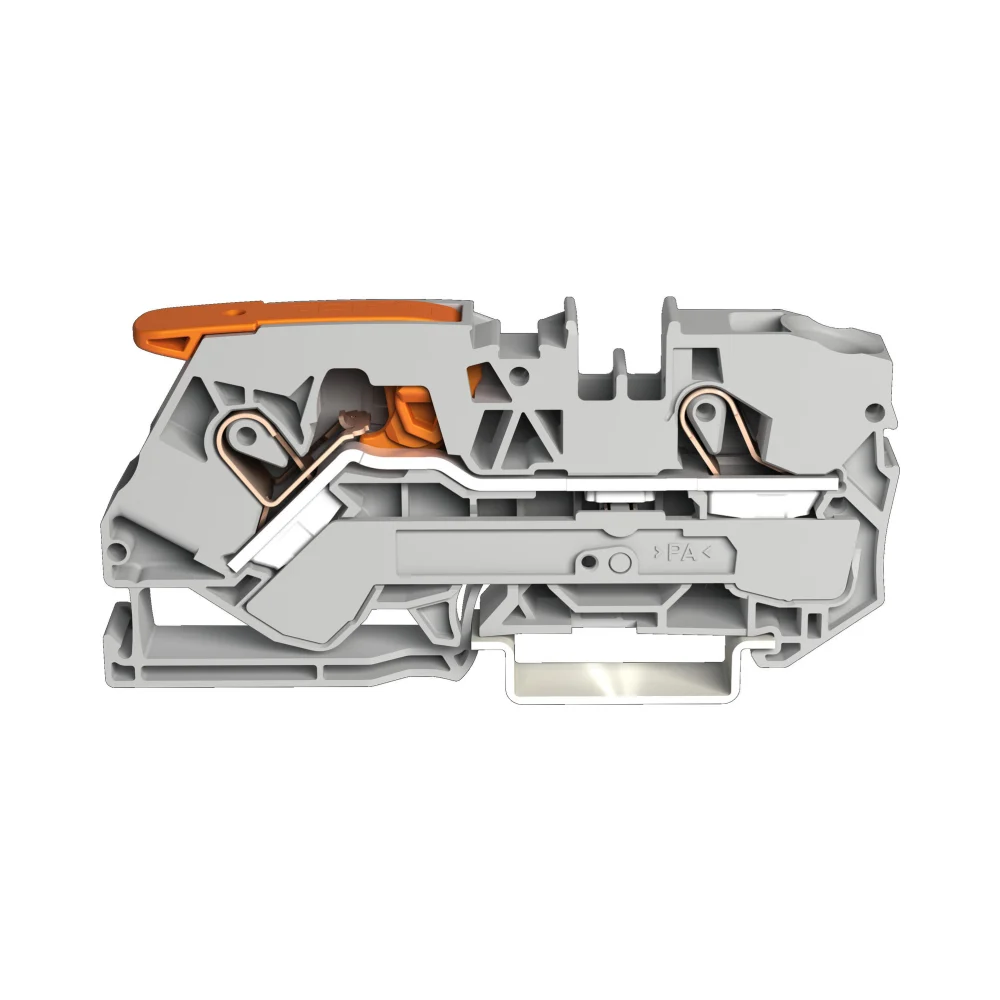

Wago 2110-1201
The WAGO 2110-1201 2-Conductor Through Terminal Block offers efficient, secure electrical connections for industrial and automation systems. Featuring Push-in CAGE CLAMP® technology and a lever for tool-free operation, it ensures easy and reliable wiring. Rated for 800V and 57A, this terminal block is ideal for high-voltage applications, making it suitable for both solid and fine-stranded copper conductors up to 10 mm².
Its front-entry wiring design and DIN-35 rail compatibility provide flexibility and ease of installation in tight spaces.
Key Features
- Lever-Operated Design: Enables tool-free, quick, and secure wiring and disconnection for easy installation and maintenance.
- Push-in CAGE CLAMP® Technology: Allows for fast, reliable, and tool-free connections for both solid and fine-stranded copper conductors.
- High Voltage and Current Capacity: Supports up to 800V and 57A, ideal for heavy-duty electrical systems.
- DIN-Rail Mounting: Compatible with DIN-35 rails, allowing for secure integration into control panels and electrical boards.
- Front-Entry Wiring: Simplifies wiring in space-constrained setups, improving accessibility and efficiency during installation.
Electrical Specifications
- Nominal Voltage: 800 V
- Rated Impulse Voltage: 8 kV
- Rated Current: 57 A
- Max Current at Conductor Cross-Section: 74 A
Connection Data
- Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Number of Jumper Slots: 2
- Nominal Cross-Section: 10 mm²
- Compatible Conductor Materials: Copper
- Solid Conductor: 0.5 to 16 mm² (20 to 6 AWG)
- Fine-Stranded Conductor: 0.5 to 16 mm² (20 to 6 AWG)
- Strip Length: 17 to 19 mm

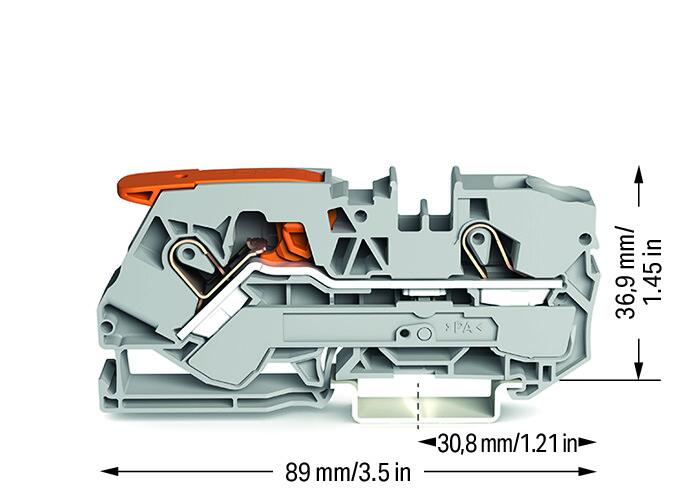

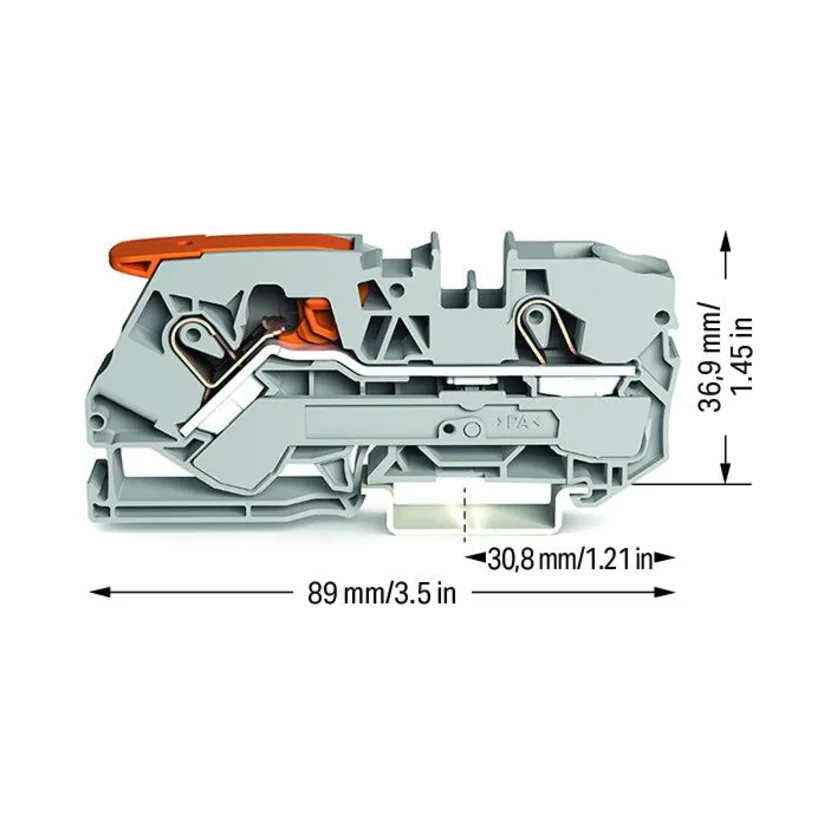

Physical Data
- Width: 10 mm
- Height: 89 mm
- Depth from Upper-Edge of DIN-Rail: 36.9 mm
Applications
The WAGO 2110-1201 2-Conductor Through Terminal Block is ideal for high-voltage industrial control panels, automation systems, and electrical distribution boards. Its lever-actuated Push-in CAGE CLAMP® technology simplifies both installation and maintenance, making it perfect for both new projects and system upgrades.
Purchase from Electrical4Less
As an authorised WAGO distributor, Electrical4Less offers a wide range of WAGO products, including the WAGO 2110-1201 Terminal Block. Contact us today to inquire about bulk discounts and project pricing for larger orders.
FAQs – WAGO 2110-1201 2-Conductor Through Terminal Block
1. How does the lever design improve the installation process?
The lever allows for tool-free, fast wiring and secure connections, speeding up installation and maintenance tasks.
2. What is Push-in CAGE CLAMP® technology?
Push-in CAGE CLAMP® technology ensures quick, secure, and tool-free wiring for both solid and fine-stranded conductors, providing reliability in industrial environments.
3. What types of conductors can this terminal block support?
It supports solid and fine-stranded copper conductors with cross-sections ranging from 0.5 mm² to 16 mm².
4. Is this terminal block compatible with DIN-rails?
Yes, the WAGO 2110-1201 mounts on DIN-35 rails, offering easy integration into standard control panels.
5. Can I get a discount for bulk orders?
Yes, Electrical4Less offers project discounts for bulk purchases. Contact us for a personalised quote based on your project needs.
About WAGO
WAGO is a trusted leader in electrical connection technology, known for their innovative CAGE CLAMP® system. Professionals worldwide rely on WAGO products for their ease of use, durability, and safety.
