Description

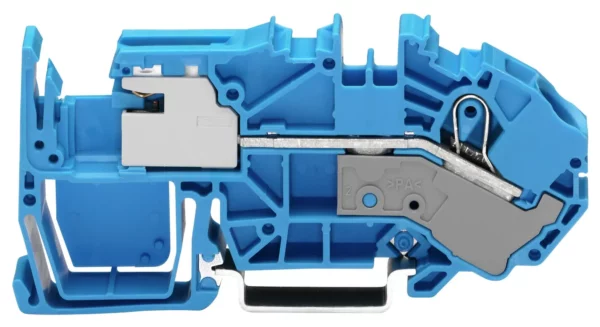

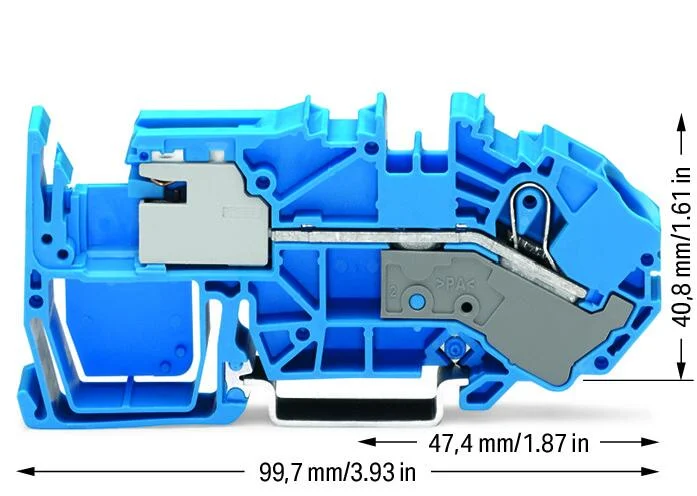

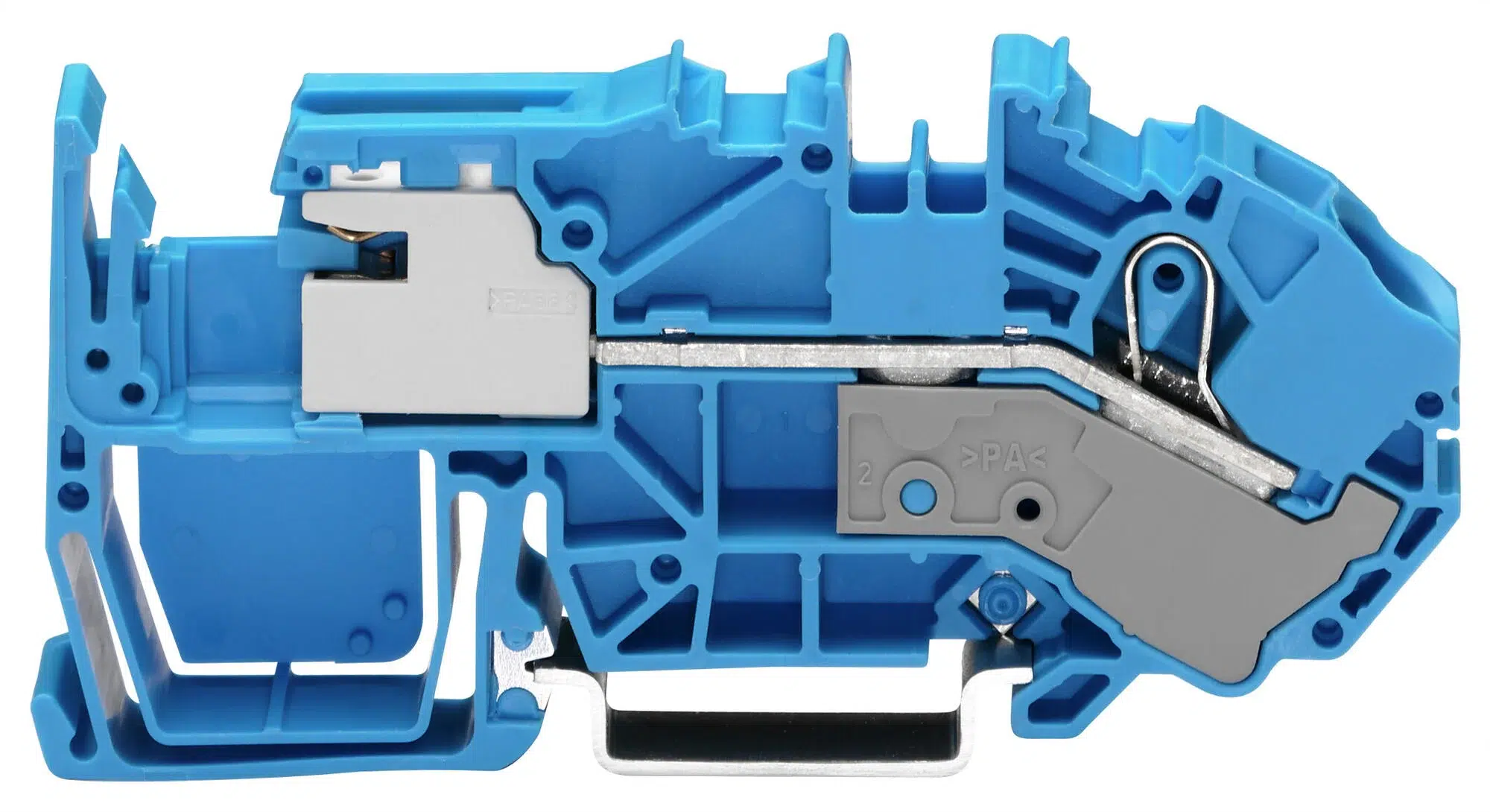

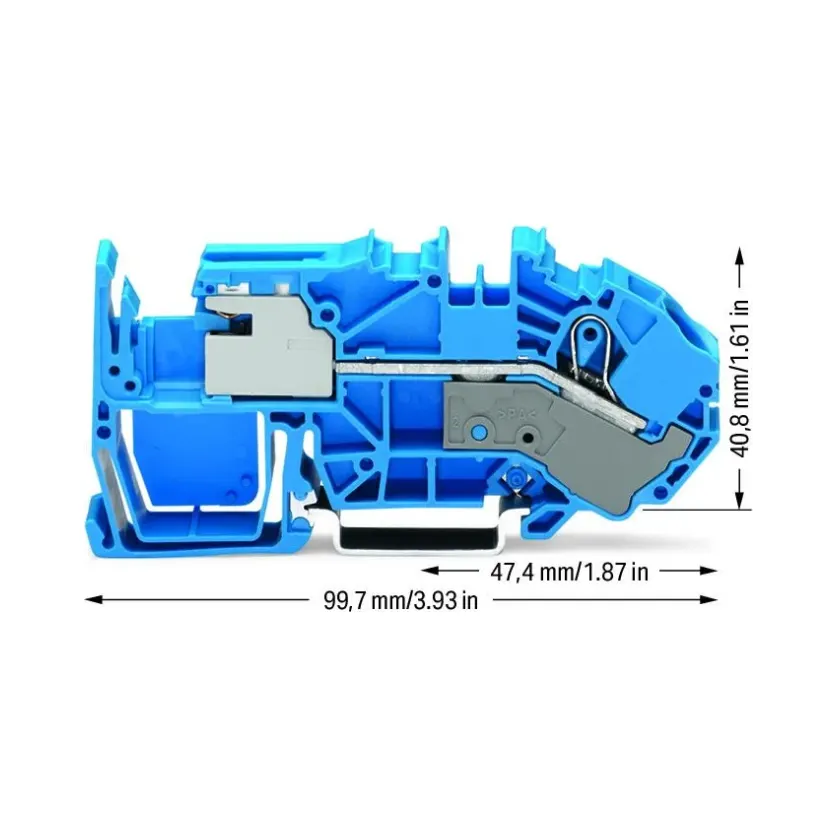

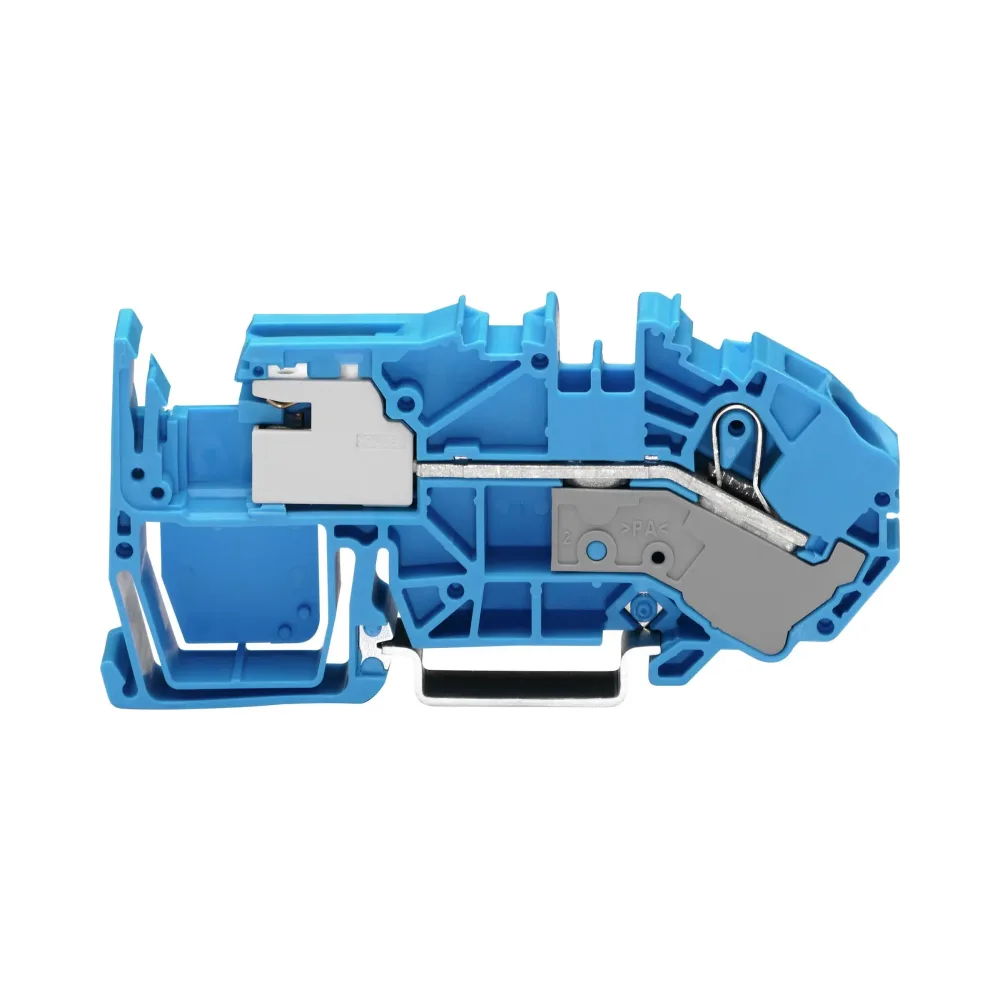

1-Conductor N-Disconnect Terminal Block – 16mm² Blue
Wago 2016-7714 Rail Mount Terminal Block
The WAGO 2016-7714 1-Conductor N-Disconnect Terminal Block is designed for safe and efficient neutral disconnection in electrical systems. With Push-in CAGE CLAMP® technology, this terminal block ensures quick, tool-free wiring, providing secure and reliable connections. Designed to handle up to 73 A of current with a 16 mm² conductor, this terminal block is perfect for heavy-duty industrial applications.
The compact design supports 1 connection point and 2 jumper slots, making it ideal for use in control panels and electrical distribution systems.
Key Features
- Push-in CAGE CLAMP® Technology: Allows for fast, secure, and tool-free wiring, reducing installation time.
- High Current Capacity: Rated for 73 A, suitable for applications requiring robust current handling.
- N-Disconnect Feature: Ensures safe and easy disconnection for testing and maintenance in electrical systems.
- DIN-Rail Mount Compatibility: Fits 35 x 15 and 35 x 7.5 DIN-rails, providing flexibility for various installation setups.
Electrical Specifications
- Overvoltage Category: III, III, II
- Pollution Degree: 3, 2, 2
- Nominal Voltage: 250 V
- Rated Surge Voltage: 4 kV
- Rated Current: 73 A
- Max Current at Conductor Cross-Section: 82 A
Connection Data
- Connection Points: 1
- Total Number of Potentials: 1
- Number of Levels: 1
- Number of Jumper Slots: 2
Applications
The WAGO 2016-7714 terminal block is ideal for industrial electrical systems, particularly in control panels and distribution systems where neutral disconnection is necessary. Its high current capacity and compact design make it a reliable choice for heavy-duty applications.
Purchase from Electrical4Less
As an authorised WAGO distributor, Electrical4Less offers the WAGO 2016-7714 N-Disconnect Terminal Block alongside a wide range of WAGO products. Contact us today to learn more about our project discounts and bulk order options.
FAQs – WAGO 2016-7714 1-Conductor N-Disconnect Terminal Block
1. What is the purpose of the N-disconnect feature?
The N-disconnect feature allows for safe and easy neutral disconnection, which is essential for maintenance and testing in electrical systems.
2. How does Push-in CAGE CLAMP® technology benefit installations?
Push-in CAGE CLAMP® technology allows for tool-free wiring, making the installation process faster and more secure.
3. What types of DIN-rails are compatible?
The WAGO 2016-7714 terminal block is compatible with 35 x 15 and 35 x 7.5 DIN-rails, offering flexibility for different installation setups.
4. Is this terminal block suitable for high-current applications?
Yes, it is rated for 73 A, making it suitable for high-current applications in industrial environments.
5. How can I get a discount for bulk orders?
At Electrical4Less, we offer project discounts for large orders. Contact us to discuss your project needs and receive a customised quote.
