Description
Compact Terminal Block for Current and Voltage Transformers – 6mm² Multicoloured
Wago 2007-8873 Rail Mount Terminal Block

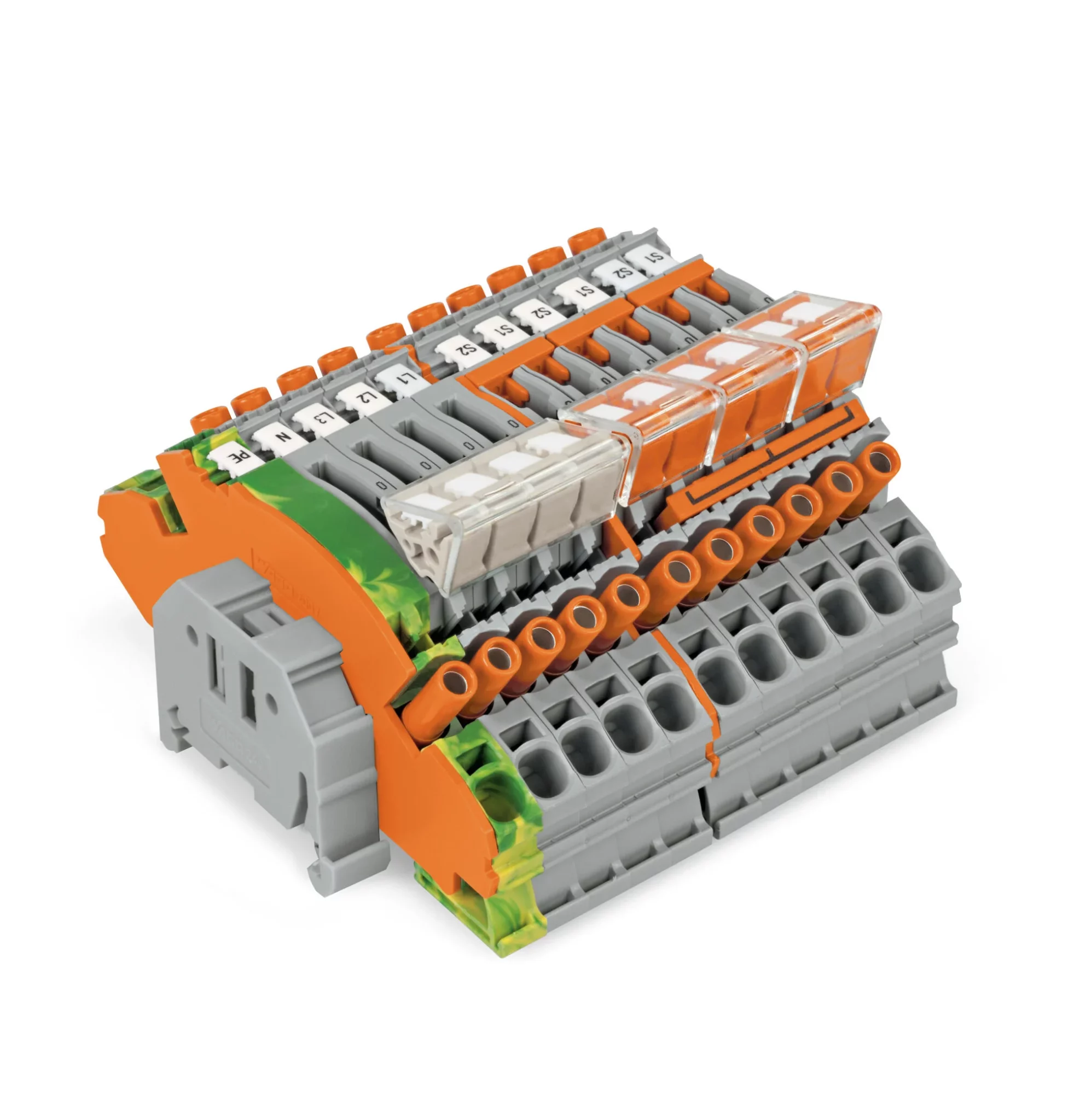

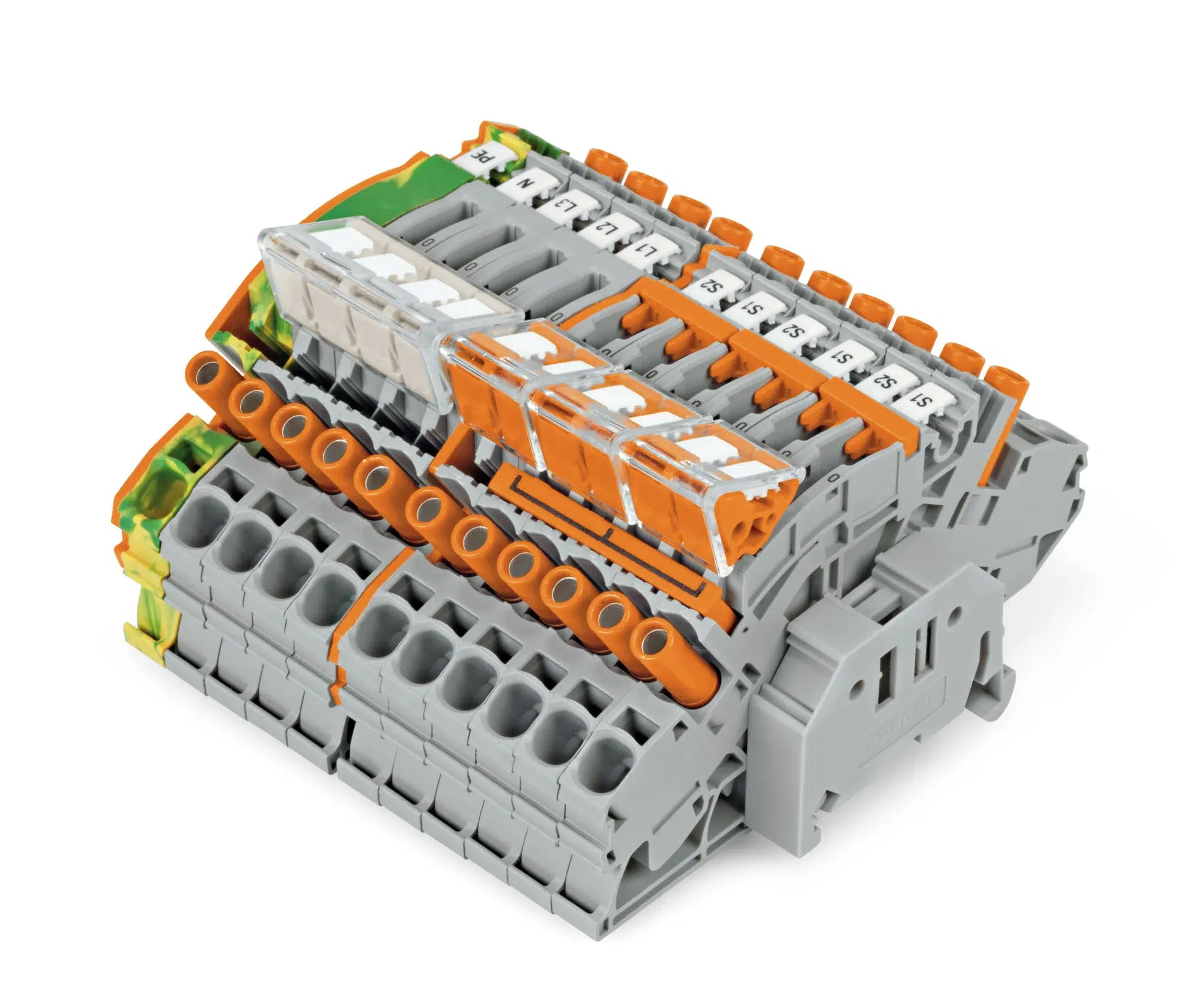

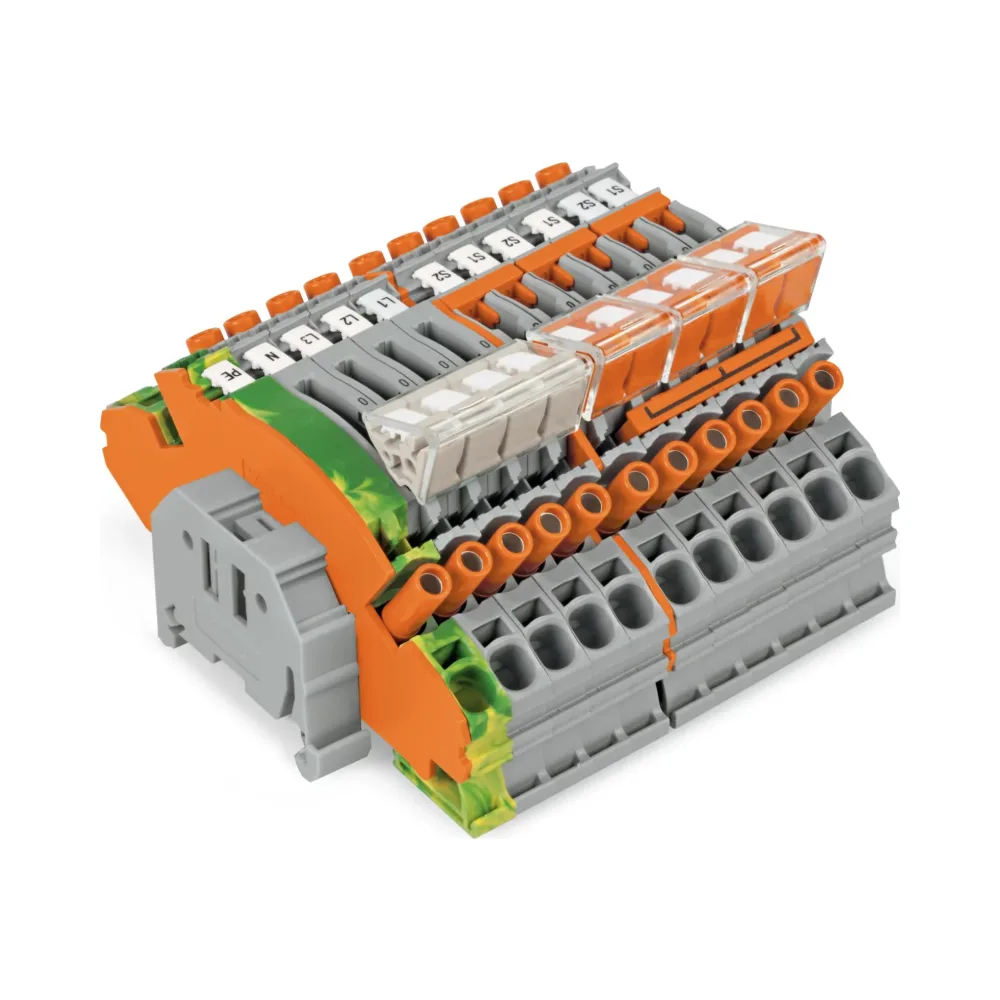

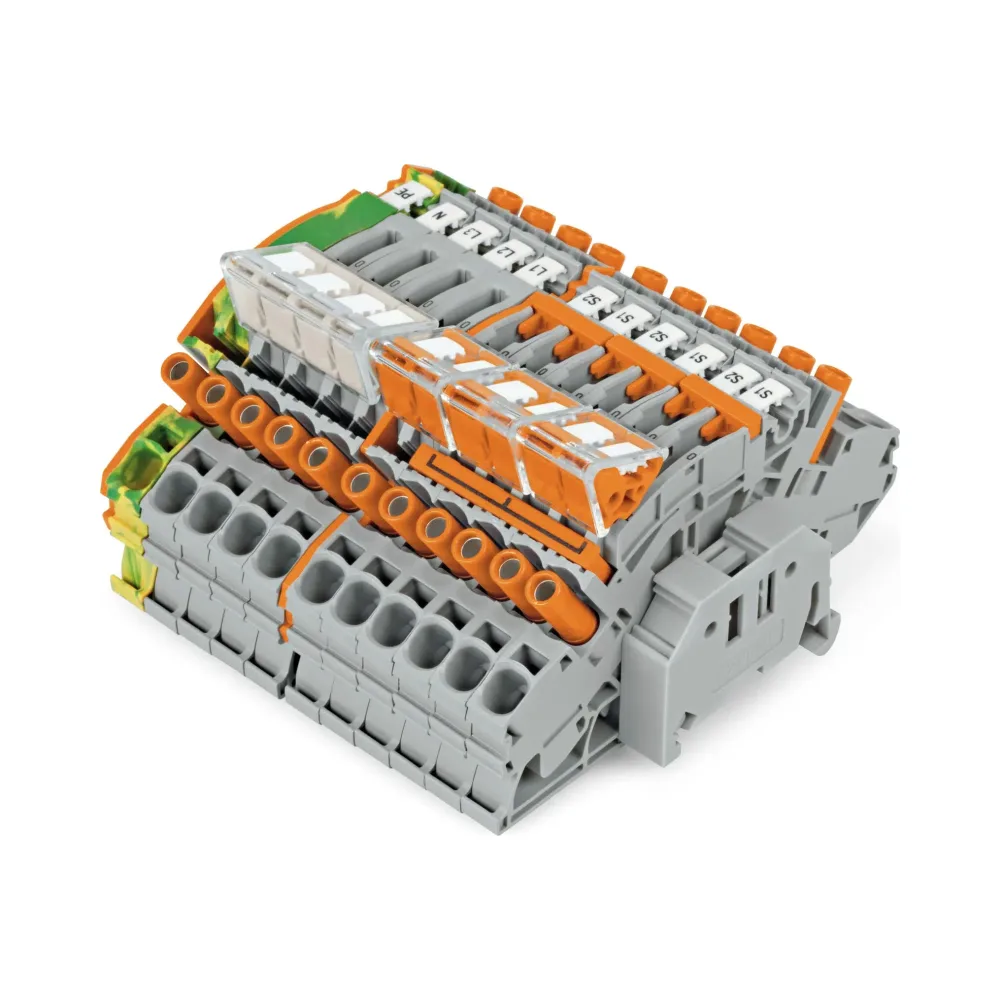

The WAGO 2007-8873 Compact Terminal Block is a comprehensive solution designed specifically for current and voltage transformers. This multicoloured terminal block set is equipped with touch-proof test sockets for easy and safe testing. Featuring Push-in CAGE CLAMP® technology, the installation process is quick and secure, with tool-free wiring.
The set includes disconnect/test terminal blocks, ground terminal blocks, circuit jumpers, and more, offering a complete package for electrical installations requiring current and voltage monitoring.
Key Features
- Designed for Current and Voltage Transformers: Tailored specifically for transformer installations, providing secure and efficient connections.
- Touch-Proof Test Sockets: Ensures safety during testing and maintenance, supporting 4 mm Ø test plugs.
- Comprehensive Kit: Includes multiple terminal blocks, circuit jumpers, locking covers, and WMB markers for a complete installation solution.
- Push-in CAGE CLAMP® Technology: Allows for tool-free, fast, and reliable wiring, making installation efficient.
- DIN-Rail Mount Compatibility: Fits both 35 x 15 and 35 x 7.5 DIN-rails, making it adaptable to different control panels.
Kit Contents
- 6 x 2-Conductor Disconnect/Test Terminal Blocks (2007‑8821): Touch-proof test sockets for 4 mm Ø test plugs.
- 4 x 2-Conductor Disconnect/Test Terminal Blocks (2007‑8811): Equipped with touch-proof test sockets for 4 mm Ø test plugs.
- 1 x 2-Conductor Ground Terminal Block (2007‑8807): Includes touch-proof test sockets.
- 3 x Circuit Jumper (2007‑8442): Insulated, 2-way.
- 1 x Jumper (282‑435/011‑000): Insulated, 1-3-5 connection.
- 3 x Locking Cover, 2-Pole (282‑882): Mechanically locks multiple links.
- 1 x Locking Cover, 4-Pole (282‑884): Mechanically locks multiple links.
- 2 x End and Separator Plate (2007‑8892): 1.5 mm thick, without lock-out seal option.
- 21 x WMB Inline Plain Markers (2009‑115): 1,500 WMB markers per reel (5 mm).
- 2 x Screwless End Stops (249‑117): 10 mm wide.
Electrical Specifications
- Nominal Voltage: 500 V
- Rated Impulse Voltage: 6 kV
- Overvoltage Category: III
- Pollution Degree: 3
Applications

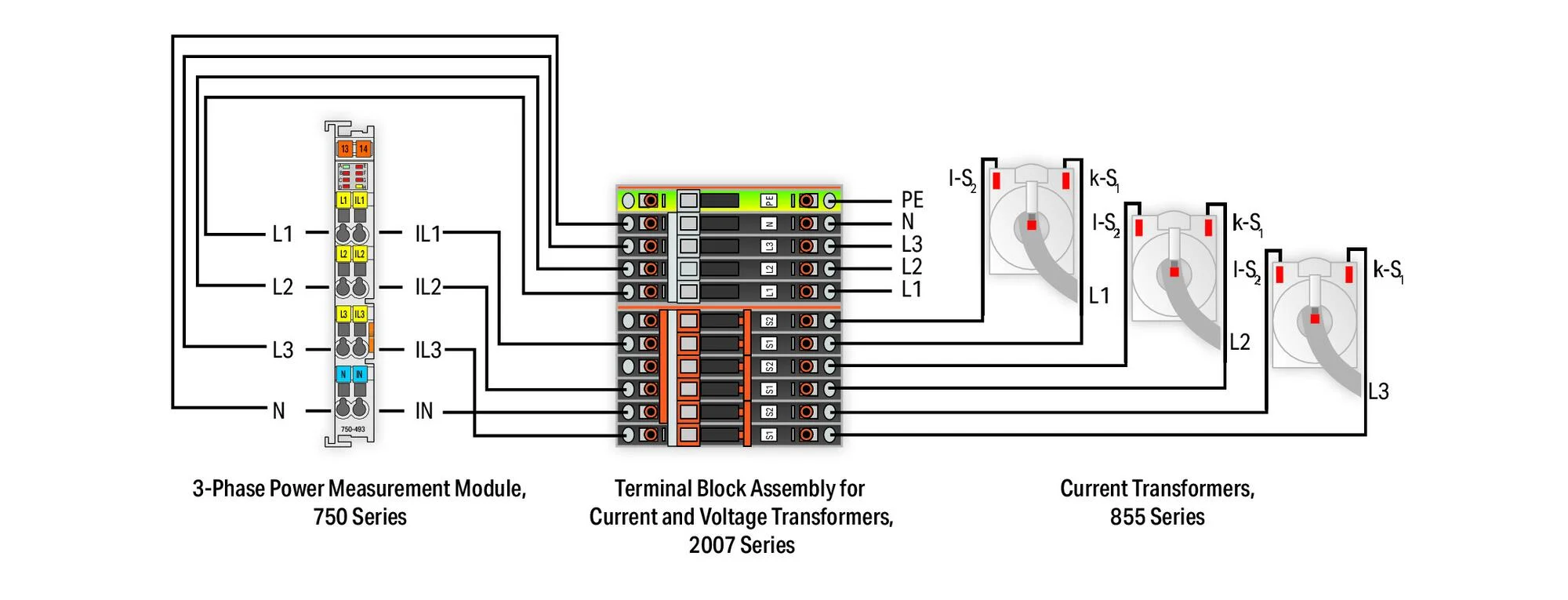

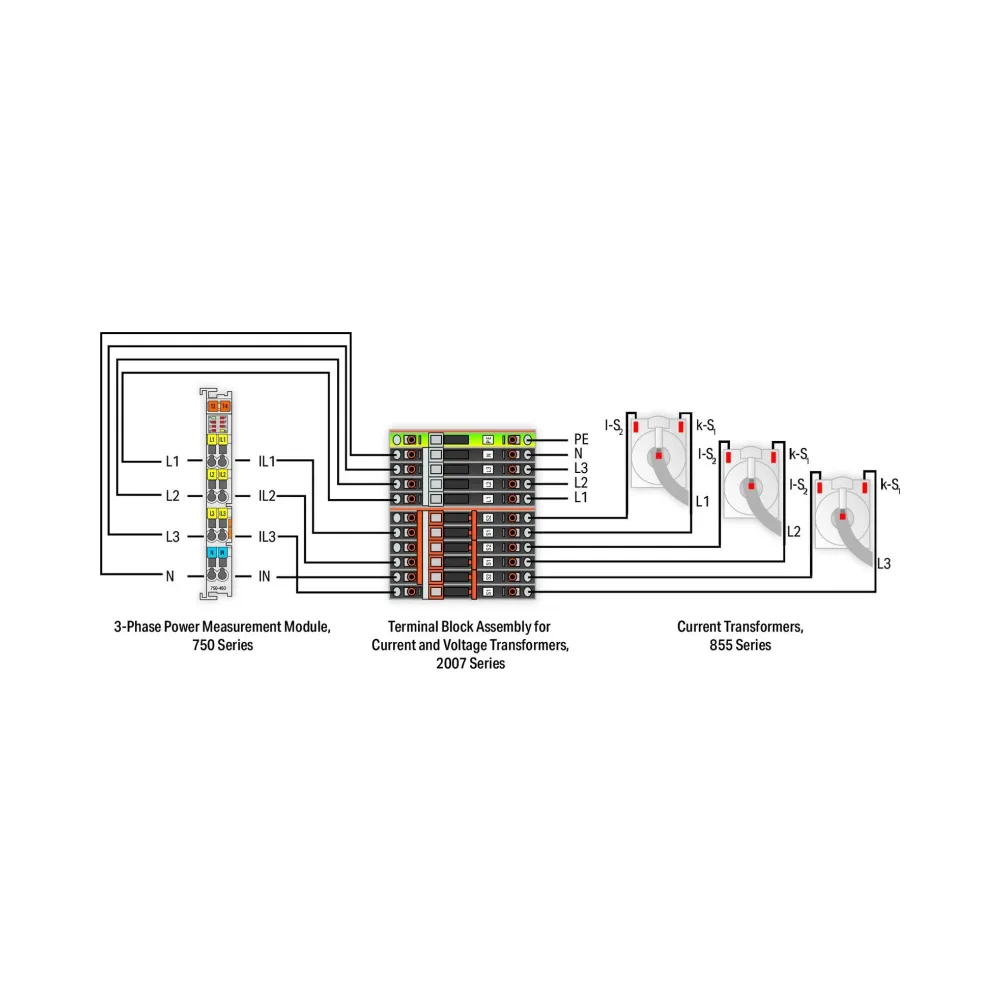

The WAGO 2007-8873 terminal block set is ideal for use in current and voltage transformer installations, particularly in industrial control panels and automation systems. Its touch-proof test sockets ensure safe, efficient testing, while the comprehensive set of components makes it a reliable solution for complex electrical setups.
Purchase from Electrical4Less
As an authorised WAGO distributor, Electrical4Less offers the complete WAGO 2007-8873 Compact Terminal Block Kit. Contact us to learn more about our project discounts for bulk orders and how we can support your electrical needs.
FAQs – WAGO 2007-8873 Compact Terminal Block for Current and Voltage Transformers
1. What type of fuses does this terminal block support?
This terminal block is designed for current and voltage transformers and includes touch-proof test sockets for safe and easy testing.
2. How does Push-in CAGE CLAMP® technology benefit installation?
Push-in CAGE CLAMP® technology allows for tool-free wiring, speeding up installation while ensuring secure and reliable connections.
3. What types of DIN-rails are compatible?
The WAGO 2007-8873 is compatible with 35 x 15 and 35 x 7.5 DIN-rails, making it suitable for various control panel setups.
4. How do the touch-proof test sockets enhance safety?
The touch-proof test sockets provide additional protection during testing, ensuring that users can safely test current and voltage connections without the risk of electrical shock.
5. Can I get a discount for large orders?
Yes, Electrical4Less offers project discounts for bulk purchases. Contact us to discuss your project needs and receive a personalised quote.
About WAGO
WAGO is a global leader in electrical interconnection technology, known for their innovative CAGE CLAMP® system. WAGO products are trusted for their ease of installation, reliability, and safety in demanding industrial environments.
