Description

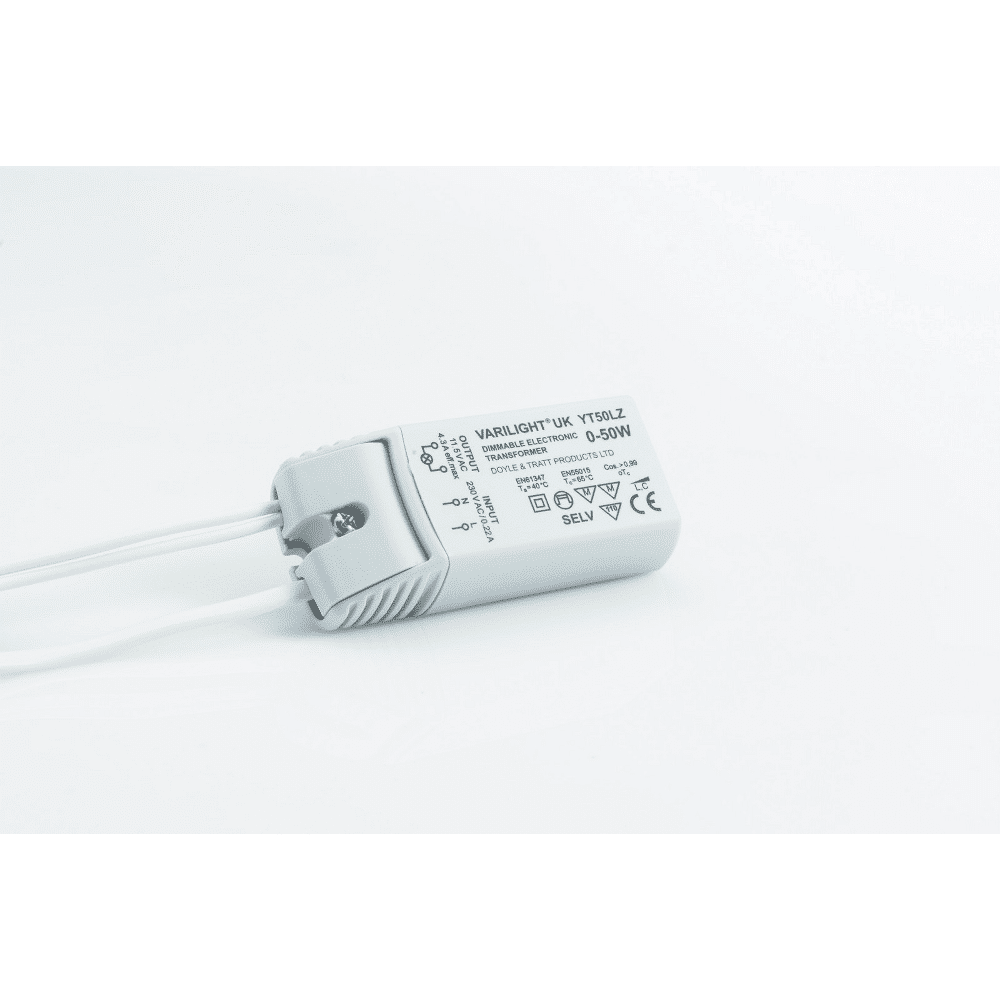

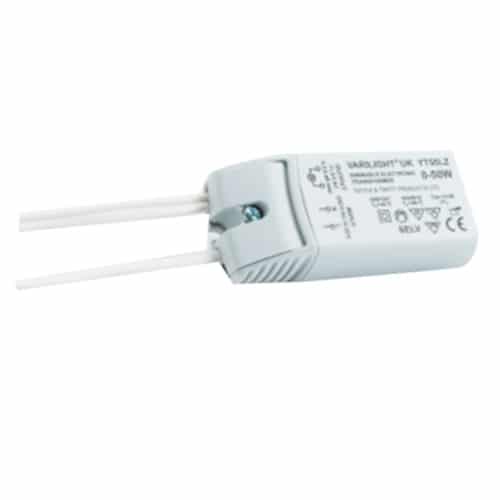

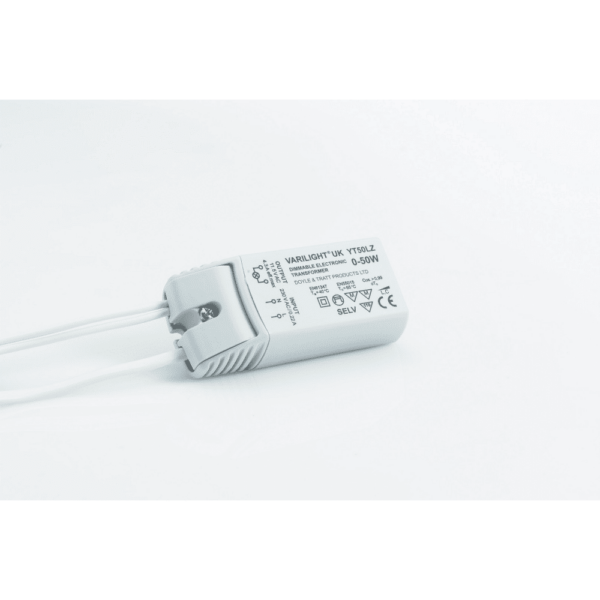

12V AC LED Dimmable Transformer 0-50W
Varilight YT50LZ
Product Features
- No minimum rating
- Soft start gently brings lights up to full brightness when you switch on and extends lamp life
- Suitable for 12V a.c. LEDs up to a maximum of 25W
- 2 x input leads and 2 x output leads
- Auto-resetting overload protection, short circuit protection and over-temperature
- Dimensions: 95×41.5×27.5mm
- Product Weight: 100g
- Fixing Centres: N/A
- Depth from Mounting Face:
- Recommended Back Box Depth: N/A
- Operating Voltage: 220/250V AC
- Maximum Load Rating: 50W
- Maximum Current Rating: 230V AC: 0.23A / 11.5V AC: 0.22A
- Terminal (Live) Diameter: N/A; Capacity: N/A
- Terminal (Neutral) Diameter: N/A; Capacity: N/A
- Terminal (Earth) Diameter: N/A; Capacity: N/A
- Intended Applications: Indoor Use Only. Do not cover.. Domestic lighting circuits.
- Safety Advice: Minimum distance between transformer and lamp: 30cm. Maximum distance between transformer and lamp: 2m.
- Applicable Safety Standard: EN 61347-1, EN 61347-2-2, EN 61547, EN 55015 & EN 61000-3-2
LED Compatible Dimmable Transformer Electronic 0-50W
