Reliable 90° Surface-Mount Box for 25mm Conduit Bends

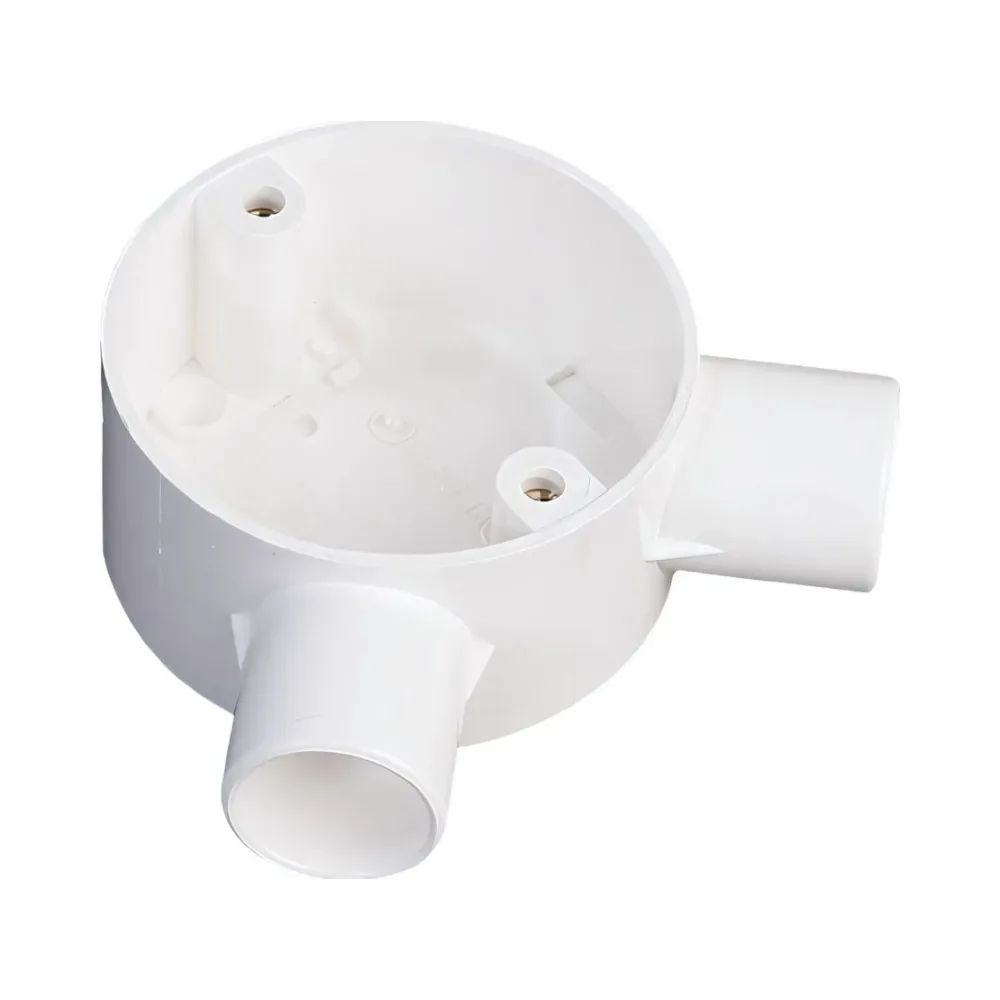

CB 25/A WH – Univolt 25mm Angle Box
The Univolt CB 25/A WH 25mm Angle Box is a circular surface-mount junction box designed to create a 90° directional change in 25mm conduit systems. Made from low-smoke PVC-LSF, it features two angled conduit entries, integrated mounting lugs, and brass M4 screw inserts for secure installation.
This angle box is ideal for neatly navigating bends in residential, commercial, or industrial surface wiring. Fully compliant with BS 4607 and EN 60670, it ensures both safety and visual consistency in exposed conduit runs.
Key Features – Univolt 25mm Angle Box
- Creates a 90° turn in 25mm conduit installations
- Two angled conduit entries with integrated mounting lugs
- Brass M4 inserts for reliable screw fixing
- Standard 50.8mm mounting screw spacing (2″)
- White finish (RAL 9010 equivalent)
- Made from PVC-LSF for fire-safe, low-smoke performance
- IP3X ingress protection
- Operating temperature: -5°C to +60°C
Technical Overview – Univolt CB 25/A WH Angle Box
- Part Number: CB 25/A WH
- Dimensions: 65mm (L) x 32mm (W)
- Ingress Protection: IP3X
- Standard Compliance: BS 4607 / EN 60670
- Material: PVC-LSF
- Inlets: 2 angled entries
- Temperature Range: -5°C to +60°C
- Colour: White (RAL 9010 equivalent)
What’s Included
- 1 x 25mm Angle Box
- Supplied without lid
Why Choose This Product?
This 90° angle box simplifies conduit routing at corners while preserving a neat and compliant surface finish. It’s built to last with fire-retardant PVC-LSF, precision screw threads, and a compact design that blends seamlessly with exposed electrical conduit systems.
Related Products
- Need a lid? Use the Univolt CBL 16-25 WH – the matching circular white lid for 16mm–25mm Univolt conduit boxes.
- Need a straight run instead? Choose the Univolt CB 25/2 WH – a 2-way through box for 25mm conduit.
