Compact 90° Surface-Mount Box for 20mm Conduit Bends

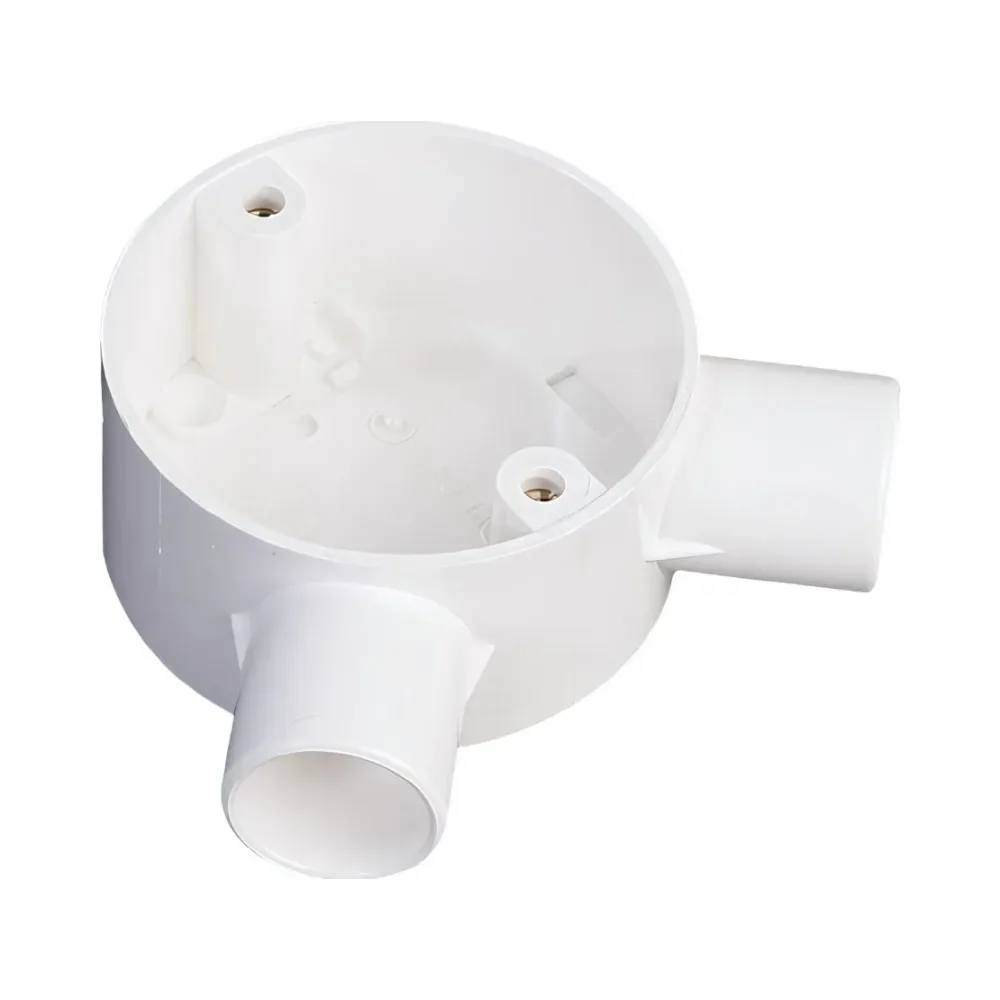

CB 20/A WH – Univolt 20mm Angle Box
The Univolt CB 20/A WH 20mm Angle Box is a compact circular junction box designed to create a 90° change in direction for 20mm conduit systems. Manufactured from fire-safe, low-smoke PVC-LSF, it features two angled conduit entries, integrated mounting lugs, and brass M4 screw inserts.
Suitable for surface-mount installations in residential, commercial, and light industrial applications, this angle box offers a tidy solution for routing conduit around corners. Fully compliant with BS 4607 and EN 60670.
Key Features – Univolt 20mm Angle Box
- Enables 90° turns in 20mm conduit runs
- Two angled entries with built-in mounting lugs
- M4 brass inserts for secure screw fixing
- Standard 50.8mm screw spacing for fast installation
- Low-smoke PVC-LSF construction in white (RAL 9010)
- IP3X rated for basic ingress protection
- Operating temperature: -5°C to +60°C
Technical Overview – Univolt CB 20/A WH Angle Box
- Part Number: CB 20/A WH
- Dimensions: 65mm (L) x 32mm (W)
- Ingress Protection: IP3X
- Standard Compliance: BS 4607 / EN 60670
- Material: PVC-LSF
- Inlets: 2 angled entries
- Temperature Range: -5°C to +60°C
- Colour: White (RAL 9010 equivalent)
What’s Included
- 1 x 20mm Angle Box
- Supplied without lid
Why Choose This Product?
When conduit bends are required, the Univolt CB 20/A WH offers a compact, fire-resistant, and regulation-compliant way to manage changes in direction. With durable brass inserts and a clean finish, it’s the ideal choice for any visible surface wiring installation.
