Description
20mm Female Threaded Adaptor with Male Bush for Conduit Installations

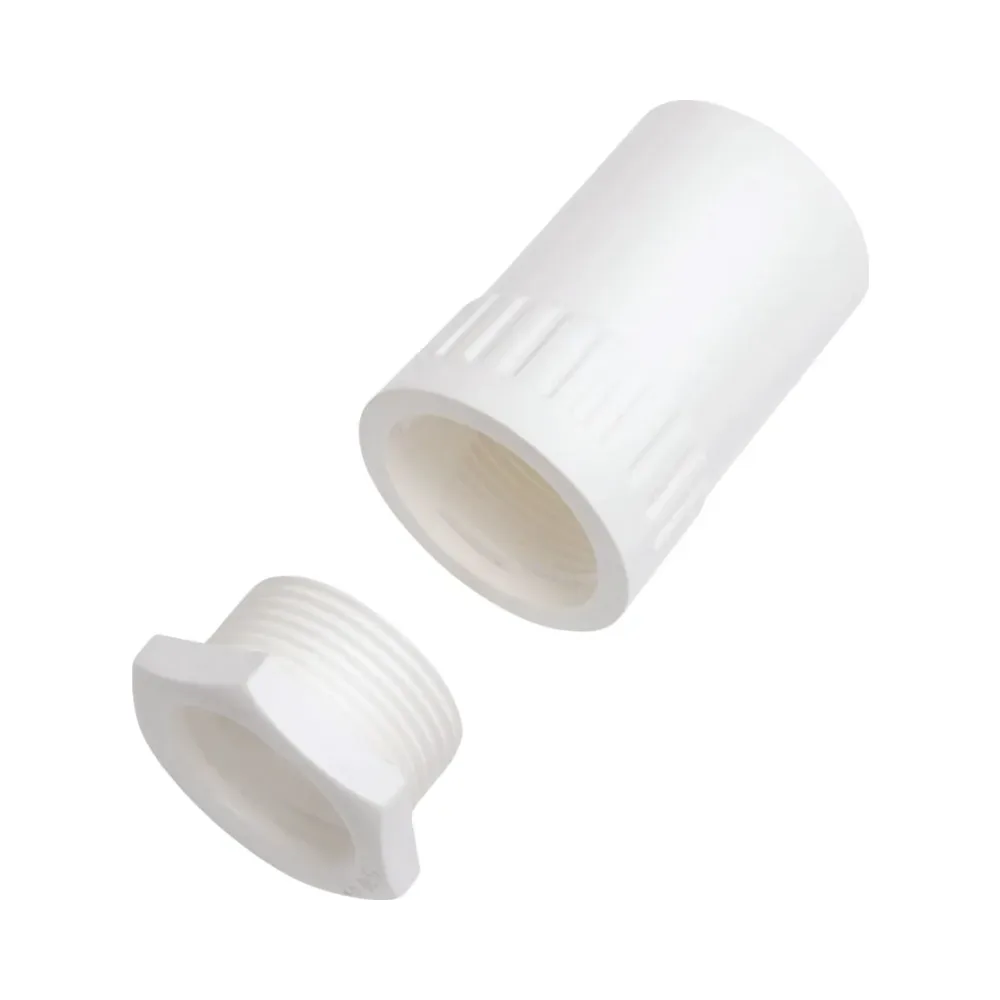

AFT/MBS20WH – Univolt White PVC Female Adaptor with Male Bush (20mm)
The Univolt AFT/MBS20WH is a 20mm white PVC adaptor with a female M20 x 1.5 thread and integrated male bush. Designed for secure connection of rigid or pliable conduits to electrical boxes or enclosures, it offers reliable fit and easy installation.
Made from impact-resistant, lead-free PVC-U and compliant with EN 61386-21 and BS 4607 Part 1, this fitting is ideal for surface or flush conduit installations in commercial and domestic environments.
Key Features – Univolt 20mm Female Adaptor with Male Bush
- Female thread (M20 x 1.5) with 14mm thread length
- Male bush end for conduit insertion
- Compatible with 20mm rigid or pliable conduit
- White PVC-U construction (RAL 9010 equivalent)
- Corrosion-resistant, non-flame propagating material
- Suitable for use in surface or enclosed installations
- Conforms to EN 61386-21 and BS 4607 Part 1
- Operating temperature range: -5°C to +60°C
Technical Overview – Univolt AFT/MBS20WH Female Adaptor
- Part Number: AFT/MBS20WH
- Nominal Conduit Diameter: 20mm
- Thread Size: M20 x 1.5
- Thread Length: 14mm
- Total Length: 35mm
- Material: PVC-U
- Standards: EN 61386-21 / BS 4607 Part 1
- Colour: White (RAL 9010 equivalent)
What’s Included
- 1 x 20mm White PVC Female Adaptor with Male Bush
Why Choose This Product?
The Univolt AFT/MBS20WH is the ideal adaptor for projects where a female threaded entry point is required. Its integrated male bush ensures easy conduit fitment, while the white PVC-U body offers excellent durability, flame resistance, and compliance with key electrical installation standards.
