IP66 Box with 4 x 3 Way Lever Connectors – Black
Unicrimp QOE8553BLKF
The Unicrimp QOE8553BLKF IP66 Box with 4 x 3 Way Lever Connectors in Black is a robust and versatile solution for secure electrical connections. Designed to perform in challenging environments, this weatherproof enclosure combines durability, functionality, and reliable ingress protection, making it suitable for residential, commercial, and industrial applications.
Product Overview
This IP66-rated enclosure measures 85mm x 85mm x 52mm and comes equipped with 4 x 3-port lever connectors for efficient and secure wiring. Its sleek black finish (RAL 9017) complements modern installations, while the durable polycarbonate body and thermoplastic elastomer membranes ensure long-lasting protection against water, dust, and environmental factors.
Key Features
- Dimensions:
- Length: 85mm
- Width: 85mm
- Height: 52mm
- Conductor Strip Length: 10mm
- Entry Thread: 20mm
- Gland Size: 20mm
- Conductor Size Range: 0.2–4.0mm² (Stranded or Solid Core)
- Rated Current: 32A
- Ingress Protection: IP66 for water and dust resistance
- Operational Temperature: -30°C to +85°C
- Colour: Black (RAL 9017)
Materials
- Enclosure Body Components: Polycarbonate
- Enclosure Membranes: Thermoplastic Elastomer
- Terminal Levers: Polyamide 66
- Terminals: Tinned Copper
Standards
- BS EN 60670-1
- BS 6220
- BS EN 60529: 1992 + A2: 2013
- BS EN 60998-1: 2004
- BS EN 60998-2-2: 2004
Additional Information

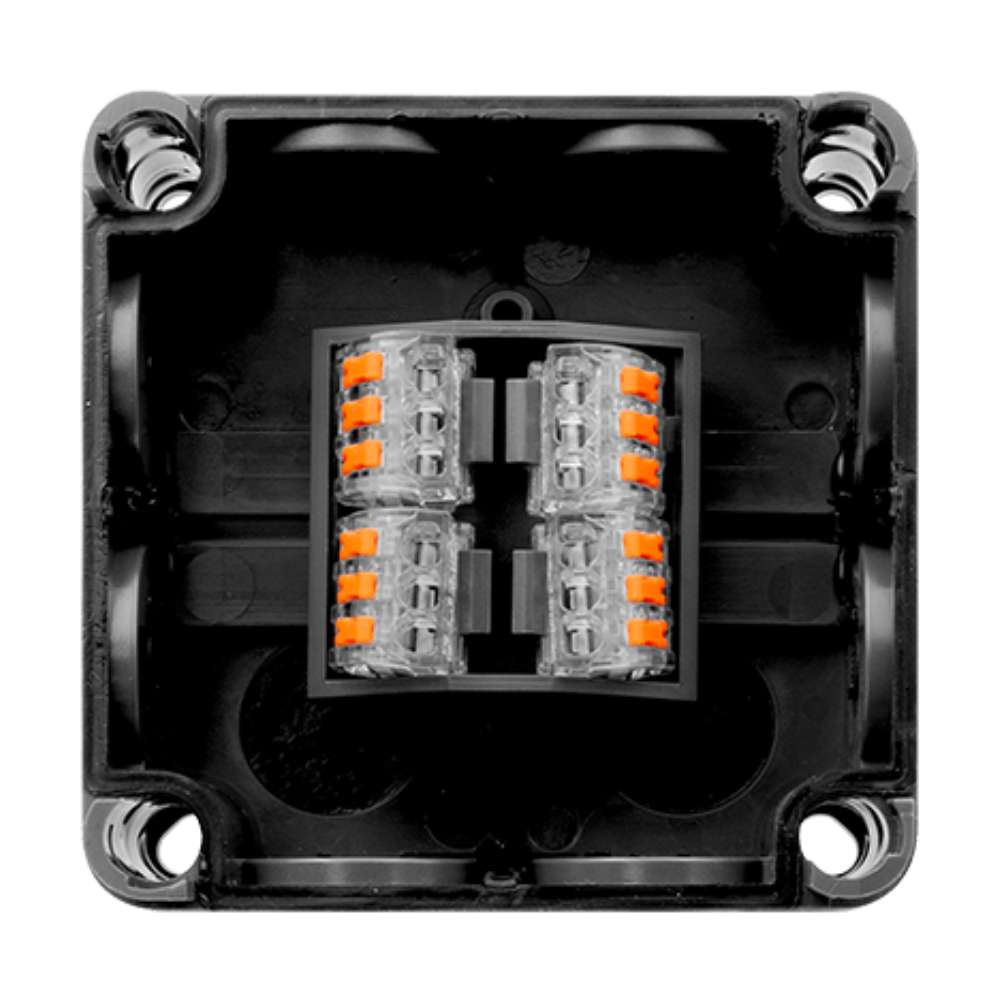

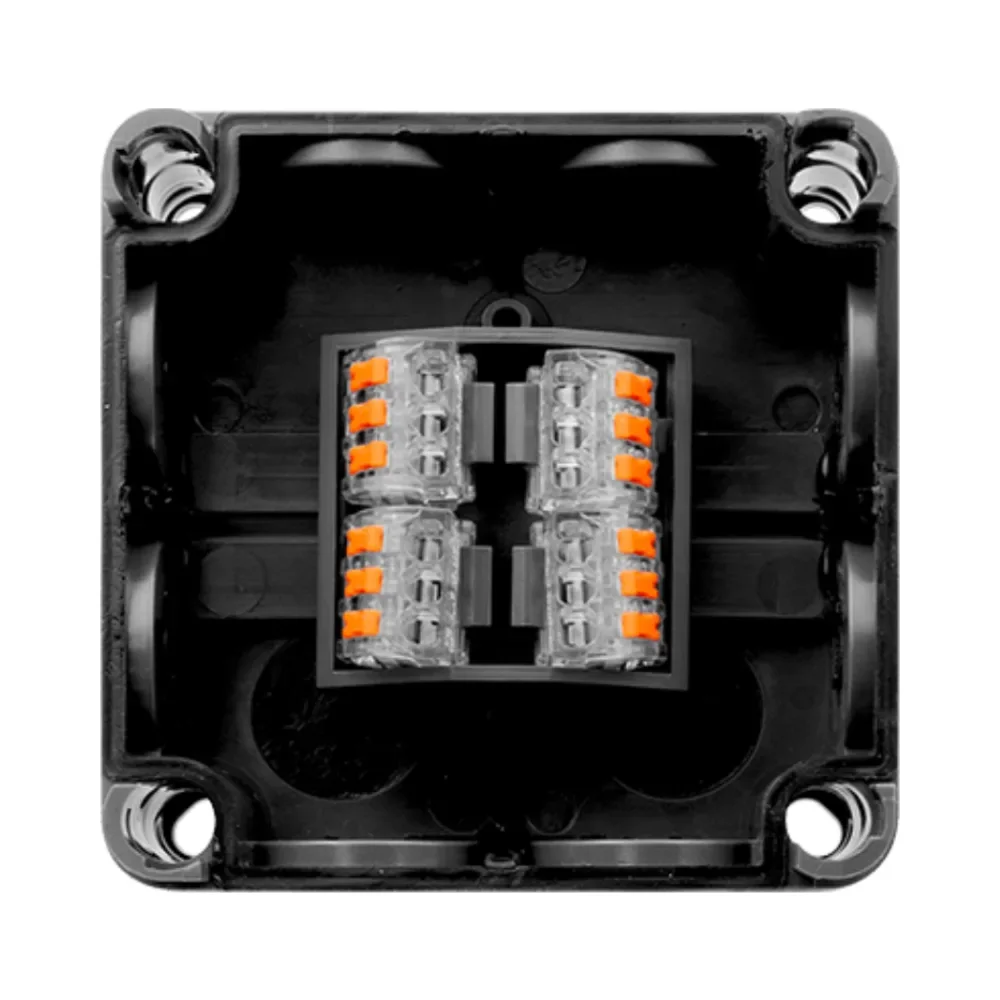

- Supplied with 4 x 3-port lever connectors for quick and secure wiring
- Includes 8 M20 threaded entries on the sides with membranes
- Features 2 x 15mm diameter membrane entries in the base for flexible cable management
Applications
The QOE8553BLKF is ideal for installations requiring robust protection and ease of wiring. Its weatherproof design makes it suitable for use in residential, commercial, and industrial settings, both indoors and outdoors.
Compatible Accessories
- QL2322 – 2-Port Lever Connectors
- QL5322 – 5-Port Lever Connectors
