Description
IP66 Box with 4 x 3 Way Lever Connectors – Grey/Clear Lid
Unicrimp QOE8553AGYTF
The Unicrimp QOE8553AGYTF IP66 Box with 4 x 3 Way Lever Connectors and a clear lid provides a robust, weatherproof solution for secure electrical connections. Designed for demanding environments, its durable construction, IP66 rating, and semi-transparent lid make it ideal for residential, commercial, and industrial applications.
Product Overview

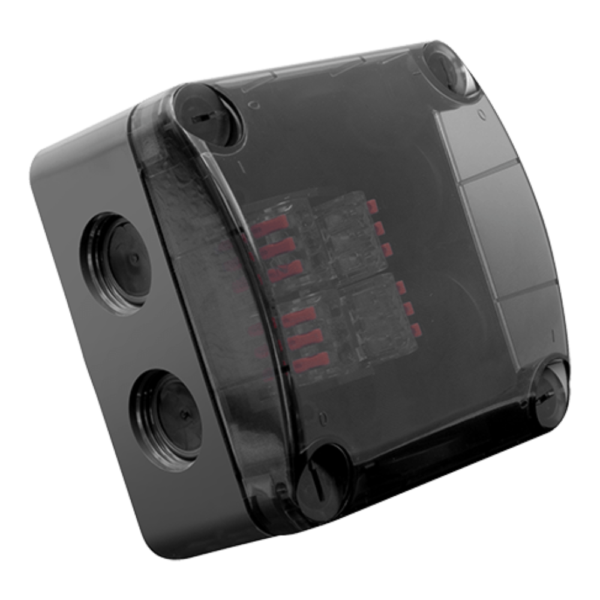

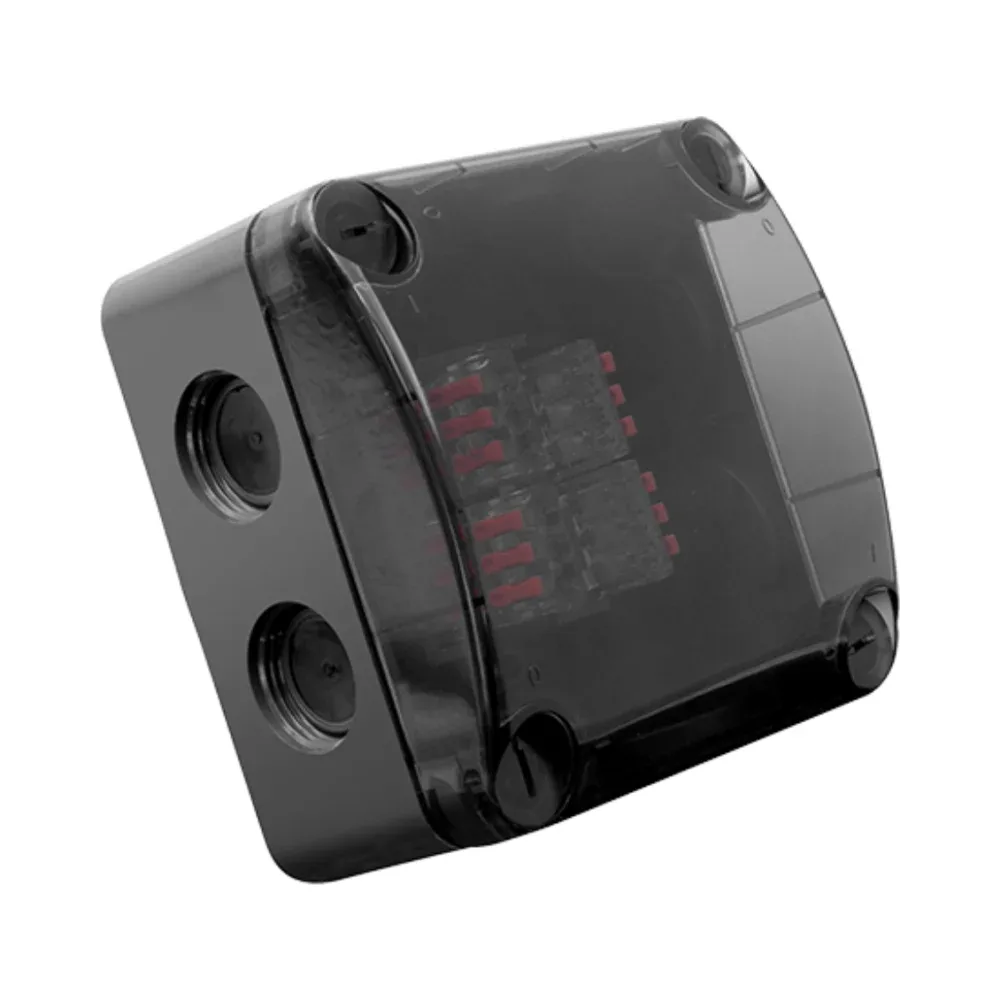

This compact enclosure measures 85mm x 85mm x 52mm and features an anthracite grey (RAL 7016) body with a semi-transparent lid, allowing for easy inspection of connections. It is equipped with 4 x 3-port lever connectors for quick and reliable wiring. With 8 M20 threaded entries and additional base membrane entries, it supports flexible cable management while providing excellent ingress protection against water and dust.
Key Features of Unicrimp QOE8553AGYTF IP66 Box – Grey/Clear Lid
- Dimensions:
- Length: 85mm
- Width: 85mm
- Height: 52mm
- Conductor Strip Length: 10mm
- Entry Thread: 20mm
- Gland Size: 20mm
- Conductor Size Range: 0.2–4.0mm² (Stranded or Solid Core)
- Rated Current: 32A
- Ingress Protection: IP66 for resistance to water and dust
- Operational Temperature: -30°C to +85°C
- Colour: Anthracite Grey (RAL 7016)
- Lid Type: Semi-transparent (Clear Lid)
Materials
- Enclosure & Terminal Body Components: Polycarbonate
- Enclosure Membranes: Thermoplastic Elastomer
- Terminal Levers: Polyamide 66
- Terminals: Tinned Copper
Standards
- BS EN 60670-1
- BS 6220
- BS EN 60529: 1992 + A2: 2013
- BS EN 60998-1: 2004
- BS EN 60998-2-2: 2004
Additional Information

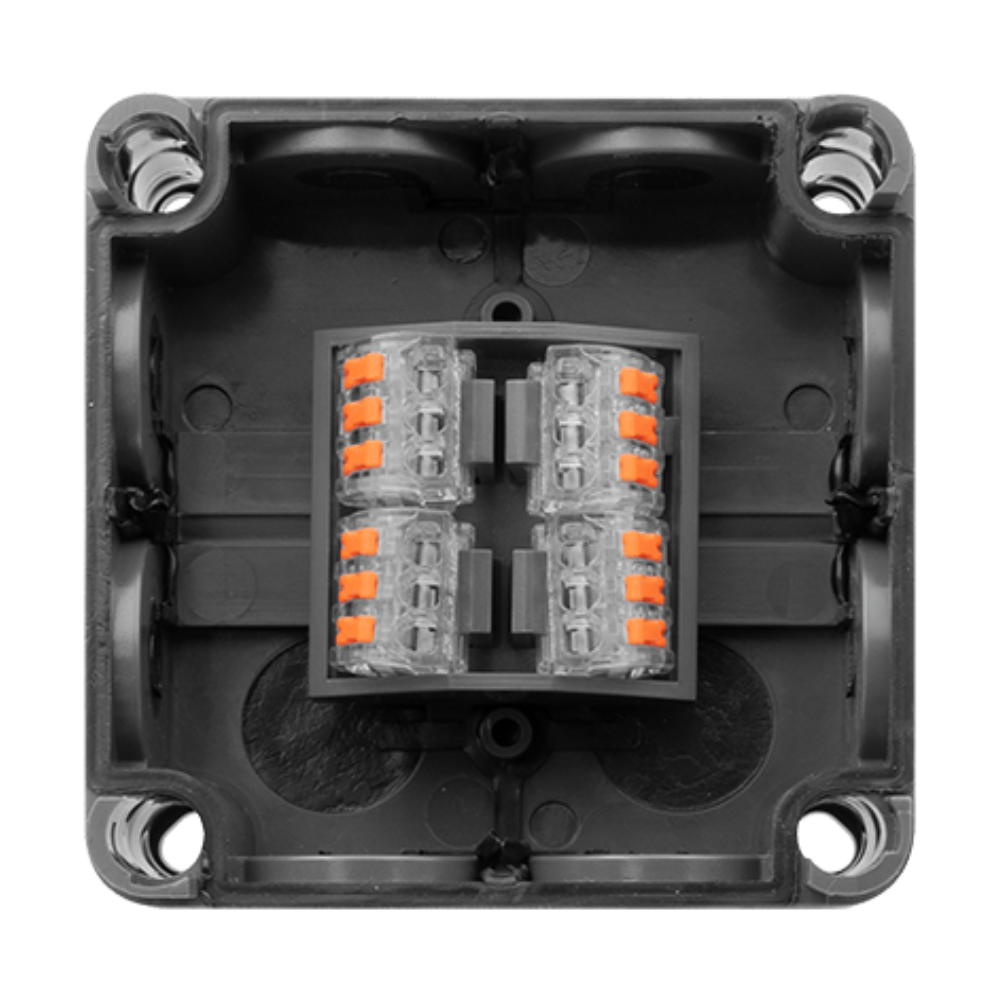

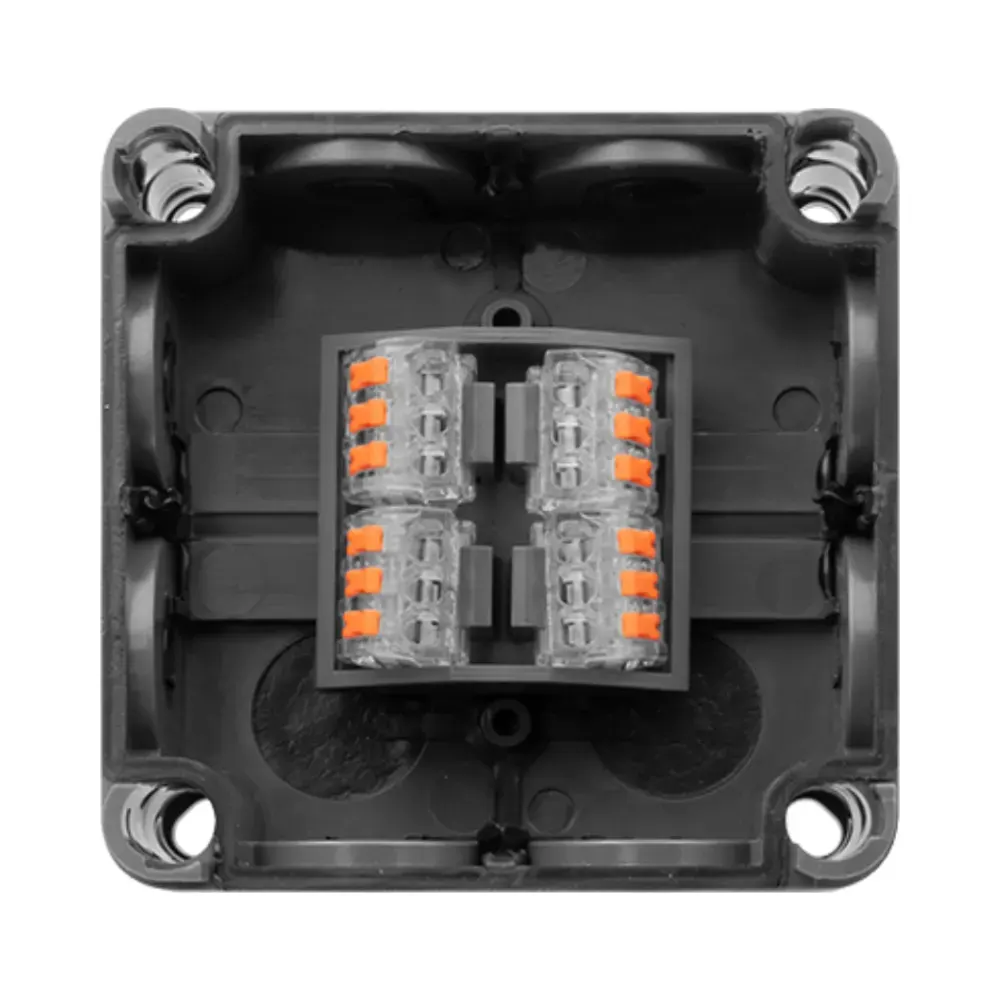

- Supplied with 4 x 3-port lever connectors for secure and efficient wiring

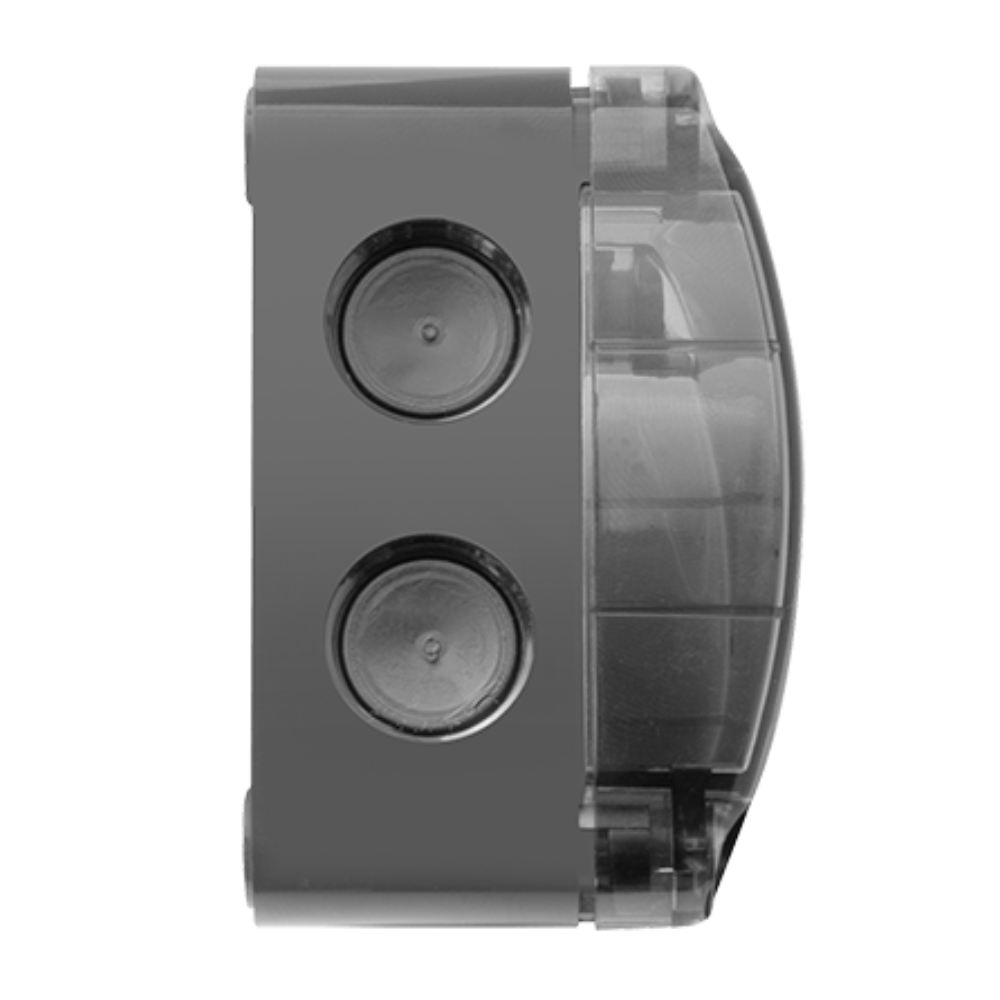

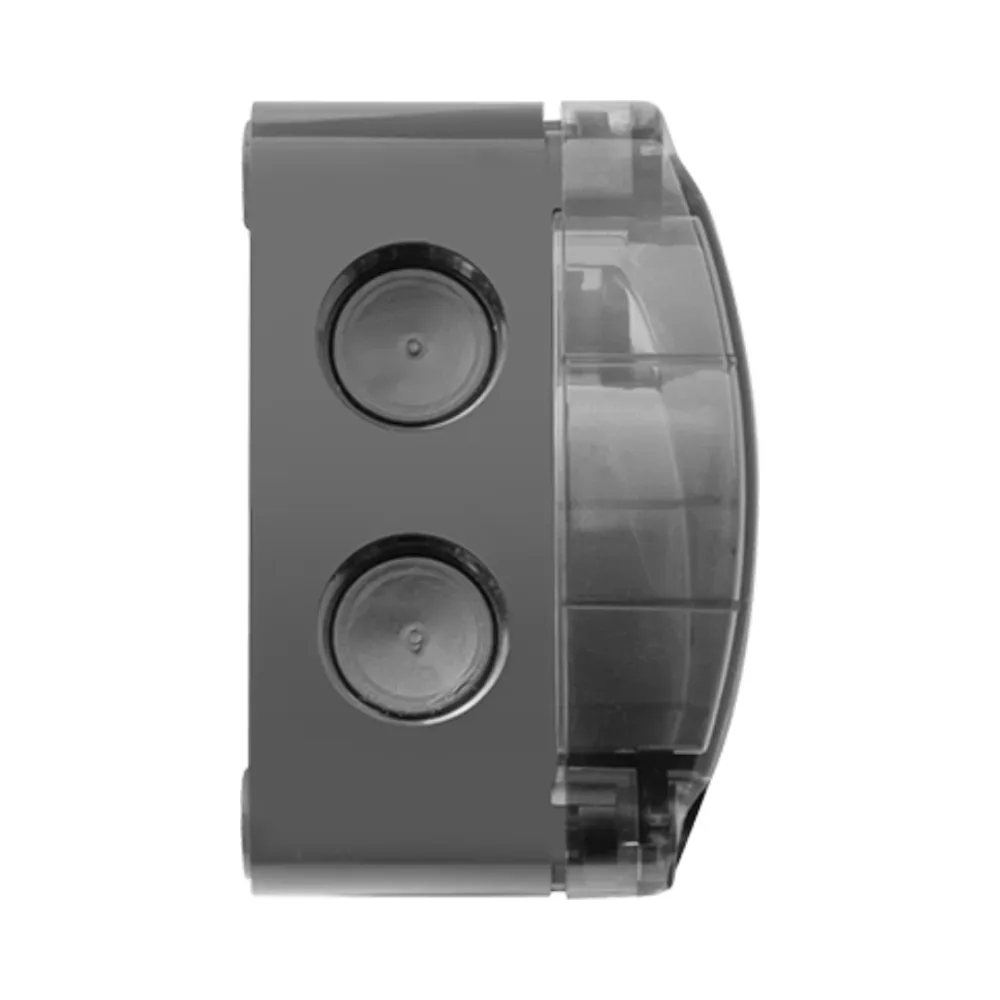

- Includes 8 M20 threaded entries on the sides with membranes
- Features 2 x 15mm membrane entries on the base for flexible cable routing
Applications
This enclosure is ideal for electrical installations that require robust protection and ease of inspection. Its weatherproof design makes it suitable for indoor and outdoor use in residential, commercial, and industrial settings. The clear lid simplifies maintenance by allowing visual inspection without removing the cover.
Compatible Accessories
- QL2322 – 2-Port Lever Connectors
- QL5322 – 5-Port Lever Connectors
