Description

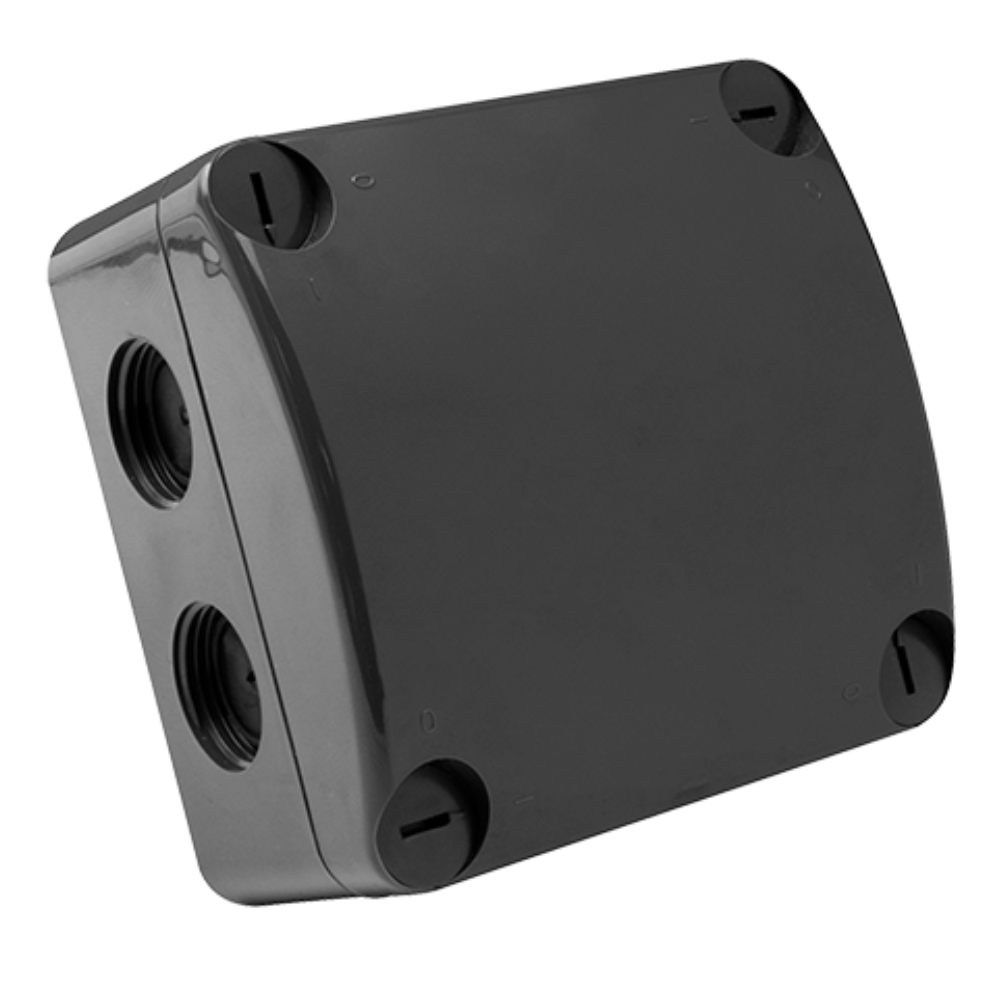

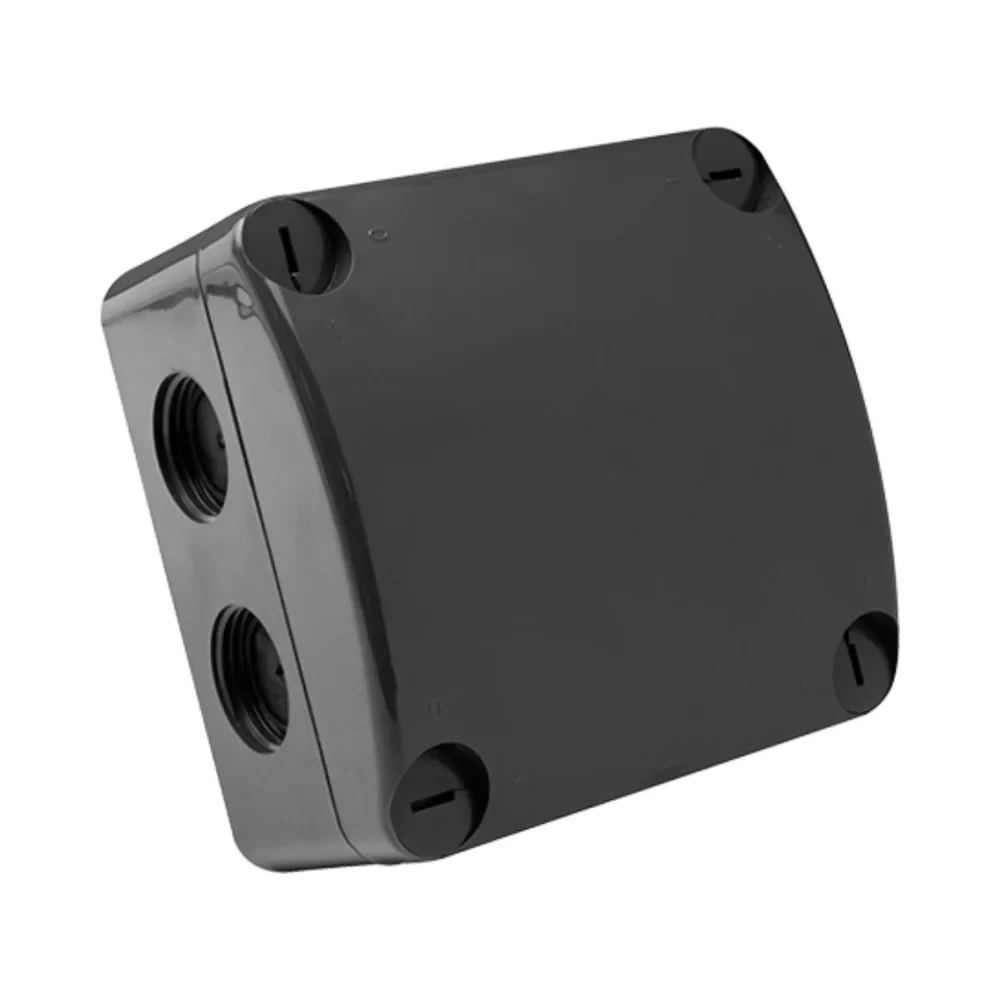

IP66 Box with 4 x 3 Way Lever Connectors – Grey
Unicrimp QOE8553AGYF
The Unicrimp QOE8553AGYF IP66 Box with 4 x 3 Way Lever Connectors in Grey offers a robust and versatile solution for secure electrical connections. Designed for demanding environments, this weatherproof enclosure provides excellent protection against water, dust, and environmental hazards, making it ideal for residential, commercial, and industrial installations.
Product Overview
This IP66-rated enclosure measures 85mm x 85mm x 52mm and is supplied with 4 x 3-port lever connectors for efficient connections. With its anthracite grey (RAL 7016) finish and multiple cable entry options, it combines functionality with a modern appearance. Constructed from durable polycarbonate and thermoplastic elastomer membranes, it ensures long-lasting performance even in challenging conditions.
Key Features
- Dimensions:
- Length: 85mm
- Width: 85mm
- Height: 52mm
- Conductor Strip Length: 10mm
- Entry Thread: 20mm
- Gland Size: 20mm
- Conductor Size Range: 0.2–4.0mm² (Stranded or Solid Core)
- Rated Current: 32A
- Ingress Protection: IP66 for resistance to water and dust
- Operational Temperature: -30°C to +85°C
- Colour: Anthracite Grey (RAL 7016)
Materials
- Enclosure & Terminal Body: Polycarbonate
- Enclosure Membranes: Thermoplastic Elastomer
- Terminal Levers: Polyamide 66
- Terminals: Tinned Copper
Standards
- BS EN 60670-1
- BS 6220
- BS EN 60529: 1992 + A2: 2013
- BS EN 60998-1: 2004
- BS EN 60998-2-2: 2004
Additional Information

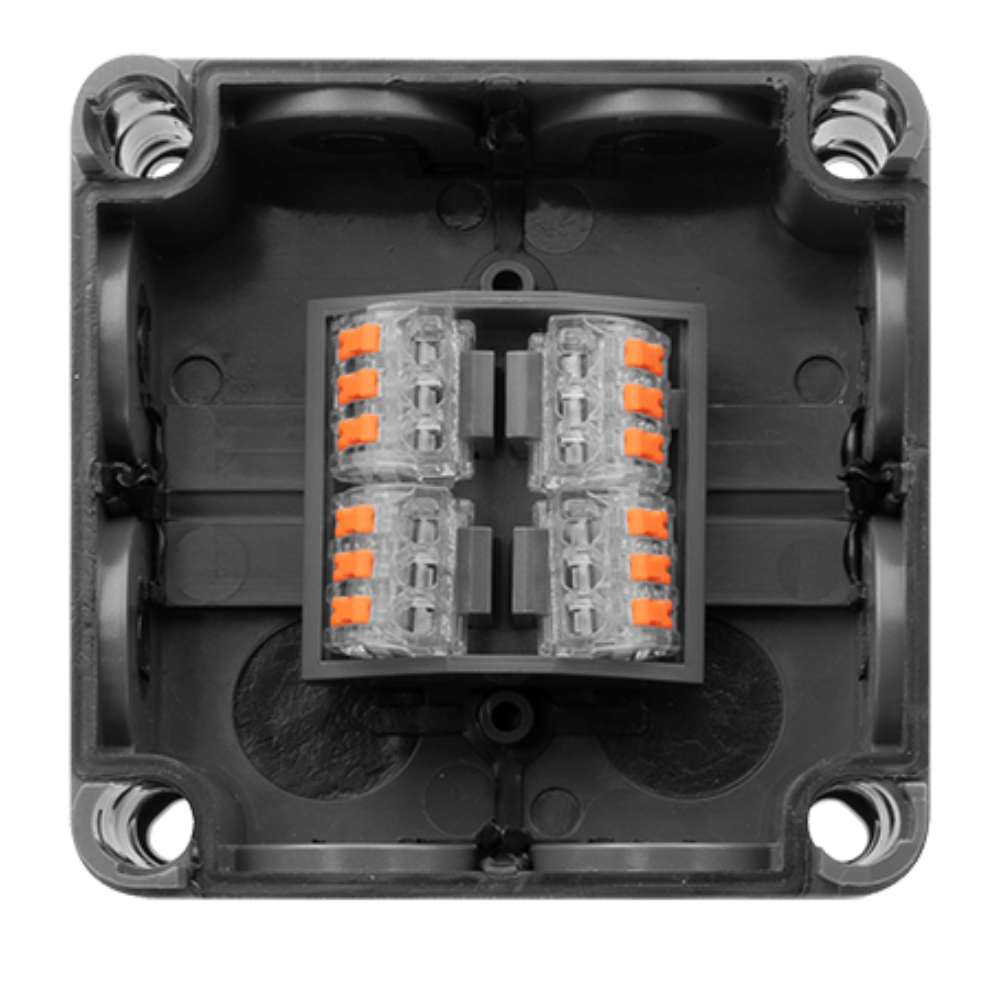

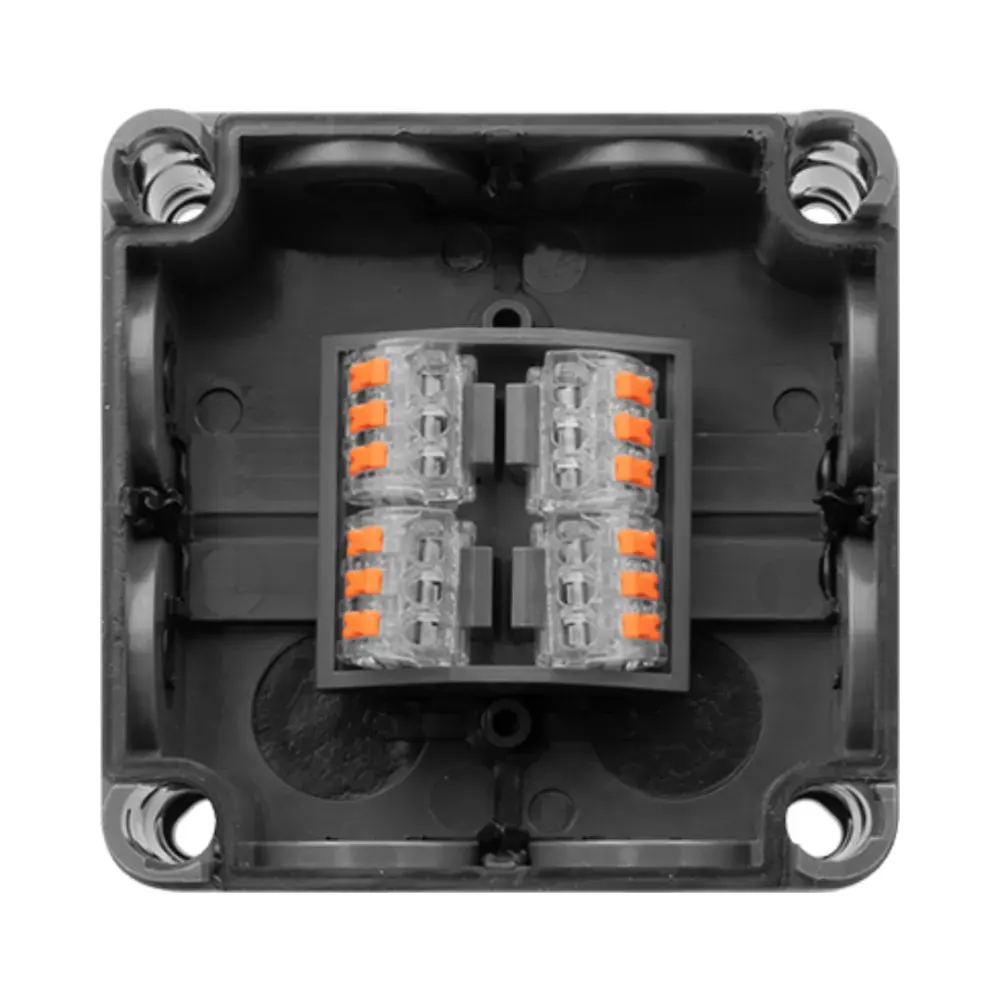

- Supplied with 4 x 3-port lever connectors for quick and reliable connections

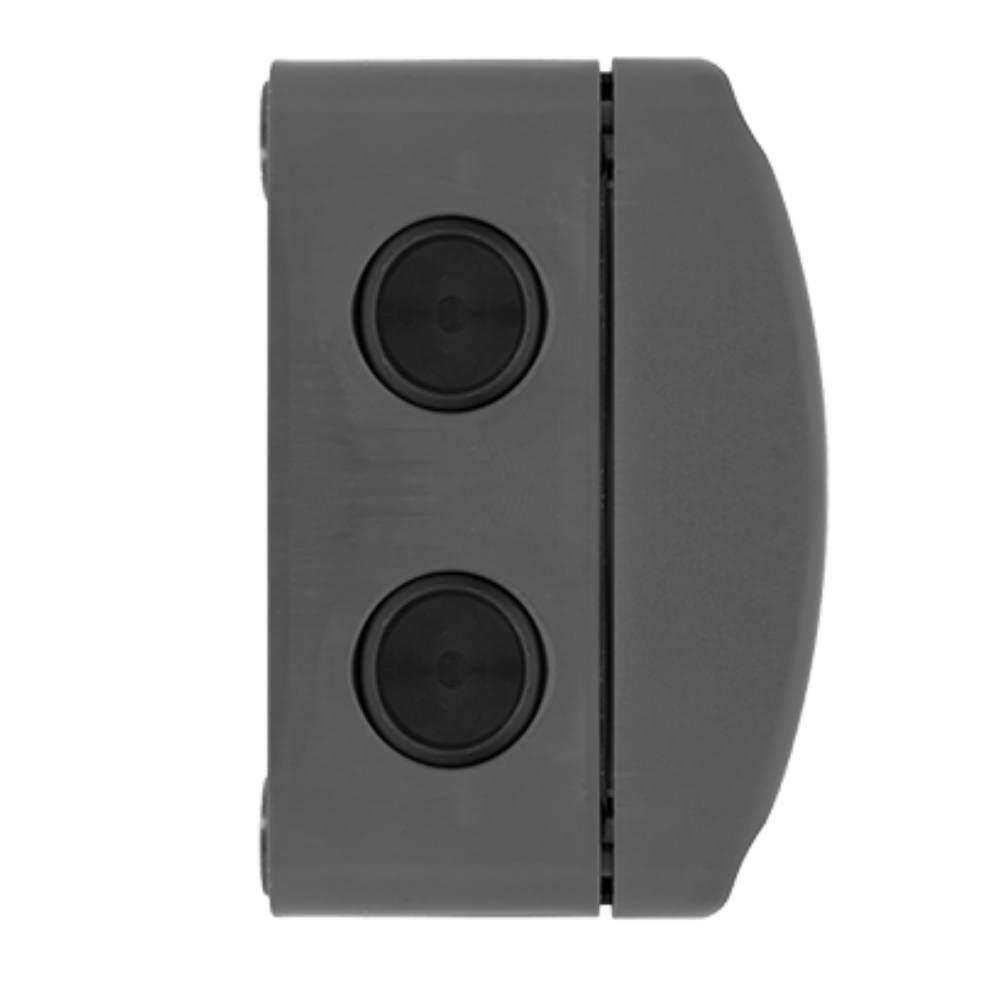

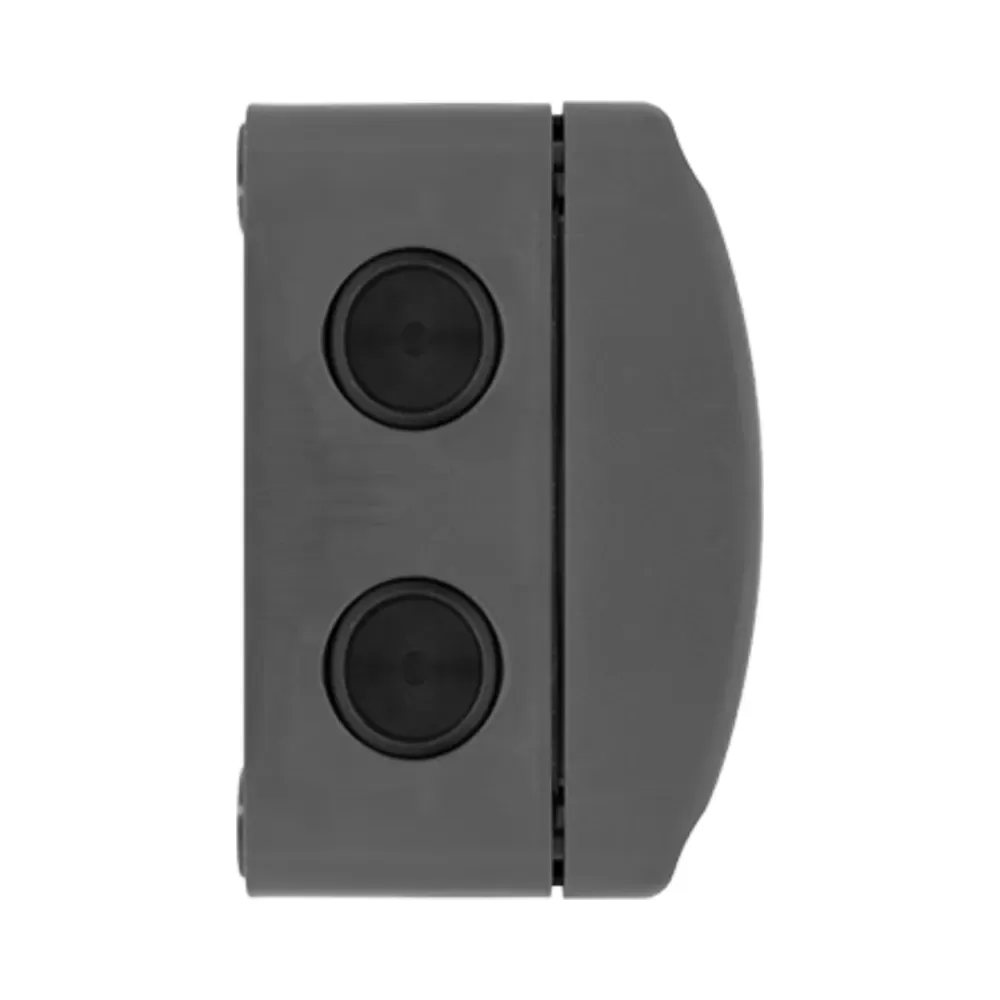

- Includes 8 M20 threaded entries with membranes on the sides

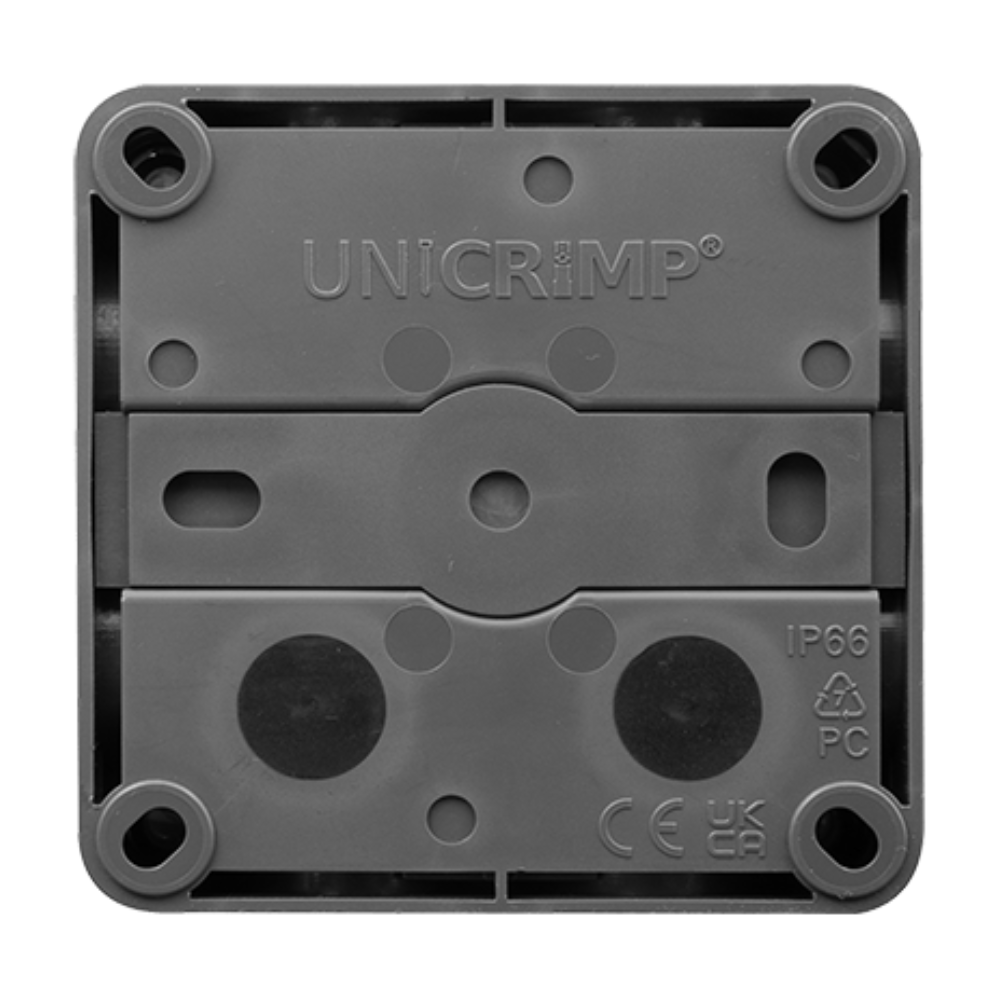

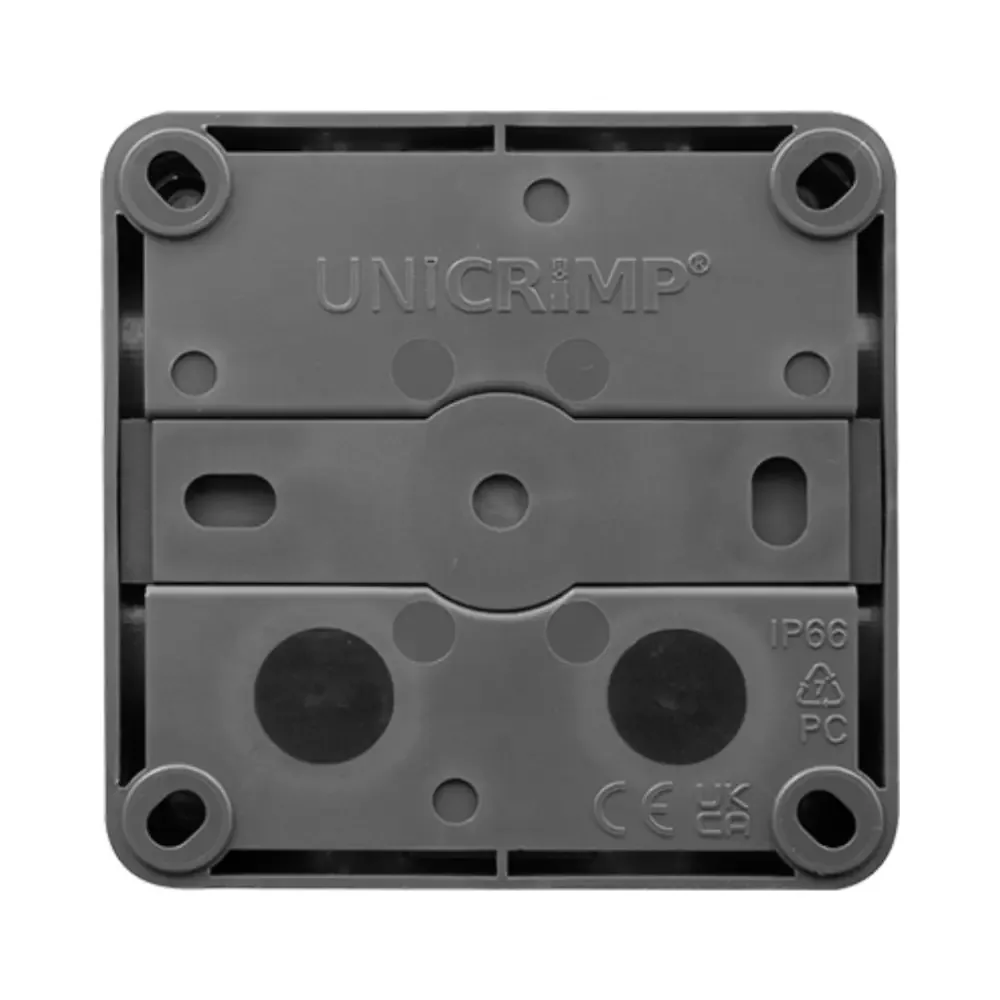

- Features 2 x 15mm membrane entries on the base for additional flexibility
Applications
The QOE8553AGYF is perfect for installations requiring secure and reliable electrical connections. Its weatherproof design and durable materials make it suitable for residential, commercial, and industrial environments, both indoors and outdoors.
Compatible Accessories
- QL2322 – 2-Port Lever Connectors
- QL5322 – 5-Port Lever Connectors
