Description

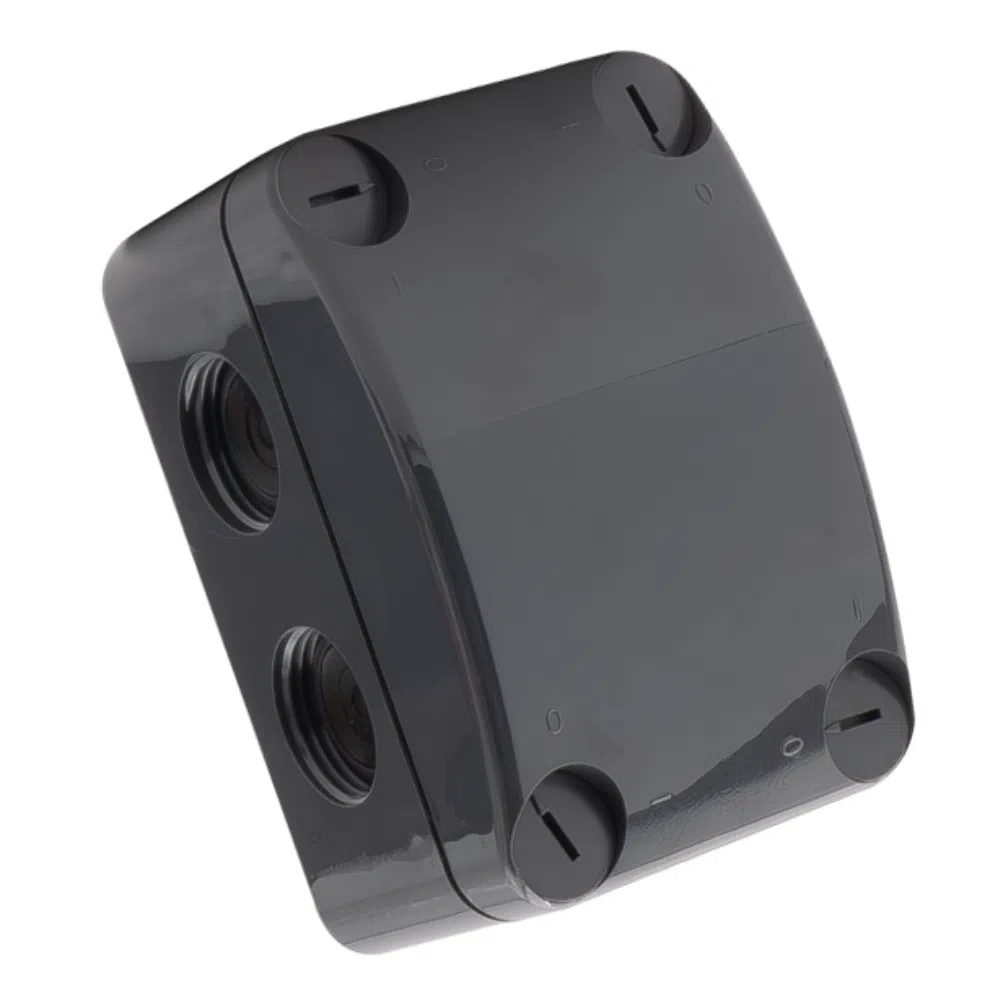

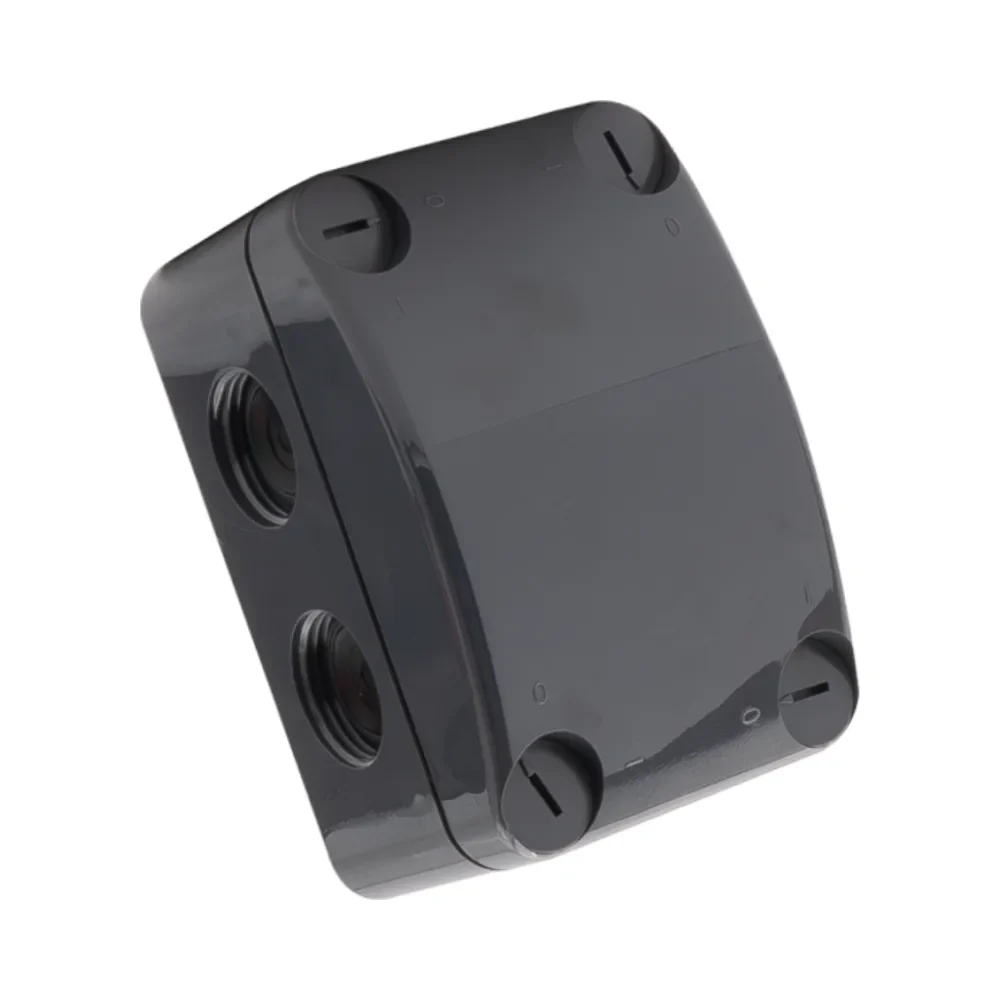

IP66 Box with 4 x 3 Way Lever Connectors – Grey
Unicrimp QOE5553AGYF
The Unicrimp QOE5553AGYF IP66 Box with 4 x 3 Way Lever Connectors in Grey offers a robust, weatherproof solution for electrical installations. Designed for demanding environments, this enclosure combines excellent durability, high ingress protection, and efficient connectivity.
Product Overview
This IP66-rated weatherproof enclosure is made from high-quality polycarbonate and furnished with 4 x 3-way lever connectors. With dimensions of 85mm x 55mm x 52mm, it provides a compact yet effective solution for secure electrical connections. Featuring 6 M20 threaded side entries and 2 base membrane entries, it ensures versatile cable management options.
Key Features of Unicrimp QOE5553AGYF IP66 Box Grey
- Dimensions:
- Length: 55mm
- Width: 85mm
- Height: 52mm
- Entry Thread: 20mm
- Gland Size: 20mm
- Conductor Strip Length: 10mm
- Rated Current: 32A
- Conductor Size Range: 0.2-4.0mm² (Stranded or Solid Core)
- Ingress Protection: IP66 for water and dust resistance
- Operational Temperature: -30°C to +85°C
- Colour: Anthracite Grey (RAL 7016)
Materials
- Enclosure & Terminal Body: Polycarbonate
- Enclosure Membranes: Thermoplastic Elastomer
- Terminal Levers: Polyamide 66
- Terminals: Tinned Copper
Standards
- BS EN 60670-1
- BS 6220
- BS EN 60529: 1992 + A2: 2013
- BS EN 60998-1: 2004
- BS EN 60998-2-2: 2004
Additional Information
- Supplied with 4 x 3-port lever connectors for efficient connections
- 6 x M20 threaded entries on the sides with membranes
- 2 x 15mm membrane entries in the base
Applications
The QOE5553AGYF is ideal for electrical installations in residential, commercial, and industrial settings. Its weatherproof design and flexible cable management options make it perfect for outdoor and harsh environments.
Compatible Accessories
- QL2322 – 2-Port Lever Connectors
- QL5322 – 5-Port Lever Connectors
Why Choose Unicrimp?
Unicrimp is a trusted brand, known for its innovative and high-quality electrical solutions. Their products meet international standards, ensuring reliability and durability in every project.
