Description

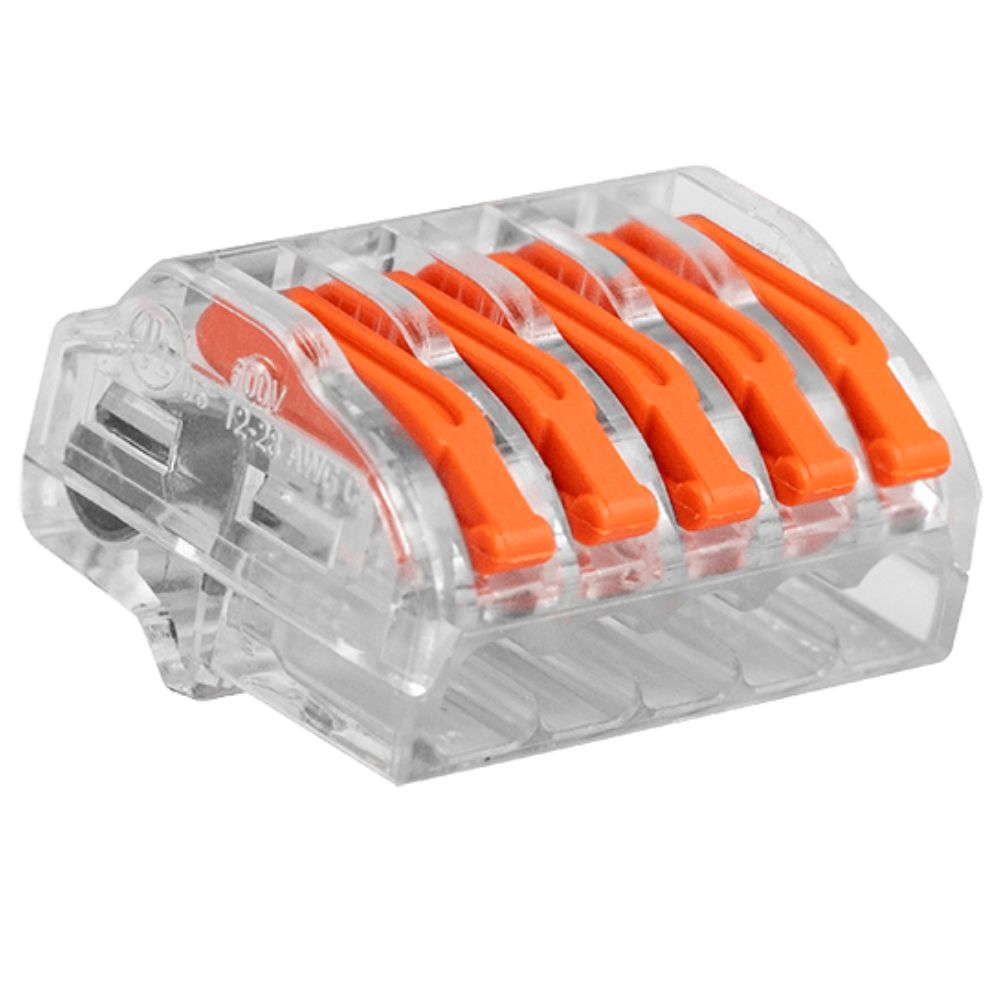

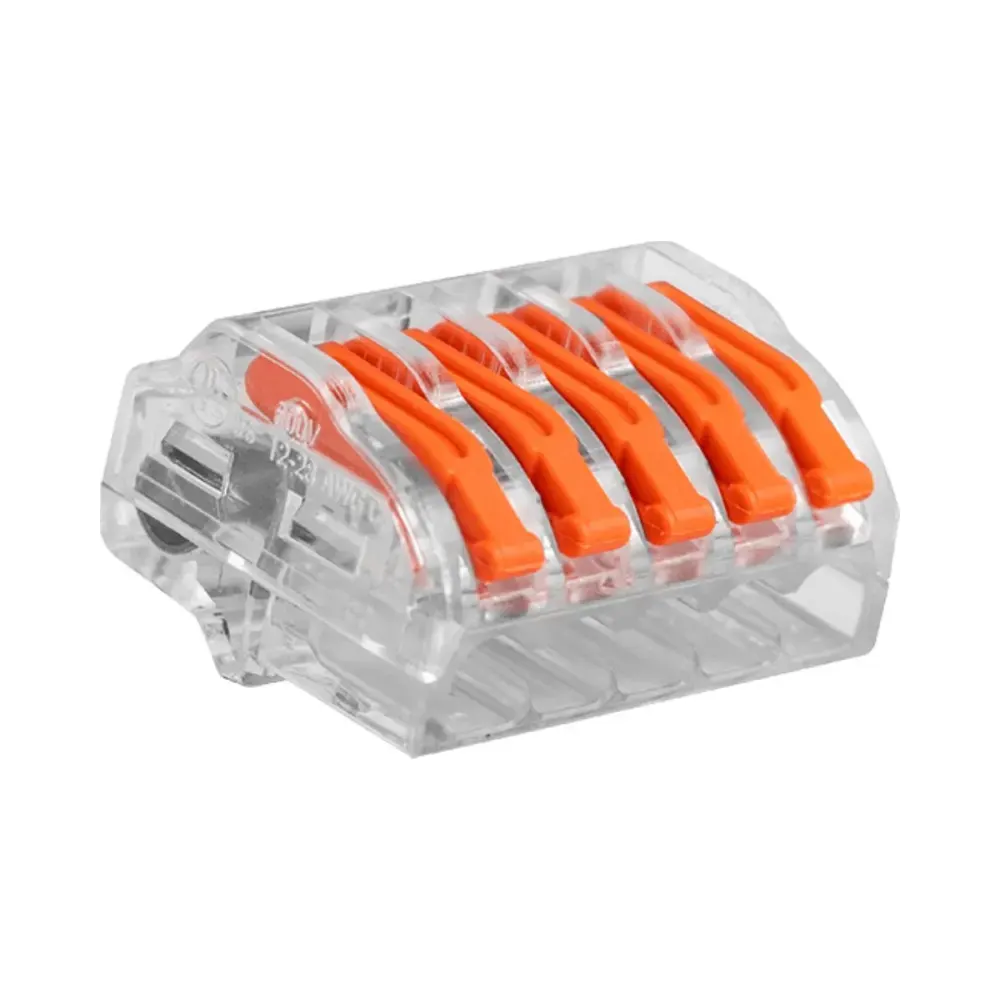

32A 450V Transparent 5-Port Lever Wire Connector
Unicrimp QL5322
Reliable Multi-Port Lever Connector for Secure Electrical Installations
The Unicrimp QL5322 32A Transparent 5-Port Lever Wire Connector is designed for quick, secure, and tool-free electrical connections. Featuring a compact, transparent polycarbonate body, this connector allows for easy visual inspection of the wiring, ensuring a safe and reliable connection. The lever mechanism simplifies installation and removal, making it ideal for residential, commercial, and industrial applications.
Built to BS EN 60998-1:2004 and BS EN 60998-2-2:2004 standards, this 5-port lever wire connector provides high fire resistance (UL94V-0 rated) and operates at temperatures up to 85°C. With a rated current of 32A and voltage rating of 450V, it supports solid and stranded conductors ranging from 0.2mm² to 4.0mm², making it a versatile and efficient wiring solution.
Key Features of the Unicrimp QL5322 32A 5-Port Lever Wire Connector
- Rated Current: 32A for high-performance electrical connections
- Voltage Rating: 450V for secure and safe operation
- Conductor Compatibility: 0.2mm² – 4.0mm² (solid or stranded)
- Flammability Rating: UL94V-0 for enhanced fire resistance
- Transparent Design: Allows visual inspection of connections
- Tool-Free Lever Mechanism: Quick and easy installation
- Durable Materials:
- Body: Polycarbonate for impact resistance
- Levers: Polyamide 66 for secure locking
- Terminals: Tinned copper for superior conductivity
Dimensions
- Width: 26mm
- Depth: 20.7mm
- Height: 14.5mm
- Conductor Strip Length: 10mm
Applications
- Residential and commercial wiring installations
- Lighting circuits and electrical repairs
- Industrial control panels and distribution boards
- Quick and reliable cable connections in confined spaces
Why Choose This Product?
The Unicrimp QL5322 5-Port Lever Wire Connector offers fast, secure, and maintenance-free electrical connections. Its compact design, transparent body, and high current rating make it an essential component for electricians and contractors working in domestic, commercial, and industrial environments.
Compliance & Standards
- BS EN 60998-1: 2004
- BS EN 60998-2-2: 2004
