Description

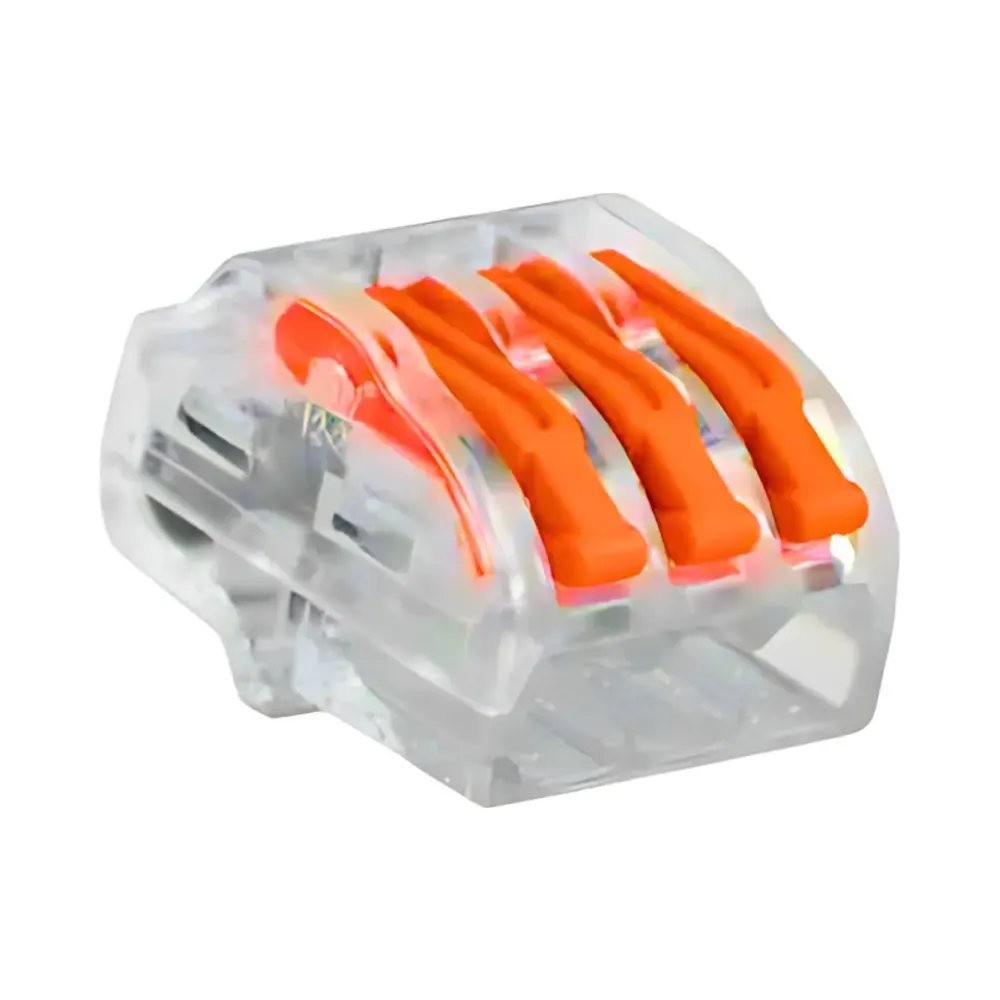

32A 450V Transparent 3-Port Lever Wire Connector

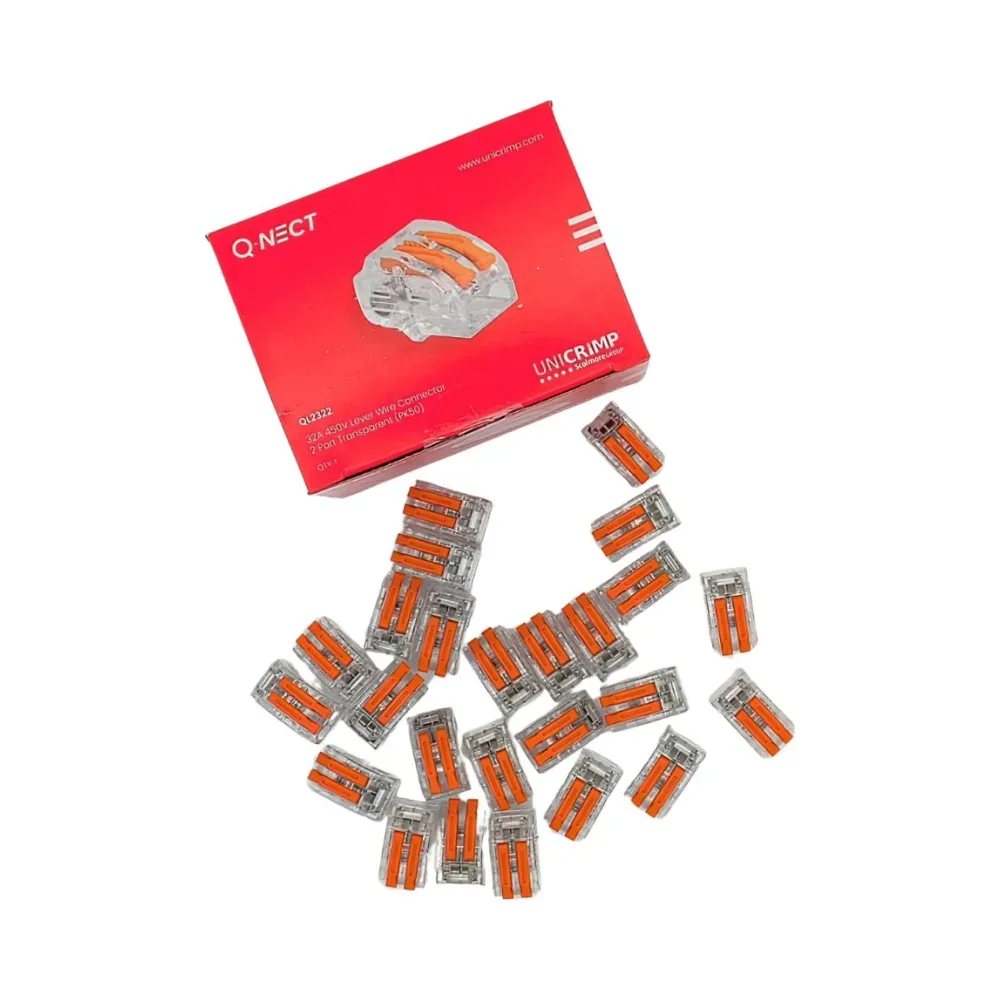

Unicrimp QL3322 – Pack of 50
Reliable and Easy-to-Use Lever Connector for Electrical Installations
The Unicrimp QL3322 32A Transparent 3-Port Lever Wire Connector offers a fast, secure, and tool-free solution for joining electrical conductors. Designed for both solid and stranded wires ranging from 0.2mm² to 4.0mm², this connector ensures reliable and maintenance-free installations.
Its transparent polycarbonate body allows for easy visual inspection of the connection, while the lever mechanism enables quick installation and removal without the need for twisting or crimping. Compliant with BS EN 60998-1:2004 and BS EN 60998-2-2:2004, this connector is built for high-performance applications in residential, commercial, and industrial settings.
Key Features of the Unicrimp QL3322 32A 3-Port Lever Connector
- Rated Current: 32A for high-performance connections
- Voltage Rating: 450V for secure and safe operation
- Conductor Compatibility: 0.2mm² – 4.0mm² (solid or stranded)
- Flammability Rating: UL94V-0 for fire resistance
- Transparent Design: Allows visual inspection of connections
- Tool-Free Lever Mechanism: Quick and easy installation
- Durable Materials:
- Body: Polycarbonate for impact resistance
- Levers: Polyamide 66 for secure locking
- Terminals: Tinned copper for superior conductivity
Dimensions
- Width: 16.8mm
- Depth: 20.7mm
- Height: 14.5mm
- Conductor Strip Length: 10mm
Applications
- Residential and commercial wiring installations
- Lighting circuits and electrical repairs
- Industrial control panels and distribution boards

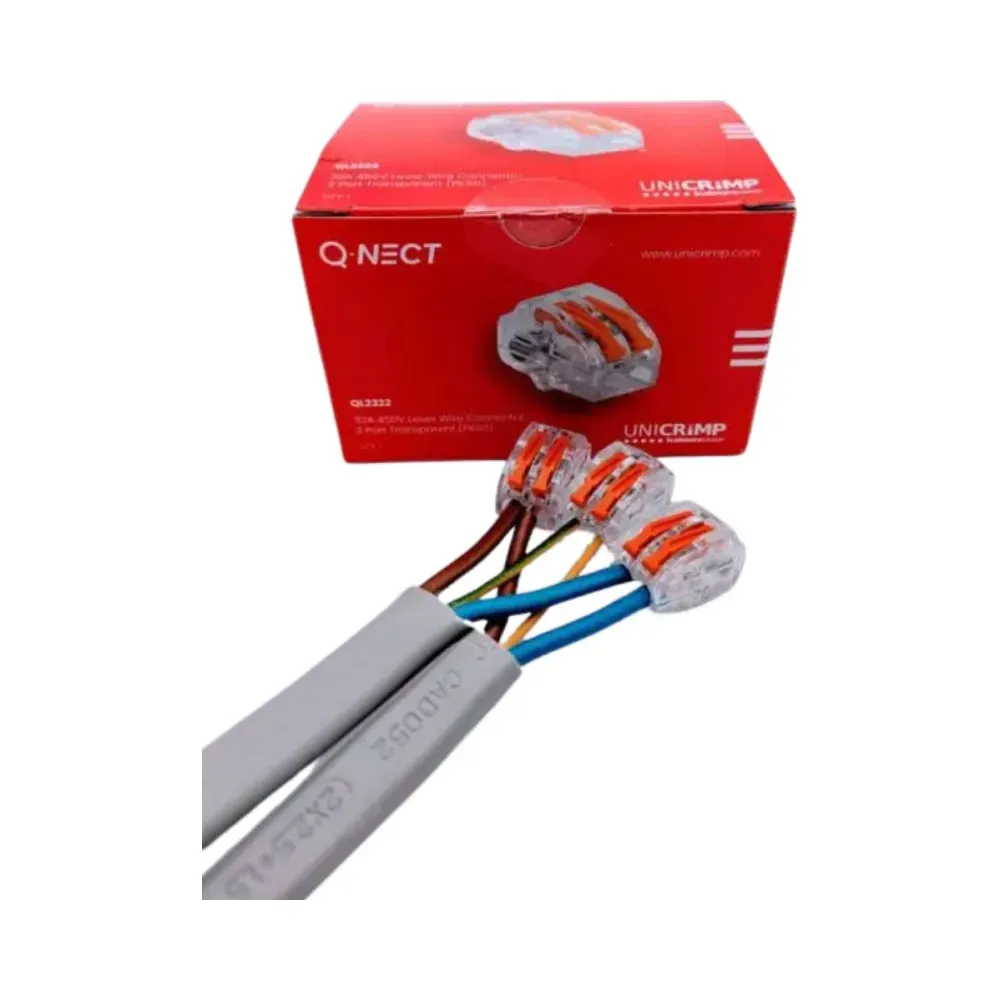

- Quick and reliable cable connections in confined spaces
Why Choose This Product?
The Unicrimp QL3322 3-Port Lever Wire Connector offers fast, secure, and maintenance-free electrical connections. Its compact design, transparent body, and high current rating make it an essential component for electricians and contractors working in domestic, commercial, and industrial environments.
Compliance & Standards
- BS EN 60998-1: 2004
- BS EN 60998-2-2: 2004
