Secure Wire Connections with Unicrimp Blue Heat Shrink Butt Connector

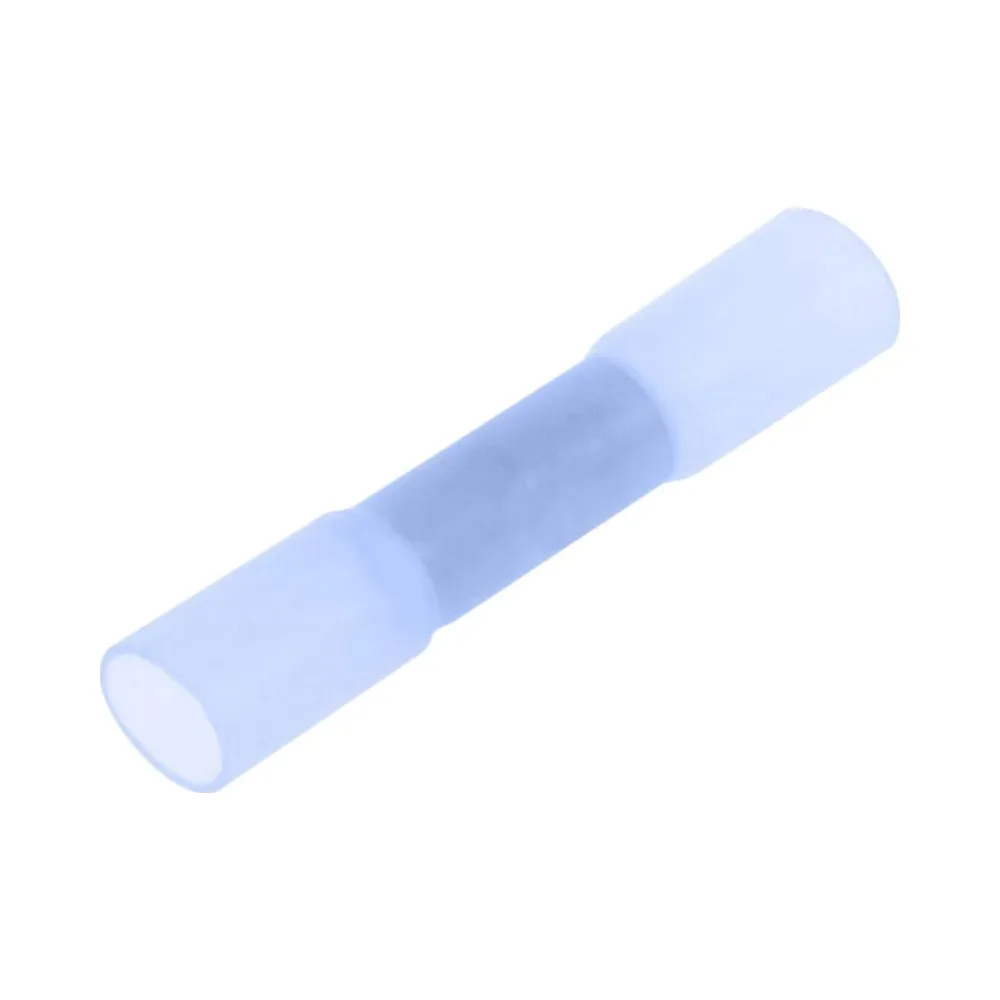

QHSB2 – Unicrimp Heat Shrink Butt Connector
The Unicrimp QHSB2 Blue Heat Shrink Butt Connector offers a simple and effective way to join electrical cables. It is ideal for automotive, marine, and industrial projects. This connector works with cables sized from 1.5mm² to 2.5mm² and provides a secure, waterproof seal.
Its dual-wall heat shrink tubing and adhesive lining create strong protection against moisture and corrosion. Additionally, the tin-plated copper terminal ensures a safe, lasting electrical connection. Designed for durability, this connector can handle tough environments and frequent use.
⚙️ Key Features – Unicrimp Blue Heat Shrink Butt Connector
- Product Code: QHSB2
- Suitable Cable Sizes: 1.5mm² to 2.5mm²
- Rated Current: 27 Amps
- Connector Type: Heat Shrink Butt Splice
- Material: Tin-plated copper terminal with dual-wall heat shrink insulation
- Temperature Range: -10°C to +150°C
- Colour: Blue
- Resistant to moisture, dust, and corrosion
- Standards: ANSI/UL 486A-486B, CAN/CSA-C22.2 No. 65, ANSI/UL 486C, ANSI/UL 310
Technical Overview
- Overall Length: 36mm
- Outer Diameter: 6.8mm
- Sleeve Internal Diameter: 5.5mm
- Terminal Entry Diameter: 2.3mm
- Material Thickness: 0.65mm
- Includes heat-activated adhesive for watertight sealing
- Supplied as individual connectors or packs (varies by supplier)
️ Why Choose This Product?
The Unicrimp QHSB2 connector simplifies wire joining tasks. Its easy heat-shrink design creates a strong, sealed connection quickly. You just apply heat, and it seals tight while improving strength. Furthermore, it prevents future corrosion, making it ideal for long-lasting repairs.
Whether you’re repairing wires on a car, boat, or electrical system, this connector keeps your cables safe and protected.
️ About the Brand – Unicrimp
Unicrimp, part of the Scolmore Group, specializes in trusted electrical accessories. Known for high-quality products, Unicrimp provides reliable solutions for professional electricians and installers worldwide. Their product range includes cable management, fixings, and connectors.
Guarantee & Compliance – Unicrimp Blue Heat Shrink Butt Connector
Unicrimp connectors meet strict industry standards. The QHSB2 complies with ANSI/UL and CSA certifications, ensuring it performs reliably under demanding conditions.
Moreover, every connector undergoes quality tests before leaving the factory. While no fixed warranty applies, the product meets high-quality assurance standards. Unicrimp also uses recyclable packaging to support eco-friendly practices.
