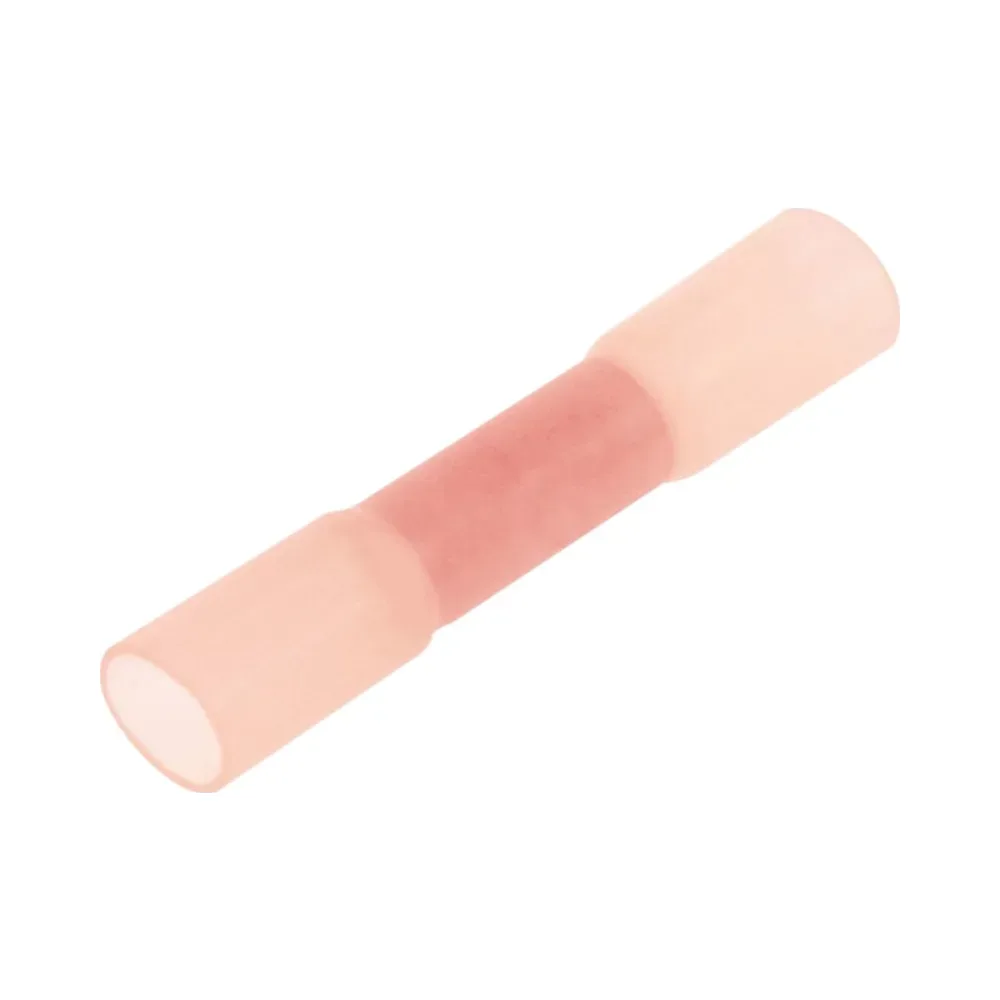

Reliable Wire Connections with Unicrimp Red Heat Shrink Butt Connector
QHSB1 – Unicrimp Heat Shrink Butt Connector
The Unicrimp QHSB1 Red Heat Shrink Butt Connector makes electrical connections simple and secure. It is ideal for automotive, marine, and industrial wiring tasks. Specifically designed for smaller cables ranging from 0.5mm² to 1.5mm², it provides excellent protection against moisture and corrosion.
Thanks to its dual-wall heat shrink tubing with adhesive lining, this connector ensures a watertight seal and strong mechanical bond. In addition, the tin-plated copper terminal improves electrical conductivity and resists corrosion, allowing long-lasting performance even in harsh environments.
⚙️ Key Features – Unicrimp Red Heat Shrink Butt Connector
- Product Code: QHSB1
- Cable Size Range: 0.5mm² to 1.5mm²
- Rated Current: 19 Amps
- Connector Type: Heat Shrink Butt Splice Connector
- Material: Tin-plated copper terminal with dual-wall heat shrink insulation
- Temperature Range: -10°C to +150°C operational
- Colour: Red
- Moisture, dust, and corrosion resistant
- Standards Compliance: ANSI/UL 486A-486B, CAN/CSA-C22.2 No. 65, ANSI/UL 486C, ANSI/UL 310
Technical Overview
- Overall Length: 36mm
- Outer Diameter: 5.8mm
- Sleeve Internal Diameter: 4.5mm
- Terminal Entry Diameter: 1.7mm
- Material Thickness: 0.65mm
- Heat-activated adhesive for watertight sealing
- Available as individual connectors or in packs (depending on supplier)
️ Why Choose This Product?
The Unicrimp QHSB1 connector is a fast and easy way to create reliable wire connections. Its heat-shrink design allows for quick installation. Simply apply heat, and it forms a tight, waterproof seal while strengthening the connection.
Additionally, this connector protects against corrosion and mechanical stress. Whether you are working on vehicles, boats, or home wiring, this connector ensures long-lasting, safe connections.
️ About the Brand – Unicrimp
Unicrimp, part of the Scolmore Group, is known for high-quality electrical accessories. Professionals trust their wide range of products, including cable connectors, clips, and fixings. Their products are designed for durability and ease of use in electrical installations worldwide.
Guarantee & Compliance – Unicrimp Red Heat Shrink Butt Connector
Unicrimp connectors meet strict global standards. The QHSB1 model complies with ANSI/UL and CSA certifications, ensuring consistent performance in demanding environments.
Moreover, every product undergoes careful quality checks before distribution. Although no fixed warranty period applies, Unicrimp ensures high-quality manufacturing and uses recyclable packaging to promote eco-friendly practices.
