Description

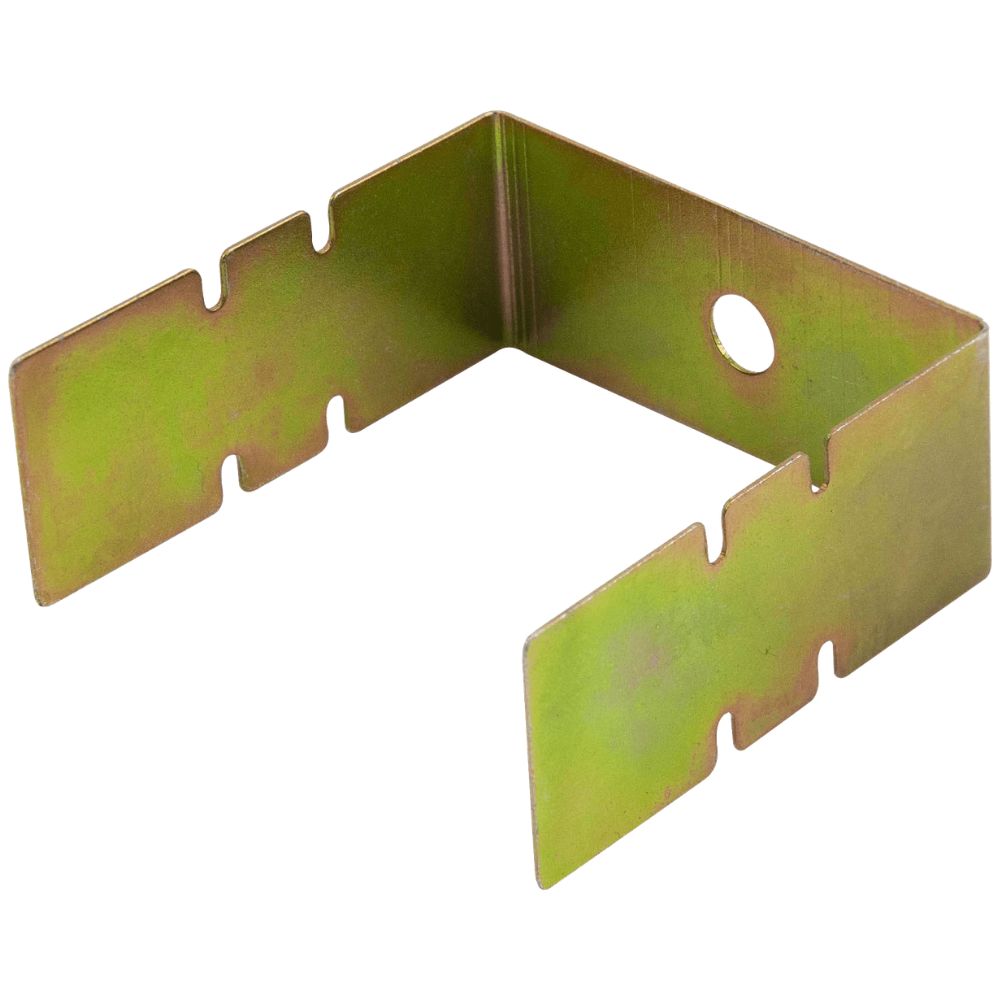

Unicrimp QFGFC40 40mm Trunking Fire Safe Cable Clips
The Unicrimp QFGFC40 40mm Trunking Fire Safe Cable Clips are designed to secure cables within 32–40mm trunking systems, ensuring cables remain supported during extreme fire conditions. Manufactured from durable annealed steel, these clips provide reliable cable retention for fire alarm, emergency lighting, and other life-safety wiring installations.
With a PH120 fire resistance rating, the clips are capable of maintaining cable support for up to 120 minutes when exposed to temperatures approaching 930°C. During testing, cables secured using these clips were exposed to flame, mechanical shock, and water spray conditions to ensure dependable performance during a fire.
The fold-over tab design allows installers to quickly secure cables within trunking routes while providing a strong mechanical fixing to the mounting surface.
Key Features
- Designed for cables installed within 32–40mm trunking systems
- Manufactured from high-strength annealed steel
- PH120 fire resistance rating (120 minutes)
- Maintains cable retention at temperatures up to 930°C
- Simple fold tab design for quick installation
- Non-corrosive construction for long service life
- Suitable for fire alarm and life-safety circuits
- Supplied as a pack of 10
Technical Specifications
- Product Code: QFGFC40
- Material: Annealed Steel
- Fire Rating: 120 Minutes
- Material Yield Temperature: 1000°C
- Trunking Compatibility: 32–40mm
- Clip Width: 20mm
- Fixing Hole Diameter: 6mm
- Maximum Fold Height: 20mm
Standards
- BS 5839-1:2013 (Section 26.2e)
- BS 8434-2:2003
- BS EN 50200:2006 PH120
The Unicrimp QFGFC40 trunking fire safe cable clips provide dependable cable retention in trunking installations where maintaining circuit integrity during a fire is essential.
