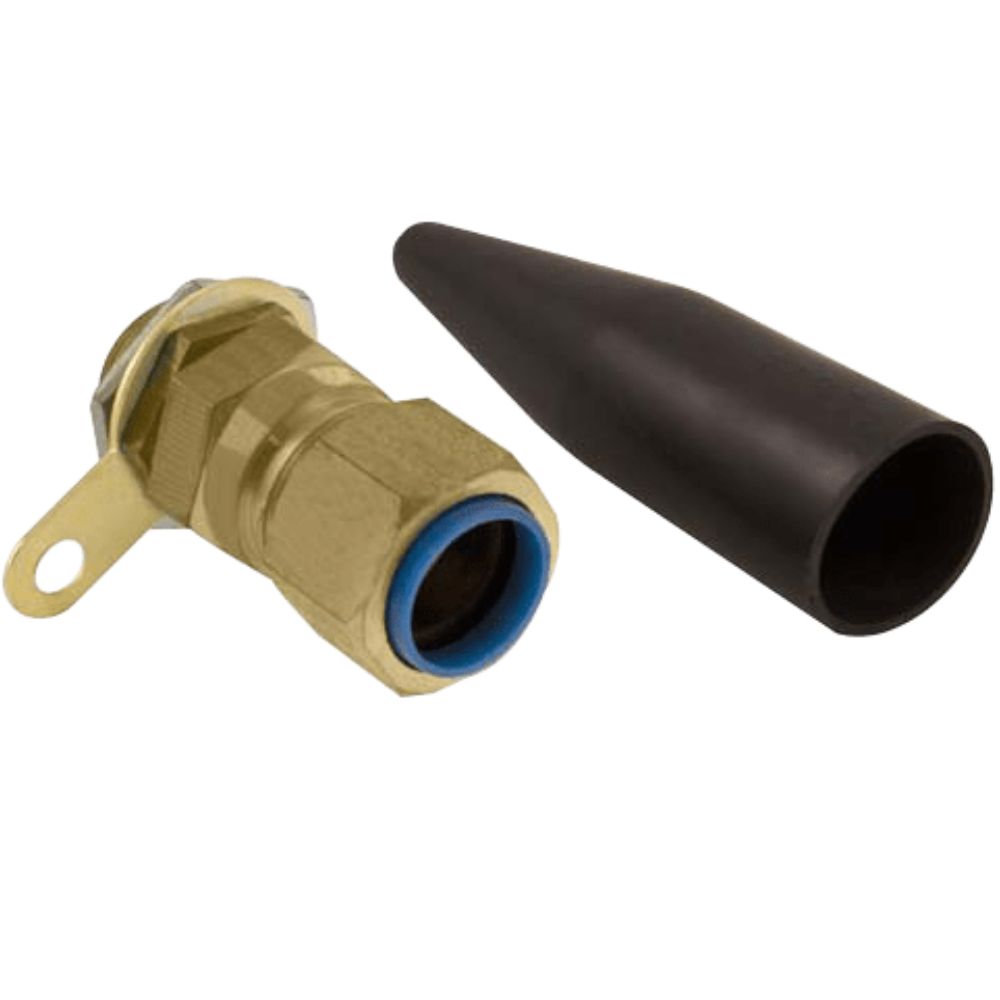

Unicrimp QCW63-LSF 63mm brass CW LSF gland with locknut, earth tag, and fire-retardant sleeve for armoured cables.
Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

Unicrimp QCW63-LSF CW LSF Armored Gland – 63mm

SKU: QCW63-LSF
Delivery usually within 1-3 working days*
Confirm Availability

The Unicrimp QCW63-LSF is a 63mm CW LSF brass gland for armoured cables. It features IP65 protection, fire-retardant materials, and is suited for industrial cable terminations in safety-critical areas.

£26.29 + VAT

(incl. VAT £31.55)

Add to quote
Category: Brand:

Description

CW LSF Armored Gland – 63mm

Unicrimp QCW63-LSF

The Unicrimp QCW63-LSF CW LSF armoured Gland is a heavy-duty brass gland designed for armoured cables in industrial environments. It features a Low Smoke & Fume (LSF) design, making it ideal for indoor settings where safety and low emissions are key. With IP65 protection and fire-retardant materials, this gland keeps connections safe, even under tough conditions.

Built to BS 6121-1:2005 standards, it’s a trusted choice for electricians and engineers.

🔧 Main Features – QCW63-LSF CW Gland (63mm)

  • ✅ 63mm size for large cable terminations
  • ✅ LSF design – ideal for enclosed spaces
  • ✅ Brass body with steel locknut
  • ✅ IP65 rated for dust and water protection
  • ✅ Fire-retardant PVC insert and sleeve
  • ✅ Natural rubber seal for secure grip
  • ✅ Suits cables with outer diameters up to 65.9mm

⚙️ Technical Details – Unicrimp QCW63-LSF Unicrimp CW LSF armoured Gland:

  • Product Code: QCW63-LSF
  • Type: CW LSF Armoured Brass Gland
  • Size: 63mm
  • Cable Inner Diameter: Up to 55.9mm
  • Cable Outer Diameter: 58–65.9mm
  • Armour Wire Diameter: 2.5mm
  • Entry Thread Size: 15mm
  • Ingress Protection: IP65
  • Operating Temp: -20°C to +80°C
  • Standards: BS 6121-1:2005, BS EN 60529:1992 + A2:2013
  • Weight: 1.062kg
  • Materials:
  • Body & Earth Tag: Brass
  • Locknut: Steel
  • Insert & Sleeve: PVC (FRLS)
  • Seal: Natural Rubber

📢 Installation Tips

Always check the cable size before fitting the gland. Fit the earth tag correctly and tighten the gland using the correct torque. For added safety, ensure the seal is compressed fully to maintain the IP65 rating. Suitable for indoor or protected outdoor use.

💬 Why Choose the Unicrimp CW LSF armoured Gland?

  • ✅ Flame-retardant for added safety
  • ✅ Keeps dust and moisture out
  • ✅ Ideal for industrial installs
  • ✅ Compliant with key BS standards
  • ✅ Built with tough brass for long life

Summary

The Unicrimp QCW63-LSF 63mm brass gland delivers robust performance for armoured cables used in industrial and indoor environments. It offers a Low Smoke & Fume (LSF) design, IP65 ingress protection, and fire-retardant PVC inserts—perfect for high-safety applications. Complying with BS 6121-1:2005.

Downloads

View Product Data Sheet
