Description

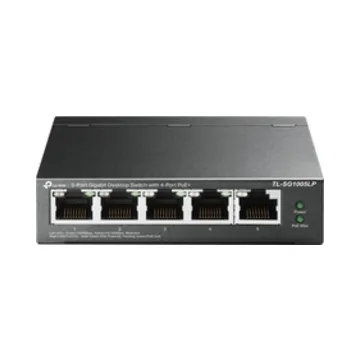

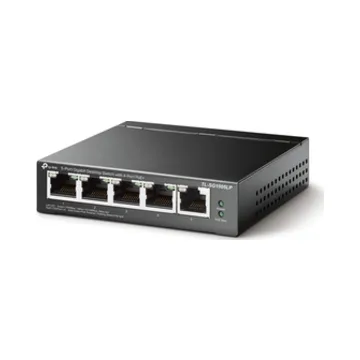

TP-LINK TL-SG1005LP 5-Port Gigabit Switch with 4-Port PoE+

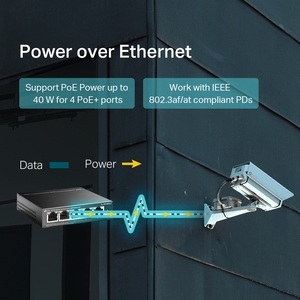

The TP-LINK TL-SG1005LP is a versatile 5-port Gigabit switch designed for seamless networking and Power over Ethernet (PoE) applications. With four PoE+ ports, this switch simplifies the deployment of devices such as IP cameras, access points, and IP phones by providing both data and power over a single cable. Additionally, the switch has a total power budget of 40 W, making it ideal for small businesses, dormitories, and office environments.
Key Features
- 5× 10/100/1000 Mbps RJ45 Ports: Provides high-speed data transfer and robust connectivity for multiple devices, ensuring smooth network performance.
- 4 PoE+ Ports: Each PoE+ port supports up to 30 W, adhering to IEEE 802.3af/at standards, which offers flexible power solutions for a range of PoE devices.
- 40W Total Power Budget: This budget is sufficient for a wide range of PoE devices, supporting up to 40 W across all four PoE ports. Consequently, it is suitable for numerous applications.

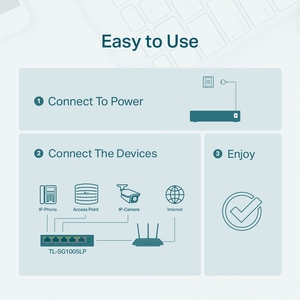

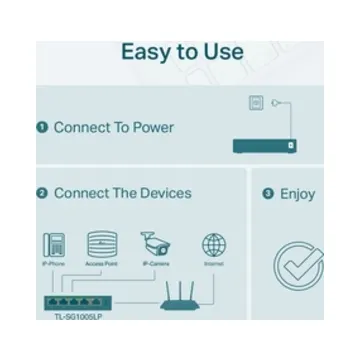

- Plug and Play: This feature eliminates the need for complex setup, making the switch easy to install and use.
- Intelligent Power Management: The system prioritizes power distribution to prevent overload, thus ensuring critical devices remain operational.
Advanced Functions
- Quality of Service (QoS): QoS priorities traffic to ensure smooth and reliable performance for latency-sensitive applications like voice and video.
- IGMP Snooping: This feature optimises multimedia traffic delivery, which is particularly useful for IPTV applications.
- Durable Metal Casing: The high-quality metal construction protects internal components, ensuring a long-lasting product life.
Specifications
- Interface: 5× 10/100/1000 Mbps RJ45 Ports with AUTO Negotiation and AUTO MDI/MDIX
- Network Media: Compatible with various UTP and STP cables (up to 100m)
- Fanless Design: Silent operation suitable for noise-sensitive environments, enhancing the user experience.
- Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
- Packet Forwarding Rate: 7.44 Mbps
- PoE Ports: 4 ports (802.3 af/at compliant)
- Switching Capacity: 10 Gbps
- Dimensions: 3.9×3.9×1.0 in (99.8×98×25 mm)
- Max Power Consumption: 47.5 W (with 40 W PD connected)
Software Features
- Advanced Features: Includes auto-learning and auto-aging of MAC addresses, IEEE 802.3x flow control, 802.1p/DSCP QoS, and IGMP Snooping, ensuring efficient network management.
The TP-LINK TL-SG1005LP 5-Port Gigabit Switch is available at Electrical4Less. This switch provides a reliable and efficient networking solution for various PoE devices, offering high performance and ease of use for both professional and personal settings.
