High-Voltage Multifunction I-V Curve Tracer for PV System Efficiency Testing

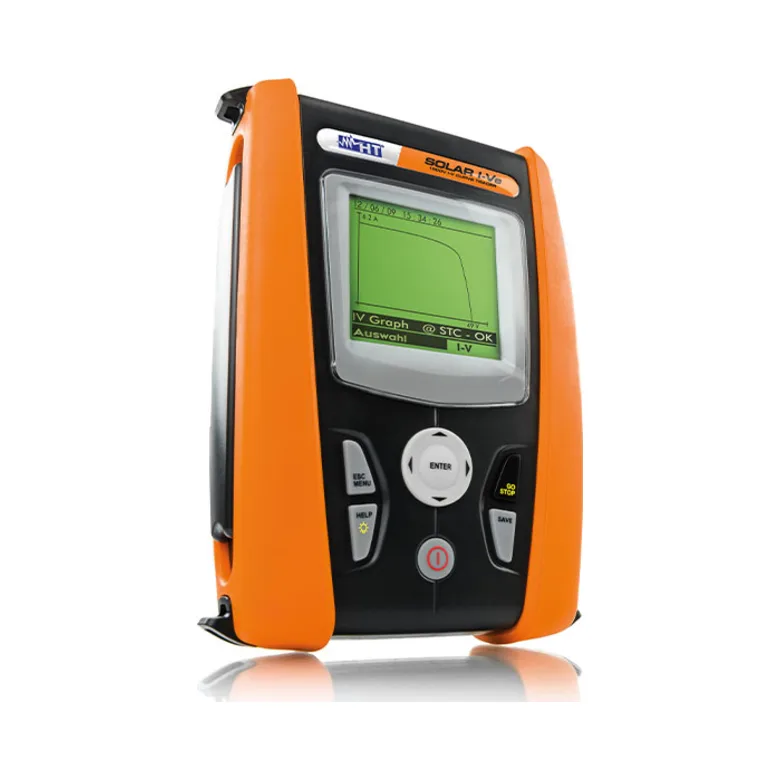

TIS SOLAR I-Ve Multifunction I-V Curve Tracer
The TIS SOLAR I Ve Multifunction I V Curve Tracer is a professional-grade instrument designed for maintenance, diagnostics, and efficiency testing of single-phase photovoltaic installations. It supports high-voltage systems and delivers precise I-V curve analysis for both individual modules and complete strings.
This advanced tester measures I-V curves up to 1500V/10A or 1000V/15A, alongside open-circuit voltage (VOC) up to 1500V and short-circuit current (ISC) up to 15A. Using a 4-terminal measurement method, it ensures highly accurate voltage and current readings without the need for cable resistance compensation.
The SOLAR I-Ve features an internal, user-updatable PV module database, allowing direct comparison between measured results and manufacturer-rated values. When paired with the remote SOLAR02 unit, it simultaneously logs irradiance and temperature in compliance with applicable standards. Clear on-screen I-V curve displays provide immediate confirmation of system performance and compliance.
Key Features – TIS SOLAR I Ve Multifunction I V Curve Tracer
- I-V curve measurement for PV modules and strings
- High-voltage testing up to 1500V DC
- Current measurement up to 15A DC
- Measurement of VOC, ISC, Pmax, Vmpp, Impp, and efficiency
- Single-phase PV system efficiency testing
- 4-terminal measurement method for maximum accuracy
- Internal PV module database with manufacturer comparison
- Remote irradiance and temperature logging via SOLAR02
- Clear OK/NO test result and I-V curve display
Technical Overview – TIS SOLAR I Ve Multifunction I V Curve Tracer
- Maximum DC voltage: 1500V
- Maximum DC current: 15A (10A above 1000V)
- I-V curve and efficiency testing: Module and string level
- Measurement method: 4-terminal technique
- Display: 128 x 128 LCD with backlight
- Internal memory: Curve and efficiency data storage
- Power supply: 6 x AA 1.5V alkaline batteries
- Safety category: CAT II 1000V DC, CAT III 300V AC to earth
- Compliance: IEC/EN standards for PV measurement and safety
