Description
Advanced Insulation & Safety Tester for Professional Solar PV Systems

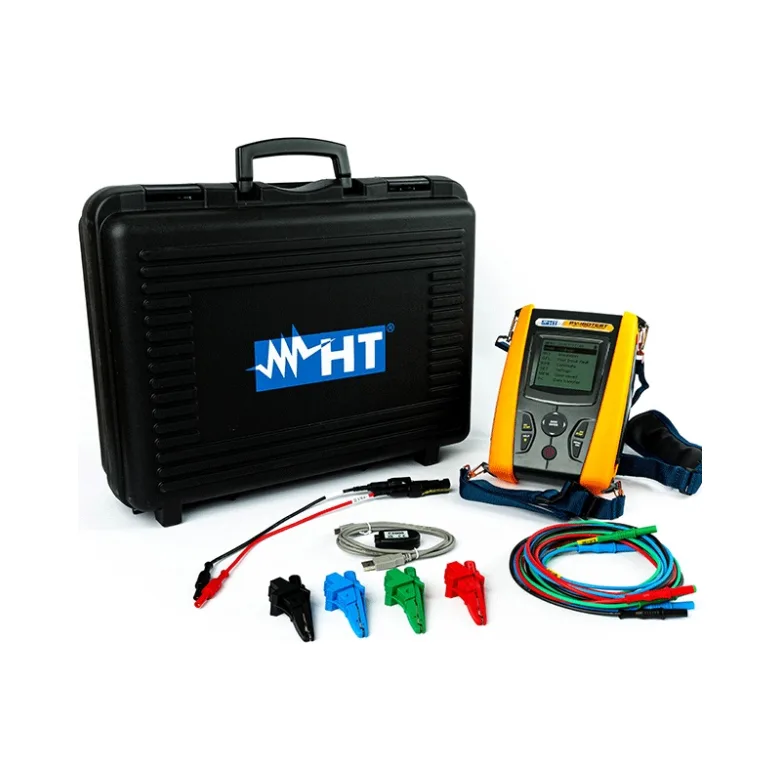

TIS PV-ISOTEST Solar PV Multifunction Tester
The TIS PV ISOTEST Solar PV Multifunction Tester is an innovative solution for insulation and safety testing in modern photovoltaic installations. Designed to meet IEC/EN 62446 requirements, it enables reliable insulation resistance testing of single modules, strings, or entire PV fields up to 1500V DC.
Unlike traditional insulation testers, PV-ISOTEST eliminates the need for external DC-rated switch boxes. It performs all insulation measurements autonomously, improving safety and efficiency during commissioning and maintenance. This makes it ideal for installers working on high-voltage PV systems.
Equipped with an advanced Ground Fault Locator (GFL), the PV-ISOTEST can accurately identify the position of insulation faults within a PV string, helping technicians quickly locate issues caused by moisture ingress or insulation degradation.
Key Features – TIS PV ISOTEST Solar PV Multifunction Tester
- Insulation resistance testing up to 1500V DC
- Tests single modules, strings, or entire PV fields
- No external short-circuit switch box required
- Ground Fault Locator (GFL) for pinpointing insulation faults
- AC TRMS voltage measurement up to 1000V
- DC voltage measurement up to 1500V
- Polarization Index (PI) and Dielectric Absorption Ratio (DAR)
- Continuity testing of protective conductors at 200mA
Technical Overview – TIS PV ISOTEST Solar PV Multifunction Tester
- Measurement category: CAT III 1500V DC / CAT III 1000V AC
- AC voltage range: 3-1000V TRMS
- DC voltage range: 3-1500V
- Insulation test voltages: 250V, 500V, 1000V, 1500V
- Continuity test current: 200mA
- Functions: PI, DAR, GFL insulation fault location
- Dimensions: 235 x 165 x 75mm
- Weight: 1.2kg
Why Choose This Product?
Choose the TIS PV ISOTEST Solar PV Multifunction Tester for safe, efficient, and standards-compliant insulation testing. Its autonomous operation and fault location capability make it a powerful tool for professional PV commissioning and maintenance.
About TIS
TIS designs and manufactures professional photovoltaic and electrical test equipment trusted by solar engineers and installers for accuracy, reliability, and compliance.
Guarantee & Compliance
The TIS PV ISOTEST Solar PV Multifunction Tester complies with IEC/EN 62446 and relevant IEC/EN safety standards, ensuring dependable performance for professional solar PV testing.
