High-Performance I-V Curve Tracer for Advanced PV System Analysis

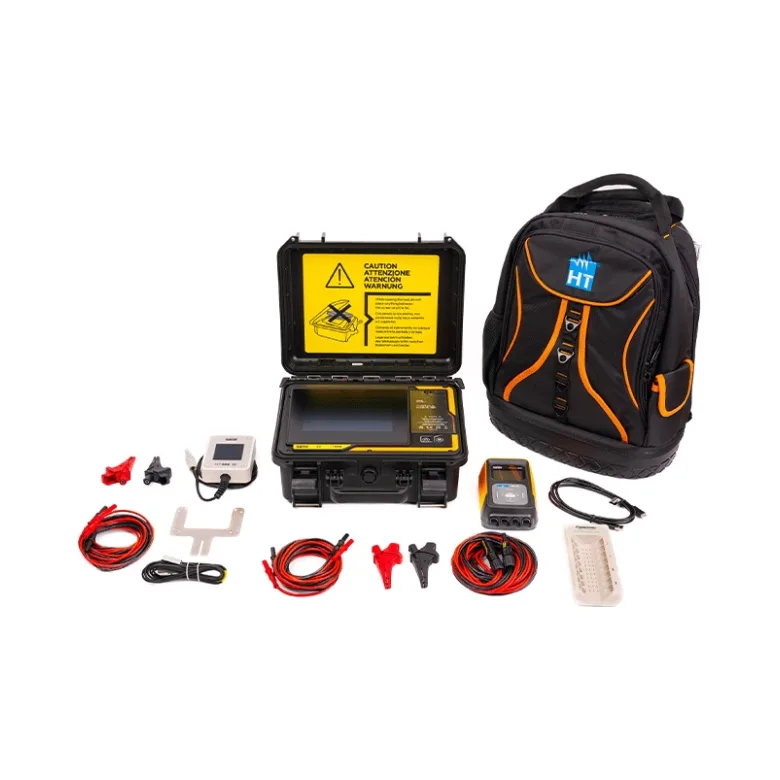

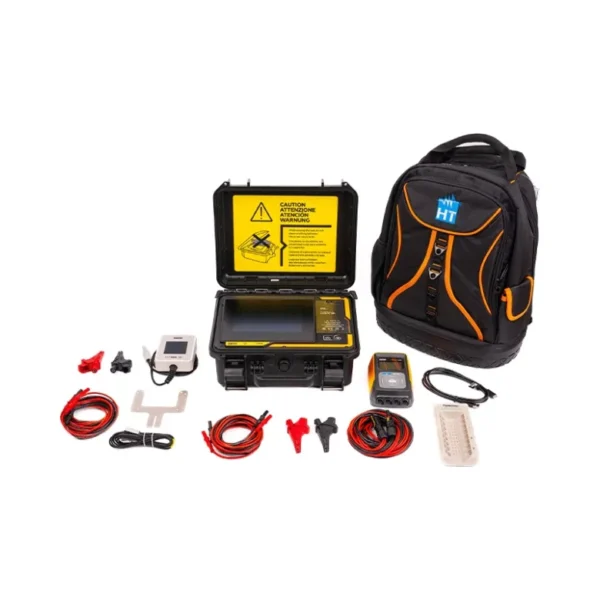

TIS IV600 Advanced I-V Curve Tracer
The TIS IV600 Advanced I V Curve Tracer is a professional photovoltaic test instrument designed for performance verification and functionality testing of modern PV systems. Compliant with IEC/EN 60891, it supports both single-face and bifacial modules, making it ideal for advanced solar installations.
The IV600 traces I-V curves up to 1500V and 40A, allowing accurate performance and acceptance testing of PV strings. Using irradiance and module temperature measurements wirelessly synchronised with the SOLAR03 remote unit it extrapolates results to Standard Test Conditions (STC) and compares them against manufacturer specifications.
With an extensive internal database of over 40,000 PV modules and a clear OK/NO compliance outcome, the IV600 simplifies performance assessment. Its innovative battery management system recovers energy from the test process and draws power directly from the PV string, ensuring uninterrupted operation on site.
Key Features – TIS IV600 Advanced I V Curve Tracer
- I-V curve tracing up to 1500V and 40A
- IEC/EN 60891 compliant performance testing
- Supports single-face and bifacial PV modules
- Wireless irradiance and temperature measurement via SOLAR03
- STC extrapolation and comparison with manufacturer data
- Internal PV module database with over 40,000 entries
- Clear OK/NO test result indication
- Advanced BMS with energy recovery from test procedure
Technical Overview – TIS IV600 Advanced I V Curve Tracer
- Maximum DC voltage: 1500V
- Maximum DC current: 40A
- PV module types: Single-face and bifacial
- Display: 800 x 600 colour touchscreen LCD
- Communication: USB-C, WiFi, Bluetooth (SOLAR03)
- Internal memory: Up to 9,999 test records
- Power supply: Internal batteries with BMS and PV-powered operation
- Ingress protection: IP67 (closed), IP40 (open)
Why Choose This Product?
Choose the TIS IV600 Advanced I V Curve Tracer for accurate, standards-compliant PV performance testing. Its high-voltage capability, intelligent power management, and extensive module database make it a trusted tool for professional solar engineers.
About TIS
TIS manufactures advanced photovoltaic and electrical test equipment trusted worldwide for accuracy, innovation, and professional-grade reliability.
Guarantee & Compliance
The TIS IV600 Advanced I V Curve Tracer complies with IEC/EN 60891 and IEC/EN 62446 requirements, along with relevant IEC/EN safety standards, ensuring reliable and compliant photovoltaic testing.
