Professional I-V Curve Testing Tool for High-Voltage Solar Installations

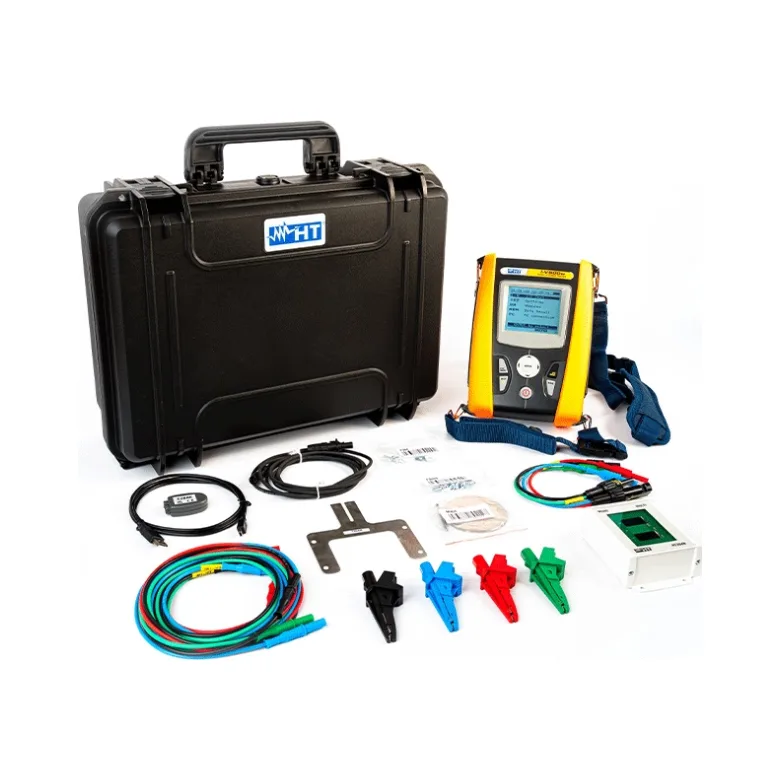

TIS I-V500W Solar I-V Curve Tester
The TIS I V500W Solar I V Curve Tester is an essential diagnostic instrument for professional solar installers carrying out performance analysis and maintenance on photovoltaic systems. Designed for high-voltage applications, it measures I-V curves with open-circuit voltage up to 1500V and short-circuit current up to 15A.
This advanced tester captures up to 128 points per I-V curve in standard or capacitive mode, providing detailed insight into PV module and string performance. It measures key parameters including Voc, Isc, Pmax, Vmpp, Impp, and fill factor, with direct comparison to Standard Test Conditions (STC) for accurate performance validation.
The TIS I-V500W Solar I-V Curve Tester supports both direct and remote irradiance and temperature measurement using a reference cell or the SOLAR02 remote unit. Please note: when testing N-TYPE technology PV modules, the I-V500W supports up to approximately 8 panels, for larger systems, the IV600 model is recommended.
Key Features – TIS I V500W Solar I V Curve Tester
- I-V curve measurement up to 1500V DC and 15A DC
- 128 measurement points per I-V curve
- Measurement of Voc, Isc, Pmax, Vmpp, Impp, and fill factor
- DC and rated power measurement at module or string level
- Direct and remote irradiance and temperature measurement
- 4-terminal measuring method for high accuracy
- Series resistance (Rs) measurement of PV panels
- Automatic OK/NO test result indication
Technical Overview – TIS I V500W Solar I V Curve Tester
- Maximum DC voltage: 1500V
- Maximum DC current: 15A
- I-V curve resolution: 128 points
- PV module support: Single modules and strings
- Display: 128 x 128 LCD with backlight
- Internal database: Up to 30 PV modules
- Internal memory: Stores measurement data
- PC interface: Opto-isolated optical / USB
- Power supply: 6 x AA 1.5V alkaline batteries
- Safety category: CAT II 1000V DC, CAT III 300V to earth
Accessories Supplied
- KITGSC4 – 4 test leads with alligator clips
- KITPCMC3 – MC3 connector adapters
- KITPCMC4 – MC4 connector adapters
- TOPVIEW2006 Windows software with optical/USB cable
- VA500 rigid carrying case
- User manual
- ISO9000 calibration certificate
Why Choose This Product?
Choose the TIS I V500W Solar I V Curve Tester for detailed, standards-based PV performance analysis. Its high-voltage capability, precise curve tracing, and professional accessories make it ideal for commissioning and maintaining modern solar installations.
About TIS
TIS designs professional photovoltaic and electrical test instruments trusted by solar engineers and installers for accuracy, durability, and compliance.
Guarantee & Compliance
The TIS I V500W Solar I V Curve Tester meets international PV measurement and electrical safety standards, ensuring dependable performance for professional solar testing.
