Professional I-V Curve Analysis Tool for Solar PV Performance Testing

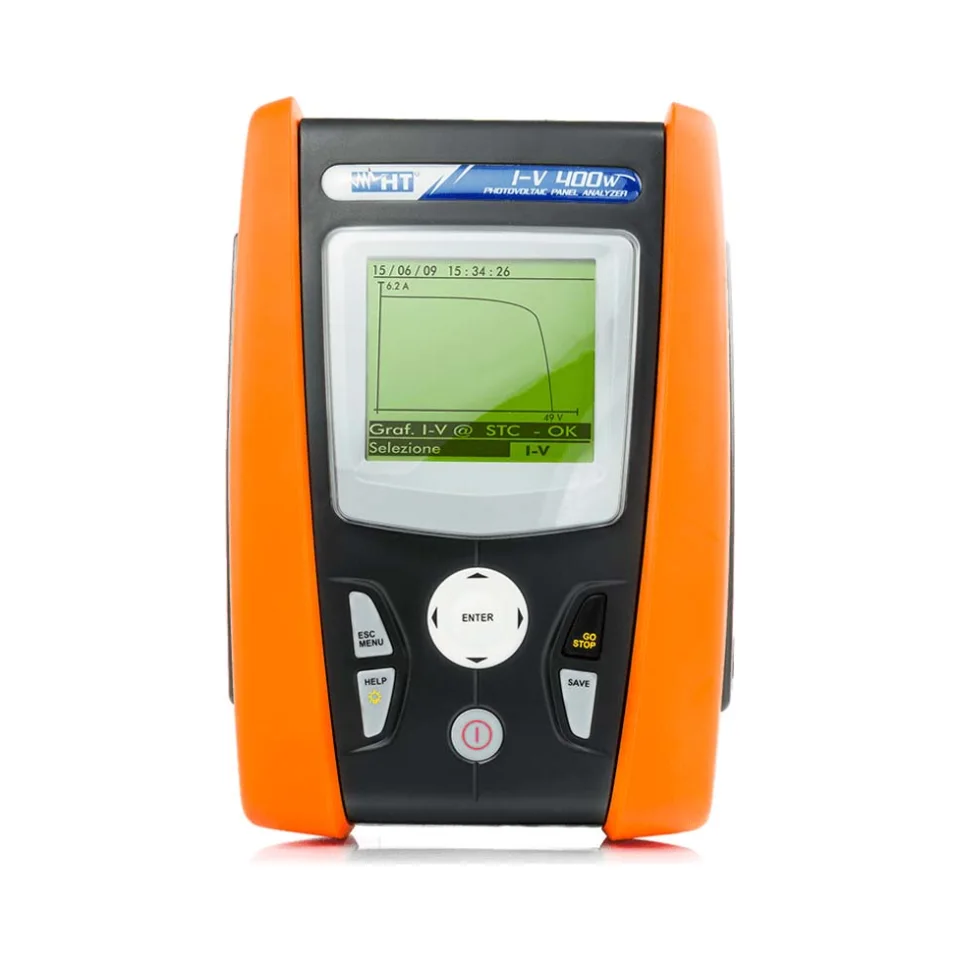

TIS I-V400W Solar I-V Curve Tester
The TIS I V400W Solar I V Curve Tester is a powerful diagnostic instrument designed for detailed performance analysis of photovoltaic modules and strings. It enables accurate field measurement of I-V curves for PV installations up to 1000V and 15A, supporting commissioning, maintenance, and fault diagnosis.
This advanced tester captures up to 128 points per I-V curve in standard or capacitive mode, measuring key parameters including Voc, Isc, Pmax, Vmpp, Impp, and fill factor. Measured values are automatically compared with manufacturer-rated data using an internal, user-updatable PV module database, providing an immediate OK/NO assessment of system efficiency.
The I-V400W supports irradiance and temperature measurement either directly or remotely using the optional SOLAR02 unit, synchronised with the tester for precise, real-world performance evaluation. Clear on-screen results and PC connectivity make it an essential tool for professional solar engineers.
Key Features – TIS I V400W Solar I V Curve Tester
- I-V curve measurement for PV modules and strings up to 1000V DC
- Current measurement up to 15A DC
- 128 measurement points per I-V curve
- Measurement of Voc, Isc, Pmax, Vmpp, Impp, and fill factor
- Direct and remote irradiance and temperature measurement
- Automatic comparison with manufacturer-rated values
- Series resistance (Rs) measurement using 4-terminal method
- Clear OK/NO test result indication
- Internal memory with data recall and PC transfer
Technical Overview – TIS I V400W Solar I V Curve Tester
- Maximum DC voltage: 1000V
- Maximum DC current: 15A
- I-V curve resolution: 128 points
- PV system types: Module and string testing
- Reference conditions: STC (1000W/m², 25°C)
- Display: 128 x 128 LCD with backlight
- Power supply: 6 x AA 1.5V alkaline batteries
- Safety category: CAT II 1000V DC, CAT III 300V (to earth)
- PC interface: Optical / USB, opto-isolated
Accessories Supplied
- KITGSC4 – 4 test leads with alligator clips
- KITPCMC3 – MC3 connector adapters
- KITPCMC4 – MC4 connector adapters
- TOPVIEW2006 Windows software with optical/USB cable
- VA500 rigid carrying case
- User manual
- ISO9000 calibration certificate
