Description
High-Accuracy Reference Cell for Professional Solar Irradiance Measurement

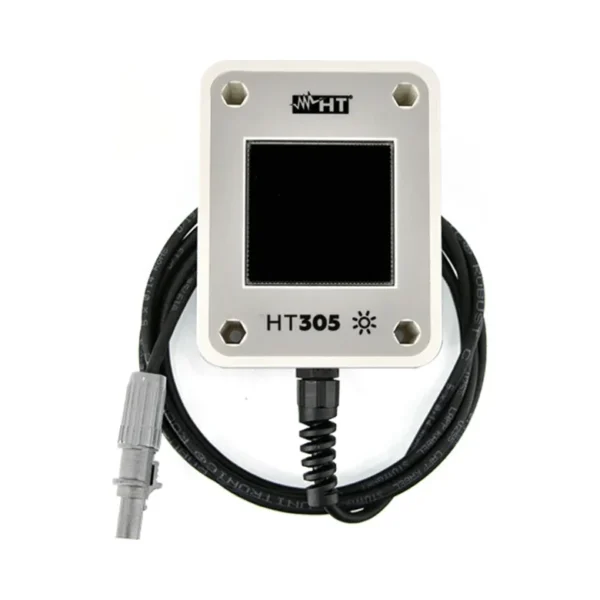

TIS HT305 Reference Cell
The TIS HT305 Reference Cell is a precision-engineered sensor designed for accurate solar irradiance measurement during photovoltaic commissioning and performance verification. Developed for seamless use with the PVCHECKS PRO Solar Commissioning Tester, it ensures dependable environmental data for professional PV testing.
Featuring a high-quality monocrystalline cell, the HT305 delivers stable and repeatable measurements across a wide irradiance range from 100 to 1400 W/m². Its broad field of view exceeding 160° allows optimal sunlight capture, even under varying solar angles, supporting reliable real-world testing conditions.
Built for demanding outdoor environments, the HT305 includes an IP65-rated housing, internally stored calibration parameters for traceability, and a secure custom 5-pin HT connector. Compact, lightweight, and easy to install, it is an essential accessory for accurate solar commissioning.
? Key Features – TIS HT305 Reference Cell
- Wide irradiance measurement range from 100 to 1400 W/m²
- High accuracy of ±3.0% of reading
- Monocrystalline reference cell for stable measurements
- Wide field of view >160° for optimal solar capture
- Internally stored calibration parameters
- Custom 5-pin HT connector for PVCHECKS PRO integration
- IP65-rated housing for outdoor use
- Approx. 2m connection cable for flexible positioning
?? Technical Overview – TIS HT305 Reference Cell
- Irradiance range: 1001400 W/m²
- Measurement accuracy: ±3.0% of reading
- Cell type: Monocrystalline silicon
- Field of view: >160°
- Mechanical protection: IP65
- Connector type: Custom HT 5-pin
- Cable length: Approx. 2m
- Dimensions: 111 x 85 x 28mm
- Weight: 240g
? Why Choose This Product?
Choose the TIS HT305 Reference Cell for precise, repeatable solar irradiance measurement. Its high accuracy, rugged design, and seamless compatibility with PVCHECKS PRO make it ideal for professional PV commissioning and performance analysis.
?? About TIS
TIS designs professional photovoltaic and electrical test equipment trusted by solar installers and engineers for accuracy, durability, and standards compliance.
??? Guarantee & Compliance
The TIS HT305 Reference Cell is manufactured to meet relevant IEC standards for irradiance measurement and safety, ensuring reliable performance in professional solar applications.
