Description

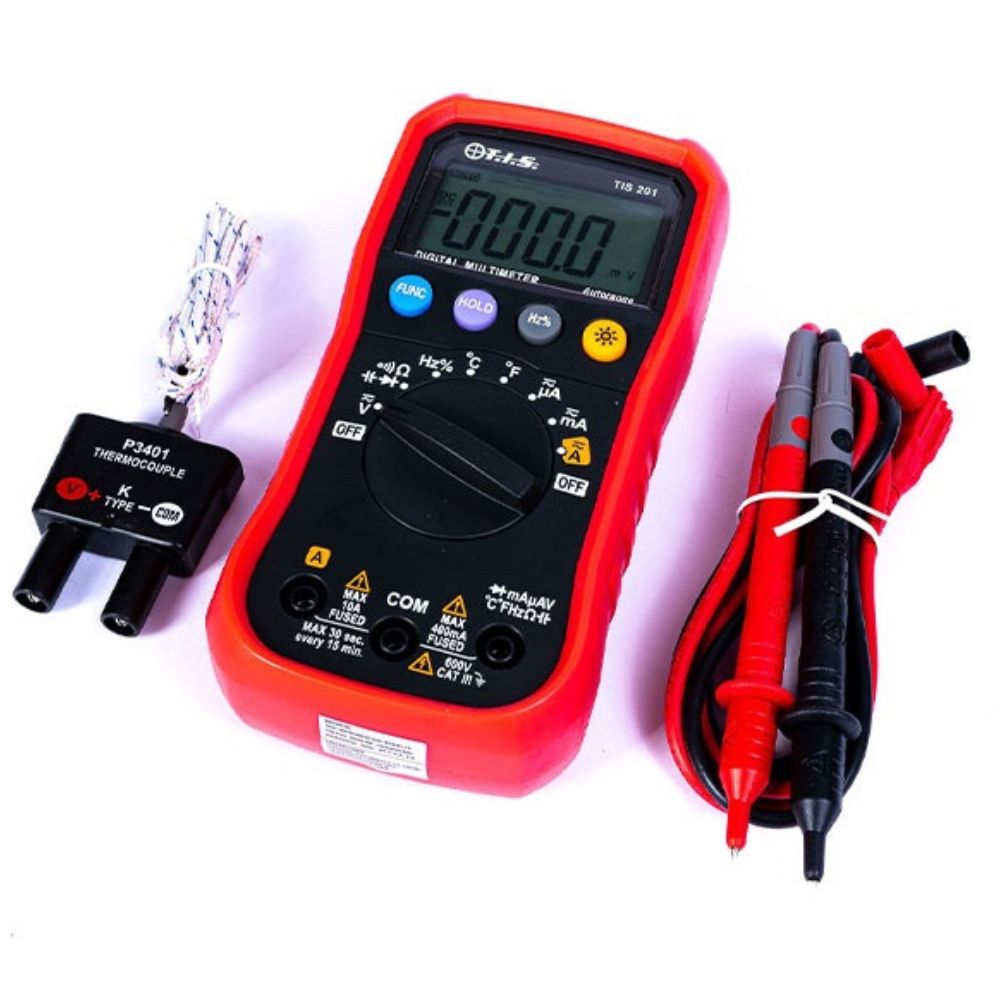

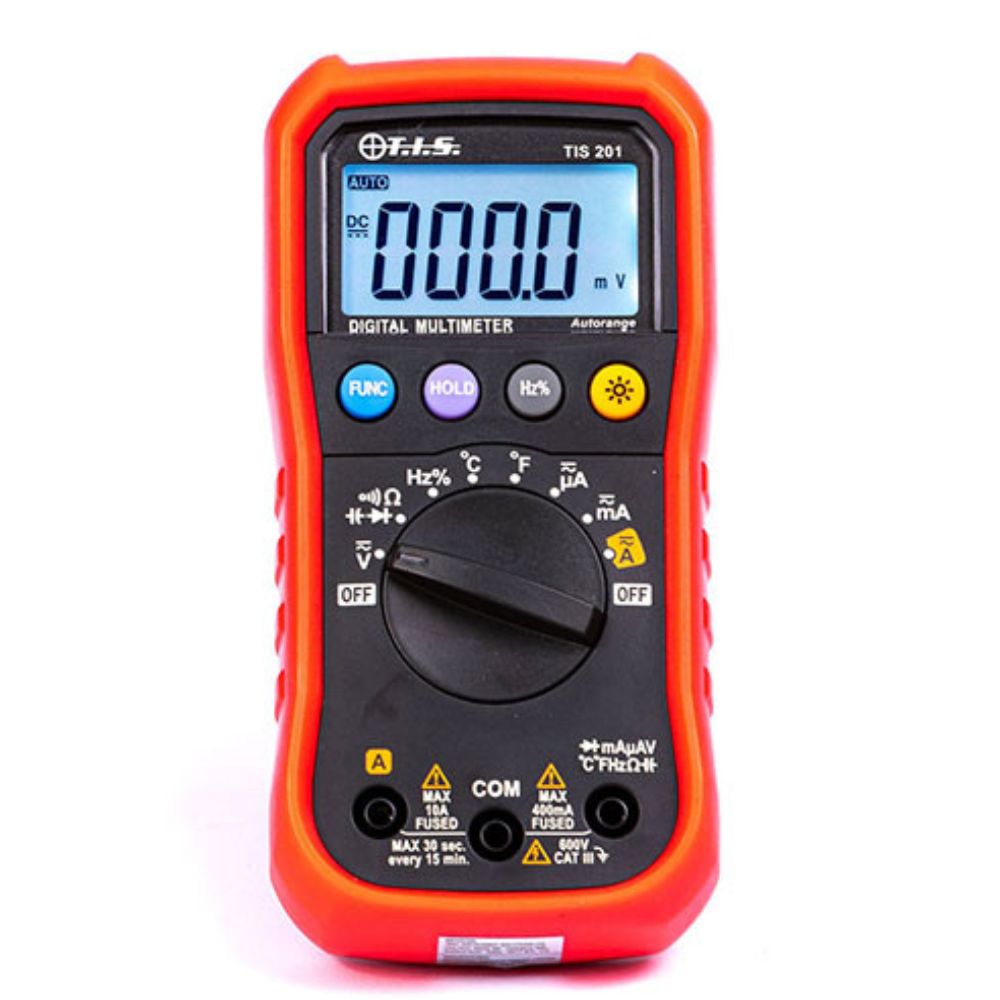

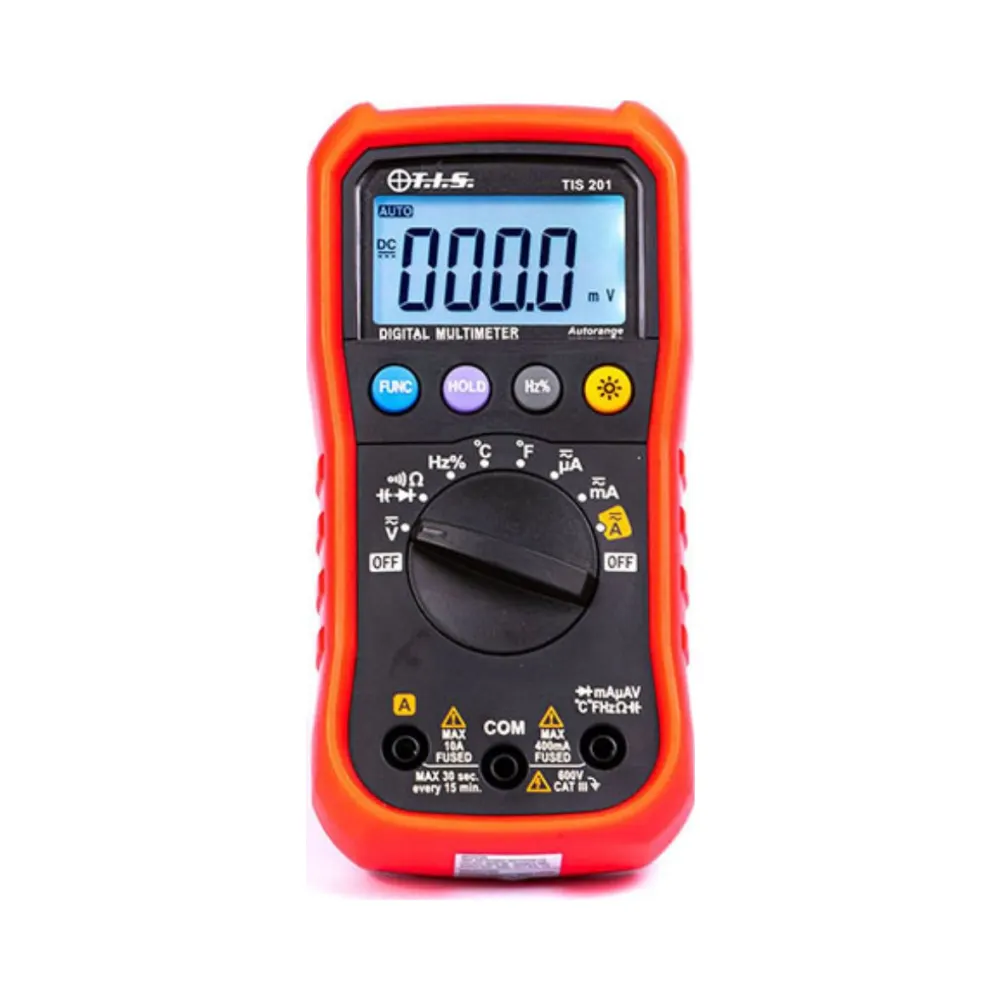

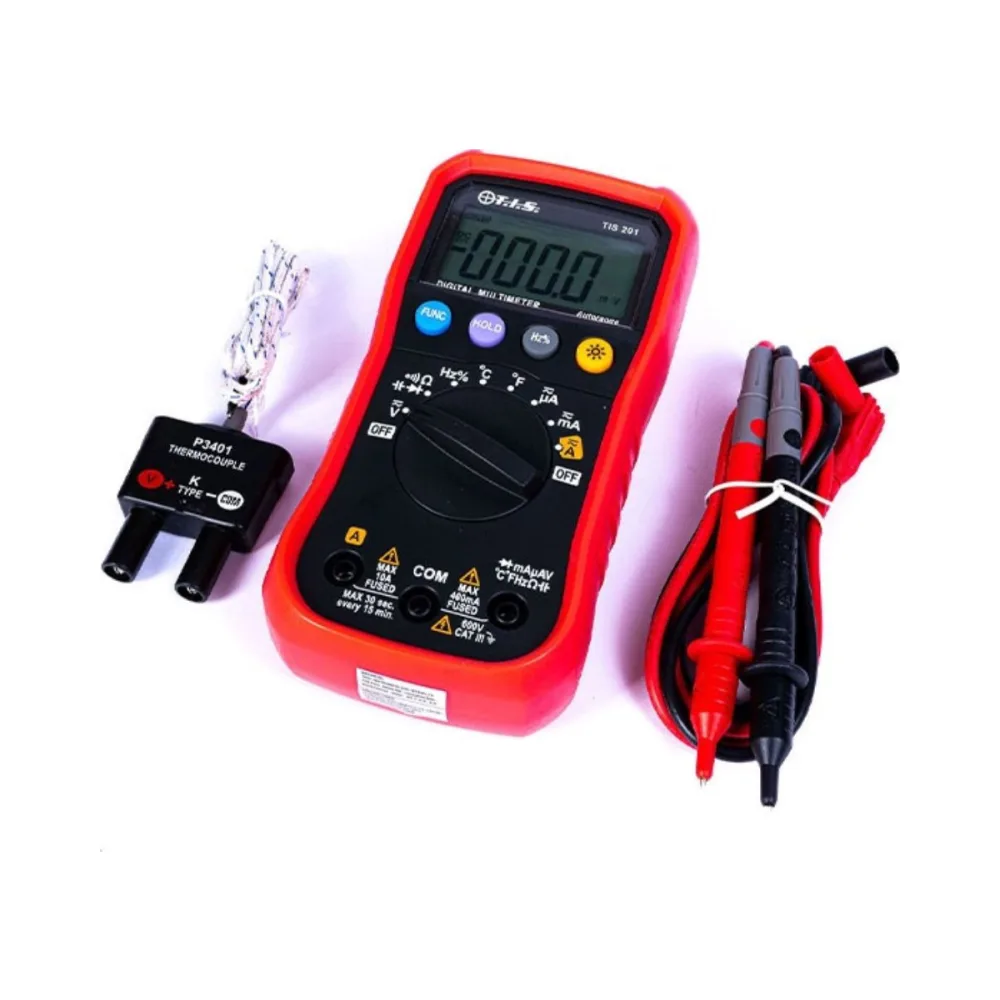

Auto-Ranging Multimeter with Temperature Measurement
TIS 201 – Compact, Versatile, and Feature-Packed for Precision Testing
Pocket-Sized TIS 201 Auto-Ranging Multimeter with Temperature Measurement, AC/DC Voltage & Current, Resistance and Capacitance
The TIS 201 Auto-Ranging Multimeter with Temperature is a compact yet powerful tool designed for electricians, engineers, and DIY users. With auto-ranging functionality, this device offers precise AC/DC voltage and current measurement, resistance testing up to 40MΩ, and capacitance, frequency, and duty cycle analysis.
Additionally, the built-in temperature measurement feature allows for accurate readings between -20°C and 1000°C (-4°F to 1832°F), making it an excellent choice for electrical and HVAC applications. Its rugged rubberized case, backlit 4000-count display, and continuity buzzer ensure durability, ease of use, and reliability in various environments.
Key Features
- Auto-ranging digital multimeter for precision testing
- AC/DC voltage measurement up to 600V
- AC/DC current measurement up to 10A
- Resistance testing up to 40MΩ
- Capacitance measurement from 5nF to 100µF
- Frequency measurement up to 10MHz
- Duty cycle measurement from 1% to 99%
- Temperature measurement from -20°C to 1000°C (-4°F to 1832°F)
- 4000-count digital display with backlit screen
- Diode test and continuity buzzer for troubleshooting
- Data hold function for easy recording
- Rugged rubberized case for added protection
Specifications
Voltage Measurement:
- DC Voltage: 400mV/4V/40V/400V/600V (±0.5%+3d)
- AC Voltage: 4V/40V/400V/600V (±1.2%+5d)
Current Measurement:
- DC Current: 400μA/4000μA/40mA/400mA (±1.0%+5d), 10A (±2.0%+10d)
- AC Current: 400μA/4000μA/40mA/400mA (±1.2%+5d), 10A (±2.5%+10d)
Other Measurements:
- Resistance: 400Ω – 40MΩ
- Capacitance: 5nF – 100µF
- Frequency: 0 – 10MHz
- Duty Cycle: 1% – 99%
- Temperature Measurement: -20°C to 1000°C (-4°F to 1832°F)
Compliance & Safety Standards
- Meets IEC and EN safety standards
- Durable and impact-resistant rubberized case
General Characteristics
- Power supply: 2 x 1.5V AAA batteries (included)
- Weight: 202g
- Dimensions: 150mm x 74mm x 41mm
Why Choose the TIS 201 Auto-Ranging Multimeter?
- Comprehensive testing functions – Covers voltage, current, resistance, capacitance, frequency, and temperature
- Auto-ranging for ease of use – Quickly adjusts to the correct measurement range
- Built for professionals and DIY users – Rugged, compact, and feature-packed
- Clear and bright display – 4000-count LCD with a backlight for improved readability
- Reliable and accurate – Ensures precision measurements across multiple parameters
Frequently Asked Questions (FAQs)
- What is the temperature range this multimeter can measure?
The TIS 201 can measure temperatures from -20°C to 1000°C (-4°F to 1832°F), making it useful for electrical and HVAC applications. - Does this multimeter support auto-ranging?
Yes, the TIS 201 is fully auto-ranging, allowing for quick and accurate measurements without manual adjustments. - Can I use this multimeter to measure frequency?
Yes, it can measure frequencies up to 10MHz, along with duty cycle percentages from 1% to 99%. - Does it have a backlit display?
Yes, the 4000-count LCD display includes backlight functionality, making it easy to read in low-light conditions. - What’s the SKU code and EAN barcode for this product?
- SKU: TIS 201
- EAN Barcode: 5060508210061
The TIS 201 Auto-Ranging Digital Multimeter is a compact, highly functional, and professional-grade tool, offering AC/DC voltage, current, resistance, capacitance, frequency, and temperature measurements. With its rugged design, backlit display, and multiple testing modes, it is ideal for electricians, engineers, and technicians.
