SPD 1 Module

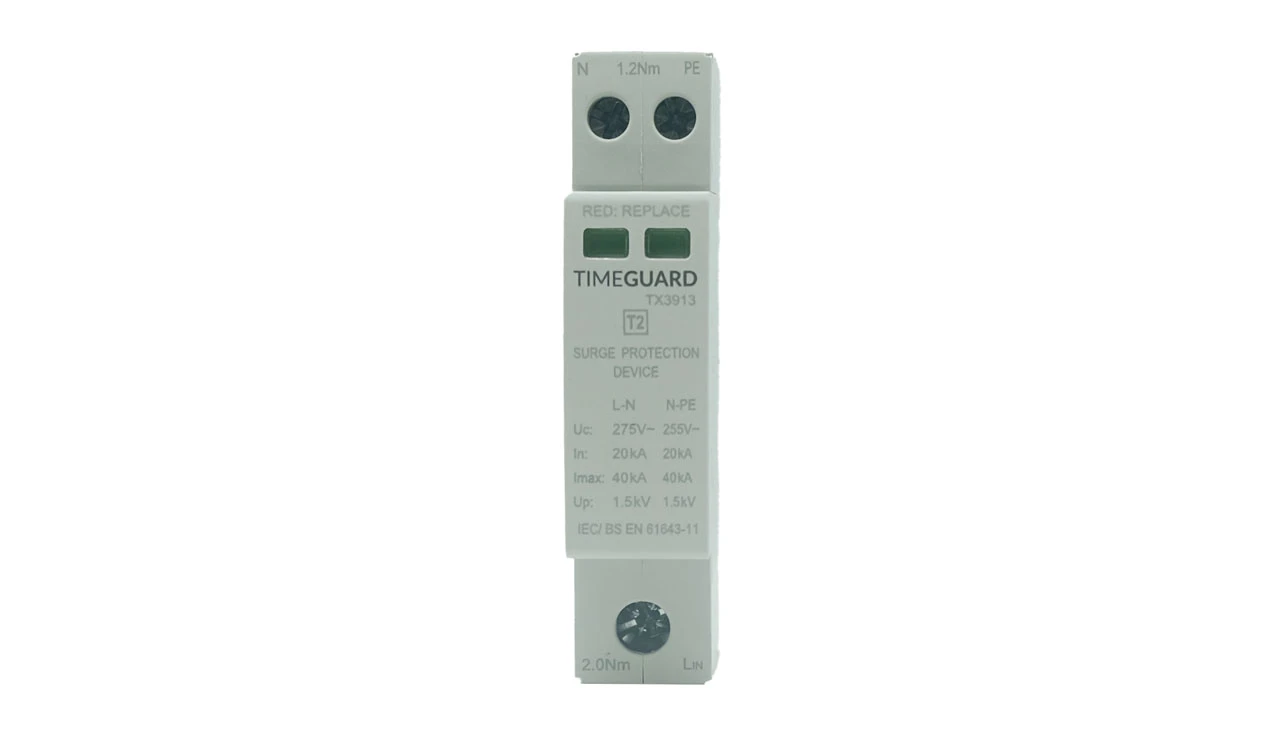

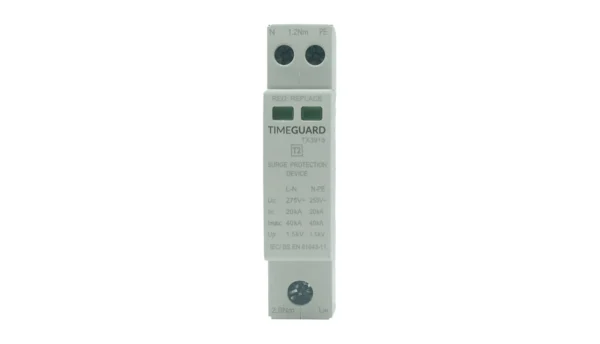

Timeguard TX3913 SPD 1 Module
The Timeguard TX3913 SPD 1 Module is a surge protection device designed to protect electrical installations from transient overvoltages caused by lightning strikes and switching surges.
Suitable for single-phase TN-S and TT earthing systems, this SPD helps safeguard connected equipment and circuits from voltage spikes that can cause damage, disruption or premature failure. It is an essential protective component for modern consumer units where sensitive electronics are present.
The TX3913 features a clear visual indication window, allowing installers and maintenance engineers to quickly verify operational status or identify when replacement is required.
With a compact 1-module wide design, the SPD is rated at 100A and does not require a separate backup protective device within the consumer unit. It connects directly onto the live busbar and is supplied complete with neutral and earth cables, enabling fast, clean installation.
Compatible exclusively with Timeguard TX series consumer units, the TX3913 provides reliable surge protection while maintaining space efficiency and compliance with current wiring regulations.
Key Features – Timeguard TX3913 SPD
- Suitable for single-phase TN-S and TT earthing systems
- Protects against voltage transients and surge events
- Helps reduce risk of damage from lightning and switching surges
- Visual status indication window for normal or fault condition
- 1 module wide compact design
- 100A rated – no separate backup device required
- Direct live busbar connection
- Supplied with neutral and earth connection cables
- Compatible with Timeguard TX consumer units only
- 5-year manufacturer guarantee
Technical Specification – Timeguard TX3913 SPD
- Product Type: Surge Protection Device (SPD)
- Phases: Single phase
- Earthing Systems: TN-S, TT
- Rated Current: 100A
- Module Width: 1 Module
- Mounting: Busbar mounted
- Status Indication: Visual window
- Connections Supplied: Neutral and Earth leads
- Compatibility: Timeguard TX consumer units only
- Guarantee: 5 Years
