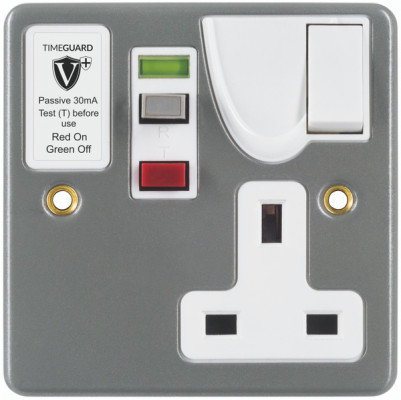

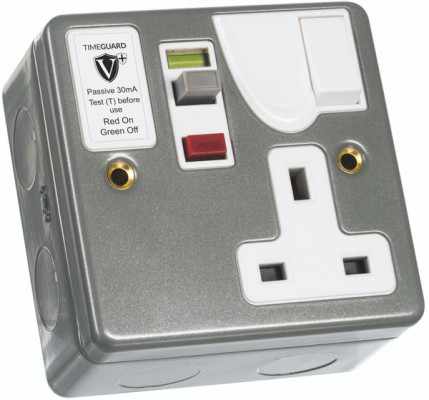

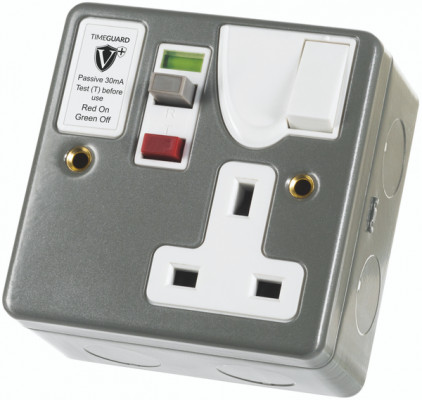

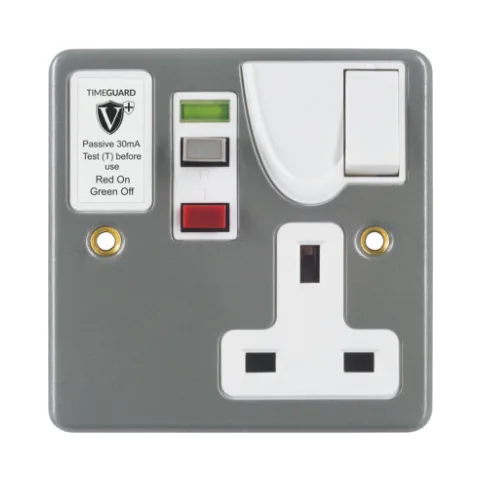

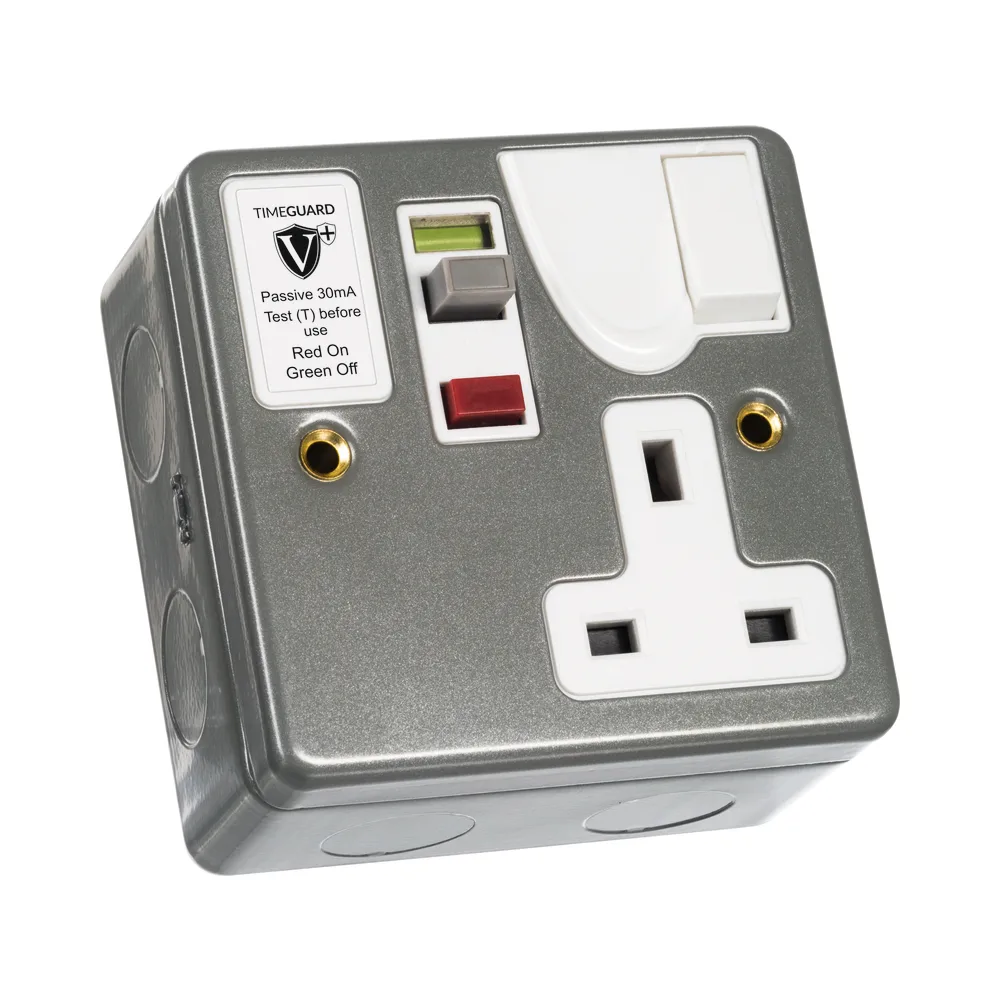

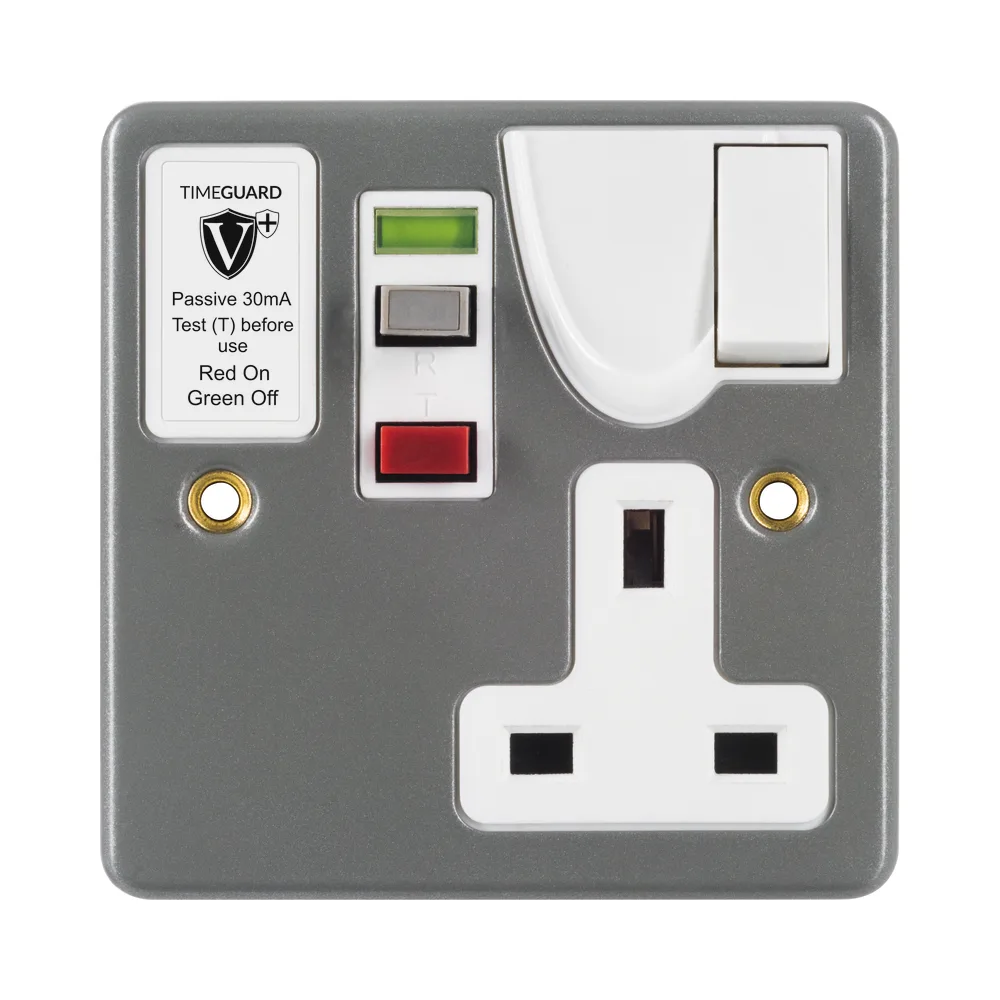

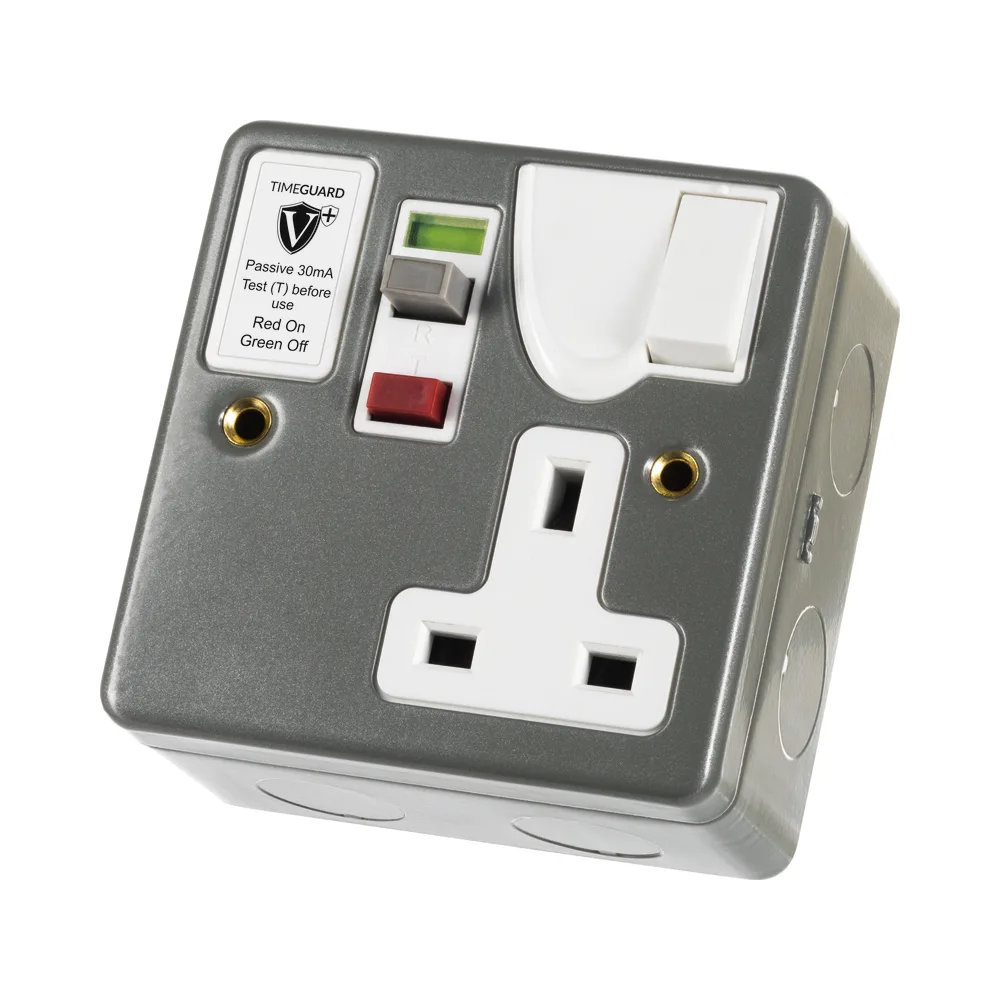

Enhanced Safety with Dual Flag RCD Technology – Timeguard RCD04MPVN RCD 1 Gang Metal Socket
The Timeguard RCD04MPVN RCD 1 Gang Metal Socket provides reliable electrical protection, ensuring enhanced safety for appliances and installations. Featuring Dual Flag Technology, this RCD unit offers clear visual status indicators, allowing users to easily identify power conditions.
Compliant with BS7288:2016, this Type A RCD is engineered to reduce nuisance tripping caused by RF interference from mobile devices and electronic equipment. Unlike LED indicators, the mechanical flag system offers consistent, long-lasting performance by visually displaying whether the power supply is ON (Red Flag) or OFF (Green Flag).
Designed for residential, commercial, and industrial installations, this passive (latching) RCD automatically restores power after a supply interruption, making it ideal for essential appliances. It also provides protection against lost neutral faults and pulsating DC earth faults, ensuring maximum electrical safety.
Key Features – Timeguard RCD04MPVN RCD 1 Gang Metal Socket
- Dual Flag Technology – Clearly displays power status:
- Red Flag – Device is ON with a live supply
- Green Flag – Device is safe with power OFF
- High EMC Immunity – Minimises nuisance tripping from RF interference
- BS7288:2016 & BS1363-2 Compliant – Meets the latest IET Wiring Regulations
- Lost Neutral & Pulsating DC Earth Fault Protection – Ensures continued safety
- Latching (Passive) RCD – Automatically restores power after a supply interruption
- Durable Metal Construction – Built for long-term reliability
- Fits a Standard 40mm Depth Back Box – Allows for straightforward installation
- Type A RCD – Provides protection against AC and pulsating DC residual currents
Technical Specifications – Timeguard RCD04MPVN RCD 1 Gang Metal Socket
- Operating Voltage: 230V AC
- Frequency: 50Hz
- Installation Type: Surface or Recessed
- Earth Class Rating: Class I
- Operating Temperature: -5°C to 40°C
- Back Box Minimum Depth: 40mm
- Operational Classification: Latching (Passive)
- Rated Trip Current: 30mA
- Trip Speed: <40msec at 150mA residual current
- Mounting Hole Centres: 60mm
- Cable Entry Points: Back Entry, Side, Top, and Bottom Knockouts
- Dimensions: Height 87mm, Width 87mm, Depth 60mm
Why Choose This Product?
The Timeguard RCD16MLN Valiance+® Passive RCD Fused Connection Unit offers advanced electrical safety, reducing electrocution risks while ensuring automatic power restoration after interruptions. With rugged metal construction, high EMC immunity, and innovative Dual Flag Technology, it is ideal for both residential and commercial applications.
