PIR Presence Detector – Flush Mount

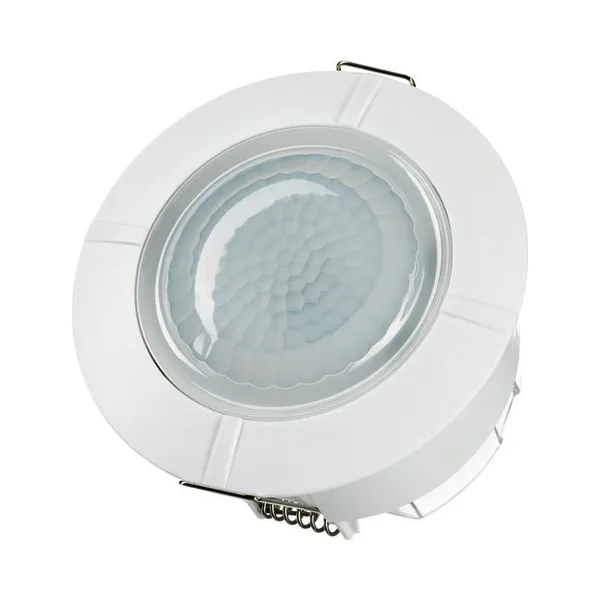

Timeguard PIR Presence Detector – Flush Mount
The Timeguard PIR Presence Detector takes occupancy detection to the next level, delivering reliable lighting and load control with optimum coverage. Designed with a slimline sensor head and flush-mount format, it provides discreet installation while maintaining high-performance motion and presence detection.
With a full 360° detection angle, the detector offers up to 8m motion detection and 4m presence detection at a mounting height of 3 metres. Adjustable time and lux settings allow precise control, while manual override provides added flexibility for everyday use.
Key Features – Timeguard PIR Presence Detector – Flush Mount
- Slimline flush-mount PIR presence detector
- 360° detection coverage
- Motion detection up to 8m
- Presence detection up to 4m (at 3m mounting height)
- Adjustable time delay: 3 seconds to 18 minutes
- Adjustable light level (LUX): 1–1000 LUX
- Manual override facility
- Flush mounting with 75mm ceiling cut-out
- IP44 rated (internal use only)
Load Ratings
- Total PIR switching capacity:
- 2000W filament / halogen
- 500W fluorescent / low energy
- 250W LED lighting
- 75W fan
Technical Specifications
- Operating voltage: 230V AC
- Channels: 1 channel
- LED lighting load (max.): 250W
- Detection angle: 360°
- Light on time (minimum): 3 seconds
- Maximum adjustable detection time: 18 minutes
- Permanent ON facility: Electronic
- Weatherproof rating: IP44
- Dimensions (H × W × D): 71 × 84 × 84 mm
