Surge Devices 10812/LED/ENCM 50kA Type 1+2+3 Single Phase SPD with LED Indication & 63A MCB

Description

10812/LED/ENCM 50kA Type 1+2+3 Single Phase SPD with LED Indication & 63A MCB

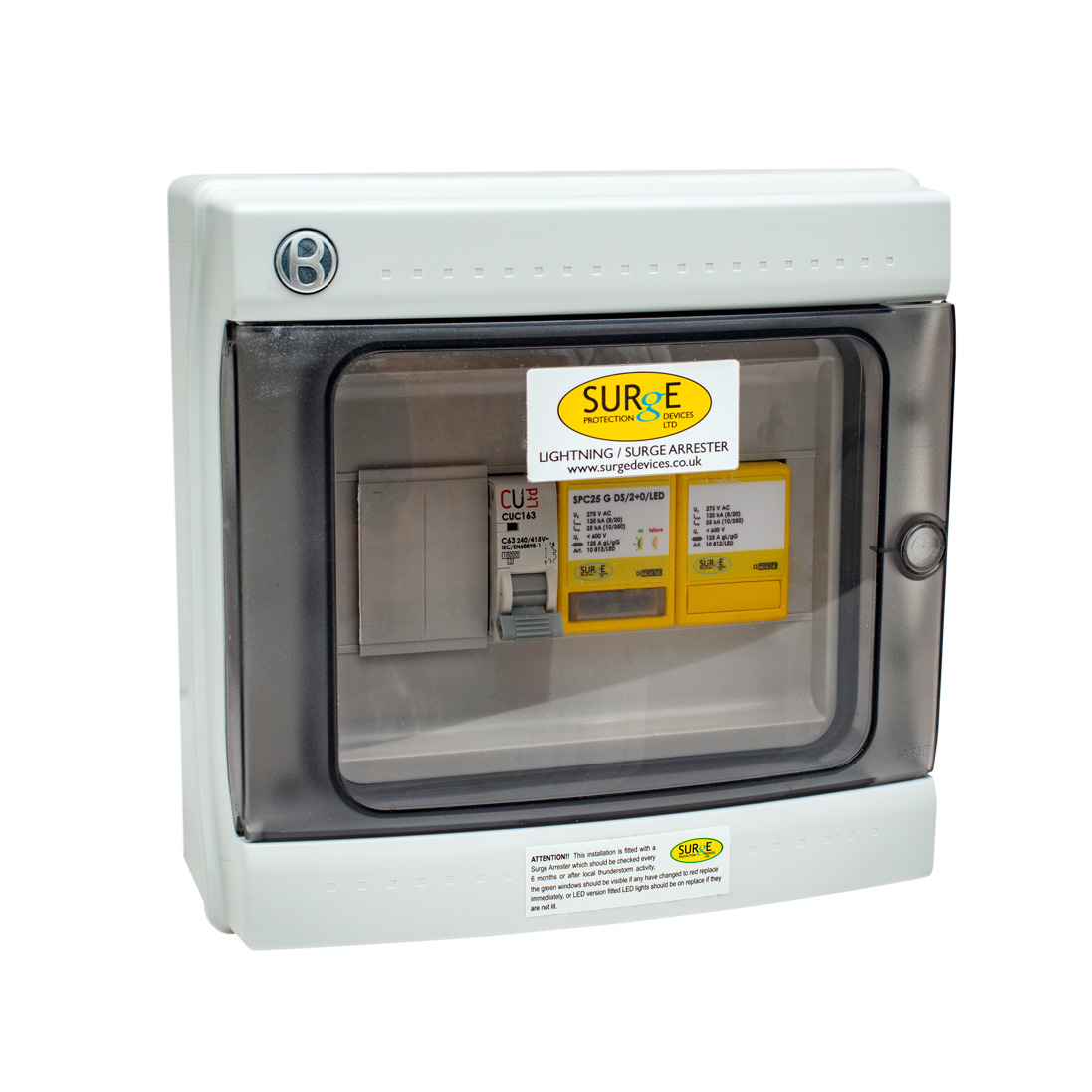

Enclosed Single Phase Surge Protection Device – Type 1+2+3 SPD with Breaker for AC Installations

The 10812/LED/ENCM from Surge Devices is a high-performance Single Phase Type 1+2+3 SPD rated at 50kA, supplied pre-wired in a tough IP65 polycarbonate enclosure with a 63A MCB. It offers full-mode protection, LED indication, and remote signalling, ideal for TN-S and TN-C-S installations.

Key Features – 10812/LED/ENCM SPD Kit

• Type 1+2+3 all-mode surge arrester – L-N, L-PE, N-PE protection
• High discharge capacity – 50kA (10/350µs waveform)
• Pre-installed 63A MCB for circuit protection
• LED visual status display for clear monitoring
• Remote changeover contact for alarms or BMS systems
• Ultra-fast response: <25ns
• Let-through voltage: <700V
• Pre-wired inside IP65 polycarbonate enclosure
• Suitable for TN-S and TN-C-S single phase systems
• Compliant with BS EN 61643-11

Technical Overview – 10812/LED/ENCM SPD

• Model: 10812/LED/ENCM (SPD + 63A MCB in IP65 enclosure)
• Surge Capacity: 50kA (10/350µs)
• Nominal Discharge: 20kA (8/20µs)
• Voltage Protection Level (Up): <700V
• Max Continuous Operating Voltage (Uc): 275V AC
• Temporary Overvoltage (TOV): 335V / 5s
• Response Time: <25ns
• Remote Signalling: Changeover contact
• Backup Protection: 63A MCB (included)
• Cable Size: Min. 16mm²
• Mounting: DIN rail inside IP65 enclosure

What’s Included – Single Phase Type 1+2+3 SPD with MCB in IP65 Enclosure

• 10812/LED SPD module
• Pre-installed 63A MCB
• IP65 polycarbonate enclosure
• LED status window
• Remote output terminals

Why Choose This Single Phase Type 1+2+3 SPD with MCB in IP65 Enclosure?

This complete SPD kit includes a factory-fitted 63A MCB, reducing installation time and panel complexity. With LED indication, remote alarm contact, and a durable IP65 enclosure, it’s a convenient and dependable surge solution for single phase systems.

Guarantee & Compliance

• Made in Europe
• Conforms to BS EN 61643-11
• Long-life design for consistent protection
• Fully supported by Surge Devices technical team

Summary

The 10812/LED/ENCM offers 50kA all-mode surge protection, LED status, and remote monitoring. Pre-wired with a 63A MCB in a weatherproof IP65 enclosure, it’s a fast-to-install, full-featured SPD kit for TN-S and TN-C-S single phase setups.

800912ENCM – SPD Kit with 63A MCB & IP65 Enclosure

The 800912ENCM is a complete surge protection kit. It combines the 50kA Type 1+2+3 SPD with a factory-fitted 63A MCB inside a durable IP65 polycarbonate enclosure. It’s the ideal all-in-one solution for quick, compliant installs.

If you don’t need the MCB, consider 800912ENC. For panel integration only, go to 800912.
